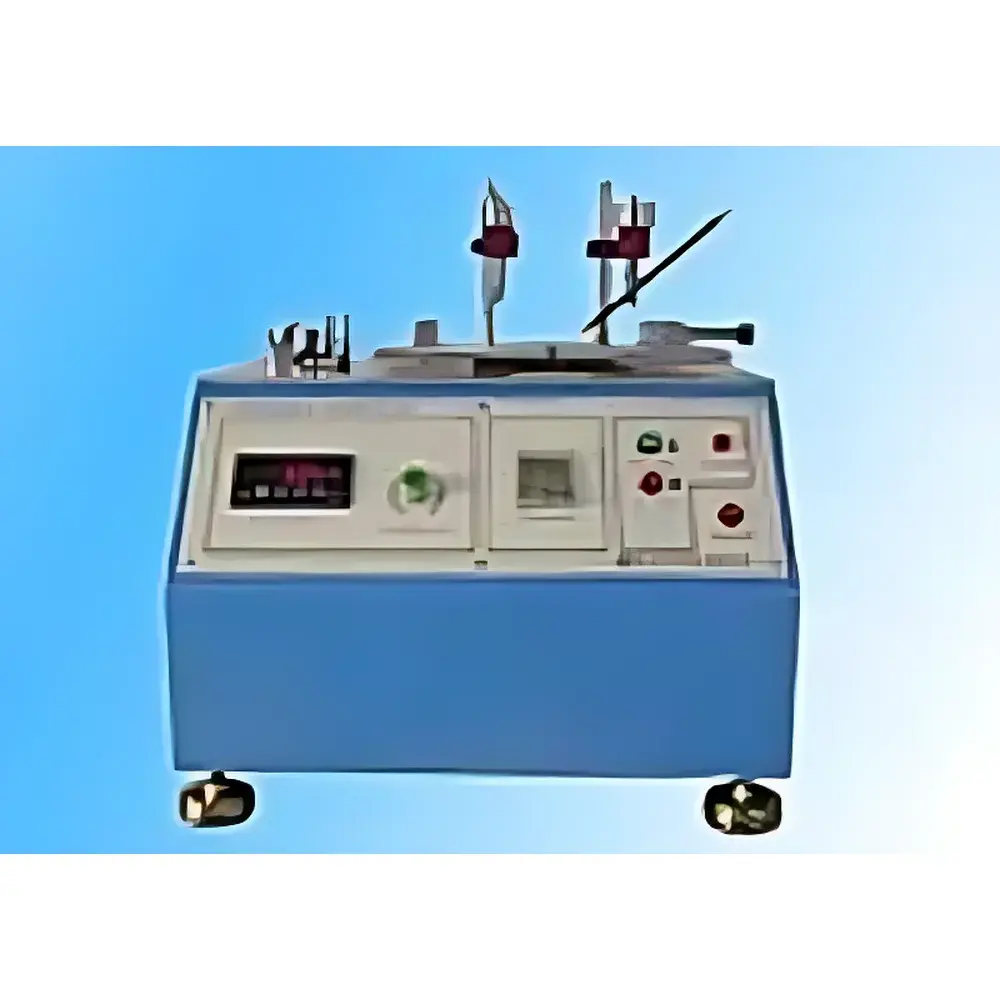

Jianhu JH-MA1000 Abrasion Tester for Surface Coating Durability Evaluation

Overview

The Jianhu JH-MA1000 Abrasion Tester is an electromechanical surface durability evaluation instrument engineered for controlled reciprocating or rotational abrasion testing of coated and printed surfaces on consumer electronics and plastic components. It operates on the principle of standardized mechanical wear simulation—applying calibrated normal force via precision-machined weights while actuating a test stylus (e.g., pencil lead, rubber eraser, or cloth-wrapped applicator) across a defined stroke length at adjustable frequency. This methodology aligns with widely referenced industrial test protocols including ASTM D5178 (pencil hardness), ISO 1518-1 (rubber eraser abrasion), and internal OEM specifications for ink adhesion and coating integrity validation in high-volume manufacturing environments such as mobile device assembly, audiovisual equipment production, and handheld electronic enclosures.

Key Features

• Precision Japanese-sourced gearmotor and cam-driven transmission system ensures consistent stroke repeatability and minimal torque fluctuation over extended test cycles.
• Modular fixture interface accommodates three standardized test configurations: 45° pencil hardness indentation fixture (compliant with ASTM D3363), rubber eraser abrasion fixture (aligned with ISO 1518-1 Annex A), and alcohol-rub resistance fixture using cotton swab or lint-free cloth under controlled load.
• Analog speed adjustment via front-panel rotary knob enables fine-tuned rotational velocity control between 10 and 120 rpm—critical for simulating varying usage intensities without digital control latency.
• Interchangeable calibrated weight set (10 g to 500 g) allows incremental load application with traceable mass tolerance; total test load range extends from 80 g to 1000 g through combination stacking.
• Rigid aluminum alloy frame and vibration-damped base minimize parasitic resonance during operation, supporting stable measurement outcomes across multiple concurrent test runs.

Sample Compatibility & Compliance

The JH-MA1000 accepts flat or gently curved substrates up to 5 kg in mass and ≤120 mm in maximum planar dimension. Typical sample types include injection-molded ABS/PC housings, anodized aluminum bezels, UV-cured ink-printed keypads, and plasma-treated polycarbonate display covers. While not certified to IEC 60068-2-70 or MIL-STD-810G as a standalone qualification tool, its operational parameters are routinely referenced in customer-specific validation protocols requiring documented abrasion resistance data for QC release. The unit complies with CE marking requirements for low-voltage directive (2014/35/EU) and electromagnetic compatibility (2014/30/EU), and supports GLP-aligned documentation when integrated into laboratory quality management systems.

Software & Data Management

The JH-MA1000 is a manually operated benchtop instrument without embedded microprocessor control or digital data logging. All test parameters—including applied load, stroke amplitude, rotational speed, and cycle count—are recorded externally by the operator using standardized test sheets or LIMS-integrated forms. For laboratories requiring audit-ready records, the instrument is compatible with external cycle counters (e.g., Omron K3HB-X or SICK C40 series) that provide TTL pulse output synchronized to each full oscillation. When deployed in regulated environments, users may configure electronic notebooks (e.g., LabArchives or Benchling) to capture metadata, pass/fail criteria, and image-based post-test evaluation per FDA 21 CFR Part 11 guidelines—provided signature workflows and change-control policies are implemented at the institutional level.

Applications

• Validation of ink adhesion strength on plastic casings for smartphones, tablets, and wearable devices prior to mass production ramp-up.
• Comparative assessment of topcoat formulations (e.g., acrylic vs. silicone-based hard coats) under identical mechanical stress profiles.
• Quality gate testing for electroplated trim parts subjected to repeated tactile interaction in automotive HMI interfaces.
• Process capability studies for UV-curing line optimization—correlating irradiance dose with measured abrasion resistance after accelerated aging.
• Supplier qualification audits where third-party vendors must demonstrate conformance to OEM-defined surface durability thresholds (e.g., ≥100 cycles at 500 g load without visible substrate exposure).

FAQ

Is the JH-MA1000 suitable for testing curved surfaces?

Yes—within limits. The standard fixtures accommodate gentle curvature (radius ≥40 mm); however, samples with sharp radii or compound curvature require custom fixture design and are not covered under standard warranty support.

Does the instrument meet ISO 5470-1 for abrasion resistance testing?

No. ISO 5470-1 specifies a linear reciprocating motion with pneumatic load control and automated cycle counting. The JH-MA1000 uses rotary motion and manual load application; it serves as a functional alternative for internal process control—not formal certification.

Can test results be exported directly to Excel or LIMS?

Not natively. As a non-digital instrument, data entry remains manual. Integration with external counters or PLC-based automation requires user-configured hardware interfacing and is outside the scope of factory-supplied documentation.

What maintenance is required to ensure long-term accuracy?

Monthly inspection of cam follower lubrication, biannual verification of weight calibration against NIST-traceable standards, and annual replacement of drive belt (part no. JH-BT-01) are recommended per the maintenance log included in the operation manual.
