Jianhu JH-Series Xenon Arc Weathering Test Chamber with Precision Data Logging, Wide-Temperature Range & High-Accuracy Humidity Control

Overview

The Jianhu JH-Series Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed for accelerated weathering evaluation of materials under controlled solar-spectrum irradiation, temperature, and humidity conditions. Based on the ISO 4892-2, ASTM G155, and SAE J2527 standards, it employs air-cooled or water-cooled xenon arc lamps to replicate full-spectrum sunlight—including UV, visible, and near-infrared radiation—with spectral power distribution closely matching terrestrial solar irradiance (AM1.5). The chamber integrates a closed-loop climate control architecture that maintains precise thermal and hygrometric profiles across wide operational ranges, enabling reproducible simulation of diverse climatic stressors—from tropical monsoons to arid desert cycles. Its core function is to quantify material degradation kinetics—such as color fading, gloss loss, chalking, cracking, and tensile strength reduction—through time-resolved exposure under standardized or user-defined test protocols. This enables R&D labs, QC departments, and certification bodies to assess service life expectancy, validate formulation changes, and support compliance documentation for automotive, aerospace, coatings, plastics, textiles, and photovoltaic applications.

Key Features

• High-fidelity xenon arc light source with calibrated spectral output, adjustable irradiance (150–736 W/m²) via electronic feedback control and real-time UV monitoring.
• Wide-temperature operating range from –40 °C to +100 °C, achieved through dual-stage refrigeration, electric heating, and optimized airflow design ensuring uniformity ≤ ±1.5 °C across test space.
• Precision humidity control system with PID-regulated steam generator and desiccant-assisted drying, maintaining 20–95 %RH at ±2 %RH accuracy over full range.
• Integrated multi-parameter data logging system compliant with GLP principles: records irradiance (W/m²), chamber temperature (°C), relative humidity (%RH), black-panel or black-standard temperature (°C), and exposure duration (h) at user-configurable intervals (1 s to 60 min).

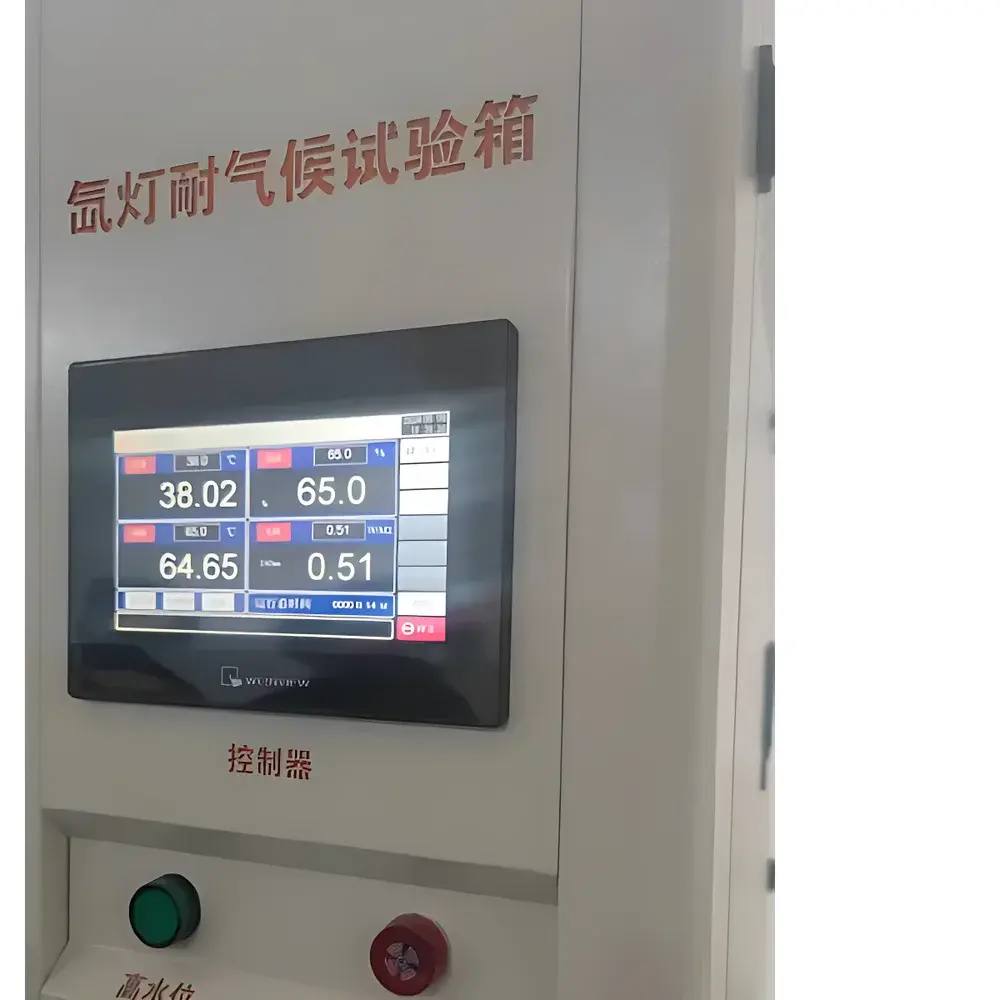

• Touchscreen HMI with embedded test program editor supporting multi-step cycles (light/dark, wet/dry, temperature ramping), alarm thresholds, and event-triggered data capture.
• Stainless-steel interior, quartz-filtered lamp housing, and corrosion-resistant construction meeting IP54 enclosure rating for laboratory durability.

Sample Compatibility & Compliance

The JH-Series accommodates flat-panel specimens up to 600 mm × 600 mm (custom sizes available), with optional specimen racks, rotating turntables, and back-spray nozzles for cyclic moisture application per ISO 4892-2 Method A/B. It supports standard specimen holders conforming to ASTM D7869 and ISO 11341 geometries. All operational parameters are traceable to NIST-traceable calibration references. The system meets essential requirements for ISO/IEC 17025-accredited laboratories and supports audit-ready documentation for FDA 21 CFR Part 11 (when paired with validated software), IEC 60068-2-5, GB/T 16422.2, and JIS D 0205. Optional third-party calibration certificates and IQ/OQ documentation packages are available upon request.

Software & Data Management

The chamber operates with Jianhu’s proprietary WeatherLink™ PC software (Windows 10/11 compatible), providing remote monitoring, real-time graphing, automated report generation (PDF/CSV), and database-backed storage with role-based access control. Data files include embedded metadata (operator ID, test ID, calibration dates, lamp hours) and support digital signature workflows. Audit trails record all parameter modifications, start/stop events, and calibration actions—fully compliant with GLP and GMP data integrity expectations. Export formats align with LIMS integration requirements (e.g., ASTM E1482, SDTM). Firmware updates are delivered via secure HTTPS channel with version-controlled release notes.

Applications

• Automotive: Accelerated aging of interior trims, dashboards, seals, and exterior coatings per OEM specifications (e.g., GMW14124, Ford CETP 00.00-L-467).
• Architectural coatings & plastics: Evaluation of UV resistance, chalking resistance, and gloss retention in accordance with AAMA 2605 and ISO 11341.
• Textiles & geotextiles: Colorfastness assessment under simulated daylight/humidity cycling (ISO 105-B02).
• Photovoltaic encapsulants & backsheets: Degradation profiling of EVA, POE, and fluoropolymer layers under UV + damp heat stress (IEC 61215-2 MQT03).
• Medical device packaging: Validation of barrier integrity and print durability during shelf-life studies (ISO 11607-1).

FAQ

What xenon lamp types are supported?

Standard configurations use 1.8 kW or 6 kW air-cooled or water-cooled xenon lamps with borosilicate outer filters (e.g., Daylight-Q/B, Window Glass-Q/B) to match specific spectral requirements.

Is the data logging system compliant with 21 CFR Part 11?

Yes—when deployed with validated WeatherLink™ software, electronic signatures, audit trail, and user access controls meet Part 11 requirements for regulated environments.

Can the chamber perform dark-cycle condensation per ISO 4892-2 Method B?

Yes—optional spray nozzles, condensation trays, and programmable dark-phase humidity ramping enable full compliance with Method B testing.

What maintenance intervals are recommended for lamp calibration and filter replacement?

Xenon lamps require recalibration every 1,000 hours; outer filters should be replaced every 1,500 hours; humidity sensors calibrated quarterly using saturated salt solutions.

Does the system support custom test profiles beyond standard ISO/ASTM methods?

Yes—users can define multi-segment profiles with independent control of irradiance, temperature, humidity, spray duration, and cycle count via the HMI or WeatherLink™ software.
