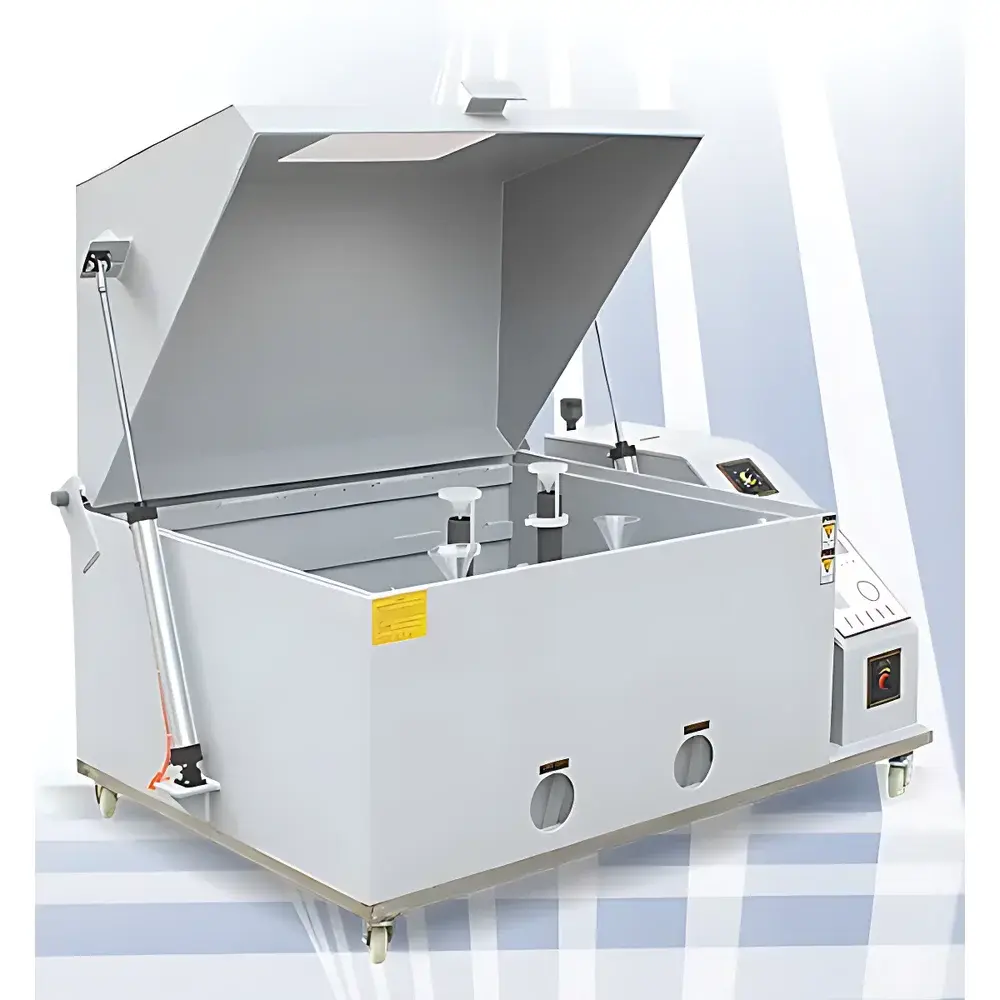

Jianhu JH-SSX Series Cyclic Salt Spray Test Chamber with Temperature & Humidity Control

Overview

The Jianhu JH-SSX Series Cyclic Salt Spray Test Chamber is an engineered environmental test system designed for accelerated corrosion evaluation under dynamically alternating conditions. Unlike conventional steady-state salt fog chambers governed solely by ASTM B117, the JH-SSX integrates programmable temperature, humidity, and atmospheric phase sequencing—enabling precise replication of real-world corrosive exposure cycles such as coastal maritime environments, industrial urban atmospheres, or automotive under-hood thermal-humidity transients. Its core operational principle relies on controlled aerosol generation via compressed-air-assisted atomization, followed by regulated chamber conditioning across four distinct phases: salt spray, dry-off, high-humidity soak, and saturated condensation. This multi-stage cyclic protocol accelerates electrochemical degradation mechanisms—including chloride-induced pitting, crevice corrosion, and galvanic coupling—while maintaining metrological traceability to international standards. The chamber’s double-wall insulated stainless steel construction, PID-controlled heating/cooling modules, and calibrated humidity generation system ensure long-term stability in setpoint maintenance (±0.5°C temperature uniformity; ±2% RH accuracy), essential for GLP-compliant test repeatability.

Key Features

• Programmable multi-phase cycling: Independent control of salt spray duration (1 min–999 h), dry phase (10°C–60°C, <30% RH), humid phase (30–98% RH, 25–60°C), and condensation phase (≥95% RH at elevated dew point)
• High-reproducibility aerosol delivery: Precision-machined Teflon-coated nozzles operating at 0.7–1.0 kgf/cm² pressure, delivering consistent 1–2 mL/80 cm²·h deposition per ASTM B117 verification protocol
• Corrosion-resistant chamber architecture: 304 stainless steel inner chamber and PVC-coated outer shell; acid-resistant plumbing and sealed electrical conduits
• Integrated de-misting exhaust: Pneumatically actuated air-squeeze purge system eliminates residual fog post-test without manual intervention or chamber opening
• Dual-sensor environmental monitoring: Redundant PT100 temperature sensors and capacitive RH transducers with NIST-traceable calibration certificates available upon request
• Intuitive 7-inch TFT touchscreen HMI: Preloaded with standard test profiles (ISO 9227 cyclic A/B/C, GB/T 2423.18, VW PV1210), user-defined sequence editor, and real-time data logging

Sample Compatibility & Compliance

The JH-SSX accommodates test specimens up to 600 mm × 450 mm × 400 mm (W×D×H) and supports standardized sample racks conforming to ASTM G85 Annex A5 (cyclic acidified salt fog). It is validated for testing metallic coatings (electroplated Zn/Ni, Al-clad alloys), painted automotive components, printed circuit board assemblies, aerospace fasteners, and marine-grade stainless steels. Regulatory alignment includes full functional compliance with ASTM B117 (neutral salt spray), ISO 9227 (acetic acid/salt spray variants), GB/T 2423.17 & 2423.18 (Chinese national standards), IEC 60068-2-11, and JIS Z2371. Optional IQ/OQ documentation packages support FDA 21 CFR Part 11 readiness and ISO/IEC 17025 laboratory accreditation requirements. All units undergo factory performance validation using certified reference salts (NaCl ≥ 99.9% purity) and gravimetric deposition verification prior to shipment.

Software & Data Management

Equipped with Jianhu’s proprietary TestMaster™ v4.2 control software, the JH-SSX enables remote operation via Ethernet or RS485, real-time graphing of chamber parameters (temperature, RH, spray status), and export of CSV-formatted test logs timestamped to UTC. Audit trails record all operator actions, parameter changes, and alarm events with user ID tagging—fully compliant with GLP and GMP data integrity expectations. Optional add-ons include PDF report auto-generation (with digital signature), cloud-based data backup (AWS-hosted), and integration with LIMS platforms via OPC UA or Modbus TCP protocols. Firmware updates are delivered via secure HTTPS channel with SHA-256 signature verification.

Applications

• Automotive Tier-1 suppliers validating corrosion resistance of brake calipers, chassis components, and EV battery enclosures per SAE J2334 and GMW14872
• Aerospace manufacturers qualifying fastener coatings and composite layup adhesives under MIL-STD-810H Method 509.6
• Electronics OEMs performing IPC-J-STD-006 and JEDEC JESD22-A108 qualification of solder finishes and conformal coatings
• Academic research labs studying chloride diffusion kinetics in reinforced concrete or weathering steel using custom multi-cycle profiles
• Medical device firms assessing passivation layer integrity on stainless steel surgical instruments per ISO 13485 Annex C

FAQ

What standards does the JH-SSX meet for cyclic corrosion testing?

It complies with ISO 9227 (cyclic A/B/C), ASTM G85 Annexes A1–A5, GB/T 2423.18, and VW PV1210. Full validation reports are provided with each unit.
Can the chamber operate continuously in neutral salt spray mode only?

Yes—the controller supports standalone ASTM B117 operation with adjustable spray duration, temperature setpoint (35°C ± 2°C), and deposition rate verification.
Is third-party calibration certification available?

NIST-traceable calibration certificates for temperature, humidity, and deposition rate are available as optional factory services (ISO/IEC 17025 accredited provider).
What maintenance intervals are recommended for long-term reliability?

Daily: Drain sump tank and inspect nozzle; Quarterly: Replace humidifier wick and verify sensor drift; Annually: Full system recalibration and pressure regulator servicing.
Does the system support automated test reporting for quality audits?

Yes—TestMaster™ generates PDF reports with embedded metadata, electronic signatures, and revision-controlled templates aligned with ISO 9001 Clause 8.2.3 requirements.
