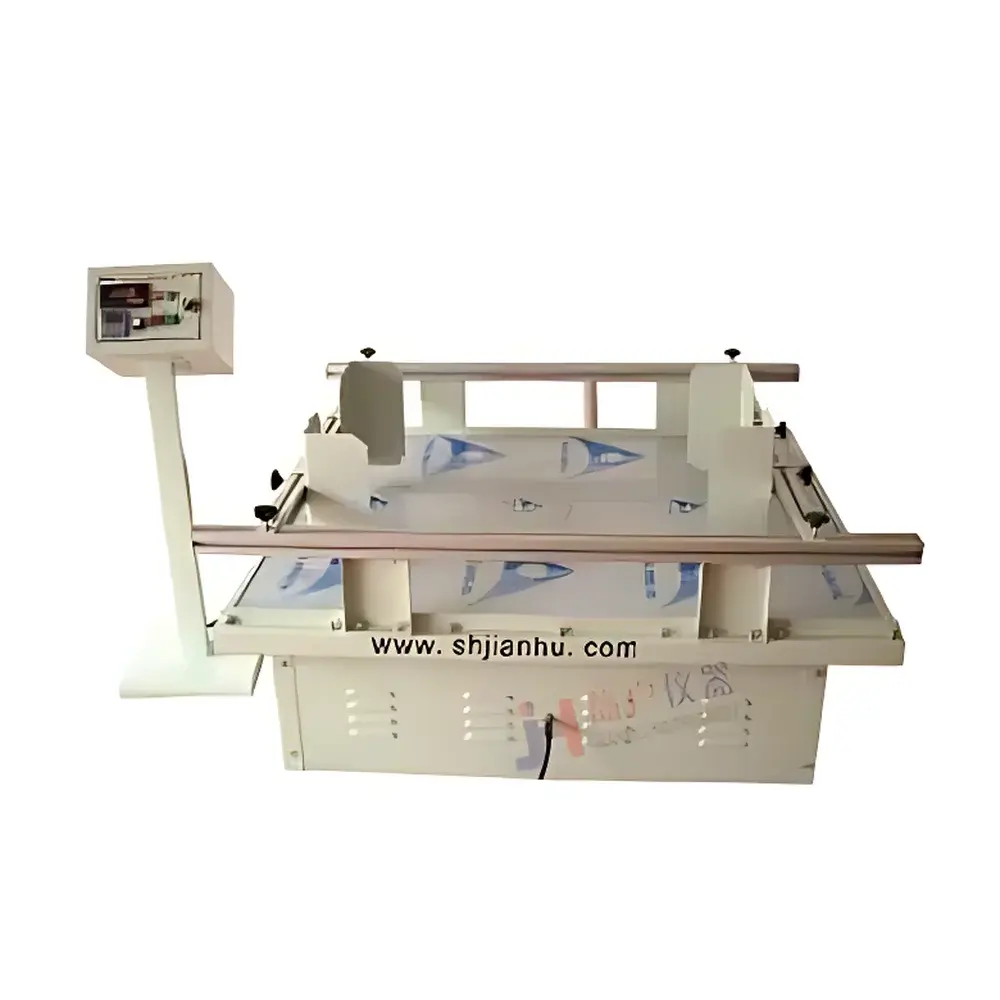

Jianhu JYQ Series Transport Simulation Vibration Tester

Overview

The Jianhu JYQ Series Transport Simulation Vibration Tester is an electromechanical laboratory instrument engineered to replicate the dynamic mechanical stresses encountered during road, rail, and maritime freight transport. It operates on a reciprocating vibration principle—generating controlled linear oscillations along a single horizontal axis—to subject packaged goods to repeatable, standardized motion profiles. This methodology aligns with established physical modeling of real-world logistics environments, where vertical and lateral accelerations dominate package-level fatigue mechanisms. Unlike random or multi-axis shakers, the JYQ’s deterministic reciprocating motion provides high reproducibility for comparative durability assessment, making it particularly suitable for routine QC screening, packaging design validation, and pre-shipment qualification testing in regulated industrial settings.

Key Features

• Reciprocating vibration mechanism driven by a high-torque DC motor with continuous speed regulation via precision multi-turn potentiometer—enabling stable frequency output across the full 2–5 Hz range (120–300 RPM).
• Robust structural architecture: heavy-duty channel-steel base frame integrated with vibration-damping rubber mounts and synchronous low-noise timing belt transmission—ensuring mechanical stability and acoustic performance below 65 dB(A) at 1 m distance.
• Stainless-steel test platform (1000 × 1000 mm) with T-slot configuration for flexible fixture mounting; guided linear clamping system with mechanical lock enables rapid, repeatable sample positioning without tooling.
• Digital frequency display with ±0.1 Hz resolution and programmable timer (1 s – 99 h) featuring non-volatile memory and auto-shutdown functionality upon cycle completion.
• Modular load capacity variants (100 kg, 200 kg, 300 kg, and 500 kg rated models) accommodate diverse product footprints—from small electronics to assembled furniture units—while maintaining consistent acceleration amplitude (25.4 mm peak-to-peak).

Sample Compatibility & Compliance

The JYQ Series accommodates packaged consumer goods up to 500 kg, including but not limited to: retail-ready electronics, toy sets in corrugated shipping containers, ceramic tableware in foam-lined cartons, flat-pack furniture assemblies, and promotional gift kits. Its fixed-amplitude, fixed-frequency reciprocating profile satisfies the minimum test requirements of multiple international transport simulation standards—including ISTA 1A (for individual packaged-products shipped via parcel carriers), ASTM D999 (standard test method for vibration testing of shipping containers), EN 71-1 (mechanical and physical properties of toys), GB/T 4857.2 (Chinese national standard equivalent to ISO 2247), and ISO 2247 (vibration testing of packaged products). While not certified for GLP or GMP-regulated validation protocols, the instrument supports documented test execution when paired with external calibration records and operator logbooks compliant with internal QA procedures.

Software & Data Management

The JYQ Series operates as a standalone hardware platform with no embedded microprocessor-based control software or data logging capability. All operational parameters—including frequency setpoint, elapsed time, and cycle count—are configured and monitored via front-panel analog/digital interfaces. For laboratories requiring audit-trail compliance (e.g., under FDA 21 CFR Part 11 or ISO/IEC 17025), integration with external PC-based data acquisition systems is supported via optional analog output signals (0–10 V DC proportional to actual frequency and runtime). Calibration verification must be performed annually using traceable vibration metrology equipment per ISO 16063-21, with certificates retained as part of the instrument’s quality record.

Applications

• Pre-shipment validation of primary and tertiary packaging integrity for e-commerce fulfillment centers.
• Comparative analysis of cushioning material performance (e.g., EPS vs. molded pulp vs. air pillows) under standardized vibration exposure.
• Structural fatigue assessment of assembled products—such as hinges on folding furniture or solder joints on PCB-mounted devices—prior to mass production release.
• Root-cause investigation of field failures attributed to transit damage, supporting corrective action in packaging engineering workflows.
• Educational use in packaging science curricula for demonstrating vibration-induced resonance, modal coupling, and energy dissipation mechanisms in layered material systems.

FAQ

Does the JYQ Series support variable amplitude or multi-axis vibration?
No. The JYQ Series delivers fixed-amplitude (25.4 mm), single-axis reciprocating motion only. It does not provide vertical, rotational, or random vibration modes.
Is calibration documentation included with shipment?
A factory calibration report is provided with each unit, referencing traceable standards per ISO/IEC 17025-accredited metrology labs. Full recalibration services are available through authorized Jianhu service partners.
Can the JYQ be integrated into automated test lines?
Yes—via optional dry-contact I/O signals (start/stop, fault, cycle-complete) and analog outputs. PLC interface wiring diagrams and signal specifications are available in the technical manual.
What maintenance is required for long-term reliability?
Scheduled inspection every 6 months includes belt tension verification, lubrication of guide rails, visual inspection of motor brushes (DC type), and torque check of mounting fasteners. No consumable parts are specified beyond standard industrial bearings.
Are ISTA-certified test reports generated automatically?
No. The JYQ executes tests per ISTA 1A methodology but does not generate certified reports. Users must document test conditions, duration, and pass/fail observations manually or via third-party LIMS integration.
