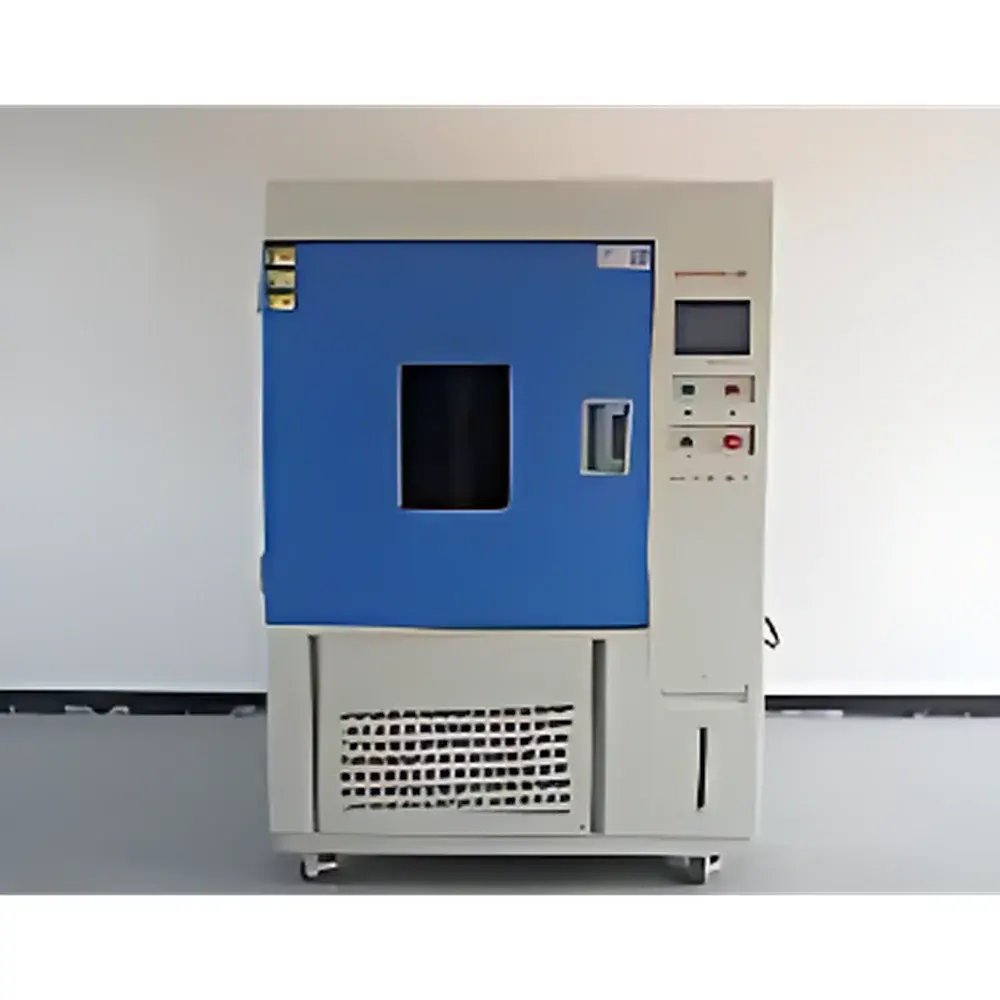

Jianhu Xe-6500 Xenon Arc Weathering Test Chamber

Overview

The Jianhu Xe-6500 Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed for accelerated weathering evaluation of materials under controlled solar-spectrum irradiation. Utilizing a water-cooled 6.5 kW xenon arc lamp, the chamber replicates the full spectral output of natural sunlight—spanning ultraviolet (290–400 nm), visible (400–700 nm), and near-infrared (700–2500 nm) regions—with spectral fidelity compliant with ASTM G155 and ISO 4892-2. Unlike UV fluorescent or metal halide sources, xenon arc technology provides photometric and radiometric equivalence to terrestrial insolation, enabling physiologically and chemically relevant degradation pathways in polymers, coatings, textiles, electronics encapsulants, and optical components. The system integrates precision humidity control (20–98% RH), black-panel temperature regulation (30–110°C), and programmable irradiance stabilization—allowing users to define stress profiles that mirror real-world service conditions or enforce accelerated aging per Arrhenius-based thermal-photonic acceleration models.

Key Features

• Water-cooled 1.8–6.5 kW xenon lamp assembly with quartz envelope and integrated IR-filtering optics, ensuring stable spectral output over lamp lifetime
• Dual-axis irradiance monitoring with calibrated silicon photodiode and UV-specific (340 nm) sensor, enabling closed-loop feedback control within ±3% of setpoint
• High-fidelity filter systems: Daylight-Q (simulating noon sun through atmosphere), Window Glass-Q (modeling indoor UV exposure behind glass), and Extended UV-Q (enhancing short-wave UV for aggressive polymer testing)
• Humidity control via steam injection and condensate drainage, maintaining ±2% RH accuracy across 20–98% range with rapid recovery after spray cycles
• Programmable multi-segment test profiles supporting simultaneous cycling of irradiance, temperature, humidity, and simulated rain (optional spray module)
• Black-panel temperature sensors (BPT) and chamber air temperature sensors independently monitored and logged at 1-second intervals
• Compliance-ready architecture: Built-in audit trail, user access levels, electronic signature support, and data export compatible with FDA 21 CFR Part 11 and GLP/GMP documentation workflows

Sample Compatibility & Compliance

The Xe-6500 accommodates flat-panel specimens up to 600 × 600 mm (23.6 × 23.6 in), with adjustable sample trays and optional back-plate heating for thermal uniformity. It supports standardized specimen mounting per ASTM D7869 (automotive coatings), ISO 11341 (paints and varnishes), and IEC 61215 (photovoltaic modules). All operational parameters—including irradiance, humidity, temperature, and cycle timing—are traceable to NIST-traceable calibration standards. The system meets mandatory requirements for accredited testing laboratories under ISO/IEC 17025:2017, including uncertainty budgeting for irradiance measurement (k=2, <5.2% expanded uncertainty at 340 nm) and humidity sensor drift compensation. Full compliance documentation—including factory calibration certificates, filter spectral transmittance reports, and lamp spectral irradiance maps—is provided with each unit.

Software & Data Management

Jianhu’s proprietary WeatherLink™ v4.2 software delivers deterministic real-time control and secure data governance. The interface supports ISO 17025-compliant test method templates, automated pass/fail logic based on user-defined parameter thresholds (e.g., ΔCIE L*a*b*, gloss loss >15%, ESR increase >30%), and synchronized multi-channel logging (irradiance, BPT, RH, chamber temp, spray status). All data are stored in encrypted SQLite databases with SHA-256 hash integrity verification. Audit trails record operator login/logout, parameter changes, calibration events, and alarm acknowledgments—including timestamps with UTC synchronization. Export options include CSV, PDF test reports (with digital signatures), and XML files compatible with LIMS platforms (e.g., LabVantage, Thermo Fisher SampleManager). Remote monitoring via TLS 1.2-secured HTTPS enables off-site supervision without compromising data sovereignty.

Applications

The Xe-6500 serves as a primary qualification tool in R&D and QC labs across aerospace (composite resin durability), automotive (interior trim fade resistance), medical device packaging (sterilization barrier integrity), and electronics (PCB conformal coating adhesion, capacitor electrolyte stability). Its spectral fidelity makes it indispensable for validating UV-stabilized polyolefins per ASTM D4329, evaluating OLED encapsulation lifetimes under combined thermal-photonic stress, and assessing photodegradation kinetics of pharmaceutical film coatings per ICH Q1B. In reliability engineering, the chamber supports HALT/HASS protocols where controlled UV exposure is coupled with thermal cycling to identify latent defects in solder joints and die-attach interfaces. For academic research, its programmability enables mechanistic studies of photo-oxidation in organic semiconductors and photocatalytic nanomaterials.

FAQ

What spectral filters are included standard with the Xe-6500?
The base configuration includes the Daylight-Q filter set. Window Glass-Q and Extended UV-Q filters are available as optional accessories.
Is the system suitable for testing electronic components such as capacitors and resistors?
Yes—its precise irradiance control, humidity regulation, and black-panel temperature tracking enable accelerated life testing per JEDEC JESD22-A109 (moisture resistance) and IEC 60068-2-5 (solar radiation), particularly for evaluating encapsulant yellowing, solder mask delamination, and electrolyte evaporation kinetics.
How often does the xenon lamp require replacement?
Lamp lifetime is rated at ≥1500 hours at full power with proper cooling and filtration; actual service life depends on irradiance setpoint and filter selection.
Does the system support automated rain simulation?
A programmable spray module is available as an option, delivering calibrated water droplets at defined intervals and durations per ISO 20693 and SAE J2527.
Can test data be integrated into a laboratory information management system (LIMS)?
Yes—WeatherLink™ exports structured XML and CSV files with metadata tags aligned to ASTM E1482 and ISO/IEC 17025 data interchange requirements.
