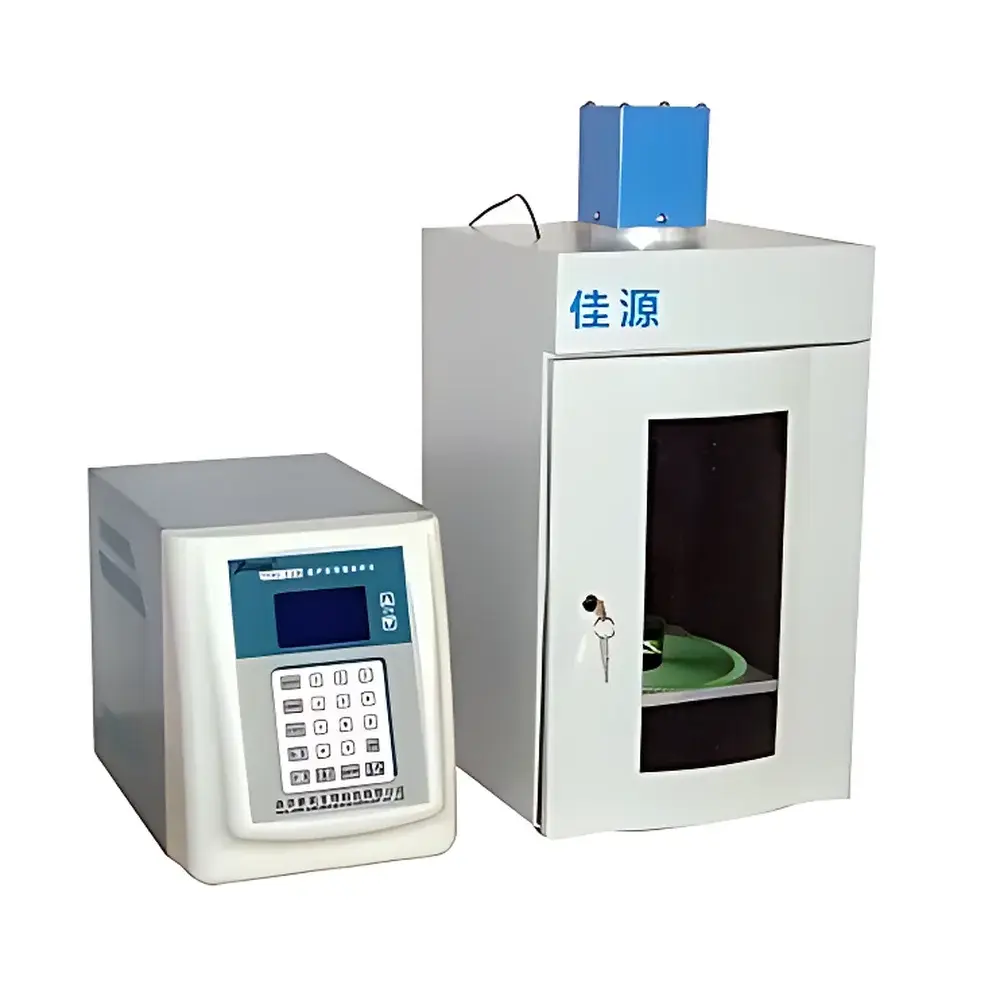

Jiayuan JY98-IIID Ultrasonic Cell Disruptor

Overview

The Jiayuan JY98-IIID Ultrasonic Cell Disruptor is an industrial-grade benchtop sonicator engineered for reproducible, high-efficiency cell lysis, tissue homogenization, and nano-emulsion preparation via acoustic cavitation. Operating within the 20–25 kHz frequency range, the instrument generates controlled ultrasonic energy that induces transient microcavitation in liquid media—producing localized shockwaves, shear forces, and extreme temperature/pressure gradients sufficient to disrupt membranes, organelles, and extracellular matrices without significant thermal degradation when used in pulsed mode. Its closed-loop temperature monitoring system (0–99 °C) enables real-time thermal feedback during extended protocols, supporting applications requiring strict thermal control—such as protein extraction, nucleic acid isolation, and lipid nanoparticle formulation. Designed for integration into GLP-compliant laboratories and R&D workflows, the JY98-IIID meets fundamental mechanical and electrical safety requirements per IEC 61010-1 and supports documentation traceability through time-stamped operational logs.

Key Features

• 1200 W nominal output power with automatic frequency tracking ensures stable energy delivery across varying sample viscosities and volumes
• Precise pulse programming: independent adjustment of sonication duration (0.1–99 s), pause interval (0.1–99 s), and total run time (0.1–99 min) minimizes thermal accumulation and improves reproducibility
• Integrated digital temperature sensor with visual readout and optional alarm threshold prevents overheating of heat-sensitive biomolecules
• Interchangeable titanium alloy probes (standard Φ20 mm; optional Φ15/Φ22/Φ25 mm) allow optimization for diverse sample types—from bacterial suspensions to fibrous plant tissues
• Duty cycle control (0.1–99.9%) enables fine-tuned energy modulation for delicate samples or high-throughput processing
• Built-in overload protection, overheat shutdown, and probe detachment detection enhance equipment longevity and user safety
• Universal dual-voltage input (220 V / 110 V, 50 Hz / 60 Hz) facilitates deployment across international laboratory environments

Sample Compatibility & Compliance

The JY98-IIID accommodates a broad range of biological and synthetic materials—including Gram-positive and Gram-negative bacteria, yeast, mammalian cells, plant leaves, animal liver tissue, viral particles, and polymeric nanoparticles. Its variable amplitude and pulse architecture support both low-shear dispersion (e.g., graphene oxide exfoliation) and high-intensity disruption (e.g., spore lysis). The system complies with general laboratory equipment standards under IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and is compatible with ISO/IEC 17025-accredited quality management systems. While not certified to FDA 21 CFR Part 11 out-of-the-box, audit-ready operation logs—including timestamped start/stop events, power settings, temperature history, and probe ID—can be exported for internal validation and regulatory review.

Software & Data Management

The JY98-IIID operates via an intuitive front-panel interface with LED display and tactile membrane keys. All parameter sets—including frequency, power level, pulse configuration, and temperature limits—are stored in non-volatile memory for recall across sessions. Though no proprietary PC software is bundled, the device supports manual documentation of protocol parameters and outcomes in accordance with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). For laboratories implementing electronic lab notebooks (ELNs) or LIMS, operational metadata can be manually transcribed or integrated via RS-232 serial output (optional adapter required). The system design prioritizes robustness and minimal firmware dependencies—reducing cybersecurity exposure while ensuring long-term serviceability.

Applications

• Cell lysis for intracellular protein, DNA, RNA, and metabolite extraction in molecular biology and biopharmaceutical development
• Preparation of subcellular fractions (e.g., mitochondria, nuclei) with preserved structural integrity
• Homogenization of tough biological matrices including skin, cartilage, and root tissues for transcriptomic or proteomic analysis
• Nanoparticle synthesis and stabilization—particularly liposomes, polymeric micelles, and metal-organic frameworks (MOFs)
• Emulsification of oil-in-water and water-in-oil systems for food science, cosmetics, and vaccine adjuvant research
• Accelerated solvent extraction (ASE) of phytochemicals from medicinal herbs and agricultural byproducts
• Disaggregation of amyloid fibrils and protein aggregates in neurodegenerative disease studies

FAQ

What is the maximum recommended continuous operating time per cycle?
The instrument supports up to 99 minutes of total runtime per session; however, for heat-sensitive samples, pulsed operation (e.g., 5 s on / 10 s off) is strongly advised to maintain temperatures below 30 °C.
Can the JY98-IIID be used with corrosive solvents such as chloroform or strong acids?
Titanium probes are resistant to most aqueous and mild organic media; direct contact with concentrated halogenated solvents or mineral acids is not recommended without validated corrosion testing and appropriate containment.
Is calibration traceable to national standards?
Power output and temperature sensors are factory calibrated; users may perform periodic verification using NIST-traceable thermocouples and calibrated ultrasonic power meters per ASTM E2490–19 guidelines.
Does the unit include validation documentation for GMP environments?
No pre-certified IQ/OQ/PQ documents are supplied; however, the hardware architecture and parameter logging capability support user-generated qualification protocols aligned with EU Annex 15 and USP .
How does probe diameter affect cavitation intensity and sample volume scalability?
Larger-diameter probes (e.g., Φ25 mm) deliver higher total acoustic energy but lower spatial intensity—suited for bulk processing (≥500 mL); smaller probes (e.g., Φ15 mm) concentrate energy for viscous or low-volume samples (<200 mL), improving lysis efficiency per unit volume.
