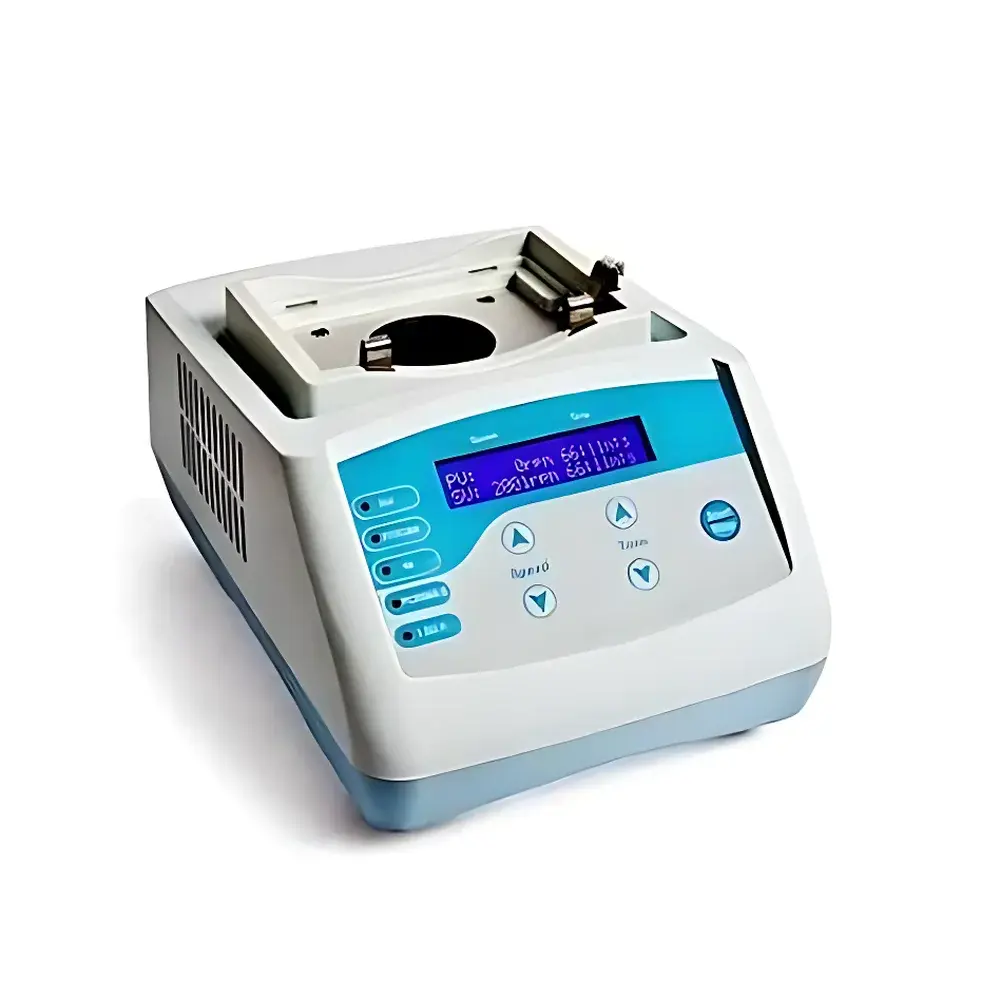

Jiayuan MS-100 Heated Vortex Mixer with Temperature Control

Overview

The Jiayuan MS-100 Heated Vortex Mixer with Temperature Control is an integrated laboratory instrument engineered for precise thermal management and high-efficiency orbital mixing in life science workflows. It operates on the principle of horizontal orbital shaking—generating uniform centrifugal force across sample vessels while maintaining tightly regulated temperature conditions. Unlike conventional shakers or dry baths, the MS-100 combines simultaneous heating and controlled agitation within a single compact platform, eliminating the need for sequential incubation and mixing steps. This dual-function capability supports time-sensitive biochemical reactions—including enzyme kinetics, cell lysis, DNA/RNA hybridization, antibody labeling, and PCR setup—where both thermal homogeneity and mechanical reproducibility are critical. Its microprocessor-controlled PID temperature regulation ensures linear response and minimal overshoot, while the brushless DC motor delivers consistent rotational performance across the full speed range without maintenance or wear-related drift.

Key Features

• Programmable dual-parameter control: independent setting of temperature and oscillation speed with real-time digital feedback
• High-precision thermal architecture: achieves ±0.3°C stability and ≤±0.3°C uniformity across the entire working surface at any setpoint between ambient +5°C and 100°C
• Fast thermal ramping: heats from 20°C to 100°C in under 15 minutes, enabling rapid protocol transitions
• Intelligent safety system: includes overtemperature cutoff, motor stall detection, lid-sensing interlock, and automatic shutdown upon abnormal current draw
• Power-loss recovery function: resumes previously active program after unexpected power interruption, preserving experimental integrity
• Modular interchangeability: supports 15 standardized aluminum heating blocks—including 96-well PCR plates, 0.2 mL tubes, 1.5/2.0 mL microcentrifuge tubes, deep-well plates, and custom-fit MTPs—each optimized for thermal conductivity and mechanical resonance
• Zero-maintenance drive: brushless DC motor ensures >20,000 hours of operational lifetime with no lubrication or brush replacement required

Sample Compatibility & Compliance

The MS-100 accommodates a broad spectrum of standard lab consumables without adapter modification. Verified compatibility includes skirted, semi-skirted, and non-skirted 96-well PCR plates; 384-well microplates; 0.2 mL, 0.5 mL, 1.5 mL, and 2.0 mL conical or round-bottom microtubes; 5 mL, 15 mL, and 50 mL conical tubes (at reduced speed settings); and rectangular well plates up to 103 × 67 × 30 mm. All modules are CNC-machined from aerospace-grade aluminum for optimal heat transfer and dimensional repeatability. The instrument conforms to IEC 61010-1:2010 for electrical safety and carries CE marking for use in EU-regulated laboratories. While not certified for GLP/GMP environments out-of-the-box, its programmable audit trail (via optional RS232/USB logging), temperature calibration traceability, and deterministic timer functionality support alignment with ISO/IEC 17025 method validation requirements when integrated into documented SOPs.

Software & Data Management

The MS-100 features embedded firmware with non-volatile memory capable of storing up to 10 user-defined protocols. Each protocol retains independent settings for temperature, speed, duration, and ramp profiles. Optional PC connectivity via USB or RS232 enables remote parameter adjustment, real-time data streaming (temperature and RPM), and export of timestamped CSV logs for QA documentation. Firmware supports firmware updates through secure binary upload, ensuring long-term compatibility with evolving regulatory expectations. For laboratories operating under FDA 21 CFR Part 11, the device may be deployed with third-party electronic lab notebook (ELN) integration where digital signatures, role-based access control, and immutable audit trails are externally managed.

Applications

This instrument serves as a core platform in molecular biology, clinical diagnostics, and biopharmaceutical QC labs. Typical applications include pre-PCR thermal equilibration and template mixing; post-lysis homogenization of viscous lysates; accelerated antigen-antibody binding during ELISA development; dissolution testing of protein formulations; and controlled crystallization screening. Its ability to maintain constant temperature during vigorous mixing makes it especially valuable for protocols involving temperature-sensitive enzymes (e.g., Taq polymerase, restriction endonucleases, ligases) where thermal gradients or localized overheating could compromise activity. The 3 mm orbit diameter provides sufficient shear force for efficient suspension of magnetic beads in nucleic acid extraction workflows while minimizing foam formation in low-volume aqueous solutions.

FAQ

What is the maximum recommended load for the 96-well PCR plate module?

The A96×0.2ml module supports full 96-well plates at speeds up to 1500 rpm; operation above this speed is not advised due to potential edge-well splashing or plate deformation.

Can the MS-100 be used for cold-sensitive applications?

No—the MS-100 is a heated-only model. For sub-ambient operation, refer to the companion MSC-100 refrigerated variant.

Is calibration certificate included with purchase?

A factory calibration report is provided; NIST-traceable certification requires optional third-party service.

How often should temperature calibration be performed?

Annual verification is recommended per ISO/IEC 17025 guidelines; built-in self-calibration routine allows user-initiated offset correction.

Are custom modules available for non-standard tube formats?

Yes—Jiayuan offers OEM module design services with lead times of 4–6 weeks for validated geometries meeting thermal and mechanical specifications.
