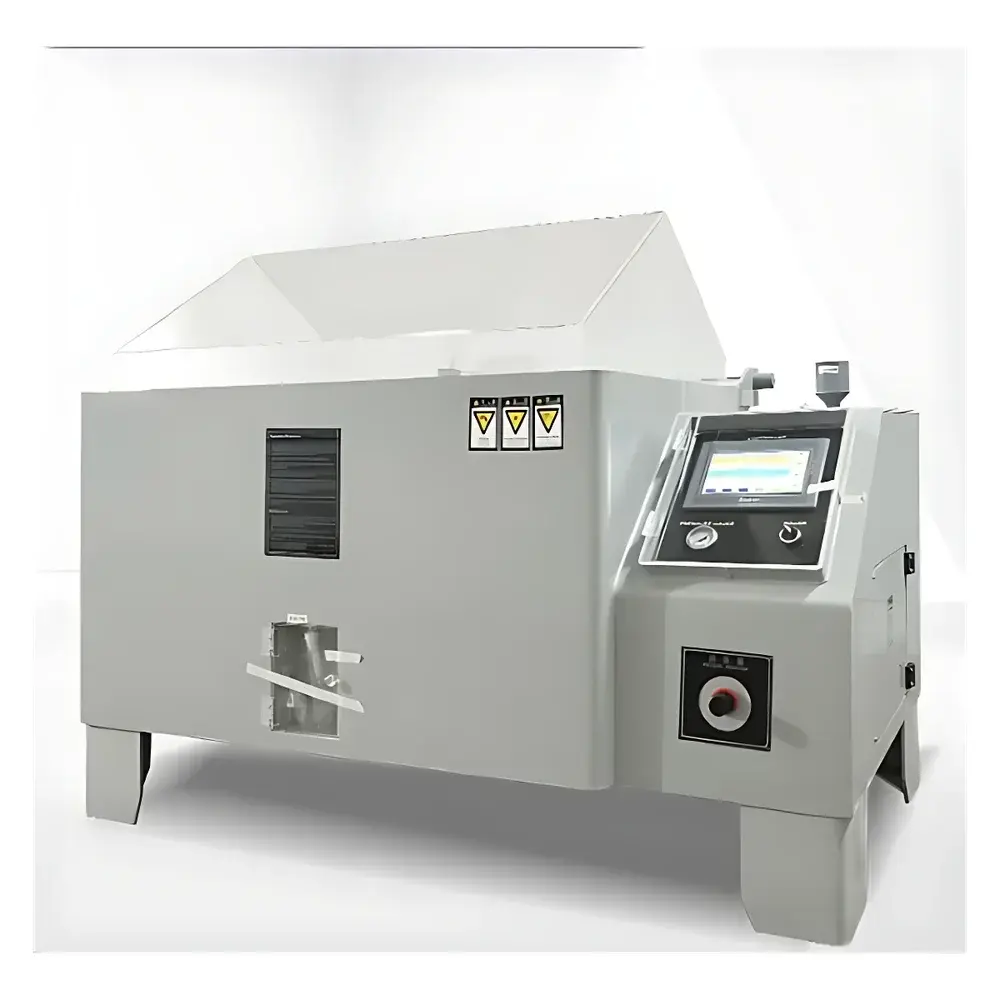

Jinhoo JH-NSS-8000L Programmable Intelligent Cycling Salt Spray Test Chamber with Temperature & Humidity Cycling Capability

Overview

The Jinhoo JH-NSS-8000L is a large-capacity, programmable salt spray test chamber engineered for accelerated corrosion evaluation under controlled, repeatable environmental conditions. It operates on the principle of continuous air-atomized nebulization of standardized sodium chloride solution (5.0 ± 0.1% w/w NaCl, pH 6.5–7.2), generating uniform aerosol droplets in the 5–10 µm diameter range—consistent with natural coastal sea-spray particle size distributions. The chamber maintains precise thermal stability at 35.0 ± 1.0°C during neutral salt spray (NSS) testing, while its integrated temperature and humidity cycling architecture enables sequential or simultaneous exposure to sub-zero cold, high-temperature dry heat, and saturated humid phases—critical for evaluating synergistic degradation mechanisms in automotive, aerospace, and marine-grade components. Unlike basic static salt fog chambers, the JH-NSS-8000L implements intelligent program logic that synchronizes salt spray pulses with thermal transitions, replicating real-world coastal service environments where diurnal temperature swings, condensation cycles, and intermittent salt deposition collectively accelerate electrochemical corrosion, coating delamination, and interfacial failure.

Key Features

• Large-volume 8000 L working chamber with reinforced PVC-coated stainless steel interior and corrosion-resistant chamber door sealing system
• Programmable multi-step test sequences supporting NSS, ASS (Acetic Acid Salt Spray), and CASS (Copper-Accelerated Acetic Acid Salt Spray) per ISO 9227 and ASTM B117
• Integrated temperature-humidity cycling capability: -40°C to +150°C, 10–98% RH, with ramp rates up to 10°C/min and dwell stabilization ≤ ±0.5°C / ±2% RH
• Precision-controlled air-atomized spray system featuring calibrated nozzles, pressure-regulated compressed air supply (0.7–1.0 kgf/cm²), and gravimetrically verified deposition rate of 1–2 mL/(h·80 cm²)
• Automated de-misting function using positive-pressure pneumatic exhaust to rapidly clear residual fog without thermal shock or sample disturbance
• Dual-stage filtration system (pre-filter + HEPA-grade mist collector) ensuring operator safety and preventing cross-contamination between test cycles
• Touchscreen HMI with embedded data logging (1 Hz sampling), USB export, and optional Ethernet/Modbus TCP interface for lab network integration

Sample Compatibility & Compliance

The JH-NSS-8000L accommodates full-size automotive subassemblies—including chassis modules, battery enclosures, brake calipers, and EV powertrain housings—as well as electronic control units (ECUs), sensor housings, and structural composites. Its modular rack configuration supports standardized test panels (150 × 70 mm), custom fixtures, and multi-tier sample staging. All operational parameters comply with internationally recognized corrosion testing standards: ISO 9227 (NSS, ASS, CASS), ASTM B117 (Neutral Salt Spray), ASTM G85 (Modified Salt Spray), JIS Z2371, and GB/T 2423.17. The system’s temperature and humidity cycling functionality further aligns with IEC 60068-2-14 (cold/heat shock), IEC 60068-2-30 (damp heat cyclic), and SAE J2334 (automotive corrosion testing). Full traceability is maintained via built-in calibration logs, sensor validation reports, and audit-ready test records meeting GLP and ISO/IEC 17025 documentation requirements.

Software & Data Management

The embedded Jinhoo TestMaster™ control software provides intuitive test sequence authoring, real-time parameter visualization (chamber temperature, humidity, spray pressure, nozzle flow status), and automated pass/fail evaluation based on user-defined thresholds (e.g., time-to-first-red-rust, cumulative corrosion area). All measurement data—including timestamped sensor readings, alarm events, and manual annotations—are stored in CSV and XML formats with SHA-256 hash integrity verification. Optional FDA 21 CFR Part 11 compliance package includes electronic signatures, role-based access control, and immutable audit trails for regulated industries (automotive Tier-1 suppliers, medical device OEMs, defense contractors). Remote monitoring and predictive maintenance alerts are enabled via MQTT protocol integration with enterprise LIMS or MES platforms.

Applications

This chamber serves as a core qualification tool across multiple sectors requiring high-fidelity corrosion validation. In automotive R&D, it validates long-term durability of hot-dip galvanized fasteners (per CASS 240 h), aluminum die-cast body structures subjected to thermal-salt synergy, and high-voltage connector systems per LV-124 and GMW14872. Aerospace applications include testing titanium alloy landing gear components, composite wing skin adhesives, and avionics enclosures exposed to maritime operational profiles. For renewable energy, it evaluates offshore wind turbine nacelle coatings, photovoltaic frame anodizing, and subsea battery enclosure gasket integrity. In electronics manufacturing, the system supports IPC-J-STD-006 and JEDEC JESD22-B101 compliance for solder joint reliability and printed circuit board conformal coating performance under combined salt/moisture/thermal stress.

FAQ

What distinguishes this chamber from conventional salt spray cabinets?
It integrates programmable temperature-humidity cycling with salt fog generation—enabling sequential or concurrent exposure protocols that replicate real-world coastal service conditions more accurately than static NSS alone.
Can the system perform ASTM G85 Annex A2 (Acetic Acid Salt Spray) and Annex A3 (Copper-Accelerated Acetic Acid Salt Spray)?
Yes—software-configurable solution chemistry modules support automatic pH adjustment, CuCl₂ dosing, and post-spray rinse cycles per ASTM G85 requirements.
Is calibration certification included with delivery?
Each unit ships with NIST-traceable calibration certificates for temperature, humidity, and spray deposition rate sensors, valid for 12 months.
How is corrosion assessment supported post-test?
The chamber includes standardized sample mounting trays compatible with digital image analysis systems (e.g., ISO 4628-3 rust rating), and optional integration with automated corrosion quantification software.
Does the system meet regulatory requirements for automotive PPAP submissions?
Yes—test reports generated by the system include full metadata (operator ID, equipment ID, calibration dates, environmental deviations), satisfying AIAG PPAP Level 3 documentation requirements.
