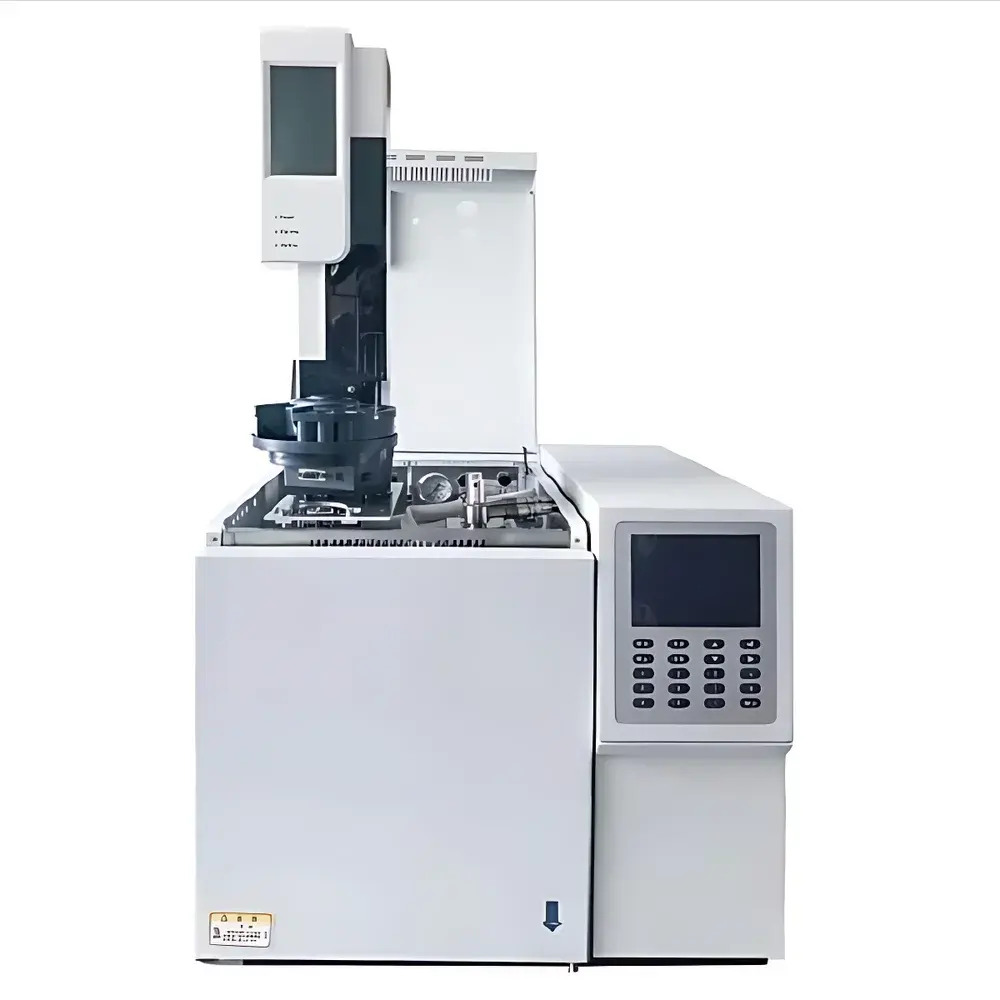

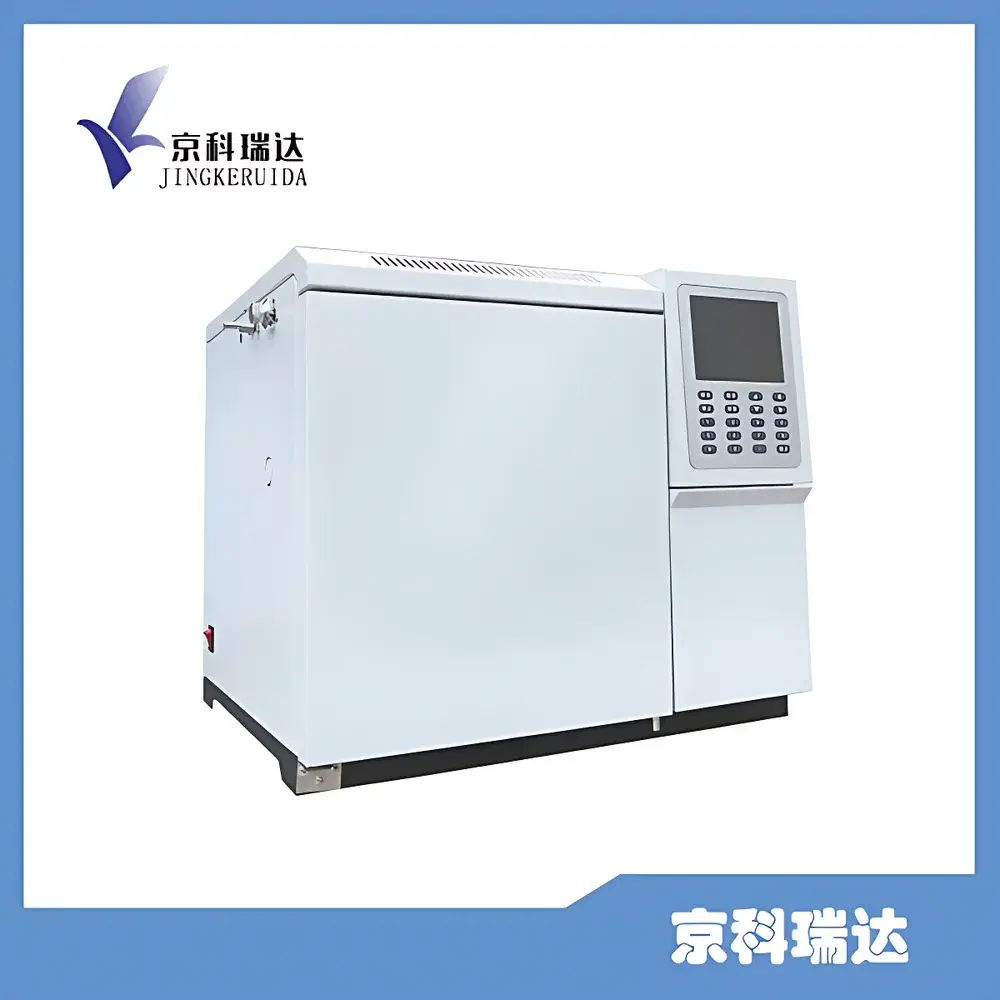

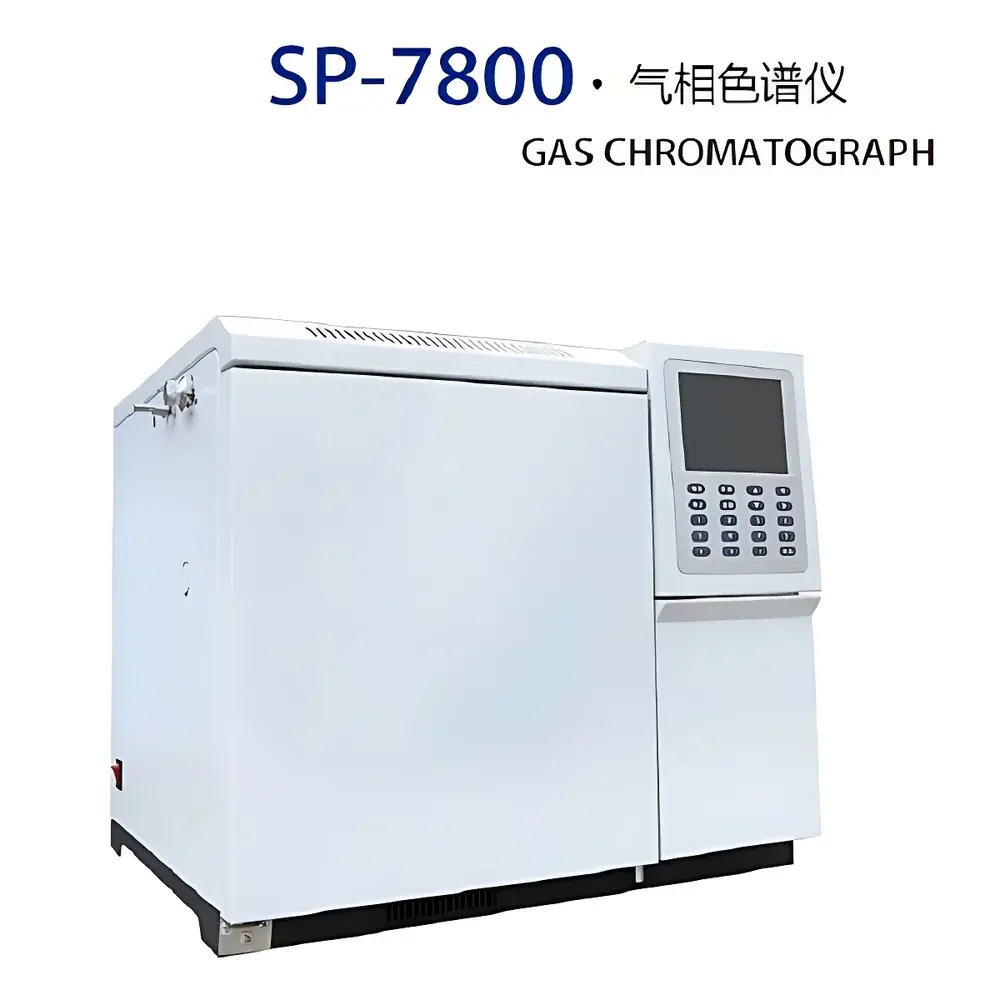

JKRD SP7800 Dedicated Gas Chromatograph for Oxygenates Analysis in Gasoline
| Brand | JKRD |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | SP7800 Dedicated GC for Oxygenates in Gasoline |
| Instrument Type | Laboratory Gas Chromatograph |
| Application Scope | General-Purpose (Optimized for ASTM D4815 / D5599 Compliance) |
| Detection Target | MTBE, ETBE, TAME, DIPE, tert-Butanol, C1–C4 Alcohols, and Other Oxygenated Compounds in Motor Gasoline |
Overview
The JKRD SP7800 Dedicated Gas Chromatograph is a purpose-built analytical system engineered for the precise, reproducible quantification of oxygenated compounds—including methyl tert-butyl ether (MTBE), ethyl tert-butyl ether (ETBE), tertiary amyl methyl ether (TAME), diisopropyl ether (DIPE), and low-molecular-weight alcohols (e.g., methanol, ethanol, tert-butanol)—in motor gasoline and reformulated fuels. Designed in strict alignment with ASTM D4815 (Standard Test Method for Determination of Trace Amounts of Oxygenates in Gasoline by Gas Chromatography) and ASTM D5599 (Standard Test Method for Determination of Oxygenates in Gasoline by Gas Chromatography and Oxygen Selective Flame Ionization Detection), the SP7800 integrates a high-stability split/splitless inlet, a dedicated polar capillary column (e.g., DB-624 or equivalent 6% cyanopropylphenyl/94% dimethylpolysiloxane phase), and a flame ionization detector (FID) optimized for hydrocarbon-oxygenate separation and linear response across 0.1–20.0 wt% concentration ranges. Its thermal management architecture ensures ±0.1 °C oven temperature stability over 30–220 °C operating range, critical for resolving co-eluting oxygenates such as ethanol and tert-butanol under standardized temperature programming protocols.
Key Features
- Dedicated hardware configuration pre-optimized for ASTM D4815/D5599 workflows—no method development required for routine gasoline oxygenate screening
- Temperature-programmable oven with ramp rates from 0.1 to 40 °C/min and isothermal hold capability up to 240 °C
- Electronically controlled split/splitless injector with pressure tuning (0–100 psi) and programmable temperature up to 350 °C
- FID with auto-ignition, real-time flame monitoring, and linear dynamic range >107 (mass basis)
- Integrated carrier gas control (helium or nitrogen) with electronic pressure control (EPC) and leak-tight pneumatic module
- Front-panel keypad interface with LCD display; optional Ethernet or USB connectivity for remote operation and data export
- Robust mechanical design compliant with IEC 61010-1 safety standards for laboratory instrumentation
Sample Compatibility & Compliance
The SP7800 accepts neat gasoline samples or diluted blends (e.g., 1:10 v/v in isooctane) without derivatization. It supports direct injection volumes of 0.2–2.0 µL and accommodates standard 2-mL crimp-top vials. All fluidic pathways are inert-silanized to prevent adsorption or catalytic decomposition of reactive oxygenates. The system meets essential regulatory requirements for fuel quality testing laboratories, including compatibility with ISO/IEC 17025 documentation frameworks and support for GLP-compliant audit trails when paired with validated chromatography data systems (CDS). While the base instrument does not include 21 CFR Part 11–compliant software, its digital I/O and network interfaces enable integration with third-party CDS platforms certified for FDA-regulated environments.
Software & Data Management
The SP7800 operates with JKRD’s GC Navigator™ Lite software (Windows 10/11 compatible), providing method setup, sequence definition, real-time signal visualization, peak integration using tangent skim and valley-to-valley algorithms, and automated report generation per ASTM template formats. Raw data files (.jkd) are stored in vendor-neutral ASCII format for long-term archival and third-party reprocessing. Calibration curves support multi-point external standardization with quadratic or linear regression (r² ≥ 0.999), and system suitability checks include retention time drift (< 0.05 min), peak asymmetry (0.8–1.5), and relative standard deviation (RSD) of area counts (< 2.0% for replicate injections). Audit trail functionality is available in the full GC Navigator Pro version (optional upgrade).
Applications
- Regulatory compliance testing of gasoline at refineries, blending terminals, and independent fuel testing labs
- Quality assurance of oxygenate-blended fuels during production and distribution
- Investigation of oxygenate degradation products (e.g., tert-butanol formation from MTBE hydrolysis)
- Method transfer studies between legacy GC systems and modernized platforms
- Training and education in petroleum analysis curricula requiring standardized, repeatable oxygenate profiling
FAQ
Does the SP7800 comply with ASTM D4815 and D5599?
Yes—the system is factory-configured with column specifications, temperature programs, and detector settings aligned with both methods. Certificate of Conformance and application notes are provided upon shipment.
Can the SP7800 analyze ethanol-blended E10 or E15 gasoline?
Yes. The method has been validated for ethanol concentrations up to 15 vol%, with resolution of ethanol from co-eluting C2–C4 hydrocarbons achieved via optimized column selection and programmed temperature ramping.
Is helium the only acceptable carrier gas?
No. Nitrogen and hydrogen are supported; however, helium is recommended for optimal resolution and retention time reproducibility per ASTM guidelines.
What maintenance intervals are recommended for routine operation?
Injector liner replacement every 200 injections; FID jet cleaning every 500 runs; column trimming (0.5–1 m) every 1,000 injections or when peak tailing exceeds USP tailing factor 2.0.
Is technical support available outside China?
Yes—JKRD maintains authorized service partners in North America, Europe, and Southeast Asia, with remote diagnostics and on-site calibration support available under extended warranty agreements.
