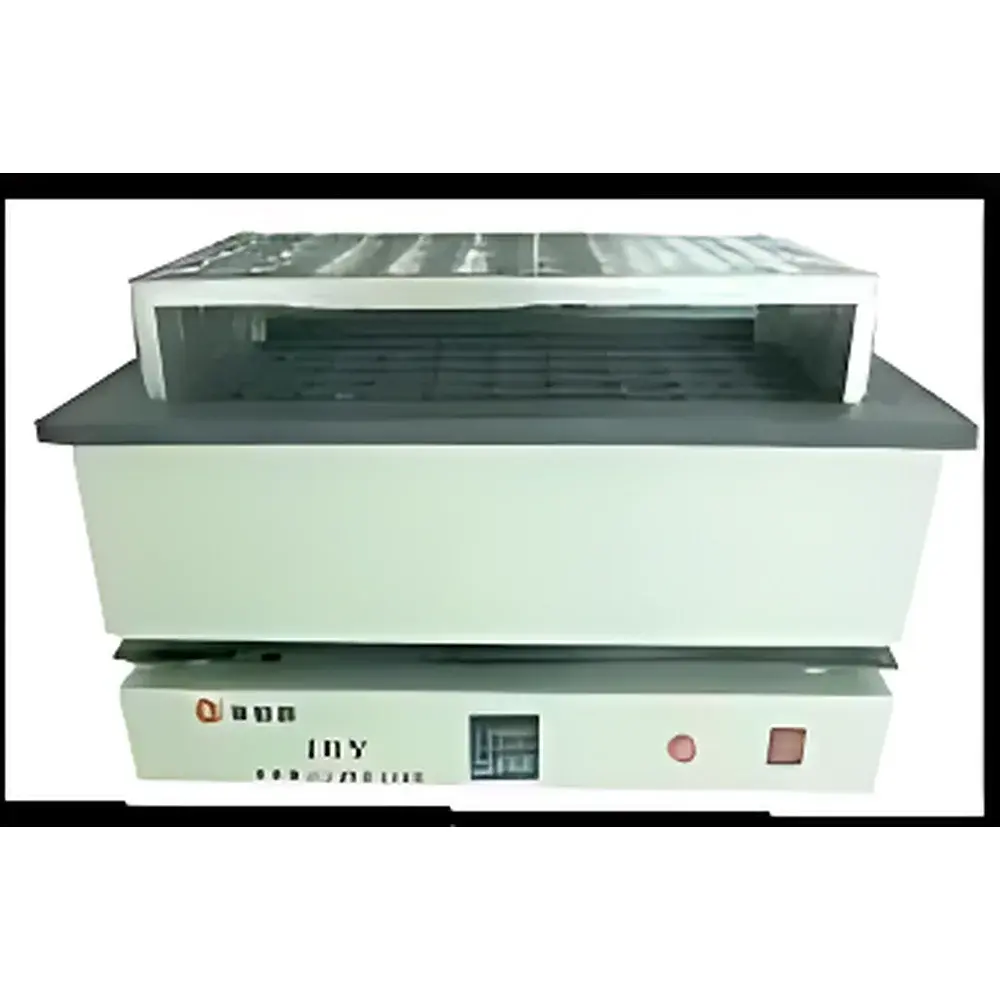

JRY X450-18 Smart Graphite Block Digestion System

Overview

The JRY X450-18 Smart Graphite Block Digestion System is a laboratory-grade electric heating digestion instrument engineered for precise, reproducible, and high-throughput sample preparation in regulated analytical environments. Utilizing a monolithic high-purity graphite heating block with integrated resistance-heating elements, the system delivers uniform thermal energy distribution across all sample positions via circumferential (360°) conduction heating—eliminating hot spots and ensuring consistent acid digestion kinetics. Unlike open-flame or ceramic plate heaters, the graphite architecture provides exceptional thermal inertia and stability, enabling accurate ramp-and-hold temperature profiles essential for trace metal analysis, total digestible element quantification, and regulatory-compliant sample dissolution per EPA, ISO, and ASTM protocols. The X450 series is specifically optimized for applications requiring elevated temperatures up to 450 °C—such as complete decomposition of refractory matrices (e.g., silicates in soils, collagen-rich tissues, and polymer-laden cosmetics) using concentrated sulfuric acid (H₂SO₄), perchloric acid (HClO₄), or mixed-acid reagents.

Key Features

• Circumferential graphite block heating ensures ±0.5 °C inter-vessel temperature uniformity across all 18 positions, critical for inter-sample comparability in ICP-MS/OES and AAS workflows.
• PID digital temperature control with real-time LED display enables setpoint accuracy of ±1 °C over the full 0–450 °C range, with programmable ramp rates and hold times.
• Chemically inert, high-density graphite construction resists corrosion from concentrated mineral acids (including H₂SO₄, HNO₃, HF, and HClO₄) and alkalis up to 50 % w/w at elevated temperatures.
• Modular design accommodates standard borosilicate glass, quartz, or PTFE-lined digestion tubes (Ø58 mm × 30 mm height); compatible with both open-vessel and semi-closed reflux configurations.
• Integrated safety features include over-temperature cutoff, ground-fault circuit interruption (GFCI), and auto-shutdown upon lid removal or thermal runaway detection.
• Energy-efficient operation: 4000 W nominal power input achieves target temperature in ≤12 minutes (from ambient to 400 °C), reducing cycle time versus conventional hot plates by >40 %.

Sample Compatibility & Compliance

The JRY X450-18 supports digestion of diverse solid and semi-solid matrices including soil, sediment, plant tissue (e.g., tea leaves), animal feed, dairy products, biological fluids, wastewater sludge, cosmetic emulsions, and pharmaceutical excipients. It meets methodological requirements for EPA Methods 3050B (acid digestion of sediments and soils), 3051A (microwave-assisted acid digestion), and 3015A (acid digestion of aqueous samples), serving as a validated alternative or complementary system for post-microwave acid removal (“acid-out” or “hotplate赶酸”). The system is routinely employed in GLP-certified environmental testing labs and ISO/IEC 17025-accredited food safety laboratories. All structural materials comply with RoHS Directive 2011/65/EU; electrical design conforms to IEC 61010-1:2010 for laboratory equipment safety.

Software & Data Management

While the base unit operates via standalone PID controller with tactile keypad and LED interface, optional RS-485 or USB-to-serial connectivity enables integration with LIMS or custom SCADA platforms. When paired with the programmable timer module (sold separately), users can define multi-step temperature/time profiles—including pre-heating, ramping, holding, and cooling phases—with timestamped event logging. Audit-trail functionality supports FDA 21 CFR Part 11 compliance when deployed with validated third-party data acquisition software. All parameter changes are logged with user ID, timestamp, and setpoint values—ensuring full traceability for QA/QC documentation and regulatory inspections.

Applications

• Environmental analysis: Total recoverable metals (As, Cd, Cr, Pb, Hg, Ni, Zn) in EPA-defined soil and sediment samples.
• Food and agriculture: Determination of nutrient minerals (Ca, Mg, Fe, Zn) and contaminants (Al, Sn, Sb) in cereals, vegetables, and infant formula per AOAC 999.10 and ISO 6869.
• Clinical and biological research: Protein matrix digestion for elemental profiling of serum, urine, and tissue homogenates prior to ICP-MS analysis.
• Materials science: Dissolution of catalyst residues, battery electrode powders, and ceramic composites for elemental impurity screening.
• Regulatory support: Acid digestion step in USP heavy metals testing and EP 2.4.8 trace element analysis of herbal medicines.

FAQ

Can the JRY X450-18 be used for perchloric acid digestion?
Yes—its fully enclosed graphite block and acid-resistant surface allow safe use with ≤72 % perchloric acid under fume hood conditions, provided appropriate ventilation and explosion-proof accessories are employed.
Is calibration certificate included with shipment?
A factory-issued NIST-traceable temperature calibration report (covering 100 °C, 250 °C, and 400 °C points) is supplied standard; UKAS-accredited calibration is available upon request.
What tube types are recommended for 450 °C operation?
Quartz digestion tubes (ASTM E1727-compliant) or high-purity PTFE-lined vessels rated to 500 °C are recommended; borosilicate glass is limited to ≤300 °C.
Does the system support GLP audit requirements?
When operated with the optional timer module and connected to compliant data acquisition software, it supports electronic signatures, change history, and audit trail generation per 21 CFR Part 11.
Can custom well configurations be ordered?
Yes—JRY offers OEM engineering services for non-standard well diameters, depths, and layouts (e.g., 24-position Ø45 mm format for specialized EPA methods) with lead time of 6–8 weeks.
