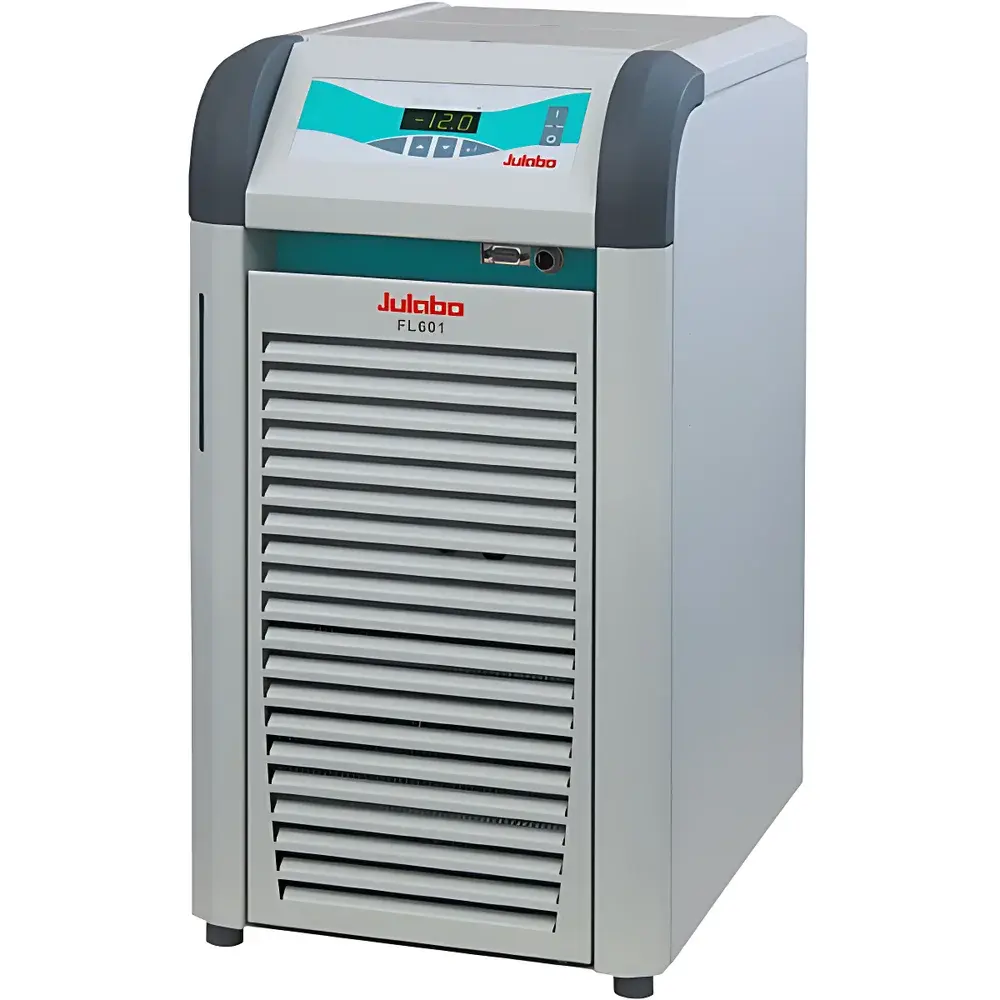

Julabo FL601 Circulating Chiller

Overview

The Julabo FL601 Circulating Chiller is an air-cooled, integrated refrigeration system engineered for precise, continuous temperature control in laboratory and light industrial applications. Based on vapor-compression refrigeration with a hermetically sealed scroll compressor, the FL601 delivers stable thermal management across a wide operating range of –20 to +40 °C—enabling compatibility with demanding processes such as rotary evaporation, spectrophotometer cooling, HPLC column thermostating, and laser source stabilization. Its design eliminates reliance on municipal tap water for heat dissipation, thereby conserving water resources and avoiding risks associated with fluctuating supply pressure, temperature drift, or mineral deposition. The unit operates continuously under load without duty-cycle limitations, supporting 24/7 unattended operation in GLP- and GMP-aligned environments where thermal reproducibility is critical to data integrity.

Key Features

• High-precision temperature regulation with ±0.5 °C stability and 0.1 °C display resolution—calibrated against traceable NIST-traceable references during factory verification.
• Air-cooled condenser architecture eliminates need for external water lines or drainage infrastructure; suitable for benchtop or floor-standing deployment in standard laboratory HVAC conditions (5–40 °C ambient).
• Integrated circulation pump delivering 23 L/min at 1.0 bar maximum pressure—optimized for low-backpressure applications including jacketed reactors, condensers, and analytical instrument heat exchangers.
• Expandable reservoir volume (5.5–8 L) accommodates thermal mass variations and minimizes frequency of fluid top-up; dual-conical hose fittings (8 mm and 12 mm ID) ensure secure, leak-resistant connections to diverse equipment interfaces.
• Robust mechanical construction featuring corrosion-resistant stainless steel reservoir, insulated cabinet housing, and acoustic damping to maintain ≤55 dBA sound pressure at 1 m—meeting ISO 7779 and IEC 60704-1 noise compliance thresholds for shared lab spaces.
• Standard RS232 interface supports bidirectional communication with host PCs or PLCs for remote setpoint adjustment, real-time temperature logging, and alarm event reporting—compatible with LabVIEW, MATLAB, and custom SCADA integration.

Sample Compatibility & Compliance

The FL601 is validated for use with aqueous coolants—including deionized water, water/ethylene glycol mixtures (up to 50% v/v), and JULABO-certified Thermal Bath Fluids—ensuring long-term chemical compatibility with internal wetted components (EPDM seals, stainless steel coils, brass valves). It complies with EU directives EN 61000-6-3 (EMC emission limits) and EN 61000-6-2 (immunity to electrical disturbances), and meets CE marking requirements for safety (EN 61010-1). For regulated environments, optional firmware enables audit-trail-enabled operation compliant with FDA 21 CFR Part 11 when paired with validated software platforms. The unit supports ISO/IEC 17025 method validation protocols through documented calibration certificates (available upon request) and built-in self-diagnostics for refrigerant charge, pump function, and sensor integrity.

Software & Data Management

The FL601’s embedded controller includes non-volatile memory for storing up to 10 user-defined temperature programs, each with ramp/soak profiles and timer-based start/stop triggers. RS232 output provides ASCII-formatted telemetry (temperature, status flags, error codes) at configurable intervals (1–60 s), enabling direct ingestion into LIMS or ELN systems. Optional Profibus-DP integration permits seamless interoperability with Siemens S7 PLCs and Rockwell Automation ControlLogix architectures. Julabo’s proprietary WinTherm software (Windows-compatible, free download) offers graphical trend visualization, CSV export, and automated report generation—including timestamped deviation alerts aligned with ISO 9001 clause 8.5.2 (control of nonconforming output). All logged data retain full metadata (operator ID, instrument serial number, environmental conditions) to satisfy ALCOA+ data integrity principles.

Applications

• Rotary evaporator condenser cooling in organic synthesis labs—maintaining consistent solvent recovery efficiency across batch runs.
• Thermostating of UV-Vis and FTIR spectrophotometer detectors to reduce thermal noise and improve signal-to-noise ratio (SNR) stability over extended acquisition windows.
• Temperature control of HPLC column ovens and detector cells—critical for retention time reproducibility per USP and ICH Q5C guidelines.
• Cooling support for laser diodes and solid-state amplifiers in photonics R&D, where junction temperature fluctuations directly impact wavelength stability and beam quality.
• Process validation studies requiring documented thermal profiles per ASTM E2500-13 (standard guide for specification, design, and verification of pharmaceutical and biopharmaceutical manufacturing systems).

FAQ

What is the maximum allowable inlet fluid temperature for continuous operation?
The FL601 accepts return fluid up to 80 °C without performance degradation or safety interlock activation—enabling integration with exothermic reaction jackets or high-temperature distillation condensers.
Can the unit operate with 50% ethylene glycol/water mixture at –20 °C?
Yes; the system’s refrigeration circuit and pump are rated for viscosities up to 25 cP at operating temperature, fully accommodating common antifreeze blends within its specified range.
Is remote monitoring possible without third-party software?
Yes—the RS232 port supports basic terminal emulation (e.g., PuTTY) for real-time readout of current temperature, setpoint, and status bits using simple ASCII command syntax (detailed in the Operator Manual, section 4.3).
Does the FL601 meet ISO 14001 environmental management criteria?
Its R-404A refrigerant (GWP = 3922) is scheduled for phase-down under EU F-Gas Regulation (No. 517/2014); Julabo offers R-449A retrofit kits (GWP = 1397) for new installations seeking improved lifecycle sustainability metrics.
How frequently should preventive maintenance be performed?
Julabo recommends annual inspection of condenser coil cleanliness, refrigerant pressure verification, and pump seal integrity—documented per ISO/IEC 17025 clause 6.3.3 to maintain metrological traceability and operational reliability.
