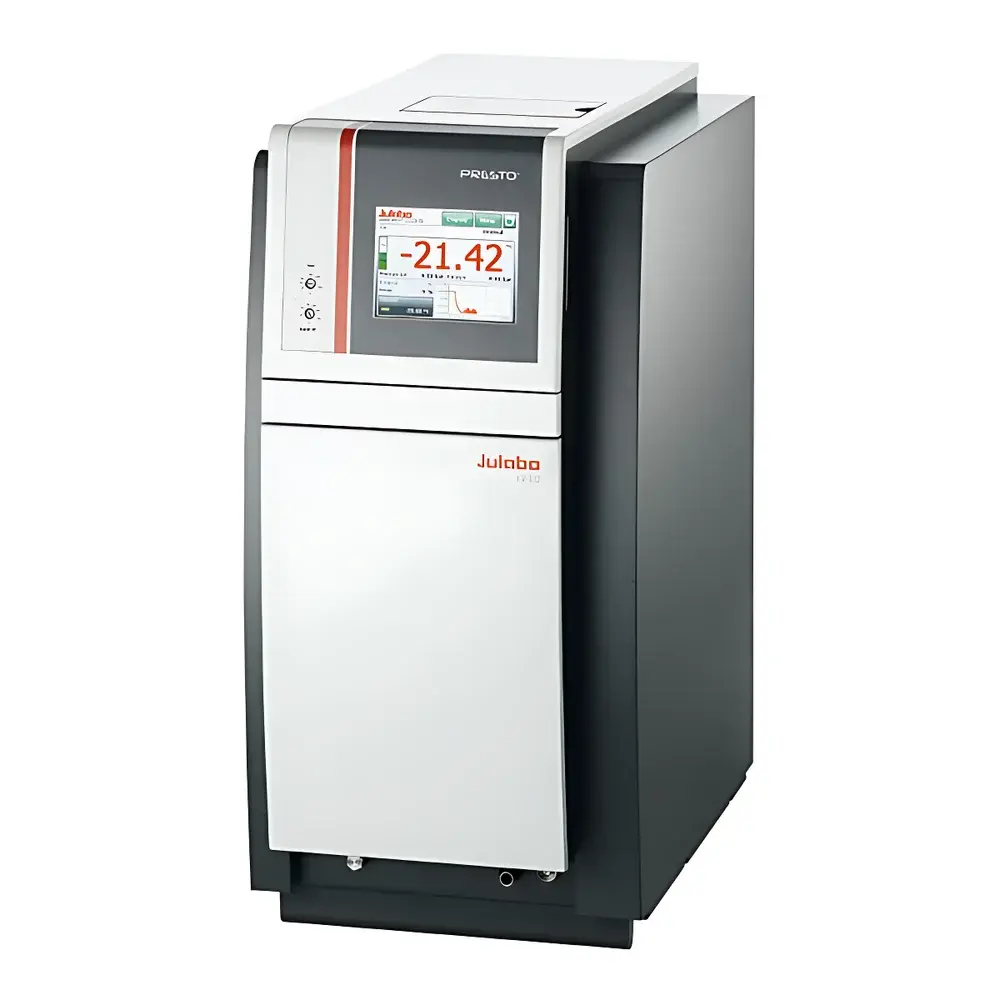

Julabo PRESTO W40/W41 Closed-Loop High-Precision Dynamic Temperature Control System

Overview

The Julabo PRESTO W40 and W41 are closed-loop, high-precision dynamic temperature control systems engineered for demanding external process applications—particularly jacketed reactor temperature management, calorimetric studies, and precision material testing. Unlike conventional thermostats relying on passive thermal inertia or single-mode heating/cooling, the PRESTO series implements Julabo’s proprietary dynamic temperature control principle, first introduced in the ATS prototype over 35 years ago. This architecture integrates real-time heat flux compensation, adaptive PID+ICC (Intelligent Cascade Control) algorithms, and a thermally optimized closed fluid circuit to deliver rapid, bidirectional thermal response across an exceptionally wide operational range—from −45 °C to +250 °C—without requiring bath fluid replacement. The system achieves ±0.01 °C stability under steady-state conditions and maintains high reproducibility during programmed ramps (e.g., 5 °C/min up to 150 °C), making it suitable for GLP-compliant reaction optimization, kinetic profiling, and thermal validation protocols.

Key Features

• Closed-system design with hydraulic sealing to eliminate volatile oil vapor emission and extend thermal fluid service life (e.g., Therminol LT, Marlotherm SH, or Julabo Thermal HL series)
• High-dynamic ICC temperature controller with dual-sensor feedback (bath outlet + external process sensor input) enabling active disturbance rejection during exothermic/endothermic events
• Integrated high-pressure, variable-speed circulation pump: 0.48–3.2 bar max pressure (W41), programmable flow rate (22–51 L/min), and automatic pressure compensation for varying line resistance
• Compact footprint with low thermal mass bath (3.5 L for W40; 7.5 L for W41) and insulated stainless-steel reservoir—optimized for fast thermal equilibration and minimal overshoot
• No-frost operation down to −45 °C via cascade refrigeration with environmentally compliant R-513A/R-1234ze refrigerant blend
• IP54-rated housing with integrated safety interlocks, dry-run protection, overtemperature cutoff, and leak detection circuitry

Sample Compatibility & Compliance

The PRESTO W40/W41 is designed for integration with external equipment including glass or stainless-steel jacketed reactors (up to 100 L volume), calorimeters (e.g., TA Instruments RC1, Mettler Toledo RC1mx), rotary evaporators, and custom test fixtures. Its closed-loop architecture ensures compatibility with a broad spectrum of heat transfer fluids—including silicone oils, synthetic aromatics, and low-toxicity organic heat transfer media—meeting ASTM D6795 and ISO 6743-12 classification requirements. All units comply with CE, UL 61010-1, and EMC Directive 2014/30/EU. Firmware supports audit trail logging and user access levels per FDA 21 CFR Part 11 when paired with Julabo’s optional LabSoft Pro software suite—enabling full traceability for GMP/GLP environments.

Software & Data Management

Control is managed via the intuitive 7-inch capacitive touchscreen interface with multilingual support (EN/DE/FR/ES/CN), offering pre-programmed ramp-soak profiles, multi-segment temperature programs, and real-time graphical display of bath temperature, external sensor input, pump speed, and refrigeration load. Optional LabSoft Pro software enables remote monitoring, data export (CSV, PDF), automated report generation, and synchronization with LIMS platforms. All temperature setpoints, deviations, and alarm events are timestamped with microsecond resolution and stored internally for ≥30 days. Exported datasets include metadata such as operator ID, calibration status, and firmware revision—supporting ISO/IEC 17025 documentation requirements.

Applications

• Precise temperature cycling in polymerization, hydrogenation, and crystallization processes
• Calorimetric calibration and heat capacity measurement using differential scanning calorimeters (DSC) or reaction calorimeters
• Thermal stress testing of electronic components and battery cells under controlled ambient simulation
• Stability testing of pharmaceutical formulations per ICH Q1A(R3) guidelines
• Material property characterization (e.g., viscosity-temperature profiling, TMA, DMA sample conditioning)
• Validation of HVAC and environmental chamber performance across extended temperature ranges

FAQ

What distinguishes “dynamic” temperature control from standard thermostatic control?
Dynamic control actively anticipates and compensates for thermal disturbances (e.g., reaction enthalpy changes) by continuously modulating both heating and refrigeration output in parallel—whereas conventional systems alternate between modes, resulting in lag and instability.

Can the PRESTO W41 operate continuously at −45 °C with a 250 °C upper limit?
Yes—the system is rated for continuous operation across its full specified range. However, sustained operation near extremes requires appropriate thermal fluid selection (e.g., Therminol LT for low-temp service) and periodic verification of refrigerant charge integrity.

Is external sensor feedback mandatory for achieving ±0.01 °C stability?
No—bath stability is guaranteed using internal Pt100 sensors. External sensor input enhances process-side accuracy but does not degrade baseline bath performance.

How often does the thermal fluid require replacement?
Under normal use with sealed operation and proper fluid selection, replacement intervals exceed 24 months. Fluid degradation is monitored via onboard conductivity and viscosity trend analysis in LabSoft Pro.

Does the system support integration with PLC-based automation networks?
Yes—via Modbus RTU (RS-485) and optional Ethernet/IP or PROFINET modules, enabling seamless integration into industrial SCADA and MES environments.
