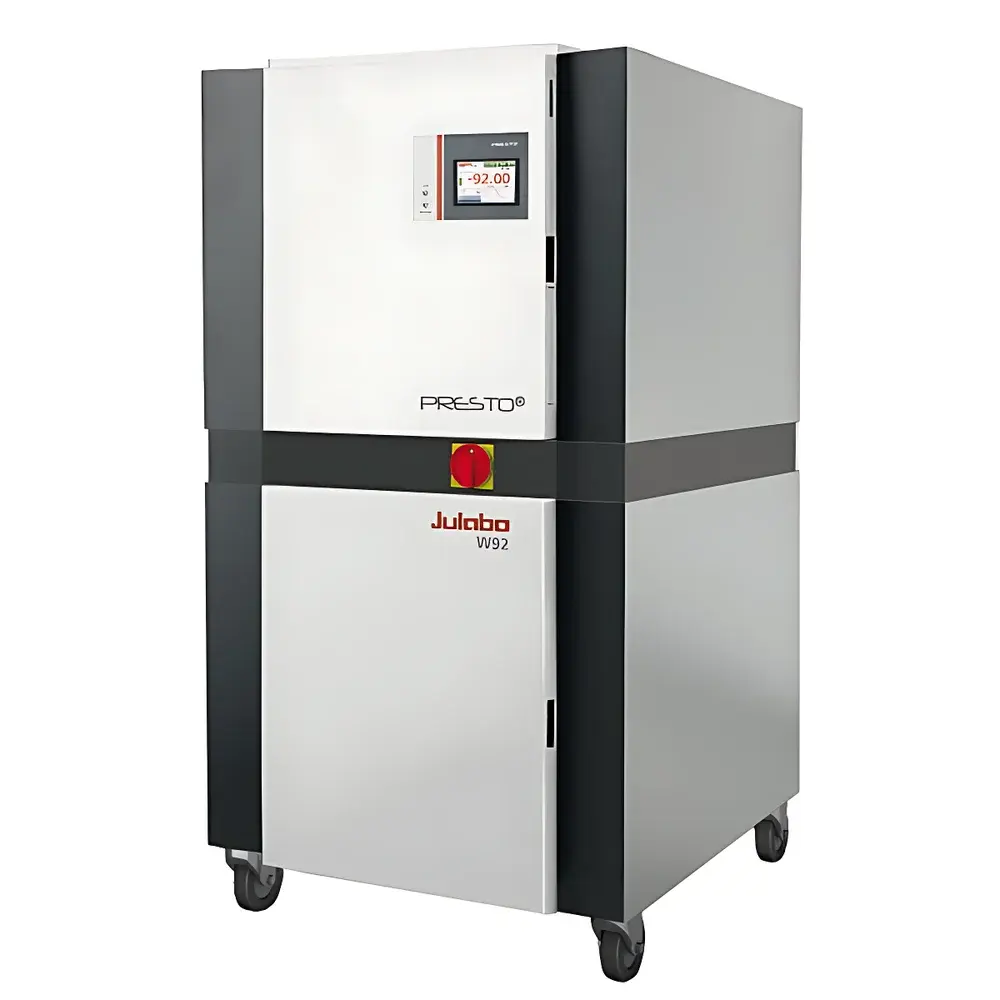

Julabo PRESTO W92x Series Closed-Loop High-Precision Dynamic Temperature Control System

Overview

The Julabo PRESTO W92x Series is a closed-loop, high-precision dynamic temperature control system engineered for demanding laboratory and pilot-scale process applications requiring rapid, stable, and reproducible thermal management across an exceptionally wide operating range—from cryogenic -92 °C to high-temperature +250 °C. Unlike conventional thermostats or bath circulators, the PRESTO W92x implements Julabo’s proprietary dynamic temperature control concept—first introduced in 1989 with the ATS prototype—which integrates real-time thermal load compensation, adaptive PID+ICC (Intelligent Cascade Control) algorithms, and a thermally optimized hydraulic architecture. This enables precise external temperature regulation of jacketed reactors, calorimeters, distillation units, and other process equipment without bath fluid exchange, even during extreme ramping or exothermic/endothermic transitions. The system operates as a fully sealed thermal loop, eliminating volatile emissions, preventing oxidation of heat transfer fluids, and ensuring long-term fluid integrity—critical for GMP-compliant synthesis, pharmaceutical process development, and materials testing under ISO/IEC 17025 or ASTM E2877 environmental conditioning protocols.

Key Features

• Ultra-wide temperature span (-92 °C to +250 °C) maintained with single Thermal HL heat transfer fluid—no fluid switching required across operational zones.
• High-dynamic ICC temperature control delivering stability of ±0.05 °C (at optimal setpoints) and repeatability < ±0.1 °C over extended operation—validated per ISO 17025 calibration traceability requirements.
• Modular dual-pump architecture supporting flow rates from 18 to 70 L/min and pressure up to 5.5 bar—enabling compatibility with high-resistance reactor jackets and multi-zone distribution manifolds.
• Closed-system design with hydraulic sealing and vapor-tight reservoir minimizes fluid degradation, eliminates oil mist or odor emission, and prevents frost/ice formation—even at sub-80 °C operation.
• Integrated safety layer including overtemperature cutoff, low-level fluid detection, pressure monitoring, and automatic shutdown on thermal runaway or pump failure—compliant with IEC 61000-6-2/6-4 EMC and EN 61010-1 safety standards.
• Robust stainless-steel construction (IP54-rated enclosure), corrosion-resistant internal wetted parts, and maintenance-accessible heat exchanger modules ensure >15-year service life under continuous 24/7 operation.

Sample Compatibility & Compliance

The PRESTO W92x is designed for external temperature control of jacketed vessels (glass, stainless steel, Hastelloy), calorimetric cells, extruders, and analytical instrumentation requiring stringent thermal boundary conditions. Its closed-loop configuration meets FDA 21 CFR Part 11 requirements for audit-trail-capable process equipment when paired with optional Julabo LabSoft v5.0 software. All models conform to GLP/GMP documentation frameworks, support IQ/OQ/PQ validation packages, and are certified for use in environments governed by ASTM D341 (viscosity-temperature relationships), ISO 13320 (laser diffraction particle sizing thermal conditioning), and USP <1031> (thermal analysis of pharmaceuticals). Fluid compatibility is validated for Julabo Thermal HL series synthetic heat transfer oils—rated for oxidative stability >10,000 hours at 200 °C and low vapor pressure (<0.1 mbar at 250 °C).

Software & Data Management

Control and monitoring are executed via Julabo’s LabSoft v5.0 platform—available as standalone PC software or integrated into LabVIEW, MATLAB, or DeltaV DCS environments via OPC UA or Modbus TCP. LabSoft provides full programmable ramp/soak profiles (up to 200 steps), real-time logging of temperature, flow, pressure, and power consumption at 100 ms intervals, and automated report generation compliant with 21 CFR Part 11 electronic signature and audit trail requirements. Optional Ethernet/WiFi connectivity enables remote diagnostics, firmware updates, and alarm forwarding via SMTP/SNMP. All data exports in CSV, PDF, or XML formats support traceability in LIMS and ELN systems used in regulated QC/QA laboratories.

Applications

• Pharmaceutical process development: Precise thermal control of API crystallization, hydrogenation, and Grignard reactions where ±0.1 °C deviation impacts polymorph selectivity or impurity profile.
• Materials science: Conditioning of polymer melts in rheometry, DSC sample staging, and composite curing cycles requiring simultaneous high heating rate (>5 K/min) and sub-0.1 °C stability.
• Chemical engineering: Jacketed reactor temperature profiling for kinetic studies, adiabatic calorimetry (RC1/ARC integration), and scale-up validation under identical thermal boundary conditions.
• Automotive & battery R&D: Thermal cycling of electrolyte formulations, cell stack testing, and thermal runaway simulation at -40 °C to +85 °C with rapid transition capability.
• Standards-compliant testing: ASTM D156, ISO 3104 (kinematic viscosity), and IEC 60896 (battery thermal abuse) test execution with documented thermal uniformity and gradient control.

FAQ

What distinguishes “dynamic” temperature control from conventional thermostatic control?
Dynamic control continuously adapts refrigeration/heating output in response to real-time thermal load changes—such as exothermic reaction surges—using predictive ICC algorithms, whereas static control relies on fixed PID parameters and exhibits lag or overshoot under transient conditions.

Can the PRESTO W92x operate continuously at -92 °C?
Yes—its dual-cascade refrigeration system with low-GWP HFC/HFO blends and optimized oil return design enables sustained operation at -92 °C without compressor cycling or frost accumulation, verified per Julabo’s 1,000-hour continuous cold-hold qualification test.

Is Thermal HL fluid compatible with silicone-based reactor jackets?
Yes—Thermal HL exhibits no swelling or degradation effects on standard silicone elastomers (e.g., VMQ, FVMQ) and maintains viscosity stability across the full -92 °C to +250 °C range, as confirmed by ASTM D471 immersion testing.

How is calibration traceability ensured for regulatory submissions?
Each unit ships with a NIST-traceable factory calibration certificate covering temperature, flow, and pressure sensors; optional on-site calibration services include ISO/IEC 17025-accredited verification with uncertainty budgets per EURAMET cg-18 guidelines.

What maintenance intervals are recommended for GMP environments?
Fluid analysis every 12 months (per ASTM D92/D93/D2989), filter replacement every 6 months, and full system performance verification annually—documented via Julabo’s PQ checklist aligned with Annex 15 and WHO TRS 986 requirements.
