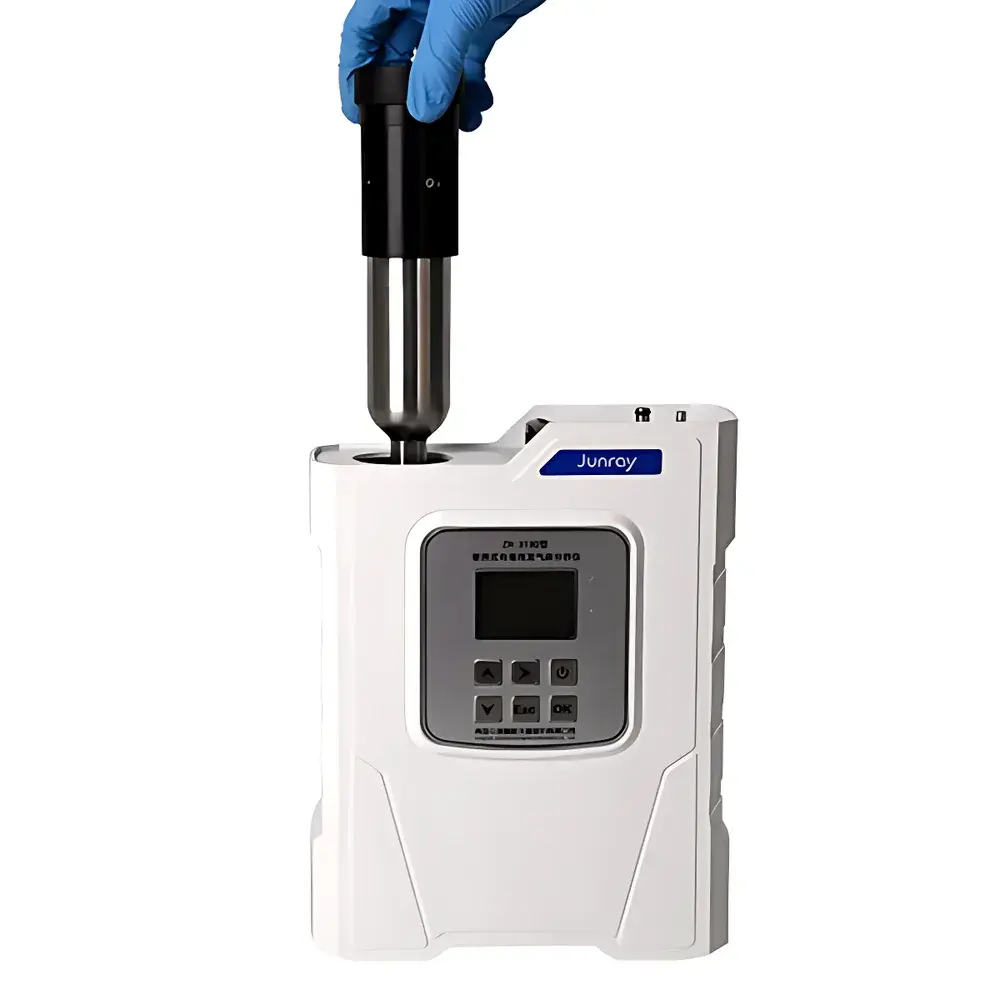

Junray ZR-3130A Portable Toxic Volatile Gas Analyzer for LDAR Compliance

Overview

The Junray ZR-3130A Portable Toxic Volatile Gas Analyzer is an intrinsically safe, field-deployable instrument engineered for quantitative detection and quantification of fugitive emissions during Leak Detection and Repair (LDAR) programs. It employs a high-sensitivity flame ionization detector (FID) as its primary sensing element—providing linear, wide-dynamic-range response to hydrocarbons and most organic vapors (C₂–C₁₂), while integrated electrochemical or metal oxide semiconductor (MOS) sensors enable simultaneous screening of key inorganic odorants including hydrogen sulfide (H₂S), ammonia (NH₃), chlorine (Cl₂), and low-molecular-weight mercaptans. The analyzer operates on the principle of pyrolytic ionization: sample gas is combusted in a hydrogen-air flame, generating ions proportional to carbon content, which are collected and measured as current output. This principle ensures robust, matrix-independent response across diverse VOC classes—alkanes, alkenes, aromatics, ketones, esters, and chlorinated solvents—without calibration drift under variable humidity or temperature typical of outdoor industrial environments.

Key Features

• Intrinsically safe design certified to Ex ib IIB T4 Gb per GB 3836.4–2021 and IEC 60079–11, enabling safe operation in Zone 1/21 hazardous areas common in petrochemical, refinery, and chemical manufacturing facilities.

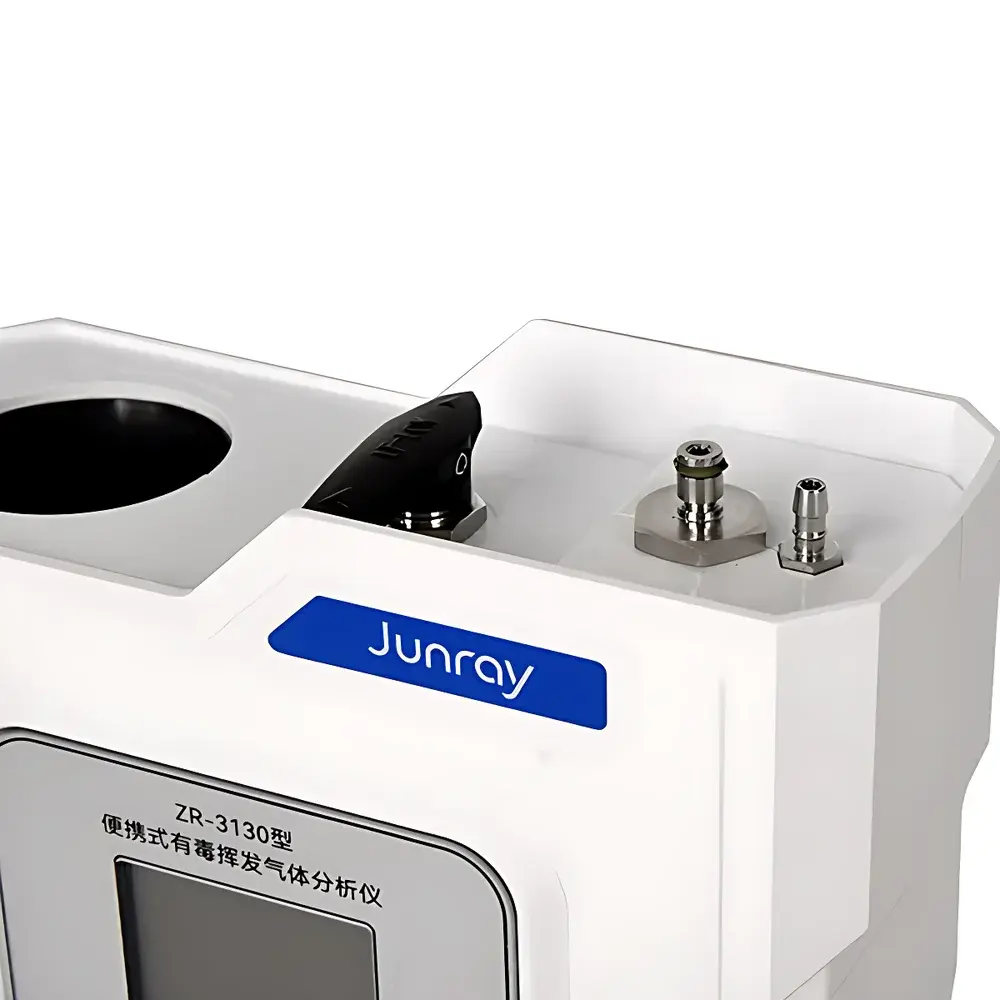

• Integrated pump-aspirated sampling system with flow-controlled inlet (0.5–1.5 L/min), heated sample line (up to 120 °C optional), and particulate filter to prevent sensor fouling during extended field surveys.
• Dual-mode operation: real-time concentration display (ppm or mg/m³) with 1-second response time (T₉₀ < 3 s for most VOCs); optional data logging at user-defined intervals (1–60 s) with GPS-tagged timestamps.
• Ruggedized aluminum alloy housing (IP65 rated), ergonomic hand-held form factor (< 2.8 kg), and rechargeable Li-ion battery supporting ≥ 8 hours continuous operation at 25 °C.
• Onboard calibration verification using certified span gas (e.g., 10,000 ppm methane in air) and zero-air check—fully traceable to NIST-traceable standards per ISO/IEC 17025 laboratory practices.

Sample Compatibility & Compliance

The ZR-3130A is validated for use across all emission sources defined in China’s LDAR regulatory framework—including flanges, valves, pumps, compressors, pressure relief devices, open-ended lines, and sampling connection systems. Its detection capability aligns with the analyte scope required by GB 37822–2019 (control of unorganized VOC emissions), HJ 733–2014 (technical guidelines for leak detection), and HJ 1230–2021 (LDAR implementation protocols for industrial enterprises). Instrument performance meets the minimum sensitivity (≤ 100 ppm methane equivalent), repeatability (RSD ≤ 5% at 500 ppm), and stability (drift ≤ ±2% over 8 h) thresholds specified in EPA Method 21 and ASTM D6348. All firmware and calibration records support audit-ready documentation for GLP/GMP-aligned environmental compliance reporting.

Software & Data Management

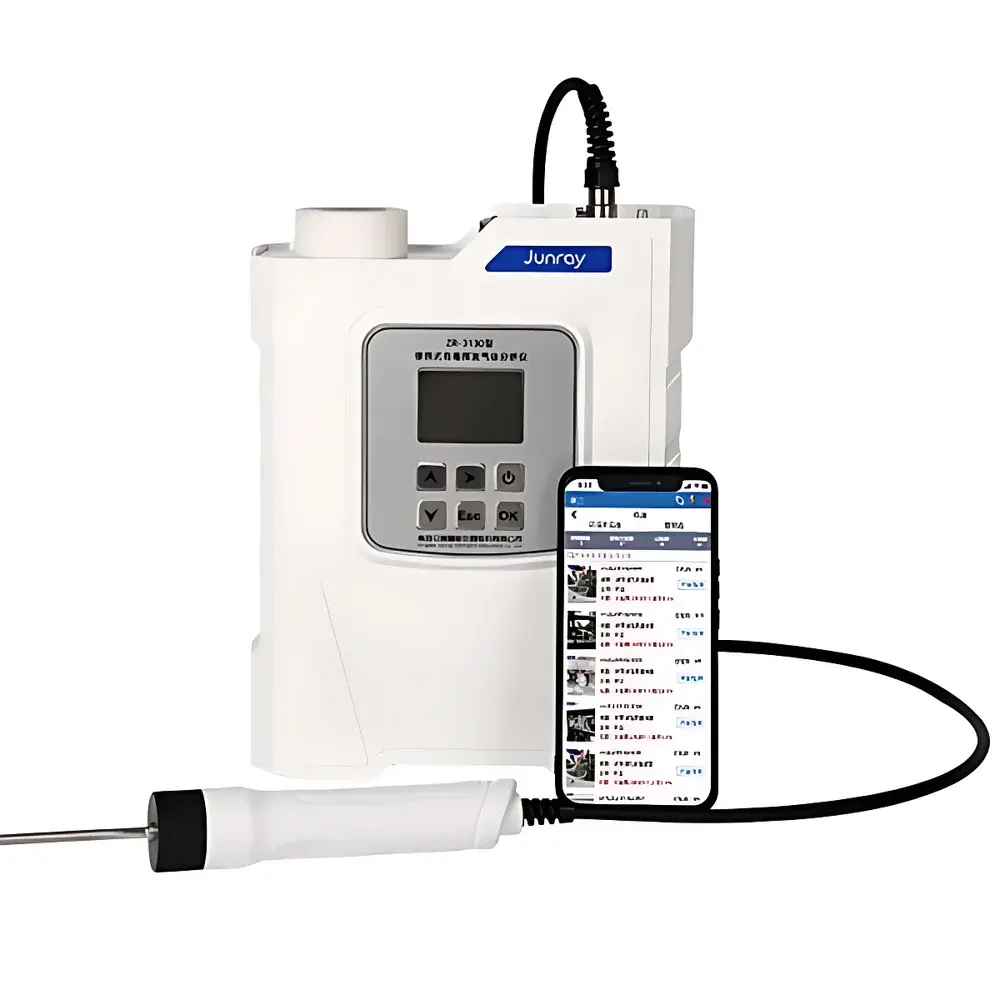

Data acquisition and reporting are managed via Junray’s proprietary LDAR Manager v3.2 software (Windows-based), which imports instrument logs via USB or Bluetooth. The software auto-generates EPA-compliant LDAR reports—including component ID mapping, leak identification flags (≥ 10,000 ppm for VOCs), repair verification status, and cumulative emission estimates. Audit trails record operator login, calibration events, configuration changes, and data export actions—supporting 21 CFR Part 11–compliant electronic signatures and secure role-based access control. Export formats include CSV, PDF, and XML for integration into enterprise EHS platforms (e.g., Intelex, Sphera).

Applications

• Regulatory LDAR surveys in refineries, olefin plants, and synthetic resin manufacturing facilities.
• Root-cause analysis of odor complaints near fence-line monitoring zones.
• Pre-startup safety reviews (PSSR) and mechanical integrity assessments of piping systems.
• Verification of vapor recovery unit (VRU) efficiency and flare stack bypass detection.
• Emergency response screening for VOC plume delineation following process upsets or storage tank overfills.

FAQ

Does the ZR-3130A require daily calibration before use?

No—routine calibration is performed prior to each survey day using certified zero air and span gas; however, a quick functional check (zero and span verification) is recommended before each sampling session per HJ 1230–2021 Section 6.3.2.
Can the instrument detect non-hydrocarbon compounds such as H₂S or NH₃ without cross-interference from VOCs?

Yes—the integrated electrochemical sensor array operates independently from the FID channel, with digital signal isolation and algorithmic compensation for humidity and temperature effects, ensuring selective quantification per HJ 733–2014 Annex B.
Is the device compatible with international LDAR standards such as EPA Method 21 or ISO 16000–25?

While designed to meet Chinese national standards, its FID sensitivity, response linearity, and operational protocol fully satisfy the performance criteria of EPA Method 21 and ISO 16000–25 for field-portable VOC analyzers.
What maintenance is required between inspections?

Annual sensor replacement and FID jet cleaning are recommended; the onboard diagnostics monitor flame stability, detector gain, and pump vacuum—triggering alerts when parameters deviate beyond ±5% of baseline.
How is data integrity ensured during offline field operations?

All measurements are stored locally with immutable timestamps, GPS coordinates, and operator ID; cryptographic hashing prevents post-collection modification, satisfying data governance requirements under GB/T 35273–2020 (Personal Information Security Specification) and ISO/IEC 27001.
