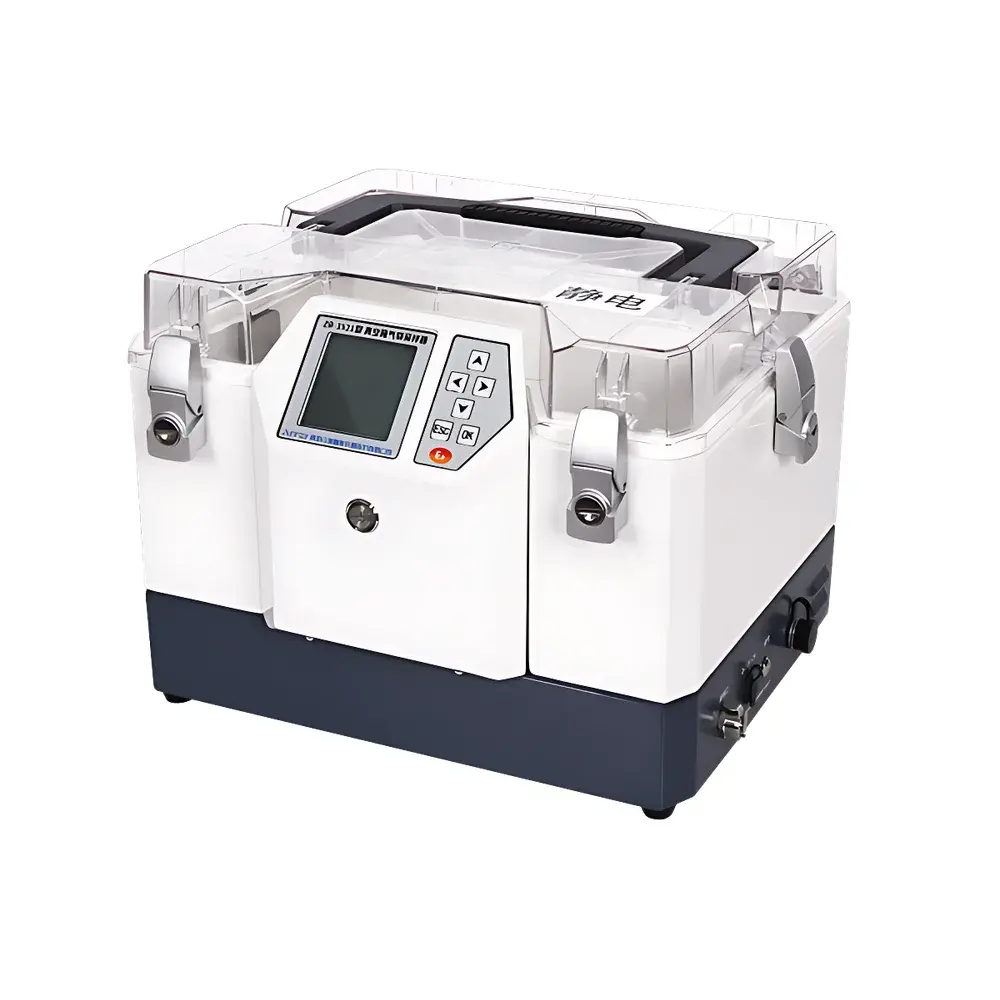

Junray ZR-3521 Intrinsically Safe Vacuum Chamber Gas Sampling System

Overview

The Junray ZR-3521 Intrinsically Safe Vacuum Chamber Gas Sampling System is a field-deployable, battery-powered instrument engineered for quantitative collection of ambient air and stack emission gases using the inert gas bag method. It operates on the principle of controlled negative pressure generation within a sealed vacuum chamber, enabling passive, contamination-free transfer of sample gas through fluoropolymer-lined (e.g., PFA or FEP) sampling tubing directly into certified Tedlar® or FlexFoil® gas sampling bags. Designed specifically for use in hazardous locations classified under IEC 60079-0 and IEC 60079-11, its Ex ib IIC T4 Gb certification confirms suitability for Zone 1 environments where flammable gases such as hydrogen, ethylene, or acetylene may be present. The system integrates vacuum chamber, control electronics, power management, and human-machine interface into a single compact enclosure—eliminating external pumps, manifolds, or secondary controllers typically required in conventional grab-sampling setups.

Key Features

• Intrinsically safe design certified to Ex ib IIC T4 Gb per IEC 60079-11:2017 and GB 3836.4–2021, permitting deployment in petrochemical plants, wastewater treatment facilities, landfill gas monitoring stations, and other Class I Division 1 / Zone 1 sites.
• Vacuum chamber and controller housed in a unified, ruggedized enclosure with IP54-rated ingress protection; optimized for field portability (<8.2 kg total mass) and rapid setup without auxiliary support equipment.
• Rechargeable lithium-ion battery pack providing ≥8 hours of continuous sampling runtime under typical duty cycles (including vacuum cycling, display backlighting, and data logging), with state-of-charge indication and low-battery warning.
• Dual-mode sampling control: real-time manual initiation and programmable timed sampling (1–999 minute intervals), each session automatically timestamped and logged with vacuum level, duration, and bag identification metadata.
• Gas-path components constructed exclusively from inert, low-outgassing materials—including PFA-lined sample inlet valves, stainless steel vacuum chamber body, and chemically resistant O-rings—to prevent adsorption, catalytic reaction, or memory effects during VOC, odorant, or reactive gas collection.
• Front-panel quick-connect sampling port (1/4″ Swagelok®-compatible) enables tool-free attachment/detachment of sampling trains; supports simultaneous connection of up to two gas bags via optional manifold kit.

Sample Compatibility & Compliance

The ZR-3521 is validated for sampling of volatile organic compounds (VOCs), total hydrocarbons (THC), methane (CH₄), non-methane hydrocarbons (NMHC), sulfur-containing odorants (e.g., H₂S, mercaptans), ammonia (NH₃), and halogenated compounds—as specified in HJ 732-2014 (gas bag sampling for VOCs from stationary sources) and HJ 905-2017 (odor monitoring). Its vacuum-based filling mechanism ensures laminar, particle-free transfer without shear-induced degradation or pump oil contamination—critical for trace-level analysis by GC-FID, GC-MS, or olfactometry. The system conforms to QA/QC requirements outlined in HJ 397-2007, including documented sampling volume verification, leak integrity testing (≤0.5% volume loss over 30 min), and field blank accountability. All firmware and operational logs comply with GLP-aligned data integrity principles, supporting audit-ready electronic records.

Software & Data Management

Internal flash memory stores ≥10,000 sampling events with full metadata: date/time stamp, vacuum setpoint (kPa), actual final vacuum (kPa), sampling duration (s), bag ID (user-defined alphanumeric tag), operator ID, and GPS coordinates (when paired with external GNSS module). Data export is supported via USB-C interface in CSV format compatible with LIMS platforms and EPA-compliant reporting templates. Optional PC-based configuration utility allows calibration log review, firmware updates, and audit trail generation—including user access history and parameter modification timestamps—aligned with 21 CFR Part 11 expectations for electronic records in regulated environmental laboratories.

Applications

• Regulatory compliance monitoring of fugitive emissions and stack gases per China’s “Standardized Monitoring Technical Specification for Pollutant Sources” (HJ 397-2007).
• Odor impact assessment in proximity to composting facilities, rendering plants, and municipal wastewater infrastructure using three-point potentiometric olfactometry (GB/T 14675-1993).
• Field validation of continuous emission monitoring systems (CEMS) through parallel bag sampling followed by laboratory reference analysis.
• Indoor air quality surveys in industrial hygiene assessments, particularly for hydrocarbon vapors and solvent breakthrough detection.
• Emergency response gas screening during chemical spills or confined-space entry operations where intrinsic safety is mandatory.
• Research-grade sampling for atmospheric chemistry studies requiring preservation of reactive species (e.g., ozone-sensitive alkenes or NOₓ precursors) without catalytic interference.

FAQ

What explosion-proof certification does the ZR-3521 hold, and what hazard zones does it cover?
It carries Ex ib IIC T4 Gb certification per IEC 60079-11:2017 and GB 3836.4–2021, qualifying for use in Zone 1 gas hazardous areas where Group IIC gases (e.g., hydrogen, acetylene) may be present, with surface temperature limited to ≤135 °C.
Can the instrument verify sampling volume accuracy in real time?
No direct volumetric flowmeter is integrated; however, vacuum decay rate and chamber geometry allow calculation of filled volume based on pre-calibrated chamber volume (2.8 L nominal) and measured pressure differential—traceable to NIST-traceable barometric references.
Is the internal battery replaceable in the field?
The lithium-ion battery pack is serviceable only by authorized Junray technicians using diagnostic firmware; end users must return units for battery replacement to maintain intrinsic safety certification integrity.
Does the system support remote triggering or integration with SCADA networks?
No native Ethernet or wireless communication interfaces are provided; however, digital I/O ports (opto-isolated) enable hardwired start/stop signals from external PLCs or data loggers, subject to site-specific ATEX/IECEx approval.
What gas bag types are recommended for optimal chemical compatibility?
Tedlar® (polyvinyl fluoride) bags certified to ASTM D5466 are preferred for general VOC and odorant sampling; FlexFoil® laminates are recommended for extended storage (>24 h) of polar compounds or low-concentration sulfur species.
