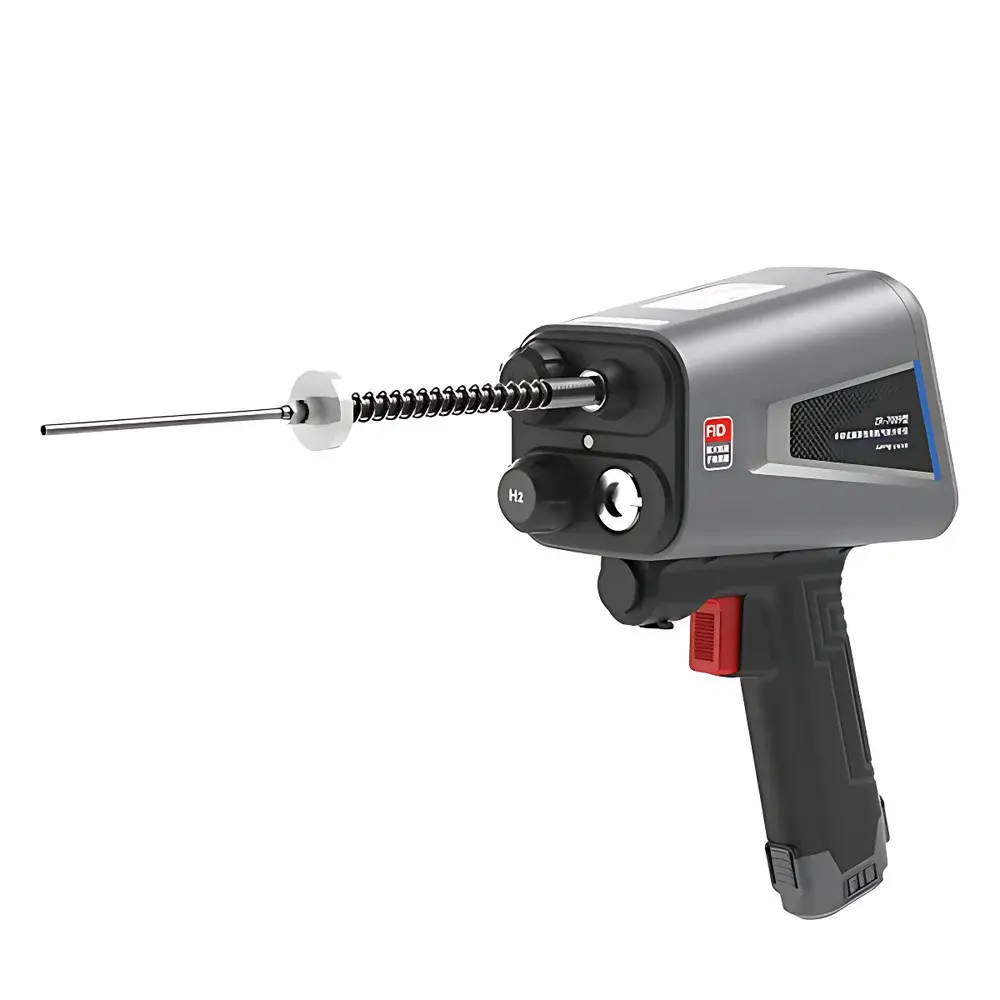

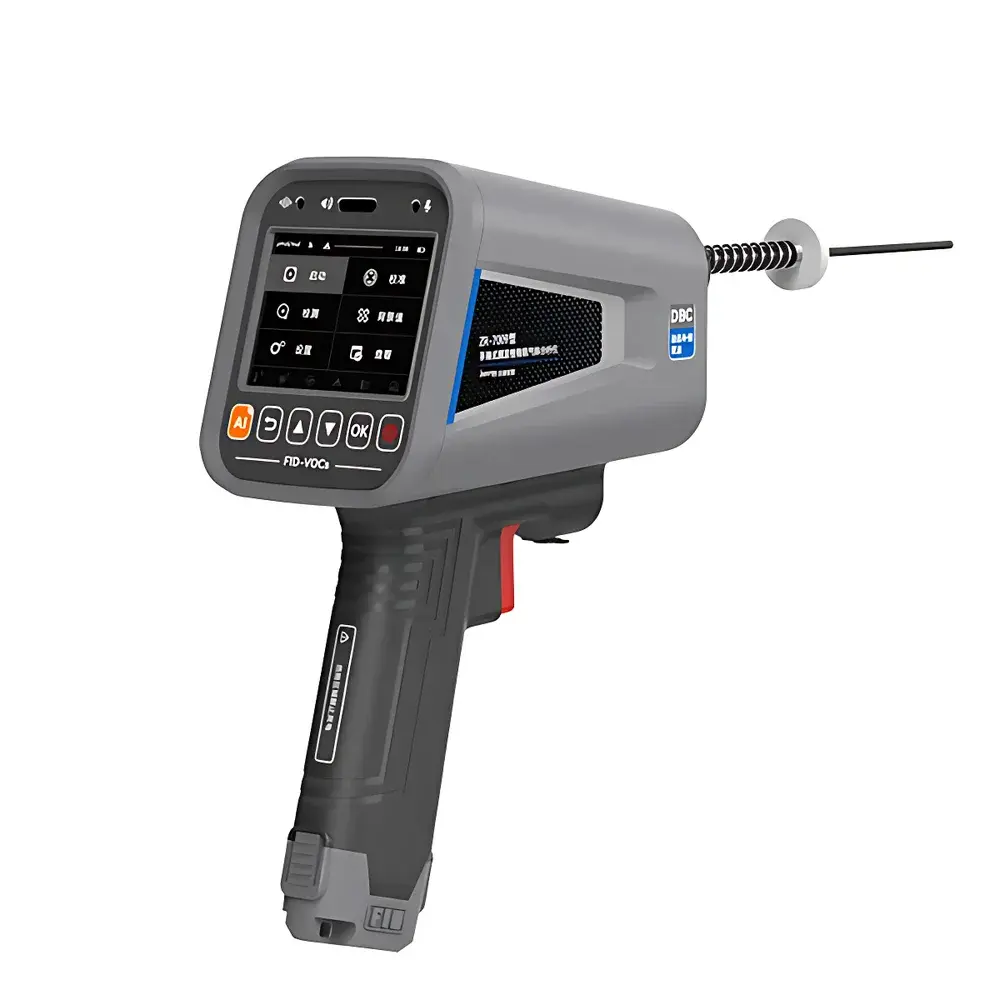

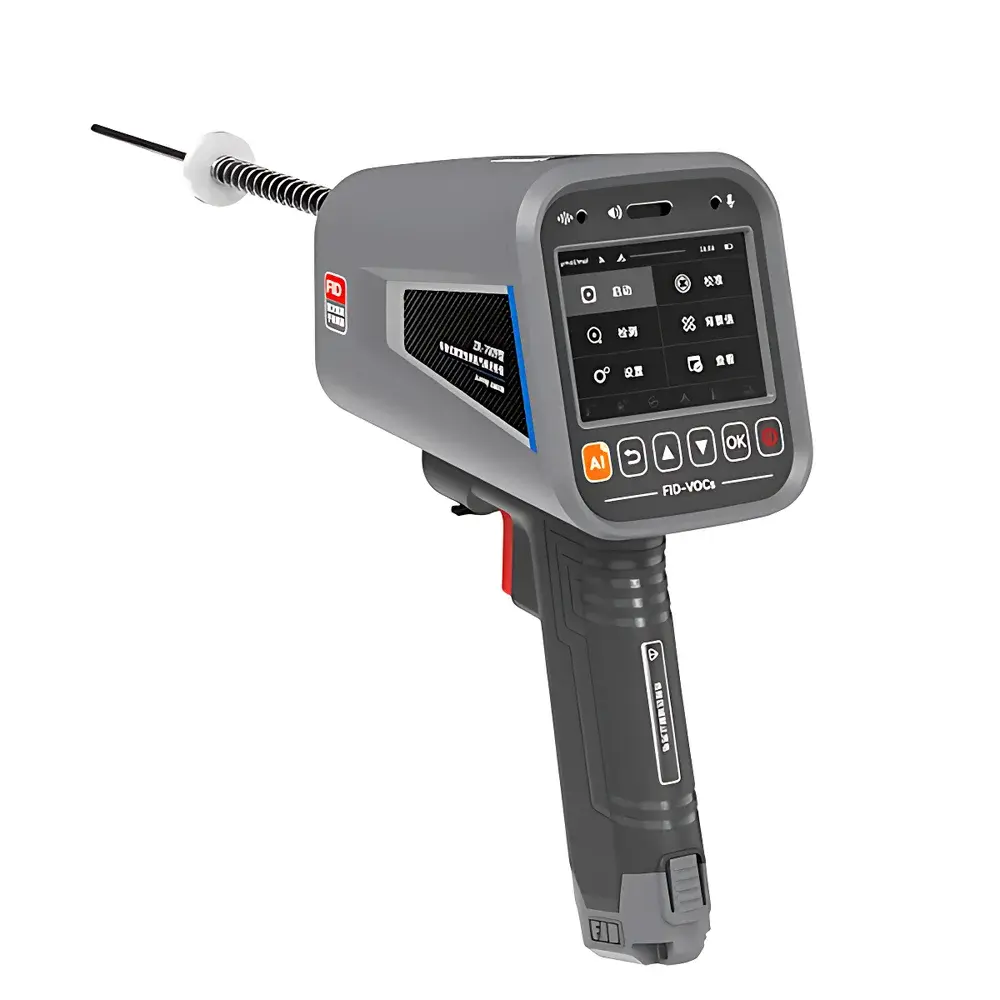

Junray ZR-7009 Handheld VOC Analyzer with Flame Ionization Detector (FID)

Overview

The Junray ZR-7009 Handheld VOC Analyzer is a field-deployable, intrinsically safe instrument engineered for quantitative detection of volatile organic compounds (VOCs) in ambient air and fugitive emission sources. It operates on the principle of flame ionization detection (FID), a well-established, linear, and highly sensitive analytical technique for hydrocarbon-rich gases. Unlike photoionization detectors (PID), FID provides near-uniform response factors across aliphatic, aromatic, and chlorinated VOCs—making it particularly suitable for LDAR (Leak Detection and Repair) programs mandated under national regulatory frameworks. The analyzer integrates a miniaturized hydrogen-air micro-flame chamber, thermally stabilized detector electronics, and real-time signal processing algorithms to deliver stable baseline performance and low detection limits (<0.1 ppm as methane, typical). Its compact, ergonomic form factor enables one-handed operation during walking surveys, fence-line monitoring, or component-level scanning in refineries, chemical plants, and storage facilities.

Key Features

• True FID detection core with calibrated response to C1–C12 hydrocarbons and common industrial solvents (e.g., toluene, xylene, ethyl acetate, n-hexane)
• Intrinsically safe design certified to GB 3836.1–2010 (equivalent to IEC 60079-0) for use in Class I, Division 1 hazardous areas
• IP65-rated housing ensures reliable operation under rain, dust, and high-humidity conditions typical of outdoor industrial sites
• Integrated probe-based sampling system with heated stainless-steel sampling tip (up to 120 °C) to prevent condensation of high-boiling-point VOCs
• Modular sensor expansion interface supporting optional electrochemical or metal oxide semiconductor (MOS) sensors for CO, H₂S, or O₂ co-monitoring
• Internal data logger with timestamped readings (up to 100,000 records), GPS tagging, and automatic LDAR report generation per HJ 1230–2021 requirements

Sample Compatibility & Compliance

The ZR-7009 is validated for direct measurement of unfiltered ambient air and process-adjacent emissions without pre-concentration. It demonstrates robust performance across VOC classes including alkanes, alkenes, aromatics, ketones, esters, and halogenated compounds—with minimal quenching effects from background CO₂, moisture, or nitrogen. All hardware and firmware comply with Chinese national standards governing LDAR implementation: GB 37822–2019 (Control Standard for Unorganized VOC Emissions), HJ 733–2014 (Technical Guidelines for Fugitive Emission Monitoring), and HJ 1230–2021 (LDAR Technical Specification for Industrial Enterprises). Calibration traceability follows JJG 700–2016 (National Verification Regulation for Gas Chromatographs and Detectors), with factory calibration performed using certified NIST-traceable methane standards.

Software & Data Management

The instrument interfaces with Junray’s proprietary LDAR Manager desktop software (Windows 10/11 compatible) via USB-C or Bluetooth 5.0. Software features include automated leak classification (based on concentration thresholds and exposure duration), GIS-integrated mapping of survey routes, batch export in CSV and PDF formats compliant with environmental authority submission templates, and full audit trail functionality—including user login logs, calibration history, and parameter modification timestamps. Data integrity meets GLP-aligned documentation practices; optional 21 CFR Part 11 compliance packages are available upon request for regulated pharmaceutical and fine chemical users.

Applications

• Fugitive emission screening at valves, flanges, pumps, compressors, and pressure relief devices in petrochemical and LNG terminals
• Compliance verification for VOC abatement systems (e.g., thermal oxidizers, carbon adsorption units) via inlet/outlet differential measurements
• Source identification and quantification during odor complaint investigations in proximity to industrial zones
• Process safety audits—including vapor cloud modeling input generation and hot work permit verification
• Environmental due diligence assessments for M&A transactions and facility decommissioning projects

FAQ

What is the typical detection limit for methane using the ZR-7009?
The instrument achieves a method detection limit (MDL) of ≤0.1 ppm (v/v) for methane under standard operating conditions (23 °C, 50% RH), verified per HJ 733–2014 Annex B.
Does the ZR-7009 require external hydrogen gas supply?
Yes—it uses a miniature, refillable hydrogen cylinder (included) rated for ≥8 hours of continuous operation; cylinder refills conform to GB/T 3634.2–2011 specifications.
Can the device be used indoors in confined spaces?
It is approved for use in classified hazardous areas only; confined space entry requires additional atmospheric testing (O₂, LEL, H₂S) using dedicated multi-gas monitors per GBZ/T 205–2007.
Is firmware upgrade supported remotely?
Firmware updates are delivered via encrypted USB drive or secure HTTPS download through Junray’s authorized service portal; no over-the-air connectivity is implemented for cybersecurity compliance.
How often must the FID be calibrated?
Field calibration is recommended before each survey day using certified 100 ppm methane standard; full verification against primary standard is required every 30 days or after maintenance, per HJ 1230–2021 Section 6.4.
