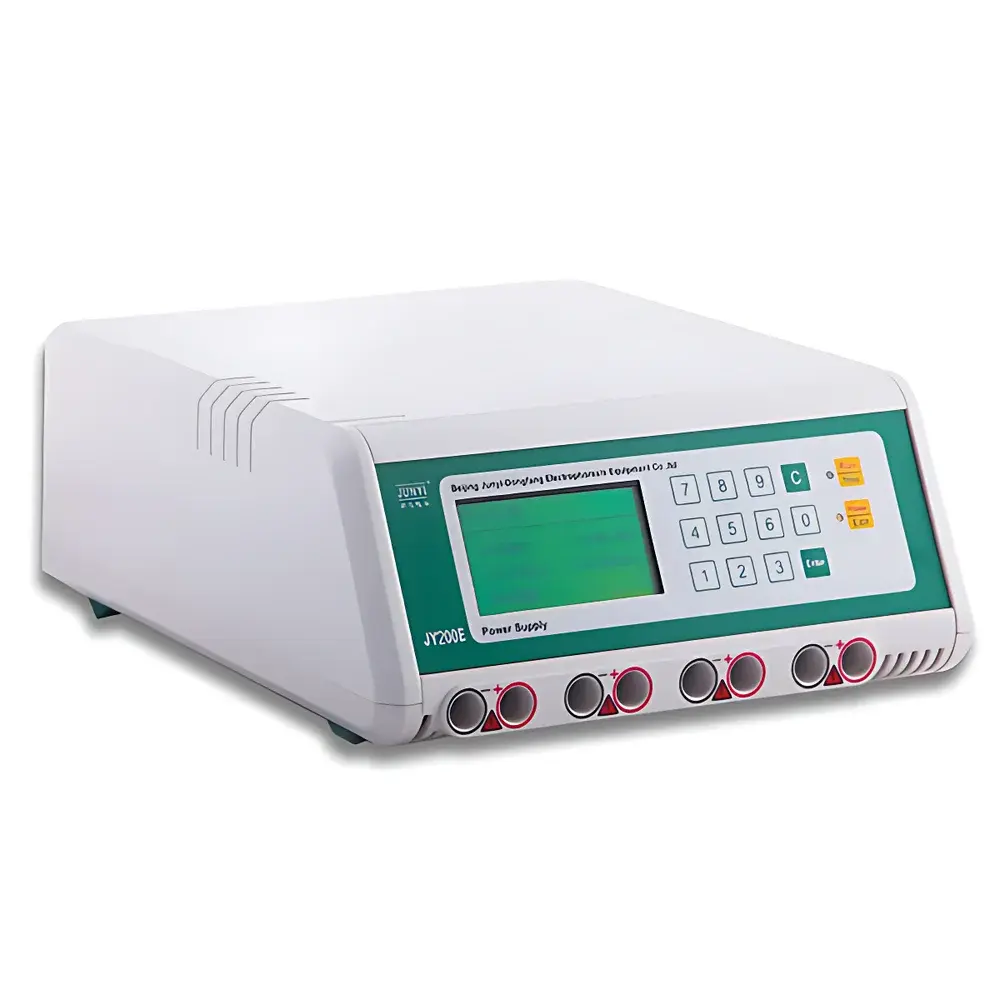

Junyi JY200E Electrophoresis Power Supply

Overview

The Junyi JY200E Electrophoresis Power Supply is a laboratory-grade DC power source engineered for precision and reliability in nucleic acid and protein separation applications. Designed around a dual-core microprocessor architecture, it delivers stable, programmable output across three fundamental modes—constant voltage (CV), constant current (CC), and constant power (CP)—enabling rigorous control over electrophoretic migration kinetics in horizontal, vertical, cellulose acetate membrane, and electroblotting systems. Its regulated output ensures minimal ripple (<0.5% RMS) and high reproducibility across repeated runs, critical for inter-laboratory comparability and regulatory-compliant workflows. The unit operates within a validated safety envelope compliant with IEC 61010-1 for laboratory electrical equipment, incorporating real-time monitoring of load impedance and automatic shutdown under open-circuit, short-circuit, or ground-fault conditions.

Key Features

• Dual-core microprocessor control with touch-sensitive keypad interface for intuitive navigation and reduced mechanical wear
• Simultaneous real-time display of setpoint and actual output values (voltage, current, power, elapsed time, and accumulated volt-hours)
• 100-user-configurable method storage with non-volatile memory retention—no battery backup required
• Stepwise program mode supporting up to 10 cascaded segments per method, each configurable with independent CV/CC/CP parameters, timing, and pause points
• Pause-and-adjust functionality preserving output integrity during mid-run parameter modification—no drift or overshoot observed in controlled validation tests
• Comprehensive safety suite: electronic overload protection, open-circuit detection, leakage current monitoring (<0.5 mA threshold), and thermal foldback on sustained overtemperature
• Backlit LCD with high-contrast character rendering optimized for low-ambient-light gel documentation environments

Sample Compatibility & Compliance

The JY200E is compatible with standard electrophoresis apparatuses used in molecular biology laboratories, including mini and midi horizontal submarine tanks (e.g., for agarose gels), vertical slab units (e.g., SDS-PAGE and native PAGE), capillary electrophoresis modules (when interfaced via external HV connectors), and semi-dry and wet transfer systems for Western and Southern blotting. It meets essential electrical safety requirements per IEC 61010-1:2010 (Edition 3) and conforms to electromagnetic compatibility standards EN 61326-1:2013 for laboratory use. While not certified for GMP manufacturing environments, its deterministic control logic, audit-ready parameter logging (via optional RS-232 or USB data export), and method recall capability support GLP-aligned documentation practices in academic, clinical diagnostic, and contract research settings.

Software & Data Management

The JY200E operates as a standalone instrument with embedded firmware—no host PC or proprietary software is required for routine operation. All user-defined methods, runtime logs, and fault event timestamps are retained in internal flash memory. Optional serial (RS-232) or USB-to-serial interface enables integration with laboratory information management systems (LIMS) or custom Python/Matlab scripts for automated protocol execution and long-term performance trending. Exported log files include ISO 8601 timestamps, method ID, cumulative run time, total volt-hours consumed, and anomaly codes—facilitating root-cause analysis during QA/QC investigations. The device supports CSV-formatted output compatible with Excel-based compliance reporting templates aligned with FDA 21 CFR Part 11 principles (when paired with appropriate system-level access controls and electronic signature implementation).

Applications

• Agarose and polyacrylamide gel electrophoresis (AGE/PAGE) for DNA fragment sizing, RNA integrity assessment, and plasmid analysis
• SDS-PAGE and native PAGE for protein molecular weight estimation, purity evaluation, and oligomeric state characterization
• Electroelution and electrotransfer protocols including tank blotting, semi-dry transfer, and vacuum-assisted blotting
• Cellulose acetate membrane electrophoresis for serum protein fractionation in clinical biochemistry labs
• Method development and optimization studies requiring precise volt-hour dosing, such as pulsed-field gel electrophoresis (PFGE) pre-characterization or renaturation gradient experiments

FAQ

Does the JY200E support programmable ramping (e.g., voltage ramp-up)?
No—the JY200E implements stepwise discrete parameter changes only; continuous ramp profiles require external programmable controllers.
Can it be used with high-voltage vertical electrophoresis systems (e.g., >200 V)?
No—its maximum rated output is 200 V DC; exceeding this may trigger immediate overvoltage shutdown and void warranty coverage.
Is the 4-output-port design intended for parallel gel runs?
Yes—each port pair is electrically isolated and independently monitored, enabling simultaneous but non-interacting operation of up to four electrophoresis units.
How is method recall verified during GLP audits?
Each stored method includes a unique checksum and timestamp; users may manually verify integrity by re-loading and comparing displayed parameters against hardcopy SOPs.
What maintenance is required for long-term calibration stability?
No user-serviceable calibration is provided; annual verification against NIST-traceable multimeters is recommended for ISO/IEC 17025-accredited labs.
