KA Instruments KA8000Ex Online Gas Chromatograph for Hydrogen Purity Analysis in Fuel Cell Applications
| Brand | KA |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | KA8000Ex |
| Price Range | USD 68,000–136,000 (FOB) |
| Repeatability | <1% RSD |
| Detection Limit | <1 ppb (H₂S, COS, SO₂, CH₃SH) |
| Detector Type | Enhanced Plasma Detector (EPD) |
| Column Oven Temperature Range | −5°C to 300°C |
| Carrier Gas Requirements | Argon, Helium, or Nitrogen (inert only) |
Overview

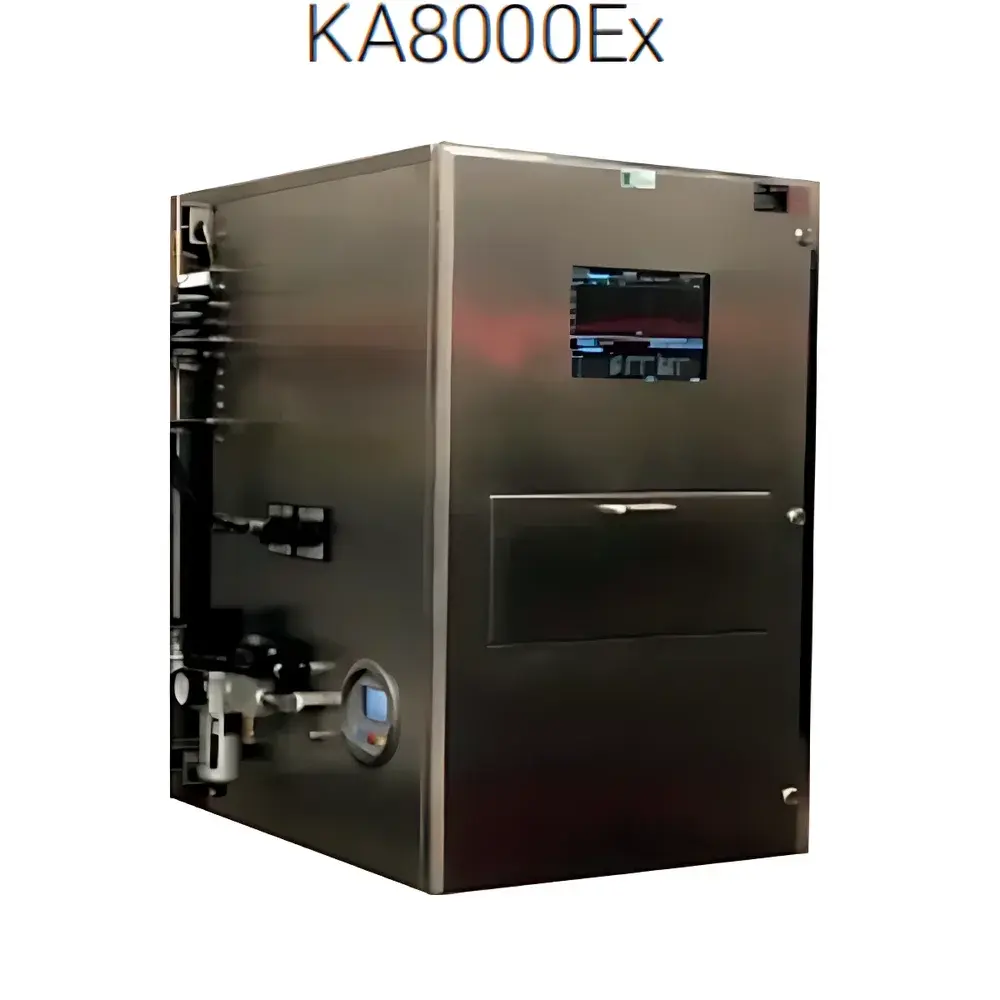

The KA Instruments KA8000Ex Online Gas Chromatograph is a purpose-engineered analytical platform designed specifically for continuous, real-time hydrogen purity monitoring in proton exchange membrane (PEM) and solid oxide fuel cell (SOFC) production, refueling infrastructure, and electrolyzer output validation. It employs gas chromatography coupled with an Enhanced Plasma Detector (EPD) — a non-flame, inert-gas-compatible detection technology — to quantify trace-level impurities including permanent gases (O₂, N₂, CO, CH₄, CO₂) and sulfur-containing compounds (H₂S, COS, SO₂, CH₃SH, C₂H₅SH) at sub-ppb levels without chemical derivatization or pre-concentration. Unlike conventional sulfur-specific detectors such as Flame Photometric Detectors (FPD) or Sulfur Chemiluminescence Detectors (SCD), the EPD operates without hydrogen or oxygen fuel gases, eliminating combustion-related safety hazards and maintenance overhead in Class I, Division 1 hazardous locations. The system complies with ISO 8573-8:2020 (compressed hydrogen purity), SAE J2719, and ASTM D7652–22 standards for hydrogen fuel quality assurance.
Key Features
- Direct online analysis of hydrogen streams with no sample pre-concentration or cryo-trapping required — enabling true real-time process feedback with <60-second cycle time per analysis.
- Enhanced Plasma Detector (EPD) with stable electrode architecture and advanced digital signal processing, delivering consistent sub-ppb detection limits across all sulfur species and permanent gases.

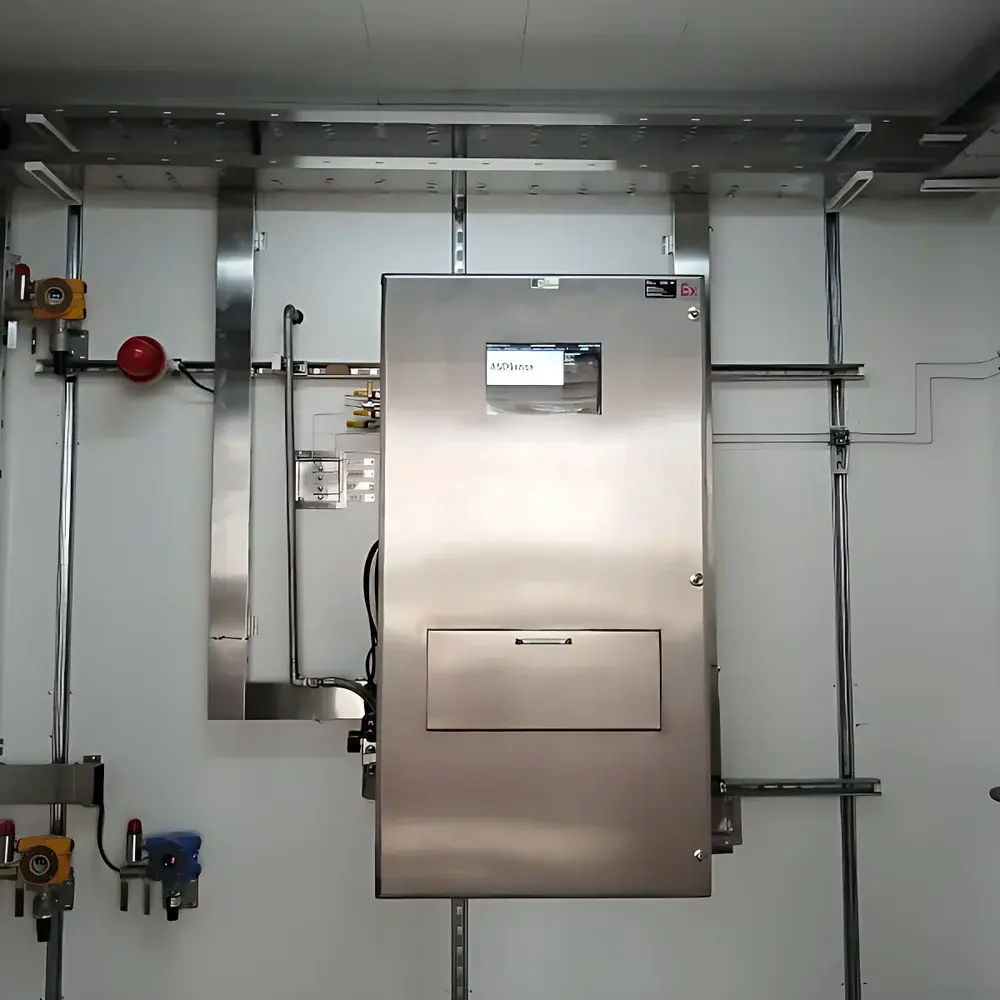

- iMov Ex™ modular chromatographic platform: explosion-proof (ATEX/IECEx certified), field-upgradable, and engineered for 24/7 unattended operation in industrial environments.
- μInProve™ microfluidic valve manifold optimized for sulfur compound retention and elution integrity — minimizing carryover and adsorption losses during high-frequency switching.
- iGCS™ (integrated Gas Calibration System): fully passivated sonic nozzle-based dynamic dilution module enabling NIST-traceable, matrix-matched calibration from 0.1 ppb to 10 ppm — validated per ISO/IEC 17025 requirements.
- Column oven with ±0.1°C temperature stability over −5°C to 300°C range, supporting rapid thermal ramping and isothermal precision for multi-analyte separation.
Sample Compatibility & Compliance
The KA8000Ex accepts pressurized hydrogen feed streams (1–10 bar(g)) with ≤5 ppm total hydrocarbon content and dew point ≤−40°C. It is compatible with industrial-grade carrier gases (Ar, He, N₂) meeting ISO 8573-1:2010 Class 1 purity specifications. All wetted surfaces are electropolished 316L stainless steel or SilcoNert®-coated, ensuring minimal catalytic degradation of reactive sulfur species. The system meets IEC 60079-0/-1/-11 for Ex d e ib IIC T4 Gb certification, and its firmware architecture supports audit trails, electronic signatures, and data integrity protocols aligned with FDA 21 CFR Part 11 and EU Annex 11 for regulated hydrogen production facilities.
Software & Data Management

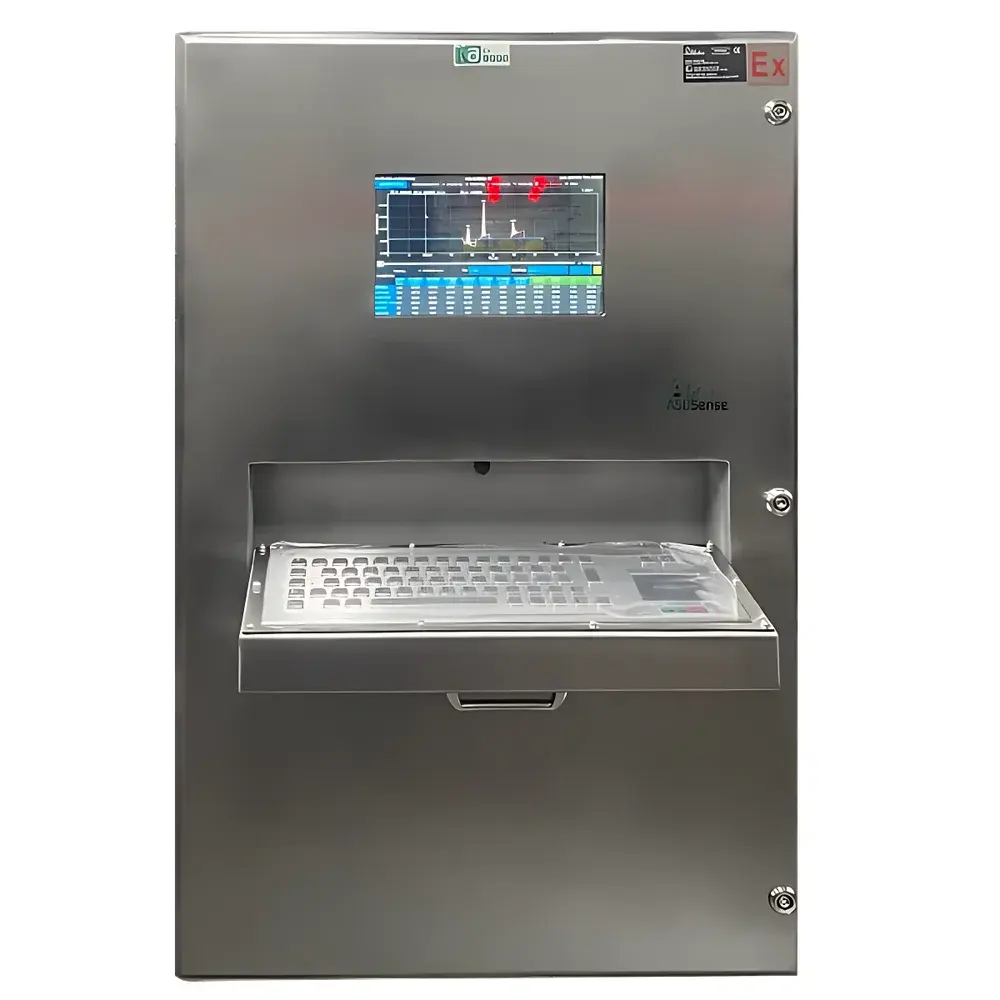

Control and data acquisition are managed via KA ChromaSuite™ v4.2 — a Windows-based SCADA-integrated application supporting OPC UA, Modbus TCP, and MQTT protocols. The software provides automated method sequencing, peak integration with retention time locking, and configurable alarm thresholds per analyte. Raw chromatograms and processed results are stored in encrypted SQLite databases with optional cloud backup. Full GLP/GMP compliance mode enables user access control, change history logging, and electronic batch records exportable in PDF/A-2 or CSV formats. Remote diagnostics and firmware updates are supported via TLS 1.2-secured HTTPS channels.
Applications
- Real-time monitoring of PEM electrolyzer outlet gas for ISO 8573-8 Grade 4 compliance (H₂S ≤0.5 ppb, total sulfur ≤4 ppb).
- Hydrogen refueling station inlet verification prior to compression and storage.
- Quality release testing of hydrogen delivered via tube trailers or liquid dewars.
- Process troubleshooting in chlor-alkali or steam methane reforming (SMR) off-gas purification units supplying fuel cell feedstock.
- Validation of palladium membrane purifier performance under dynamic load conditions.
FAQ
Does the KA8000Ex require hydrogen or oxygen for detector operation?
No. The Enhanced Plasma Detector (EPD) uses only inert carrier gas — eliminating flame hazards and simplifying installation in classified areas.
Can the system be integrated into existing DCS or MES platforms?
Yes. Native OPC UA server functionality enables bidirectional communication with Siemens PCS7, Honeywell Experion, Emerson DeltaV, and Rockwell FactoryTalk systems.
What calibration standards are required for routine operation?
Certified hydrogen-based standard mixtures (e.g., Air Liquide HyCal® or Linde CertiGas®) traceable to NIST SRM 2629; iGCS eliminates need for multiple cylinder banks via on-demand dilution.
Is method transfer possible between laboratory GC and KA8000Ex?
Yes. Retention time locking and identical column chemistries (e.g., Agilent HP-PLOT Q, Restek Rt-Q-Bond) support seamless method migration with minimal revalidation.
How is cybersecurity addressed in the embedded controller?
The system runs a hardened Linux RTOS with disabled unused ports, automatic security patching, role-based authentication, and encrypted local data storage compliant with IEC 62443-3-3 Level 2 requirements.
