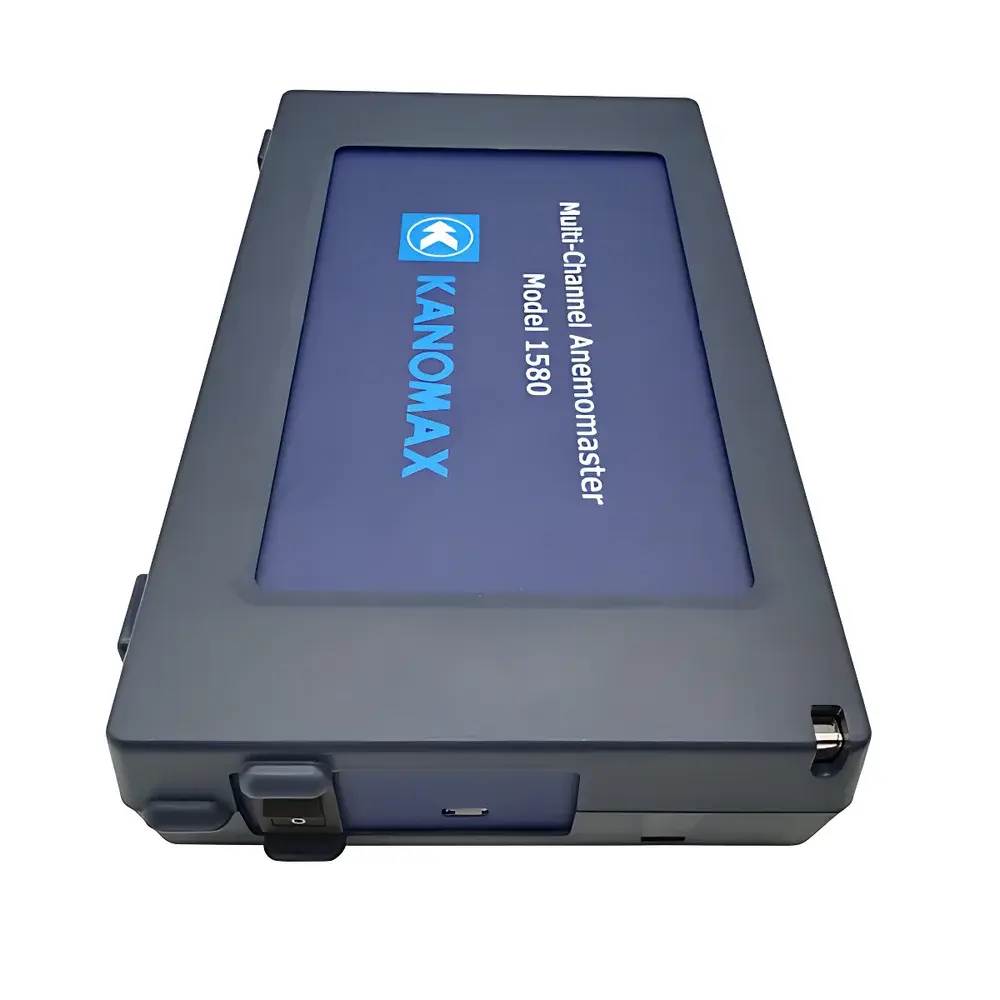

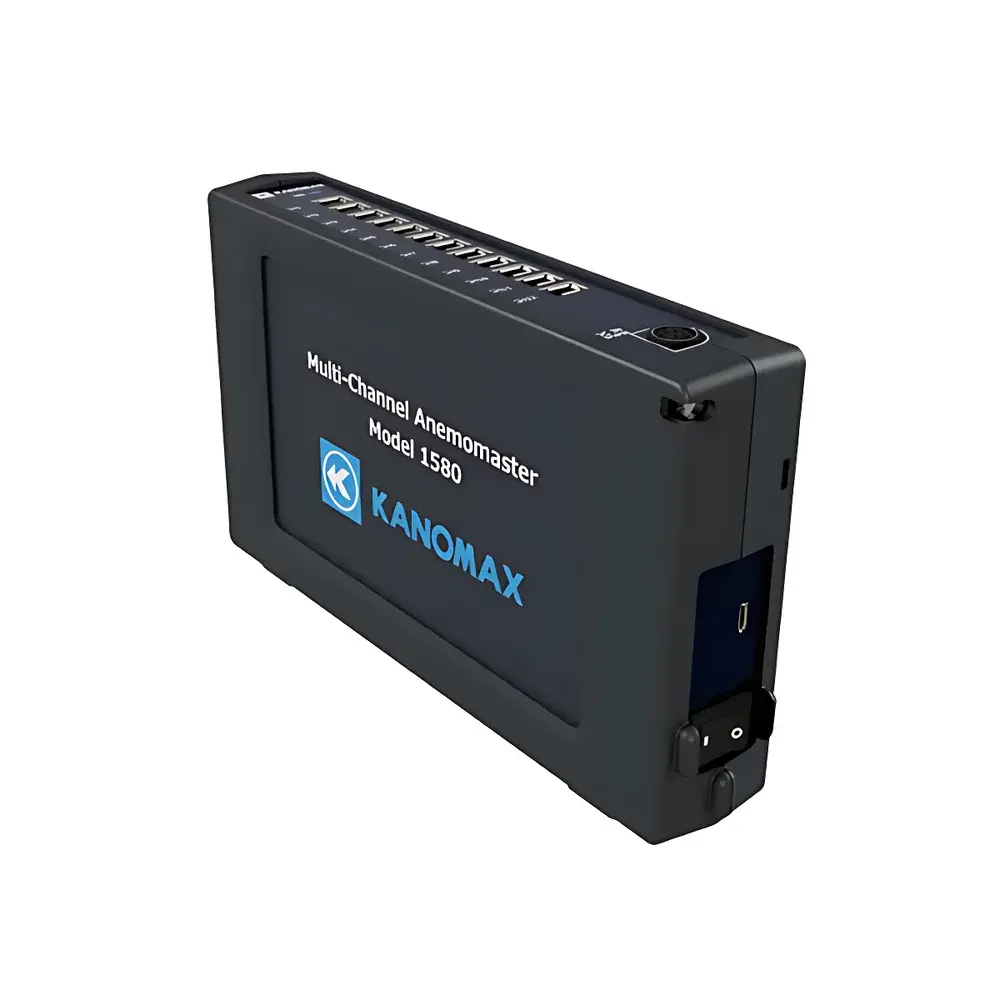

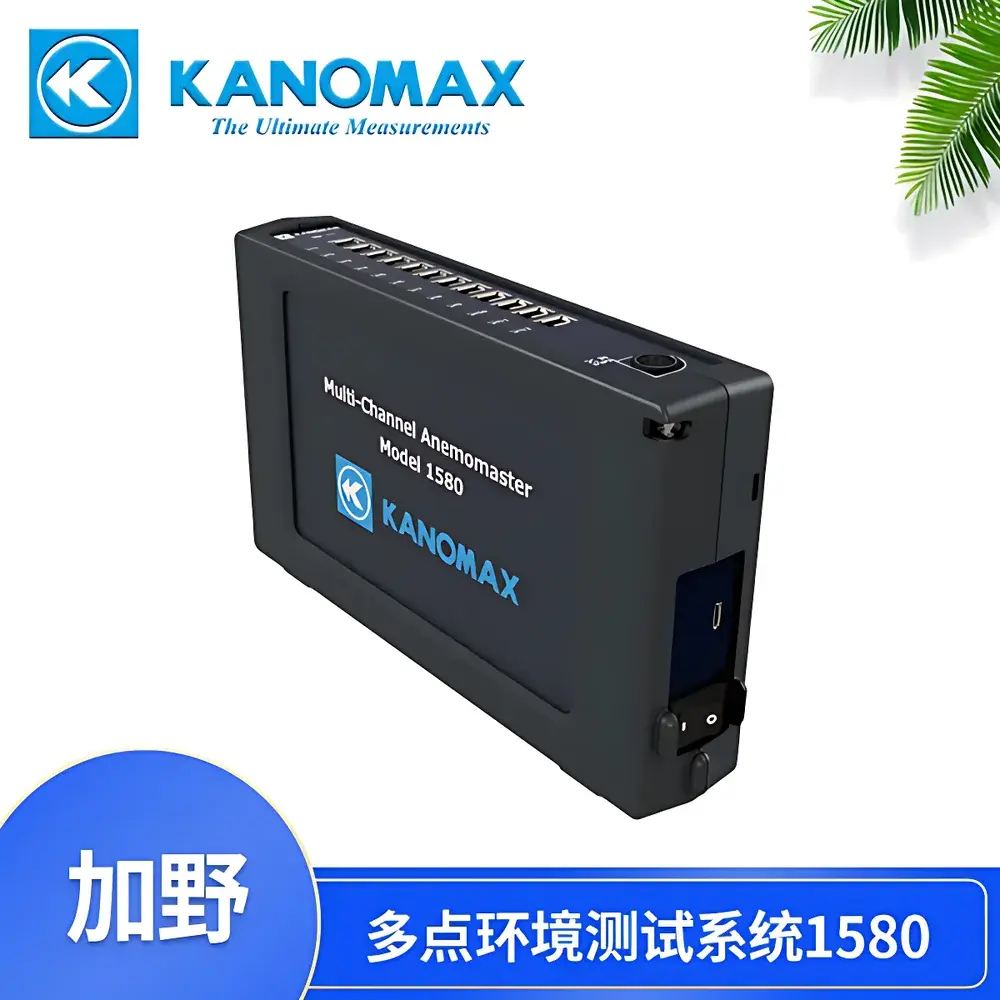

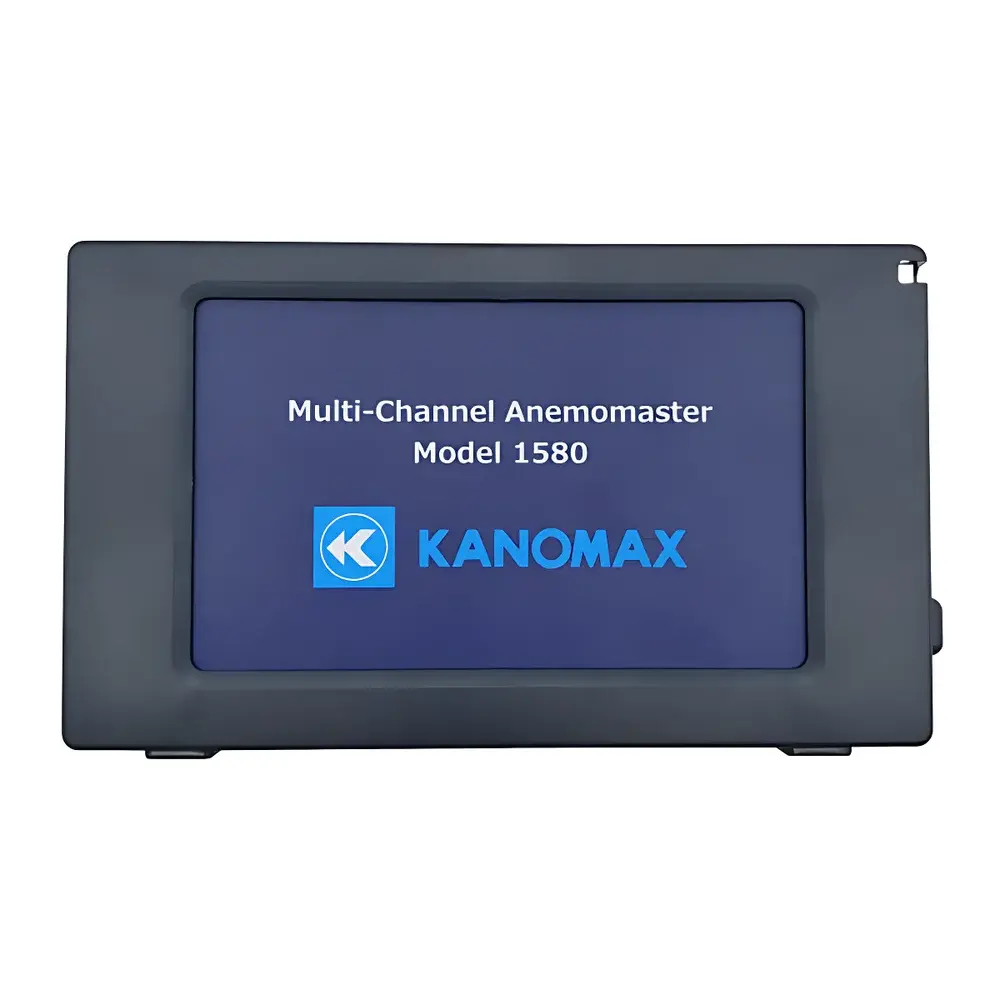

Kanomax 1580-0C Multi-Point Environmental Monitoring System

Overview

The Kanomax 1580-0C Multi-Point Environmental Monitoring System is a compact, modular, and high-fidelity platform engineered for simultaneous, synchronized measurement of air velocity, temperature, and relative humidity across up to 12 spatially distributed points. Built upon thermal anemometry principles—where heat transfer from a heated sensor element correlates directly with local airflow velocity—the system delivers traceable, low-range sensitivity down to 0.01 m/s, making it suitable for laminar flow characterization in cleanrooms, HVAC validation, pharmaceutical environmental monitoring, and microclimate profiling in R&D laboratories. Its architecture supports both directional and omnidirectional probes, all featuring integrated temperature compensation to minimize thermal drift and ensure measurement stability across dynamic ambient conditions. The unit’s ultra-compact footprint (220 × 130 × 40 mm) and lightweight design (0.6 kg) enable rapid deployment in constrained or mobile applications—including vehicle-based field surveys, portable cleanroom audits, and temporary test rigs—without compromising metrological integrity.

Key Features

• 12-channel synchronous acquisition with hot-wire and thermistor-based probe compatibility
• 15 interchangeable probe models—including ultra-miniature (Ø3.2 mm), high-temperature (up to 120 °C), and dual/triple-parameter variants (velocity + temperature + RH)
• Thermal drift compensation across all probe types, ensuring consistent accuracy over operating range (5–40 °C, 0–85% RH non-condensing)
• Modular analog output expansion via Kanomax MODEL 1592-0C modules (12 channels per unit; up to 12 modules per system = 144 velocity, 72 velocity+temperature, or 36 full-parameter channels)
• Configurable analog outputs: 0–5 V (1 kΩ load) or 4–20 mA (250 Ω load), assignable per channel
• Dual power flexibility: AC 100–240 V or DC 12–24 V input, supporting battery-powered field operation and integration into industrial control cabinets
• Robust mechanical design with IP54-rated connectors and silicone-sealed probe interfaces for long-term reliability in controlled environments

Sample Compatibility & Compliance

The 1580-0C system accommodates diverse sampling geometries through its standardized probe interface and scalable channel architecture. Probes are validated for use in ISO Class 5–8 cleanrooms (per ISO 14644-3), HVAC commissioning (per ASHRAE Guideline 1–2022), and environmental qualification of pharmaceutical manufacturing spaces (per EU GMP Annex 1 and USP ). All thermal anemometer probes comply with ASTM D1072–21 for airflow instrumentation calibration traceability. Data acquisition workflows support audit-ready documentation under FDA 21 CFR Part 11 when used with validated software configurations—including electronic signatures, user access controls, and immutable audit trails for parameter changes and calibration events. The system meets IEC 61000-4 electromagnetic compatibility standards and operates within safety limits defined by IEC 61010-1 for laboratory electrical equipment.

Software & Data Management

The included Windows 10–compatible software provides native USB Micro-B and LAN (via optional Ethernet adapter) connectivity, enabling real-time visualization of up to 144 channels when cascaded with multiple 1580-0C units and 1592-0C analog modules. The interface supports tri-lingual display (English, Japanese, Simplified Chinese) and allows per-channel configuration of units, scaling factors, alarm thresholds, and analog output mapping. Data is rendered in synchronized time-series plots with selectable averaging windows (1 s to 60 min), peak-hold capture, and statistical overlays (min/max/mean). Raw datasets export natively to CSV and Excel (.xlsx) formats with embedded metadata—including probe serial numbers, calibration dates, and environmental timestamps. Exported files retain channel-specific engineering units and comply with GLP/GMP data integrity requirements when stored on network drives with version-controlled access protocols.

Applications

• Cleanroom airflow uniformity mapping and ISO 14644-3 certification testing
• Pharmaceutical facility environmental monitoring (EM) programs per EU GMP Annex 1 and FDA guidance
• HVAC duct traverse studies and air change rate validation in hospital isolation rooms
• Microclimate analysis in semiconductor fabrication tool enclosures and glovebox systems
• Validation of laminar flow hoods, biosafety cabinets, and ventilated containment workstations
• Mobile environmental auditing in transportation logistics (e.g., cold chain trailer profiling)
• Academic and industrial research requiring high-resolution spatiotemporal airflow dynamics

FAQ

What is the maximum number of probes supported by a single 1580-0C unit?

A single MODEL 1580-0C supports up to 12 probes simultaneously via its integrated serial bus interface.
Can the system log data without continuous PC connection?

No—the 1580-0C does not include internal memory; it requires active USB or LAN connection to a host PC running the supplied software for real-time acquisition and storage.
Are calibration certificates provided with each probe?

Yes—each probe ships with a NIST-traceable calibration certificate valid for 12 months from date of manufacture, specifying wind tunnel verification points and uncertainty budgets.
Is the software compatible with Windows 11?

The current release (v3.2.1) is fully compatible with Windows 11 (64-bit), including driver signing and UAC-compliant installation routines.
How is probe interchangeability ensured across the 15-model family?

All probes share identical electrical pinout, communication protocol (Kanomax proprietary RS-485 framing), and mechanical mounting interface—enabling plug-and-play replacement without firmware reconfiguration.
