Kanomax 1590-0C Multi-Point Environmental Monitoring System for Pharmaceutical and Electronics Cleanroom Applications

Overview

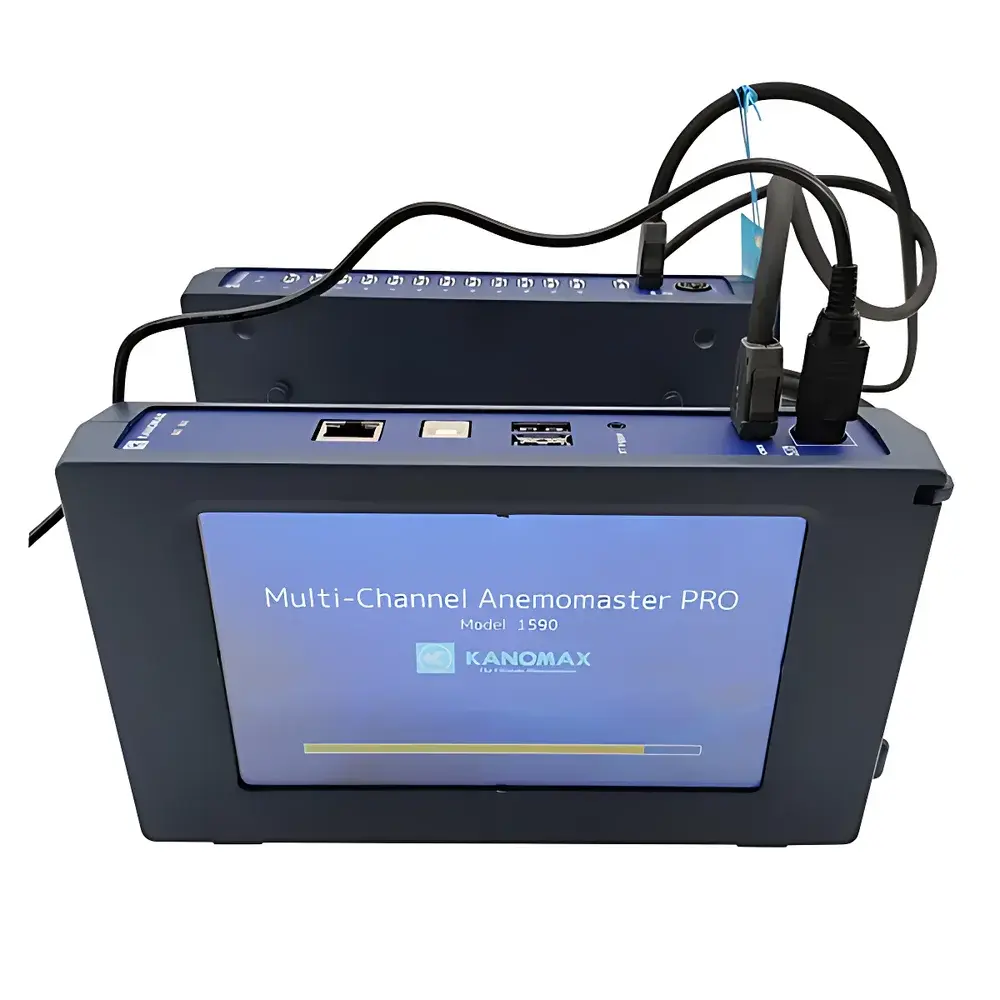

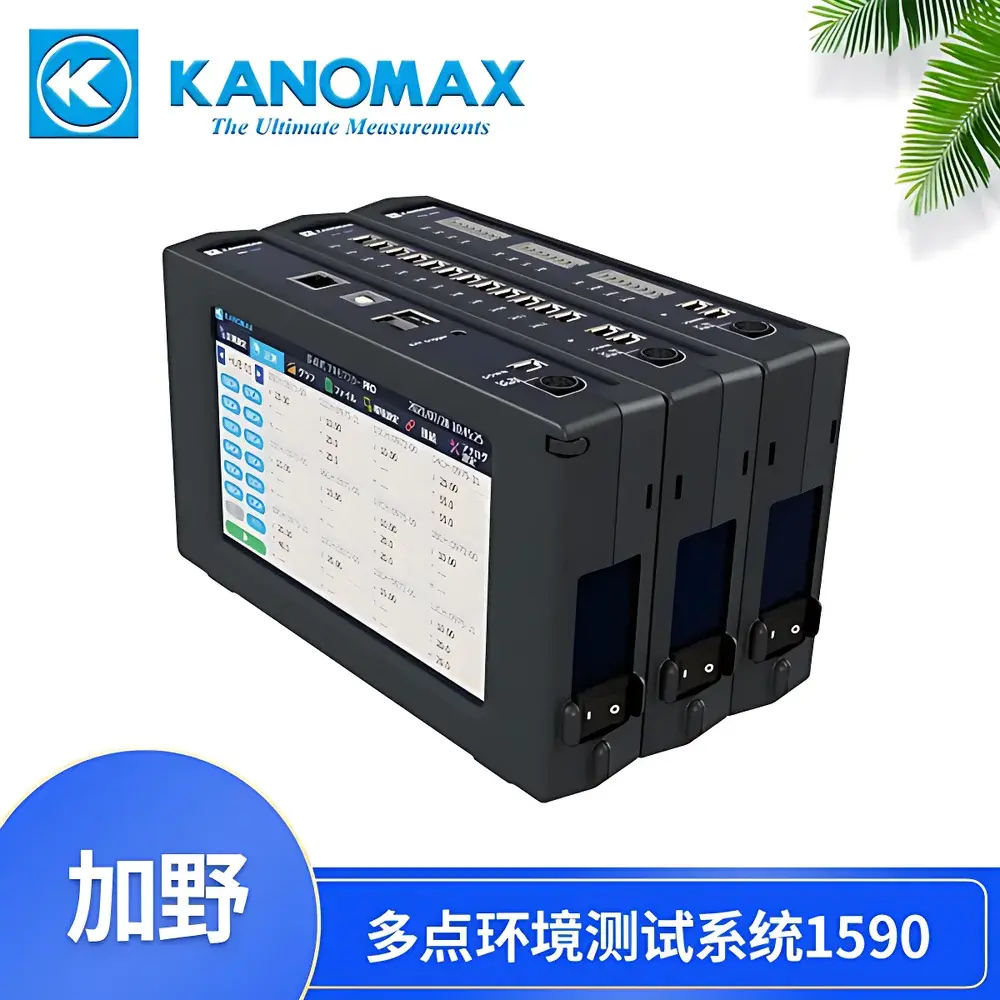

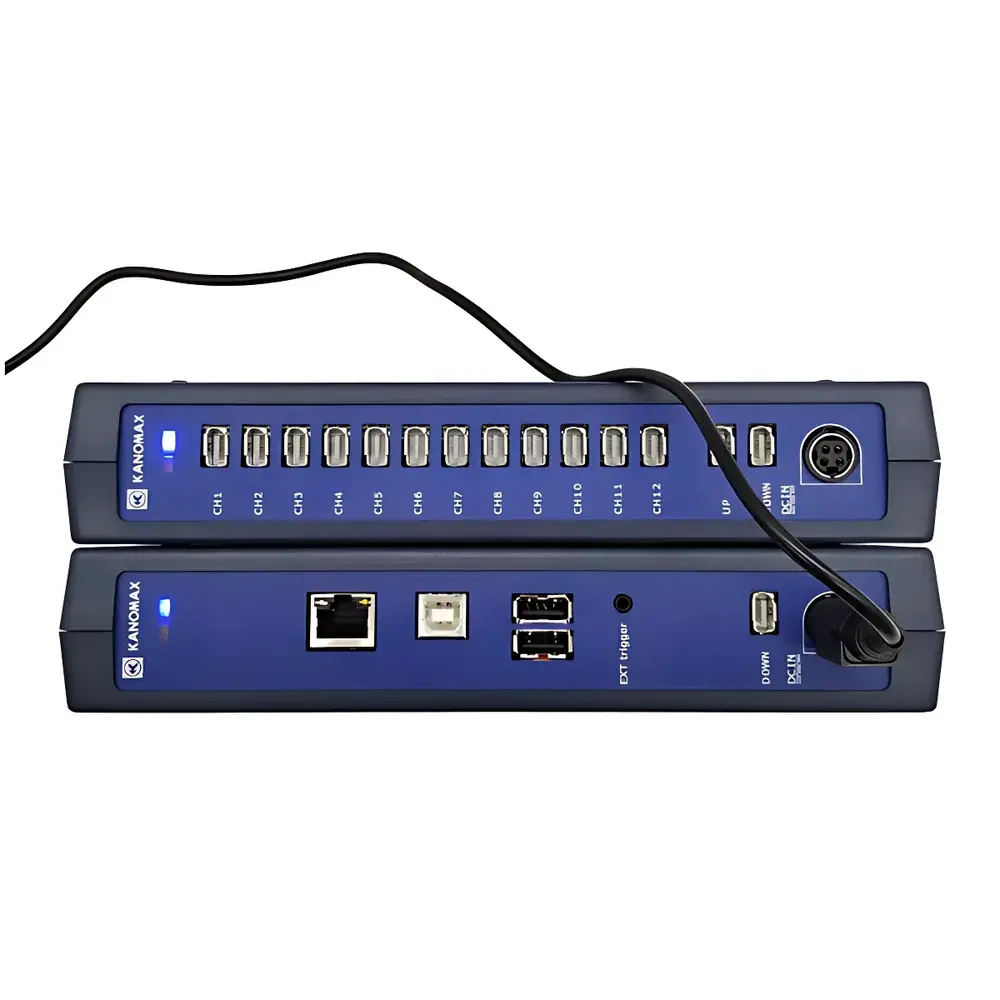

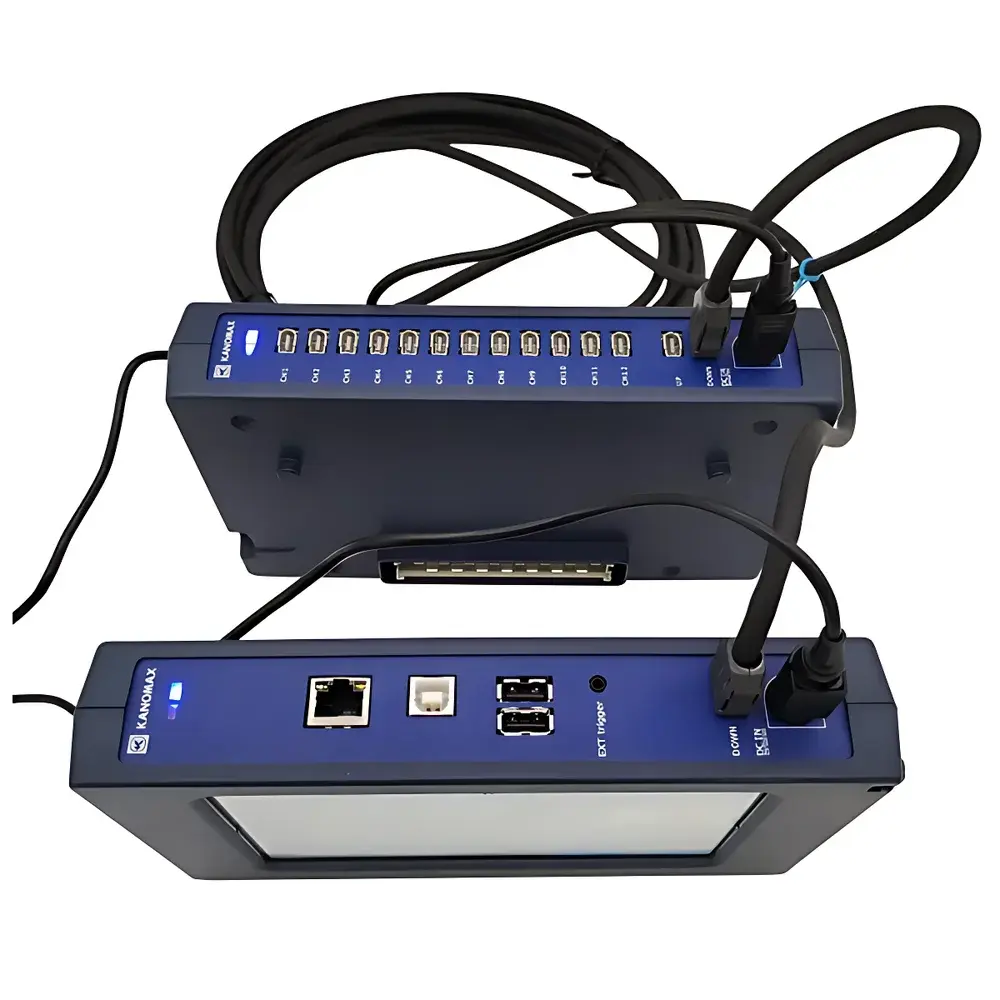

The Kanomax 1590-0C Multi-Point Environmental Monitoring System is an engineered solution for continuous, high-fidelity environmental validation and qualification in regulated pharmaceutical cleanrooms, semiconductor fabrication facilities, and medical device manufacturing environments. Built upon thermal anemometry principles—where heat transfer from a heated sensor element correlates directly with local airflow velocity—the system delivers traceable, low-range wind speed measurement down to 0.01 m/s with industry-leading stability and repeatability. Unlike single-point handheld instruments, the 1590-0C architecture supports scalable, synchronized multi-parameter acquisition across up to 144 channels via modular expansion: one 1590-0C main unit interfaces with up to 12 Model 1591-0C 12-channel measurement modules, each accepting interchangeable probes for concurrent wind speed, temperature, and relative humidity sensing. This distributed topology enables spatial mapping of laminar flow uniformity, air change rates, and thermal/hygrometric gradients—critical parameters for ISO 14644-1 Class 5–8 cleanroom certification and EU GMP Annex 1 compliance.

Key Features

• Modular, expandable architecture supporting up to 144 simultaneous measurement channels (wind speed, temperature, RH) with full channel-level configuration.
• 15 interchangeable probe types—including directional and omnidirectional thermal anemometers, high-temperature variants rated to 120°C, and ultra-compact probes (Ø3.5 mm) for confined ductwork or HEPA filter face sampling.

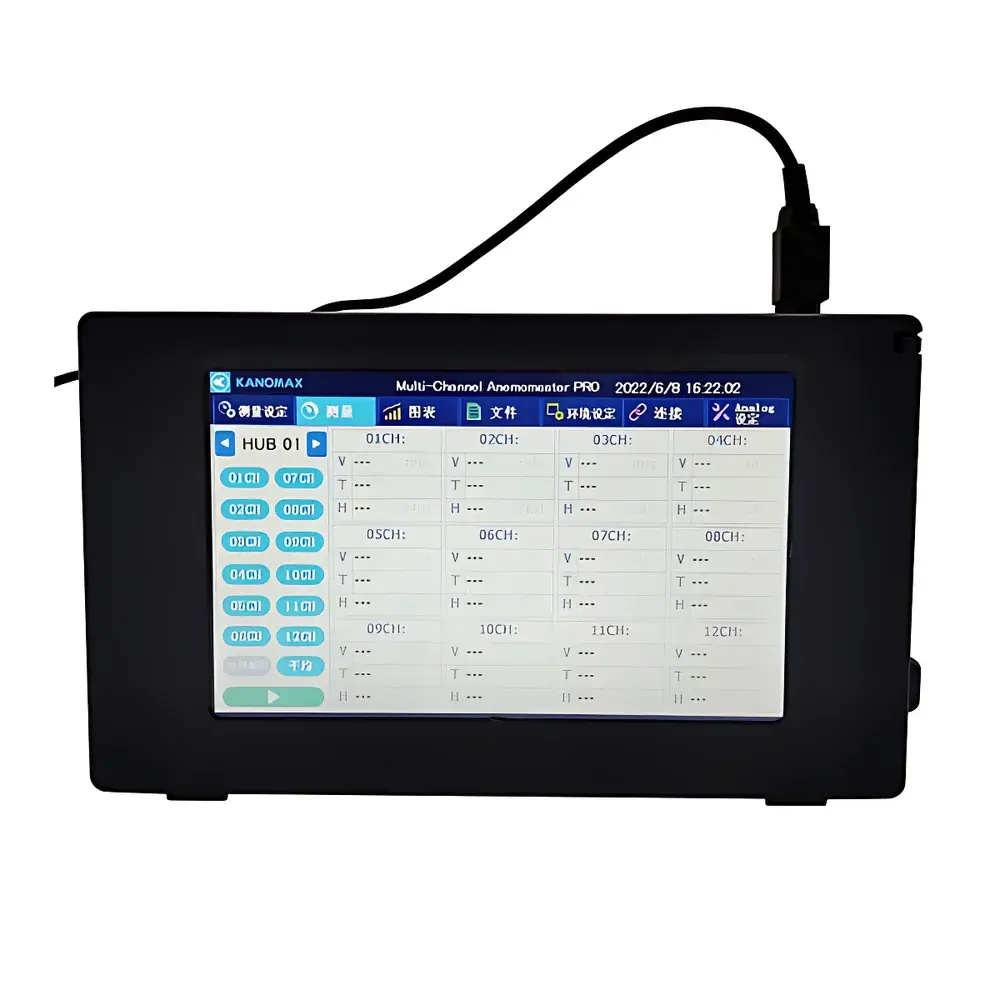

• Integrated 7-inch capacitive touchscreen interface enabling standalone operation: real-time trend visualization, probe calibration status review, alarm threshold setting, and on-device CSV export without PC dependency.
• Temperature-compensated probe electronics ensure consistent accuracy across operating ranges; all probes feature factory-traceable calibration certificates compliant with ISO/IEC 17025 requirements.
• Dual analog output capability (0–5 V or 4–20 mA) via optional Model 1592-0C modules—each supporting 12 configurable channels—with programmable scaling per parameter to interface with BMS, SCADA, or PLC systems.
• Robust power flexibility: AC mains (100–240 V) or wide-range DC input (12–24 V), enabling mobile deployment in transport validation studies or temporary cleanroom commissioning.

Sample Compatibility & Compliance

The 1590-0C system is purpose-built for non-intrusive, non-disruptive monitoring in Grade A–D cleanroom zones per EU GMP Annex 1 (2022 revision) and ISO 14644-1:2015. Probe selection aligns with application-specific airflow regimes: low-velocity (10 m/s) supply diffuser profiling. All probes meet IEC 60529 IP54 ingress protection when installed with supplied rubber caps. The system’s data acquisition firmware supports ALCOA+ principles—attributable, legible, contemporaneous, original, accurate—with electronic audit trails, user access levels, and password-protected configuration changes. When paired with validated Windows 10 software (v3.2+), it satisfies FDA 21 CFR Part 11 requirements for electronic records and signatures, including digital signature capture for SOP-compliant test reports.

Software & Data Management

Kanomax’s proprietary WinDAQ software (Windows 10 compatible, tri-lingual UI: English/Japanese/Chinese) provides centralized control, real-time multi-channel visualization, and automated report generation. Data streams are timestamped with millisecond precision and stored internally as CSV files—structured for direct import into LIMS, ELN, or statistical process control (SPC) platforms. The software enables per-probe configuration of sampling intervals (1 s to 1 hr), moving-average filters, upper/lower alarm limits, and automatic annotation of environmental excursions. Historical datasets support overlay comparison across multiple test runs, facilitating trend analysis for preventive maintenance scheduling. Export options include Excel (.xlsx), PDF summary reports, and XML for enterprise integration. All data files retain embedded metadata: probe serial number, calibration expiry date, operator ID, and system firmware version—ensuring full traceability per GLP and GMP documentation standards.

Applications

• Cleanroom qualification (IQ/OQ/PQ) per ISO 14644-3 and EU GMP Annex 1: air velocity uniformity mapping, recovery time testing, and particle counter correlation studies.
• HEPA/ULPA filter leak testing via upstream/downstream velocity profiling to detect bypass or seal failure.
• Environmental monitoring during aseptic processing: laminar airflow verification at critical work surfaces (e.g., isolators, RABS).
• Thermal and humidity gradient analysis in lyophilizer chambers, stability storage rooms, and controlled temperature/humidity (CTH) warehouses.
• Mobile validation of HVAC performance during facility relocation, renovation, or seasonal recalibration campaigns.
• Integration into continuous monitoring systems (CMS) for real-time deviation alerts and automated CAPA triggering.

FAQ

What is the maximum number of measurement points supported by a single 1590-0C system?
A fully expanded system comprises one 1590-0C main unit, twelve 1591-0C measurement modules (12 channels each), and up to 144 probes—enabling simultaneous acquisition of wind speed, temperature, and RH across all channels.
Can the system operate without a connected computer?
Yes. The built-in 7-inch touchscreen allows full system configuration, real-time data viewing, alarm management, and local CSV export without external PC connectivity.
Are calibration certificates provided with each probe?
Each probe ships with a factory-issued calibration certificate traceable to NMIJ (National Metrology Institute of Japan) standards, including as-found/as-left data and uncertainty budgets.
Does the system support 21 CFR Part 11 compliance?
When used with validated WinDAQ software v3.2+, the system implements electronic signatures, audit trails, role-based access control, and data integrity safeguards required for regulated pharmaceutical applications.
What probe options are available for high-temperature environments?
Models 0976-03, 0976-04, and 0976-07 are rated for continuous operation up to 120°C and maintain ±3% wind speed accuracy across their full range (0.01–30.0 m/s).
