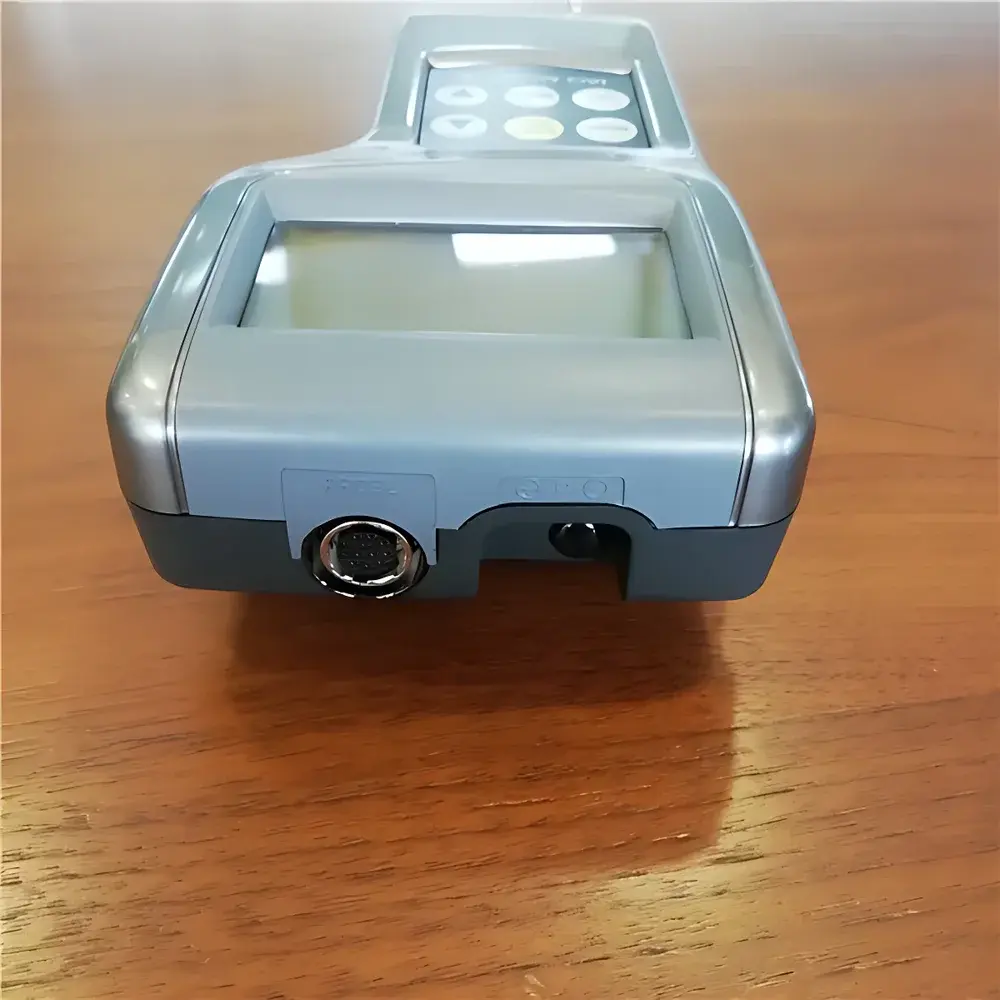

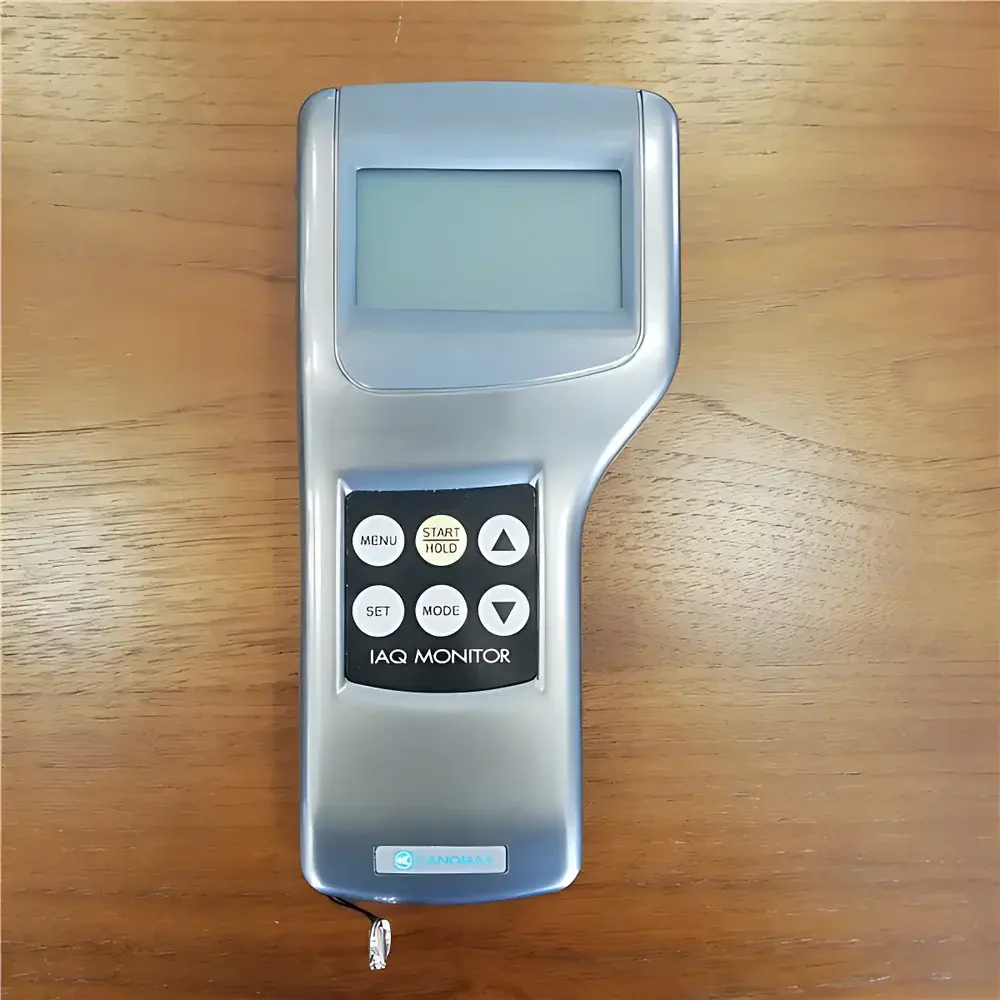

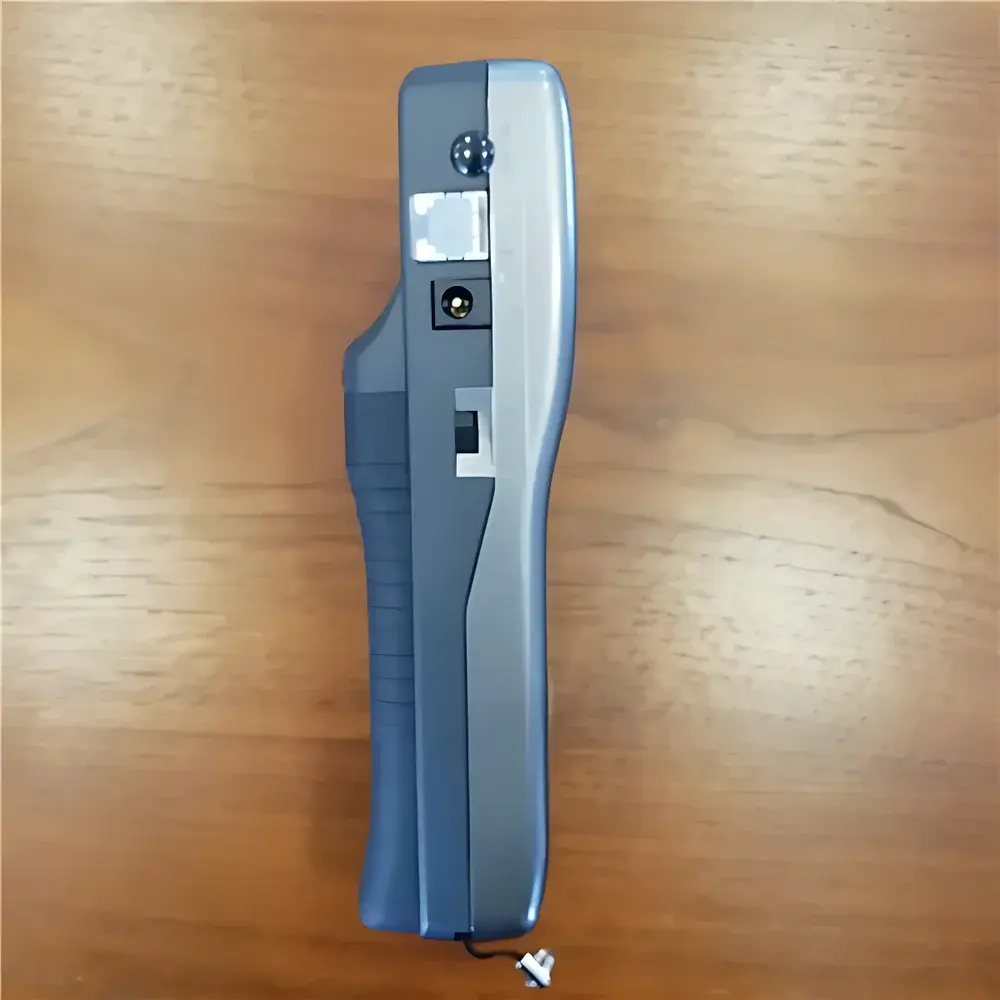

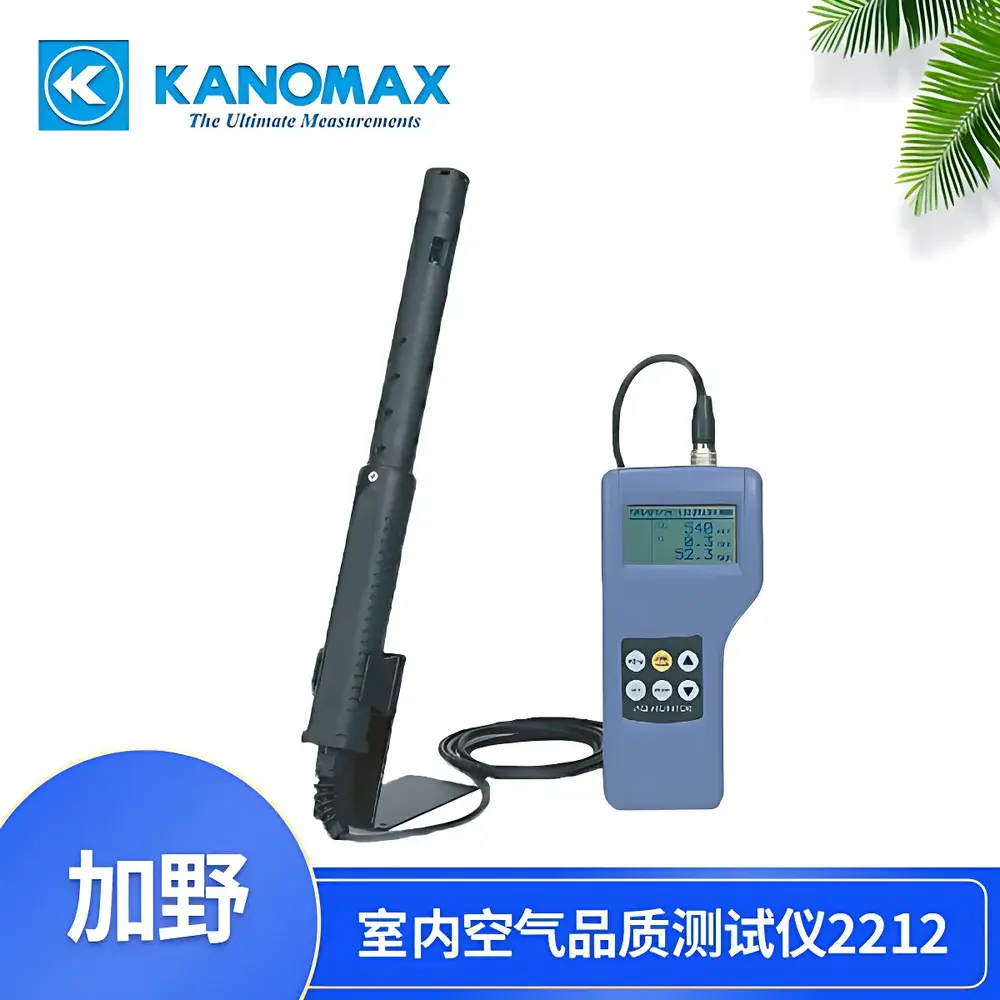

KANOMAX 2212+ Indoor Air Quality Analyzer
| Brand | KANOMAX |
|---|---|
| Origin | Japan |
| Model | 2212+ |
| CO Range | 0–500 ppm |
| CO₂ Range | 0–5000 ppm |
| Temperature Range | −20 to +60 °C |
| Relative Humidity Range | 2–98 %RH |
| CO Accuracy | ±3% of reading or ±3 ppm (whichever is greater) |
| CO₂ Accuracy | ±3% of reading |
| Temperature Accuracy | ±0.5 °C |
| RH Accuracy | ±2 %RH (2–80 %RH), ±3 %RH (80–98 %RH) |
| Data Storage | 1,500 sets |
| Interface | USB |
| Output | 0–1 V analog (optional) |
| Power | 6 × AA batteries or optional AC adapter |
| Weight | 400 g |
Overview
The KANOMAX 2212+ Indoor Air Quality Analyzer is a handheld, multi-parameter environmental monitoring instrument engineered for real-time, simultaneous measurement of carbon monoxide (CO), carbon dioxide (CO₂), ambient temperature (T), and relative humidity (RH). Designed in accordance with Japanese industrial precision standards and widely deployed in HVAC commissioning, building diagnostics, occupational health assessments, and indoor environmental quality (IEQ) audits, the 2212+ employs electrochemical sensing for CO, non-dispersive infrared (NDIR) detection for CO₂, and capacitive polymer sensors for RH—each calibrated traceably to NIST-traceable references. Its integrated microprocessor calculates derived parameters—including dew point temperature, wet-bulb temperature, absolute humidity (g/m³), and mixing ratio—based on fundamental psychrometric equations per ISO 7726 and ASHRAE Fundamentals. The device operates without external power dependency during field use, supporting extended battery life essential for unattended spot-checks across commercial, educational, and healthcare facilities.
Key Features
- Simultaneous four-parameter acquisition: CO (0–500 ppm), CO₂ (0–5000 ppm), T (−20 to +60 °C), RH (2–98 %RH)
- High-fidelity sensor architecture: Electrochemical CO cell with long-term stability; dual-beam NDIR CO₂ module with automatic baseline correction; temperature-compensated RH sensor meeting ISO 16000-27 requirements for IAQ instrumentation
- On-device psychrometric computation: Real-time derivation of dew point, wet-bulb temperature, absolute humidity, and enthalpy per ASHRAE RP-1145 algorithms
- Robust data logging: Internal memory stores up to 1,500 timestamped measurement sets with automatic time/date stamping; supports min/max/mean statistical analysis per parameter channel
- USB 2.0 interface compliant with CDC class drivers—enables plug-and-play connectivity to Windows/macOS/Linux systems without proprietary software installation
- Optional 0–1 V analog output for integration into BMS or SCADA systems (requires external signal conditioning)
- Lightweight ergonomic design (400 g) with backlit LCD and intuitive single-button navigation optimized for glove-compatible operation
Sample Compatibility & Compliance
The 2212+ is validated for continuous sampling of ambient indoor air in non-explosive, non-corrosive environments. It complies with JIS B 7952 (2019) for portable gas analyzers and meets electromagnetic compatibility requirements per IEC 61326-1:2020 Class B. While not certified for hazardous area use (ATEX/IECEx), its sensor response characteristics align with ISO 16000-23 for CO and CO₂ measurement uncertainty budgets in occupied spaces. The instrument supports GLP-compliant workflows through user-defined ID tagging, audit trail–capable data export, and firmware-locked calibration history. All factory calibrations are documented with certificate of conformance referencing JCSS-accredited standards.
Software & Data Management
Data retrieval is performed via standard USB mass-storage mode: exported CSV files contain columnar headers (Timestamp, CO_ppm, CO2_ppm, Temp_C, RH_pct, DewPoint_C, WetBulb_C, AbsHum_g_m3) and are directly importable into Excel, MATLAB, or LIMS platforms. No proprietary runtime or license activation is required. Firmware updates are delivered as signed binary packages via KANOMAX’s official support portal, with SHA-256 checksum verification. The device does not implement FDA 21 CFR Part 11 electronic signature functionality but supports manual audit trails via exported metadata logs including operator ID, calibration date, and battery status.
Applications
- ASHRAE 62.1–compliant ventilation rate verification in office buildings and schools
- Post-renovation indoor air quality clearance testing per ISO 16000-32
- Occupational exposure assessment against OSHA PELs and ACGIH TLVs for CO and CO₂
- Thermal comfort evaluation per ISO 7730 using measured T/RH/dew point inputs
- Baseline IAQ surveys prior to LEED IEQ credit documentation
- Field validation of demand-controlled ventilation (DCV) system setpoints
- Educational laboratory exercises in environmental engineering and industrial hygiene curricula
FAQ
Does the 2212+ require annual recalibration?
Yes—KANOMAX recommends field calibration verification every 12 months using certified span gases and reference hygrometers; full recalibration is advised if drift exceeds specification limits.
Can the device measure outdoor air quality?
It is designed for indoor environments; prolonged exposure to rain, dust, or temperatures outside −20 to +60 °C may compromise sensor longevity and accuracy.
Is the USB interface compatible with modern operating systems?
Yes—the 2212+ enumerates as a standard USB CDC ACM device and functions natively on Windows 10/11, macOS 12+, and recent Linux kernels without driver installation.
What is the typical sensor lifetime under normal use?
CO sensor: ≥2 years; CO₂ NDIR module: ≥10 years; RH/T sensor: ≥5 years—subject to storage conditions and exposure to condensation or volatile organic compounds.
Does the unit support wireless data transmission?
No—wireless capability is not integrated; data transfer is limited to USB cable connection or manual SD card export (if equipped with optional memory expansion).
