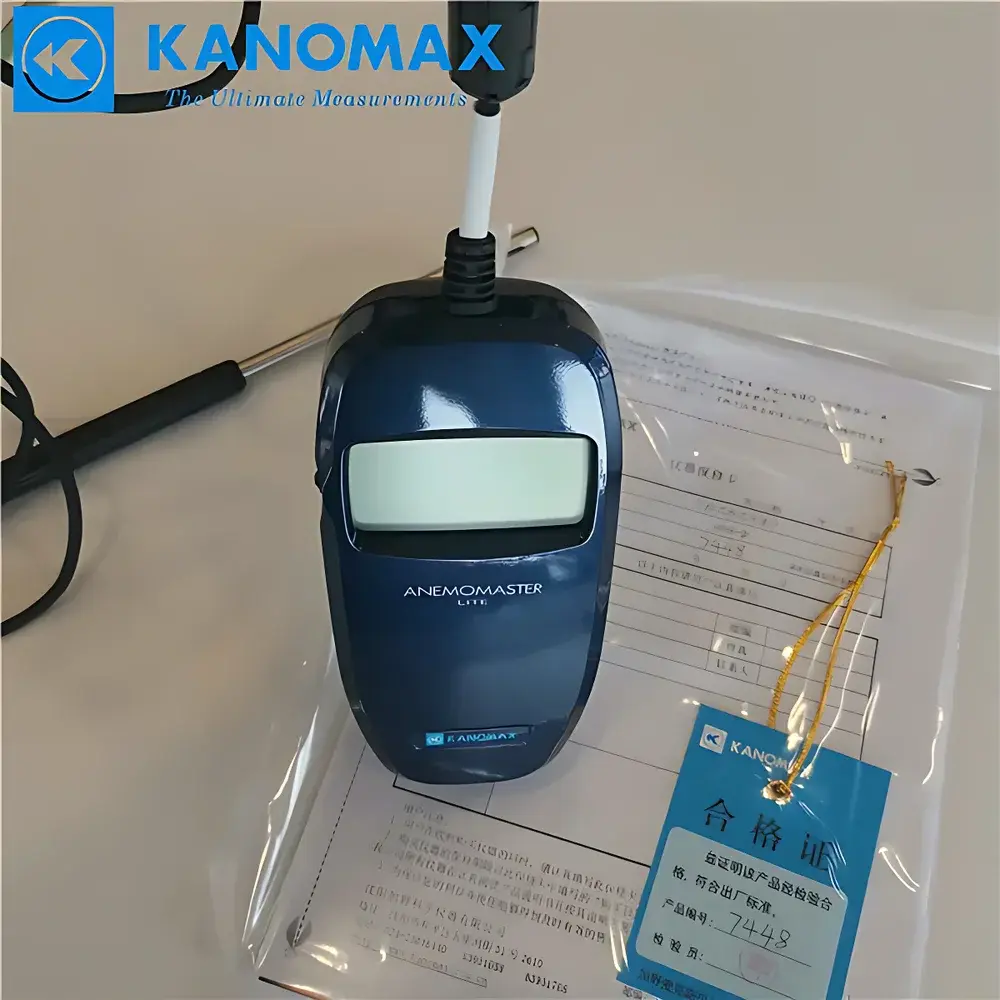

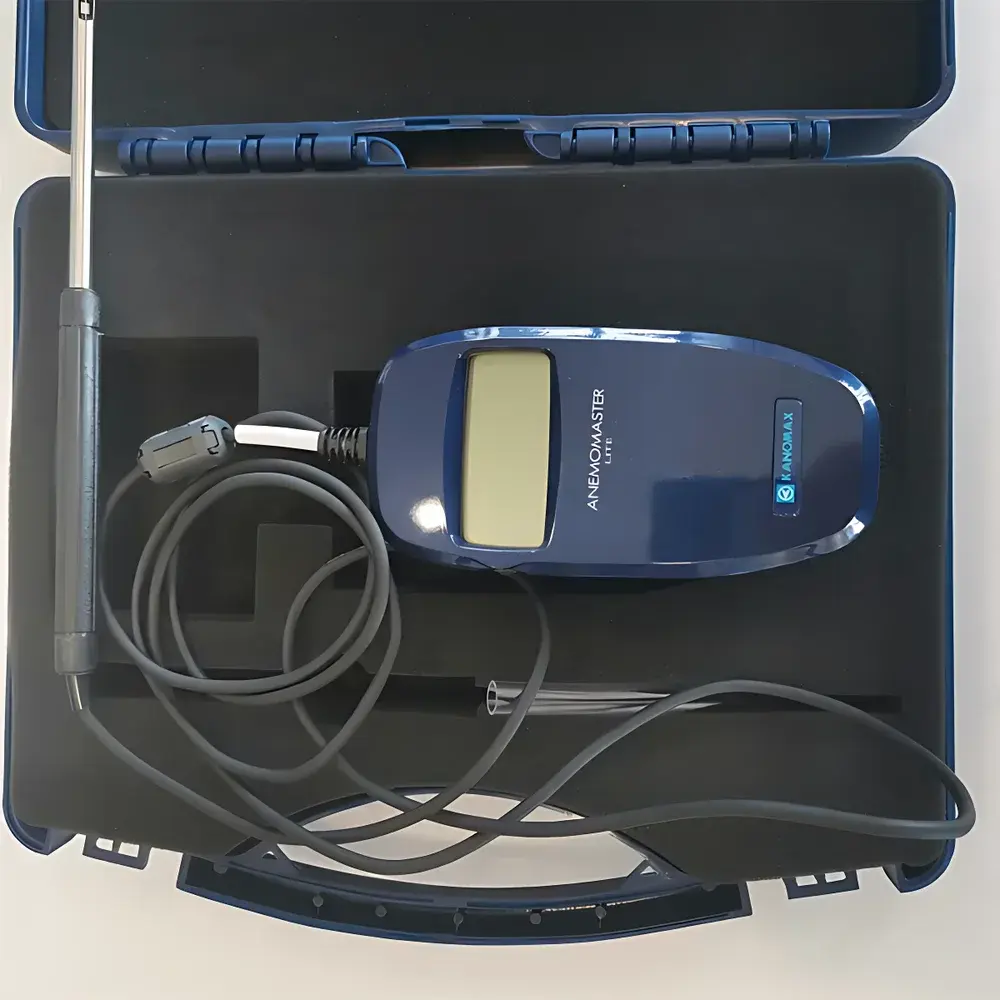

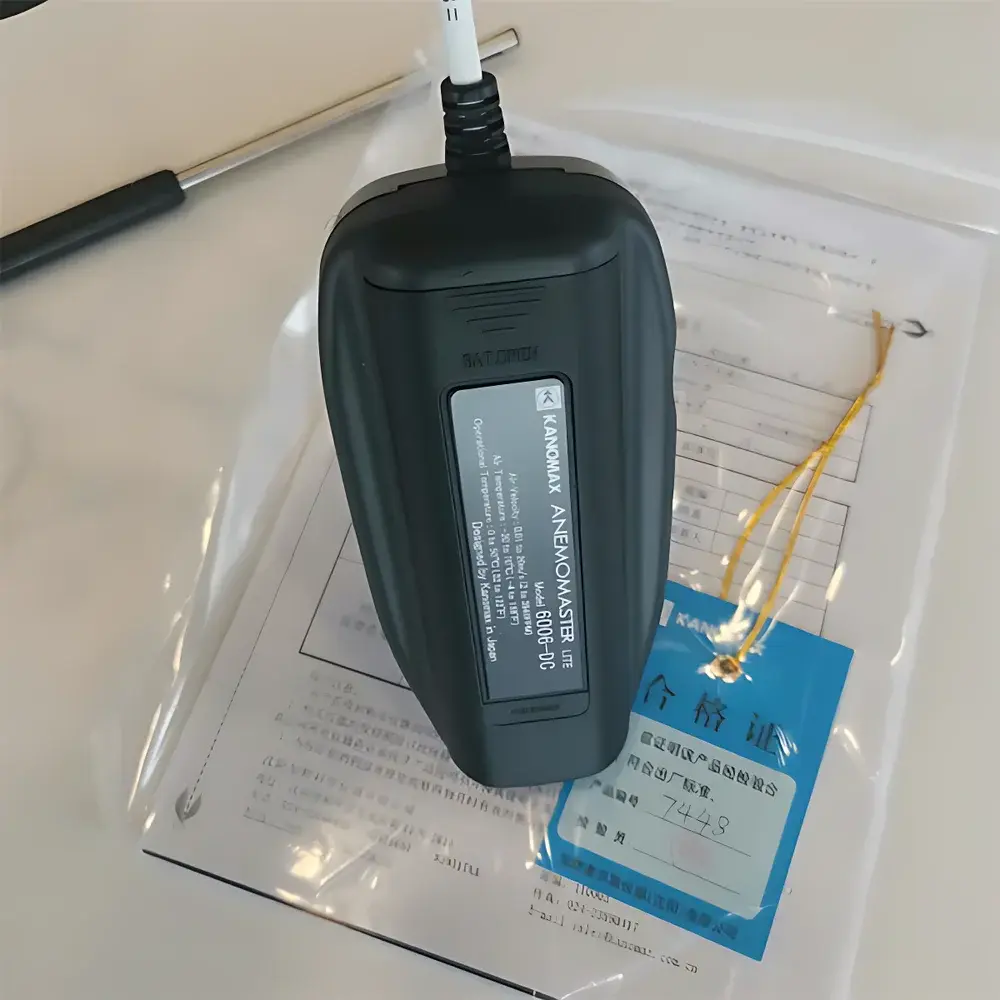

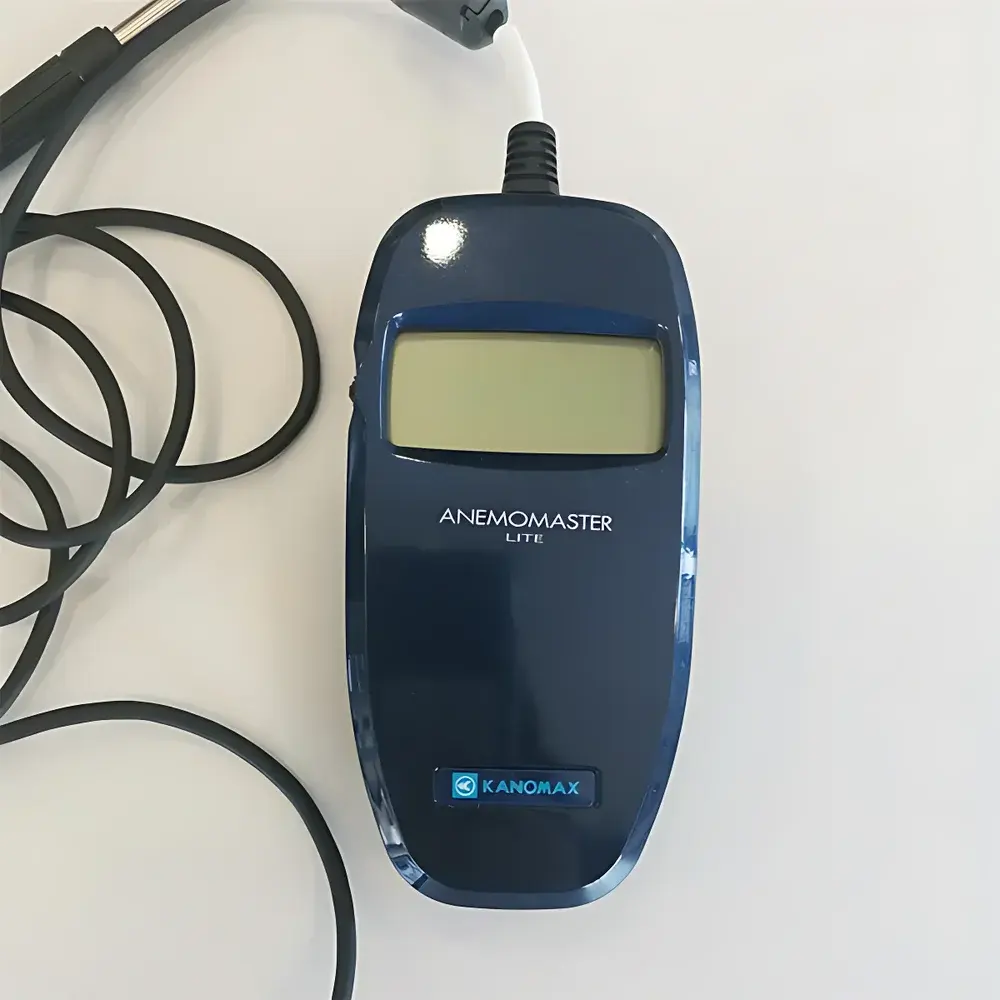

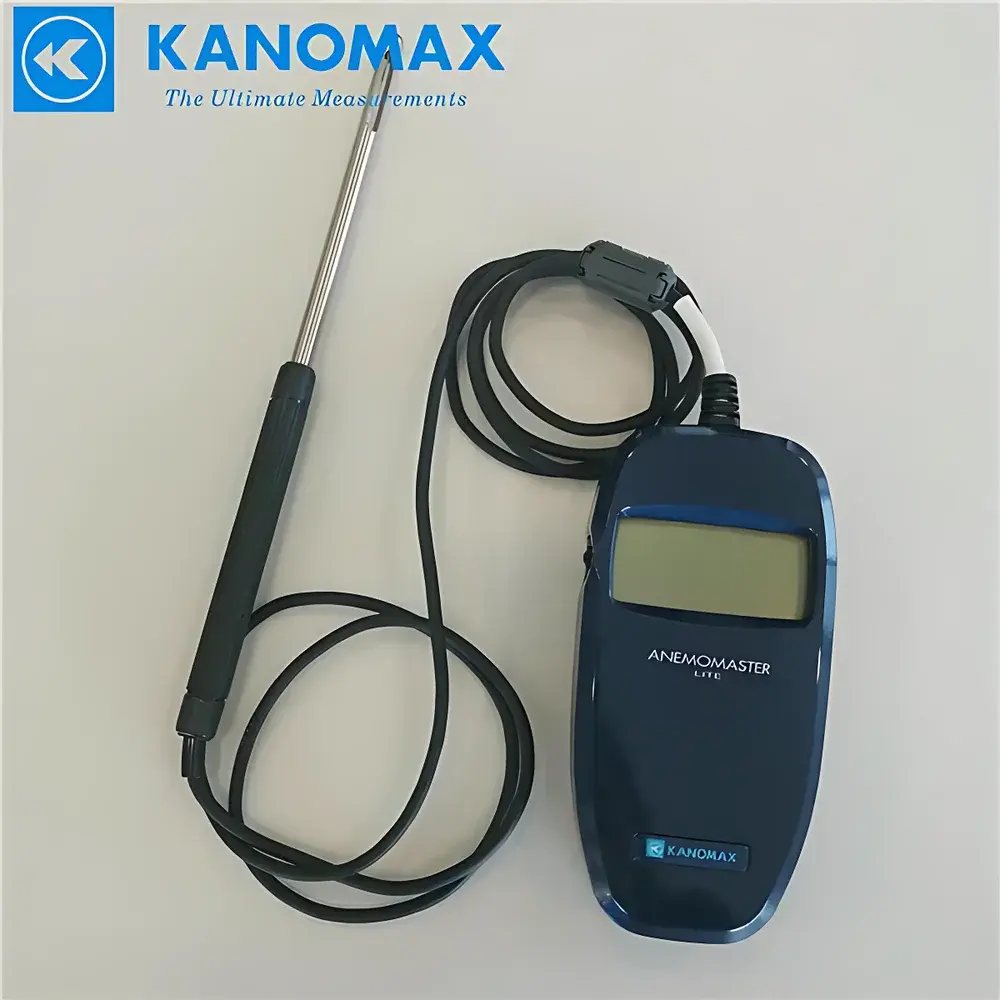

KANOMAX 6006 Handheld Thermal Anemometer
| Brand | KANOMAX |
|---|---|
| Origin | Japan |
| Model | 6006 |
| Instrument Type | Thermal Anemometer |
| Measurement Range | 0.01–20.0 m/s |
| Resolution | 0.01 m/s (0.01–9.99 m/s), 0.1 m/s (10.0–20.0 m/s) |
| Accuracy | ±5% of reading |
| Operating Temperature | −20 to +70 °C |
| Operating Humidity | 20–85% RH |
| Temperature Compensation | Active compensation circuit optimized for 10–40 °C range |
| Sensor Element | Platinum-wire hot-wire anemometer |
Overview
The KANOMAX 6006 Handheld Thermal Anemometer is a precision-engineered portable instrument designed for reliable, real-time measurement of air velocity and ambient temperature in industrial hygiene, HVAC commissioning, cleanroom validation, laboratory ventilation assessment, and environmental monitoring applications. Based on constant-temperature anemometry (CTA) principle, the device employs a fine platinum-wire sensing element heated to a fixed differential above ambient temperature. As airflow passes over the wire, convective heat loss is measured and converted into a linear velocity signal—enabling high-sensitivity detection down to 0.01 m/s. Its compact, ergonomic design integrates a robust thermal sensor probe with a single-button interface, minimizing operational complexity while maintaining metrological integrity across diverse field conditions.
Key Features
- Single-button operation for intuitive switching between wind speed and temperature measurement modes
- Interchangeable probe design—supports field replacement without recalibration, preserving traceable accuracy
- Wide dynamic range: 0.01–20.0 m/s wind speed with dual-resolution output (0.01 m/s below 10 m/s; 0.1 m/s above)
- Integrated temperature compensation circuit ensures stable performance within the 10–40 °C reference range—critical for reproducible data in variable thermal environments
- Platinum-wire hot-wire sensor provides long-term stability, low drift, and resistance to contamination-induced signal degradation
- Rugged handheld enclosure rated for field use, with IP54-equivalent ingress protection against dust and splashing water
- Operating ambient range: −20 to +70 °C and 20–85% RH (non-condensing), enabling deployment in cold storage facilities, industrial ovens, and outdoor climatic surveys
Sample Compatibility & Compliance
The KANOMAX 6006 is compatible with standard laminar and turbulent airflow profiles encountered in ductwork, fume hoods, biosafety cabinets, cleanroom supply grilles, and general indoor/outdoor atmospheric sampling. It does not require external power or gas supply and operates independently of air composition (within non-corrosive, non-explosive atmospheres). While not certified for intrinsic safety or explosion-proof use, it complies with JIS C 1510 (Japanese Industrial Standard for anemometers) and meets electromagnetic compatibility requirements per IEC 61326-1 for laboratory and industrial environments. Data generated supports adherence to ISO 14644-3 (cleanroom testing), ASHRAE Guideline 12 (HVAC system verification), and OSHA Technical Manual Section III: Chapter 2 (industrial ventilation assessment).
Software & Data Management
The 6006 operates as a standalone field instrument with no built-in memory or Bluetooth/Wi-Fi connectivity. All measurements are displayed in real time on a high-contrast LCD screen with backlight. For documentation and QA/QC traceability, users may manually record readings alongside contextual metadata (location, date, operator ID, probe orientation). When integrated into structured validation protocols, the device supports GLP-compliant manual data entry workflows. Its consistent accuracy and probe interchangeability facilitate periodic calibration verification per ISO/IEC 17025 requirements using accredited reference standards—typically performed annually or after mechanical shock or extreme thermal exposure.
Applications
- HVAC system balancing and air change rate verification in hospitals, pharmaceutical manufacturing suites, and data centers
- Local exhaust ventilation (LEV) performance testing per HSE HSG258 and ANSI/AIHA Z9.5 guidelines
- Cleanroom airflow uniformity mapping and ISO Class classification support
- Industrial process airflow monitoring in drying tunnels, coating booths, and thermal processing lines
- Educational laboratory instruction in fluid mechanics and environmental engineering curricula
- Indoor air quality (IAQ) baseline surveys for LEED EQ Credit 1 compliance documentation
FAQ
Does the KANOMAX 6006 support data logging or PC interface?
No—the 6006 is a dedicated real-time display instrument without internal memory, USB port, or wireless transmission capability.
Can the probe be calibrated independently of the main unit?
Yes—probes are factory-matched and interchangeable; calibration certificates are issued per probe serial number, not per unit assembly.
What is the recommended recalibration interval?
Annual calibration is advised under normal use; more frequent verification is recommended after exposure to particulate-laden air, condensation, or mechanical impact.
Is the device suitable for measuring airflow in flue gases or high-temperature ducts?
No—it is rated for ambient operating temperatures up to +70 °C; sustained exposure above this threshold may damage the sensor or housing.
How does temperature compensation affect measurement uncertainty outside 10–40 °C?
The ±5% of reading accuracy specification applies across the full 0.01–20.0 m/s range, but the temperature compensation circuit is optimized for 10–40 °C; measurements at extremes (e.g., −20 °C or +70 °C) retain functional utility but may exhibit marginally increased deviation due to unmodeled thermal effects on sensor electronics.
