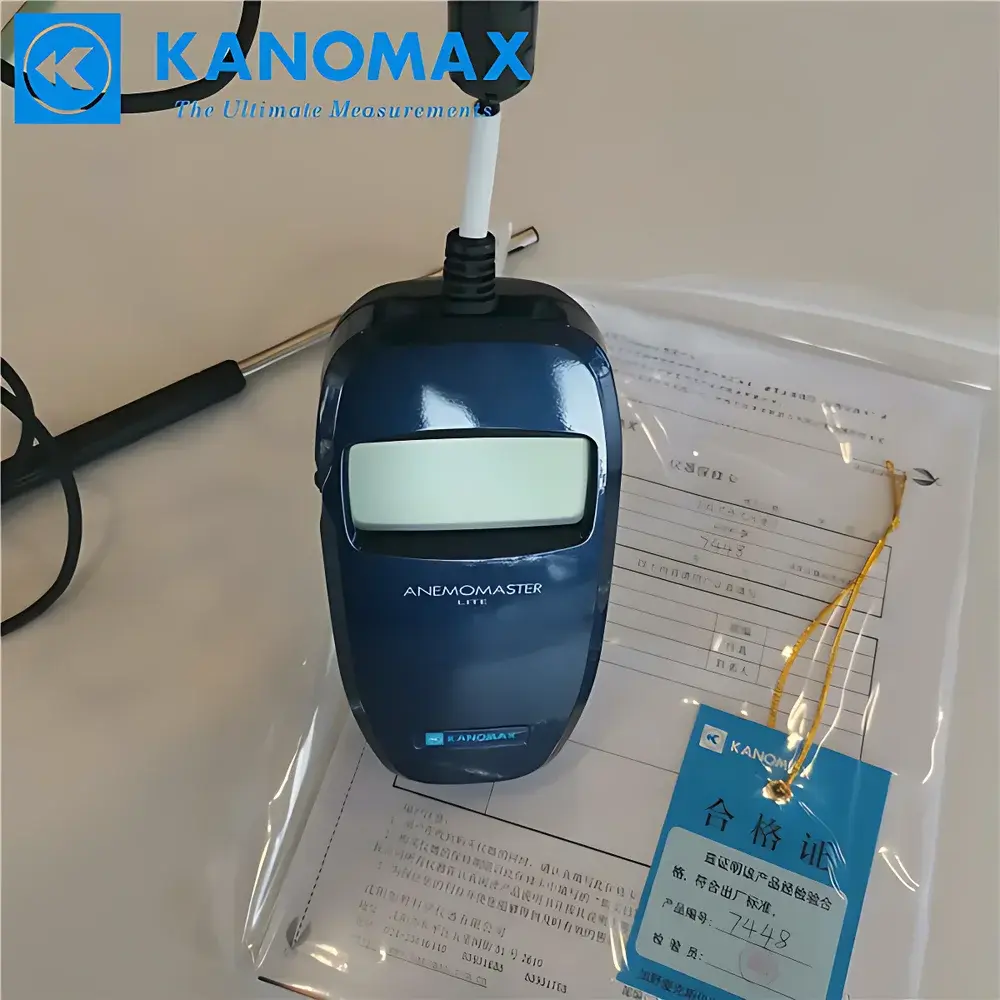

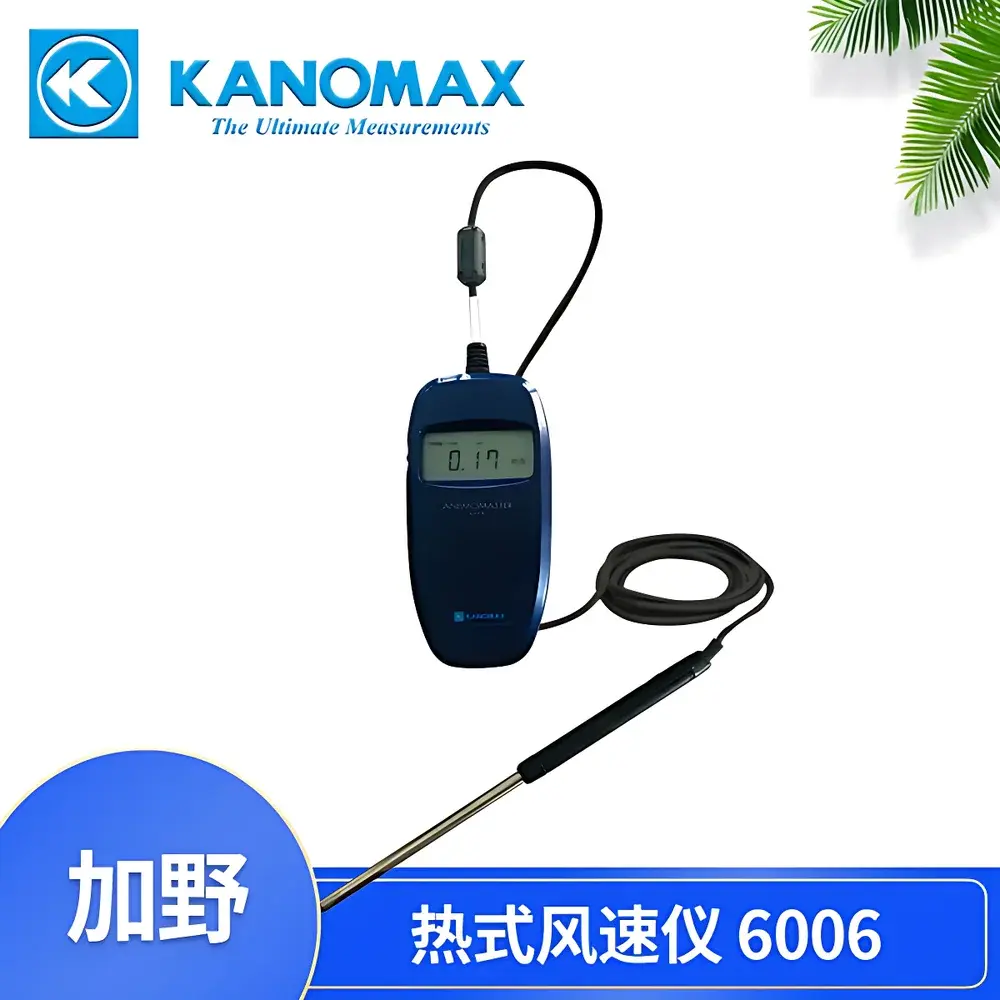

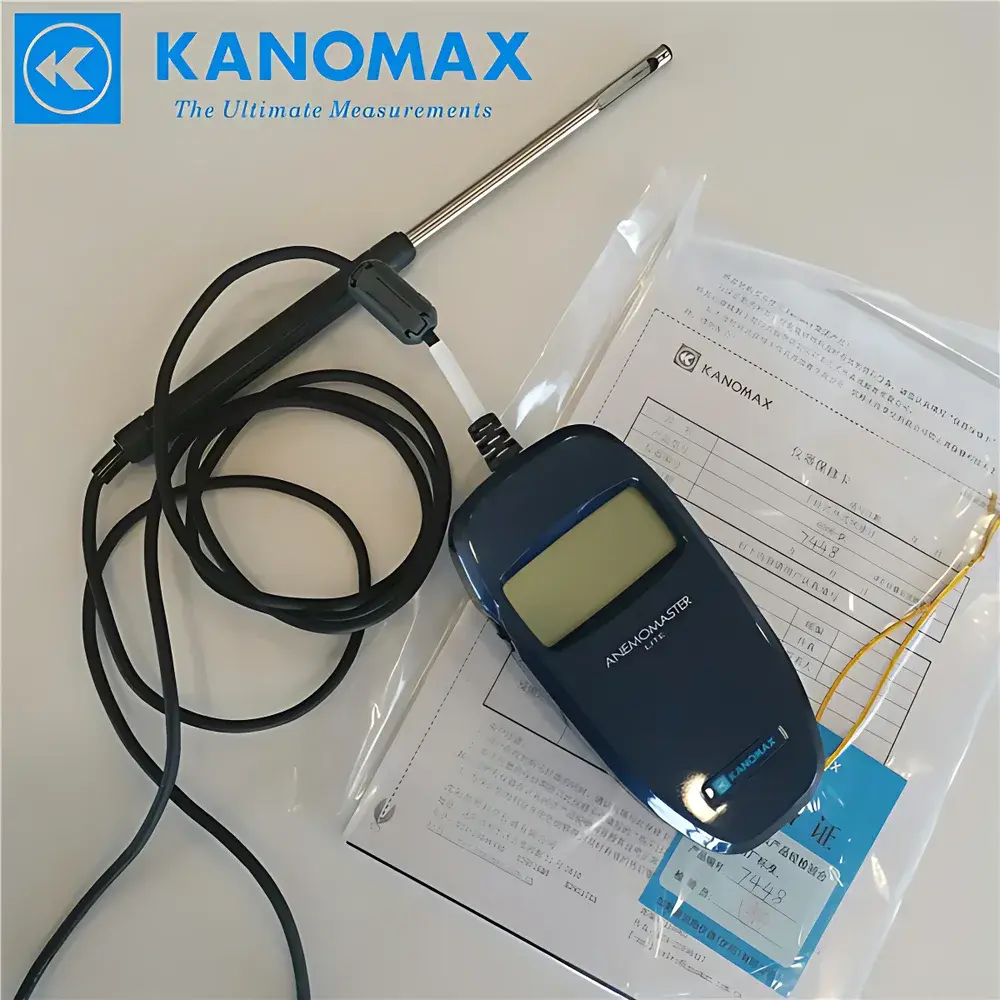

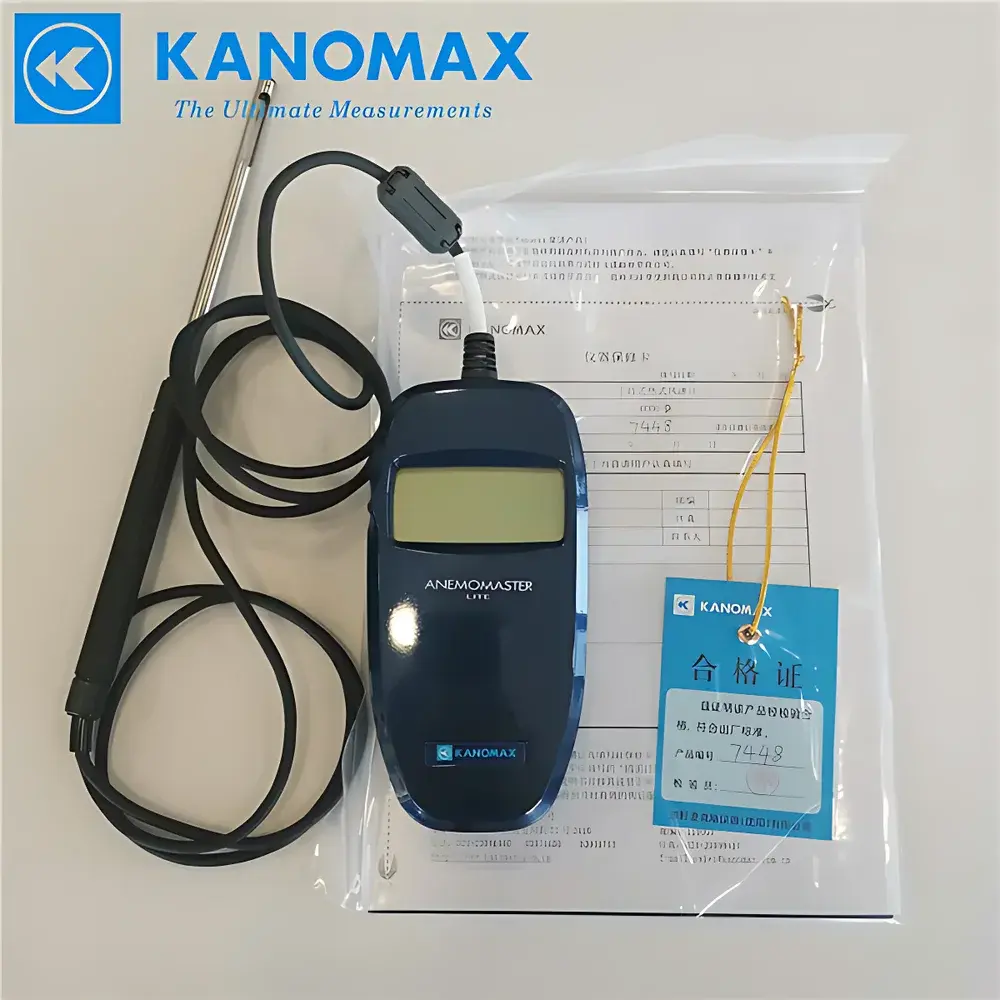

Kanomax 6006 Handheld Thermal Anemometer

Overview

The Kanomax 6006 Handheld Thermal Anemometer is a compact, battery-powered instrument engineered for reliable and repeatable measurement of air velocity and ambient temperature in field and laboratory environments. Based on constant-temperature anemometry (CTA), the device employs a thermally sensitive probe where heat loss from a heated sensor element is directly correlated to local airflow velocity—enabling real-time, low-inertia response across its full operational range. Unlike cup or vane anemometers, the thermal principle allows accurate measurement of low-velocity flows down to 0.01 m/s, making it particularly suitable for HVAC commissioning, cleanroom monitoring, fume hood validation, and indoor air quality (IAQ) assessments. Its lightweight design (180 g), ergonomic form factor (60 × 120 × 34 mm), and intuitive single-button interface support extended handheld operation without fatigue.

Key Features

• Simultaneous dual-parameter acquisition: air velocity and ambient temperature, displayed concurrently on a high-contrast LCD screen.
• Thermal probe with integrated temperature compensation circuitry—minimizing drift due to ambient thermal gradients and ensuring velocity accuracy remains stable across the full −20 to +70 °C operating range.
• High-resolution velocity sensing: capable of resolving changes as small as 0.01 m/s, with stated accuracy of ±5% of reading within the 0.01–20.0 m/s span.
• Modular probe design supporting interchangeability—facilitating field replacement and future calibration traceability without instrument reconfiguration.
• Low-power architecture powered by four standard AA cells, delivering over 20 hours of continuous operation under typical usage conditions.
• Ruggedized housing rated for industrial handling; no moving mechanical parts ensures long-term reliability and minimal maintenance requirements.

Sample Compatibility & Compliance

The Kanomax 6006 is designed for use in non-corrosive, non-explosive, particle-free airstreams. It is not intended for saturated, condensing, or high-humidity environments exceeding 95% RH without protective filtration. While not intrinsically safe or ATEX-certified, the instrument complies with IEC 61010-1:2010 for electrical safety in measurement equipment. Its measurement methodology aligns with established practices referenced in ISO 7726 (Ergonomics of the thermal environment — Instruments for measuring physical quantities) and ASHRAE Guideline 12-2020 (Minimizing the Risk of Infectious Aerosol Transmission in Buildings). Data recording protocols support adherence to GLP documentation standards when used in validated environmental monitoring workflows.

Software & Data Management

The Kanomax 6006 operates as a standalone instrument with no embedded memory or digital interface (e.g., USB, Bluetooth, or RS-232). All measurements are displayed in real time and may be manually logged. For integration into regulated environments requiring audit trails or electronic records, users may pair the device with external data loggers or perform manual transcription into LIMS or electronic lab notebooks (ELNs). When employed in GxP contexts, procedures should include defined calibration intervals (recommended annually or per ISO/IEC 17025-accredited schedule), documented operator training, and instrument-specific SOPs covering zero verification, probe handling, and environmental preconditioning.

Applications

• HVAC system balancing and duct traverse surveys in commercial and institutional buildings.
• Validation of laminar flow hoods, biosafety cabinets, and pharmaceutical isolators per ISO 14644-3 and EU Annex 1 requirements.
• Occupational health and safety assessments—including ventilation rate verification in confined spaces and workplace exposure evaluations.
• Educational laboratories for teaching fundamental fluid dynamics, heat transfer, and sensor physics principles.
• Field-based IAQ studies involving thermal comfort analysis (PMV/PPD estimation) and localized draft detection.

FAQ

Does the Kanomax 6006 support data logging or PC connectivity?
No. The instrument provides real-time analog display only and does not feature internal memory, serial output, or wireless transmission capability.
Is the probe calibrated traceable to NIST or other national standards?
Calibration certificates issued by authorized Kanomax service centers are typically traceable to JCSS (Japan Calibration Service System); end-users requiring NIST-traceable calibration must arrange third-party certification prior to deployment in regulated applications.
Can the 6006 be used in outdoor wind measurement applications?
It is not recommended for unsheltered outdoor use due to sensitivity to solar radiation heating, precipitation, and turbulent gusts outside its specified dynamic response envelope.
What is the recommended recalibration interval?
Annual calibration is advised under normal use; more frequent verification (e.g., pre- and post-campaign) is required in critical validation or regulatory settings.
Is the temperature sensor integral to the velocity probe or separate?
The temperature sensor is co-located within the same thermal probe assembly, enabling simultaneous, spatially coincident measurement of both parameters.
