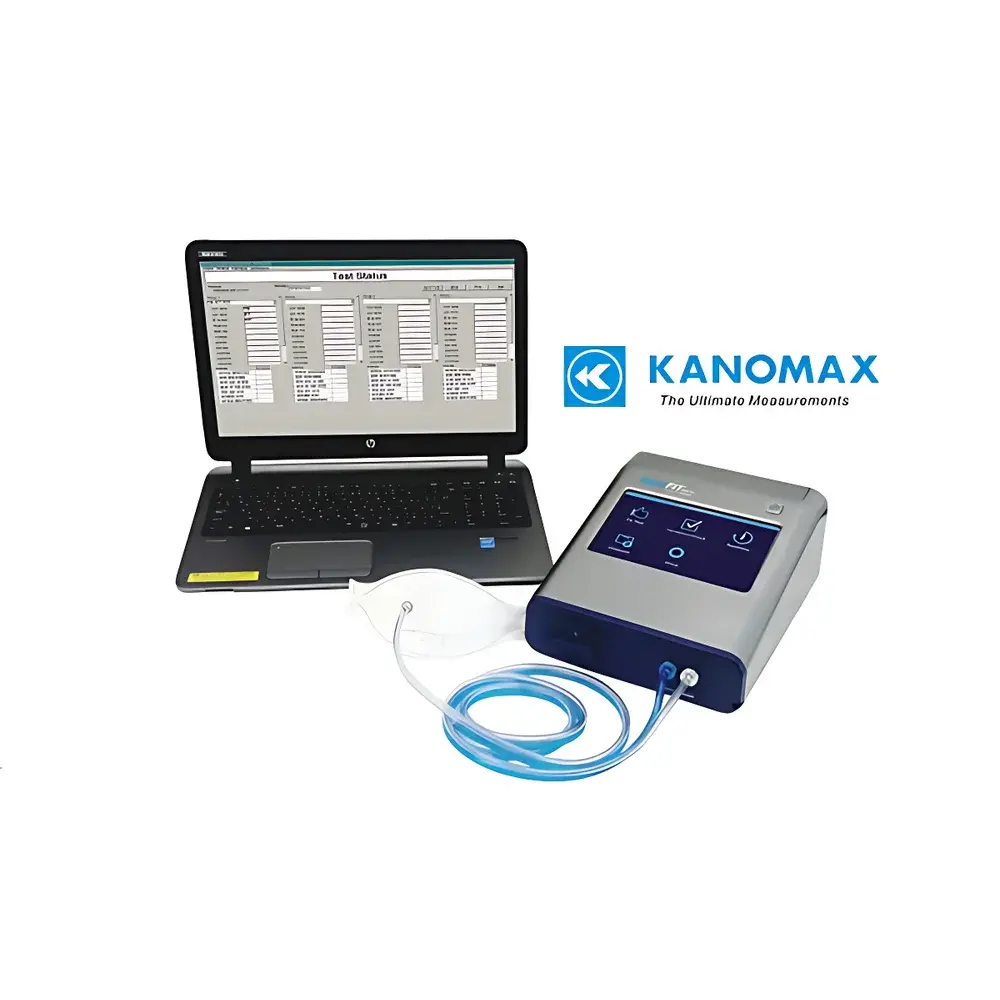

Kanomax AccuFIT 9000 3000-0C Respirator Fit Testing System

Overview

The Kanomax AccuFIT 9000 3000-0C is a precision-engineered quantitative respirator fit testing system designed for regulatory-grade evaluation of facepiece-to-face seal integrity across occupational health, clinical, and industrial safety environments. It operates on the principle of ambient aerosol condensation nucleus counting (CNC), a scientifically validated method standardized in ISO 16900-1:2017 and referenced in OSHA 1910.134 Appendix A. Unlike qualitative methods relying on subjective sensory response, the AccuFIT 9000 measures real-time particle concentration inside and outside the respirator using a high-sensitivity optical condensation particle counter (CPC), calculating the Fit Factor (FF) as the ratio of ambient particle concentration to intramask concentration. This enables objective, numerical assessment of leakage pathways—critical for verifying compliance with minimum FF thresholds (e.g., ≥100 for N95/KP95 respirators per GB 2626–2019 and OSHA requirements). The system is calibrated traceably to NIST standards and maintains measurement stability across temperature (10–35 °C) and relative humidity (10–90% RH, non-condensing) ranges typical of field and laboratory settings.

Key Features

• Quantitative CNC-based fit testing compliant with ISO 16900-1, GB 2626–2019, GB 19083–2010, and CSA Z94.4
• Dual-mode operation: supports both controlled negative pressure (CNP) verification and ambient aerosol challenge protocols
• High-resolution optical CPC with detection limit ≤0.01 µm and counting efficiency >50% at 0.007 µm
• Integrated real-time Fit Factor calculation and pass/fail determination per test exercise (e.g., normal breathing, deep breathing, head movement)
• Multi-language UI (English, French, German, Spanish, Japanese) with intuitive touchscreen navigation
• Robust connectivity architecture: USB 2.0 host interface, 10/100BASE-T Ethernet port, and IEEE 802.11 b/g/n Wi-Fi for remote monitoring and configuration
• Scalable deployment: one host PC can simultaneously manage up to four AccuFIT 9000 units via dedicated LAN or Wi-Fi subnet
• Internal memory stores ≥1,000 test records with timestamp, operator ID, subject ID, respirator model, and full exercise sequence data

Sample Compatibility & Compliance

The AccuFIT 9000 3000-0C is validated for use with all classes of air-purifying respirators regulated under international and national frameworks. This includes disposable filtering facepiece respirators (FFRs) such as N95, N99, N100, KN90, KN95, KN100, KP95, and P3-rated masks; reusable half-mask and full-face elastomeric respirators; powered air-purifying respirators (PAPRs); and surgical masks when evaluated under quantitative protocols. Its methodology satisfies the technical requirements of China’s mandatory standards GB 2626–2019 (for particulate-filtering respirators) and GB 19083–2010 (for medical protective masks), where total inward leakage (TIL) must remain below defined thresholds—e.g., <8% for KN95/KP95 and <2% for KN100/KP100. In North America, it fulfills OSHA 1910.134 Appendix A criteria for quantitative fit testing, supporting employer-mandated respiratory protection programs subject to annual retesting and documentation retention per 29 CFR 1910.134(m)(2)(i).

Software & Data Management

The system ships with Kanomax FitTest Manager v4.x software, a Windows-based application enabling centralized test protocol definition, subject database management, real-time multi-unit dashboard visualization, and automated report generation. All test data—including raw CPC counts, calculated Fit Factors per exercise phase, pass/fail status, and user annotations—are stored with immutable timestamps and operator authentication. Export formats include CSV (for statistical analysis in JMP or Minitab), PDF (with digital signature support), and XML (for integration into enterprise EHS platforms). Optional validation packages support 21 CFR Part 11 compliance, including electronic signatures, audit trail logging, role-based access control, and data integrity verification. Software updates are delivered via secure HTTPS channels and require cryptographic signature validation prior to installation.

Applications

The AccuFIT 9000 serves as a cornerstone tool in institutional respiratory protection programs. In healthcare facilities, it verifies fit integrity of N95 and surgical N95 respirators prior to high-risk aerosol-generating procedures, ensuring adherence to CDC/NIOSH guidance and Joint Commission EC.02.05.01 standards. In manufacturing and construction sectors, it supports OSHA-mandated fit testing for workers exposed to silica, welding fumes, or organic vapors—particularly where engineering controls are insufficient. Fire departments deploy it for SCBA facepiece verification and emergency responder readiness assessments. Independent third-party laboratories utilize its traceable metrology for certification testing against GB, ASTM F3407, and EN 13272. Academic research groups apply it in ergonomics studies evaluating facial anthropometry–respirator compatibility across diverse demographic cohorts.

FAQ

What regulatory standards does the AccuFIT 9000 3000-0C meet?

It complies with ISO 16900-1:2017, GB 2626–2019, GB 19083–2010, OSHA 1910.134 Appendix A, CSA Z94.4–18, and ASTM F3407–22 for quantitative respirator fit testing.
Can it test both disposable and reusable respirators?

Yes—it is validated for filtering facepiece respirators (N95, KN95, etc.), half-mask and full-face elastomerics, PAPRs, and surgical masks under quantitative protocols.
Is the system compatible with existing EHS or LIMS infrastructure?

Via Ethernet or USB, it supports HL7, ASTM E1384, and custom API integrations; optional middleware enables bidirectional sync with SAP EHS, Intelex, or VelocityEHS.
How often does the CPC sensor require calibration?

Factory calibration is valid for 12 months; field verification using NIST-traceable polystyrene latex (PSL) spheres (0.02 µm) is recommended before each daily test session.
Does it support GLP or GMP-aligned documentation?

Yes—audit-trail functionality, electronic signatures, and 21 CFR Part 11-ready software modules are available upon request and installation validation.
