Kanomax KA12 Multi-Point Airflow Management System for Semiconductor Environments

Overview

The Kanomax KA12 Multi-Point Airflow Management System is a precision-engineered thermal anemometry platform designed specifically for dynamic airflow validation and continuous environmental monitoring in critical semiconductor fabrication environments. Unlike single-point handheld anemometers, the KA12 integrates four independent measurement channels—each capable of simultaneous, synchronized acquisition from interchangeable thermal probes—to deliver spatially resolved airflow velocity profiles across cleanroom laminar flow hoods, mini-environments, FOUP load ports, EUV tool exhaust ducts, and wafer transfer zones. Its operational principle relies on constant-temperature anemometry (CTA), where heat dissipation from a heated sensor element correlates linearly with local air velocity under controlled thermal boundary conditions. This enables high reproducibility in low-velocity regimes (down to 0.05 m/s) typical of ISO Class 3–5 cleanrooms, while maintaining stability across temperature gradients common in fab sub-floors and equipment enclosures.

Key Features

• Four-channel synchronous data acquisition with real-time timestamping and channel-specific calibration memory
• Modular probe architecture supporting 10 interchangeable thermal anemometer probes—including retractable vane, hot-wire, and micro-needle variants—each with traceable NIST-traceable calibration certificates

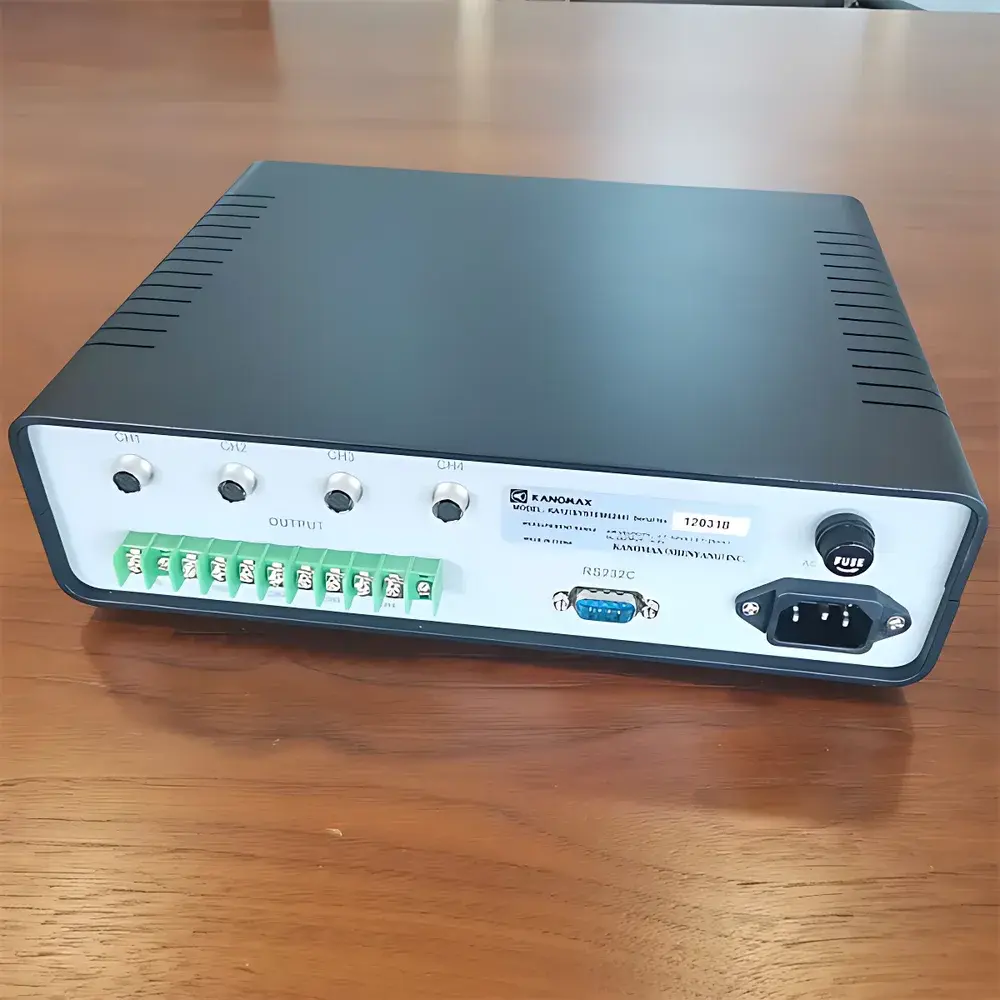

• Analog output (0–5 V DC or 4–20 mA) compatible with PLC-based building management systems (BMS) and SCADA architectures for closed-loop airflow control
• RS-232C serial interface enabling direct integration with LabVIEW, MATLAB, or custom Python-based data ingestion pipelines
• Rugged aluminum chassis with EMI-shielded internal circuitry, rated for continuous operation in vibration-prone tool-side locations

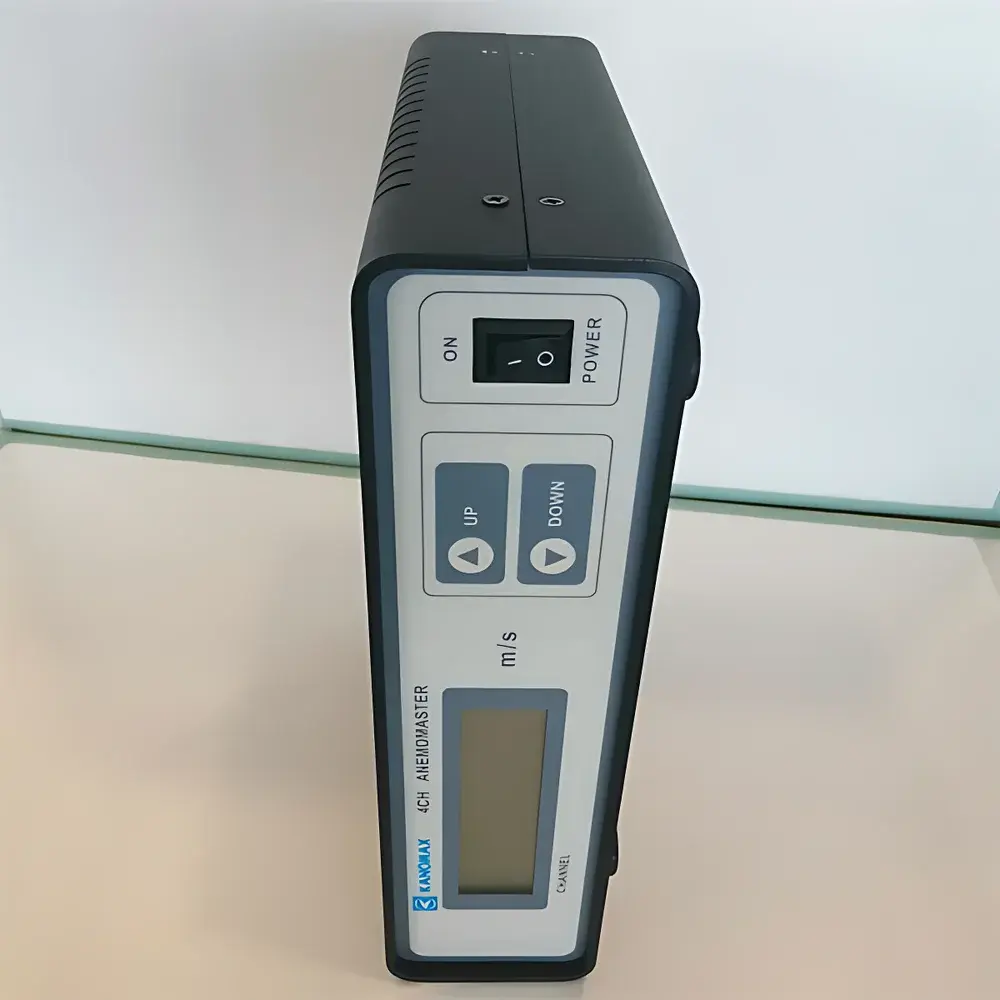

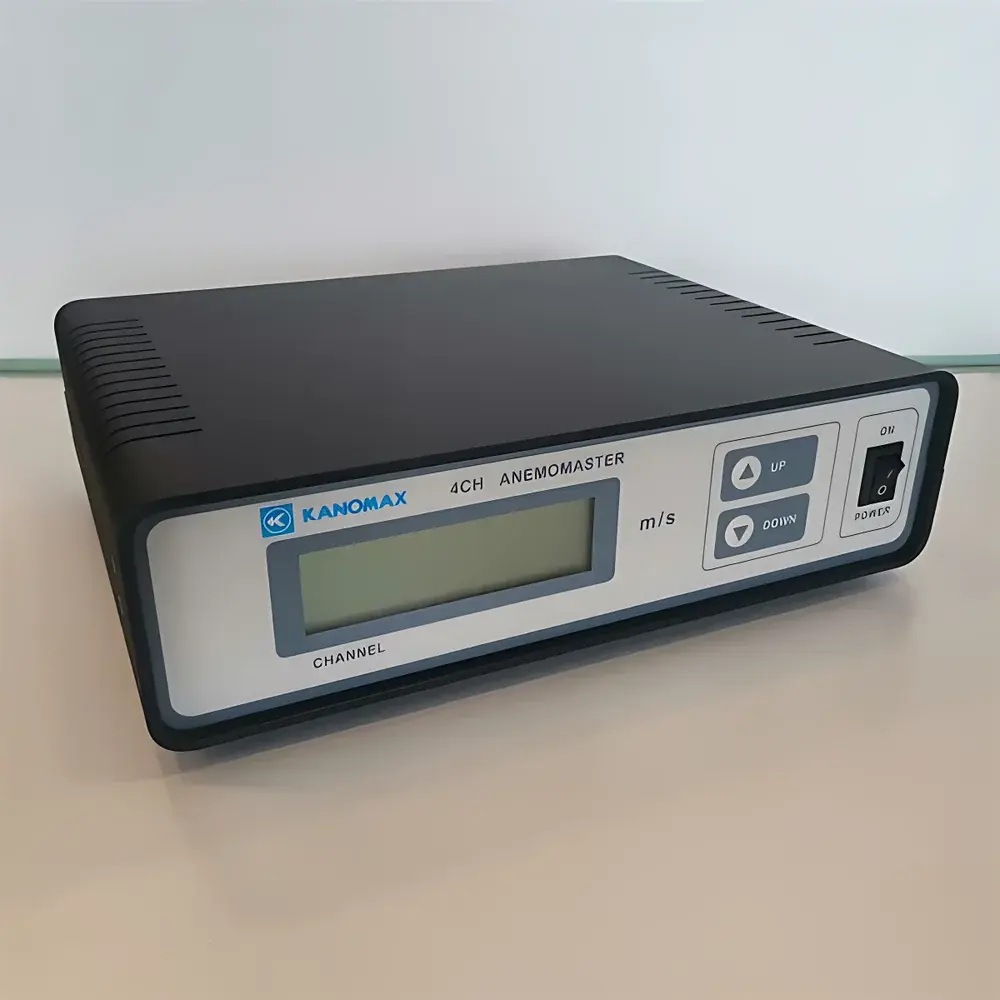

• Front-panel LCD display with dual-unit readout (m/s and ft/min), configurable averaging intervals (1–60 s), and min/max/avg hold functions

Sample Compatibility & Compliance

The KA12 system supports probe configurations optimized for diverse sampling geometries: flush-mounted surface probes for ISO 14644-3 compliant uniformity mapping; articulated telescopic probes for duct traverse measurements per ASTM D5482; and ultra-low-intrusion micro-probes (<1.2 mm diameter) suitable for confined interstitial spaces within photolithography tools. All probes comply with IEC 61000-4-2 (ESD immunity) and IEC 60529 IP20 enclosure rating. The system meets requirements for routine environmental qualification under ISO 14644-1, ISO 14644-3, and SEMI S2/S8 safety guidelines. Data logging functionality supports audit-ready records aligned with FDA 21 CFR Part 11 when used with validated software configurations.

Software & Data Management

The KA12 is supplied with Kanomax’s proprietary AirFlow Manager™ v4.2 software—a Windows-based application certified for GxP environments. It provides automated multi-point grid mapping, statistical process control (SPC) charting (X-bar/R, Cpk), ISO-class-compliant uniformity calculations, and export to CSV, Excel, or PDF formats with embedded metadata (operator ID, probe SN, calibration expiry). Audit trail features include user login tracking, parameter change logs, and electronic signature support. Raw binary data files are stored with embedded timestamps and channel synchronization markers, ensuring full traceability during regulatory inspections.

Applications

• Validation of laminar airflow velocity and uniformity in Class 1–100 cleanrooms per ISO 14644-3 Annex B
• Dynamic airflow profiling during tool qualification (e.g., etch, deposition, CMP tools) and post-maintenance recommissioning
• Monitoring of differential pressure-driven airflow across buffer zones and gowning rooms
• Real-time feedback control of variable-air-volume (VAV) systems in semiconductor manufacturing facilities
• Root-cause analysis of particle excursions linked to localized turbulence or recirculation zones
• Supporting ISO 13485-certified medical device cleanroom commissioning and requalification

FAQ

What probe types are supported by the KA12 system?

The KA12 accepts 10 thermally calibrated probe models—including KA0121 (surface-mount), KA0122 (telescopic duct), and KA0129 (micro-needle)—all pre-programmed with individual calibration coefficients stored in onboard EEPROM.
Can the KA12 be integrated into an existing facility monitoring system (FMS)?

Yes—via its isolated 4–20 mA analog output or RS-232C serial port, the KA12 interfaces directly with Siemens Desigo, Honeywell Experion, or Schneider EcoStruxure FMS platforms using Modbus RTU or ASCII protocol emulation.
Is the system compliant with FDA 21 CFR Part 11 for electronic records?

When operated with validated AirFlow Manager™ software and configured with user access controls, electronic signatures, and audit trail activation, the KA12 meets predicate rule requirements for electronic record integrity in regulated pharmaceutical and medical device manufacturing.
How often does the system require recalibration?

Kanomax recommends annual recalibration against NIST-traceable standards; probe-specific calibration certificates include uncertainty budgets per ISO/IEC 17025.
Does the KA12 support wireless data transmission?

No—the KA12 is a wired-only instrument to ensure electromagnetic compatibility (EMC) integrity in high-noise fab environments; however, optional RS-232-to-Ethernet gateways enable networked data forwarding.
