Kanomax KA23/KA33 Hot-Wire Anemometer

Overview

The Kanomax KA23/KA33 Hot-Wire Anemometer is a precision-engineered environmental monitoring instrument designed for reliable, real-time measurement of air velocity, temperature, and differential pressure in industrial, HVAC, cleanroom, and research applications. Based on constant-temperature anemometry (CTA) principles, the device maintains a heated sensing element at a fixed temperature above ambient; airflow-induced cooling is quantified to determine velocity with high sensitivity across low-to-moderate flow regimes. Unlike cup or vane anemometers, the KA23/KA33 delivers rapid response times (<100 ms), minimal flow disturbance, and accurate readings even in turbulent or low-velocity environments (down to 0.01 m/s). Its robust thermal compensation algorithm ensures stable output across wide ambient conditions (−20 to +100 °C), making it suitable for ductwork, fume hoods, laminar flow cabinets, and outdoor ventilation assessments where thermal drift must be rigorously controlled.

Key Features

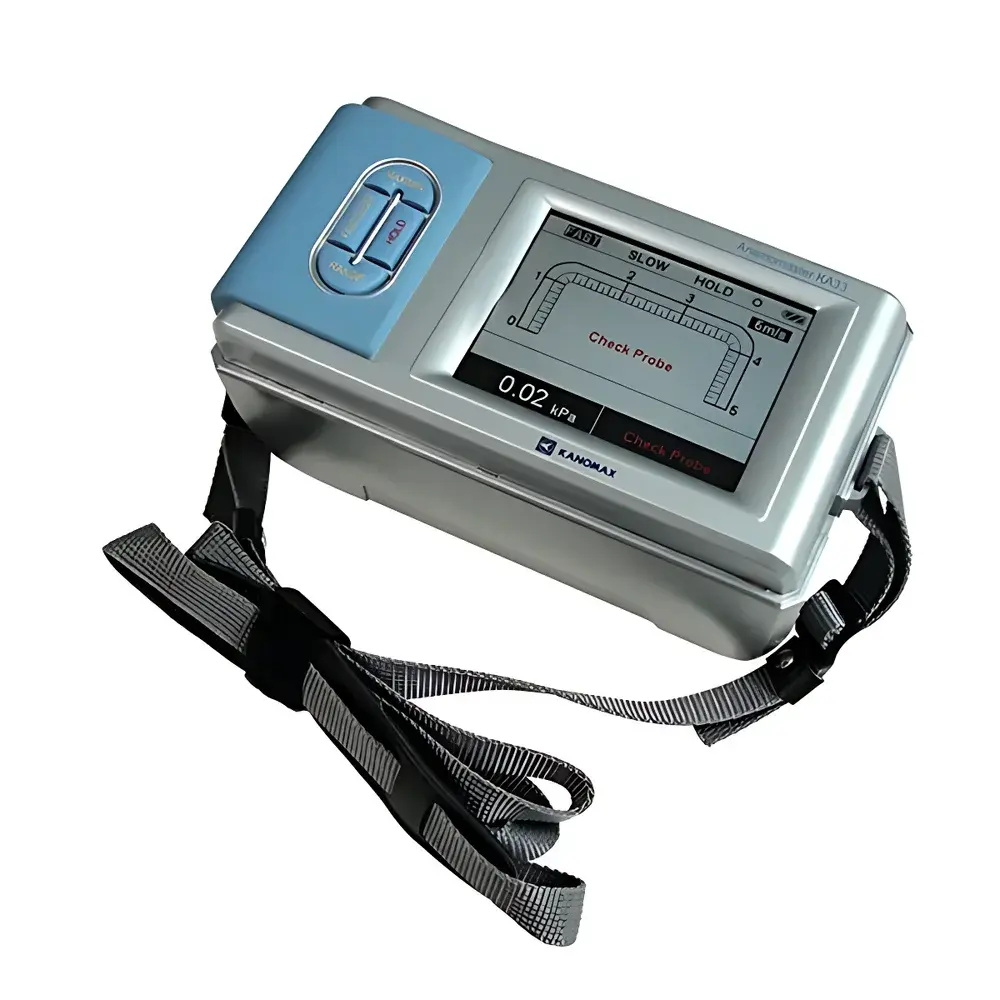

• Simultaneous triple-parameter measurement: air velocity, ambient temperature, and differential pressure — all displayed in real time on a single 3.5-inch true-color LCD

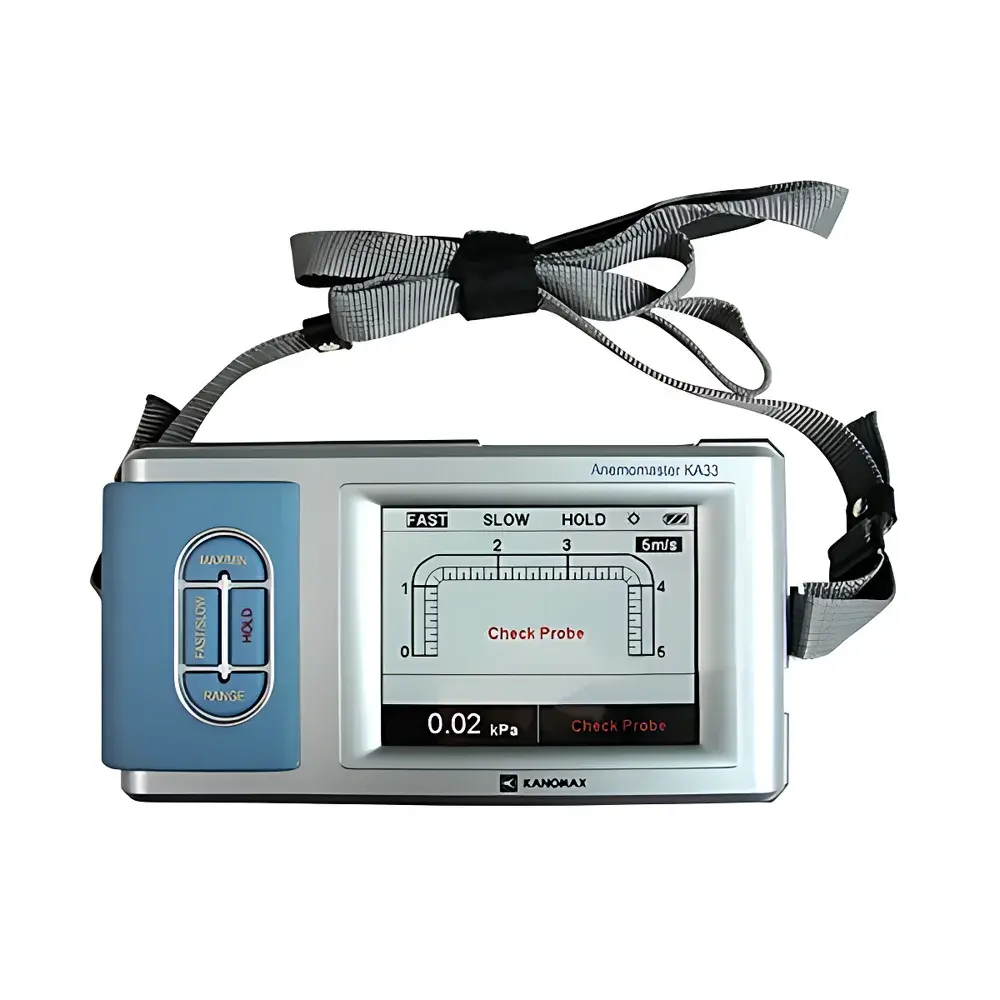

• Dual-mode visualization: numeric readout paired with analog bar graph for intuitive trend interpretation and quick pass/fail assessment
• Configurable threshold-based judgment mode: user-definable upper/lower velocity limits trigger visual and audible alerts when measurements exceed specification boundaries — supporting ISO 14644-3 and ASHRAE 110 compliance checks
• On-device statistical analysis: automatic calculation and logging of min/max/mean values over user-defined sampling intervals (1 s to 60 min), enabling QC documentation without external software

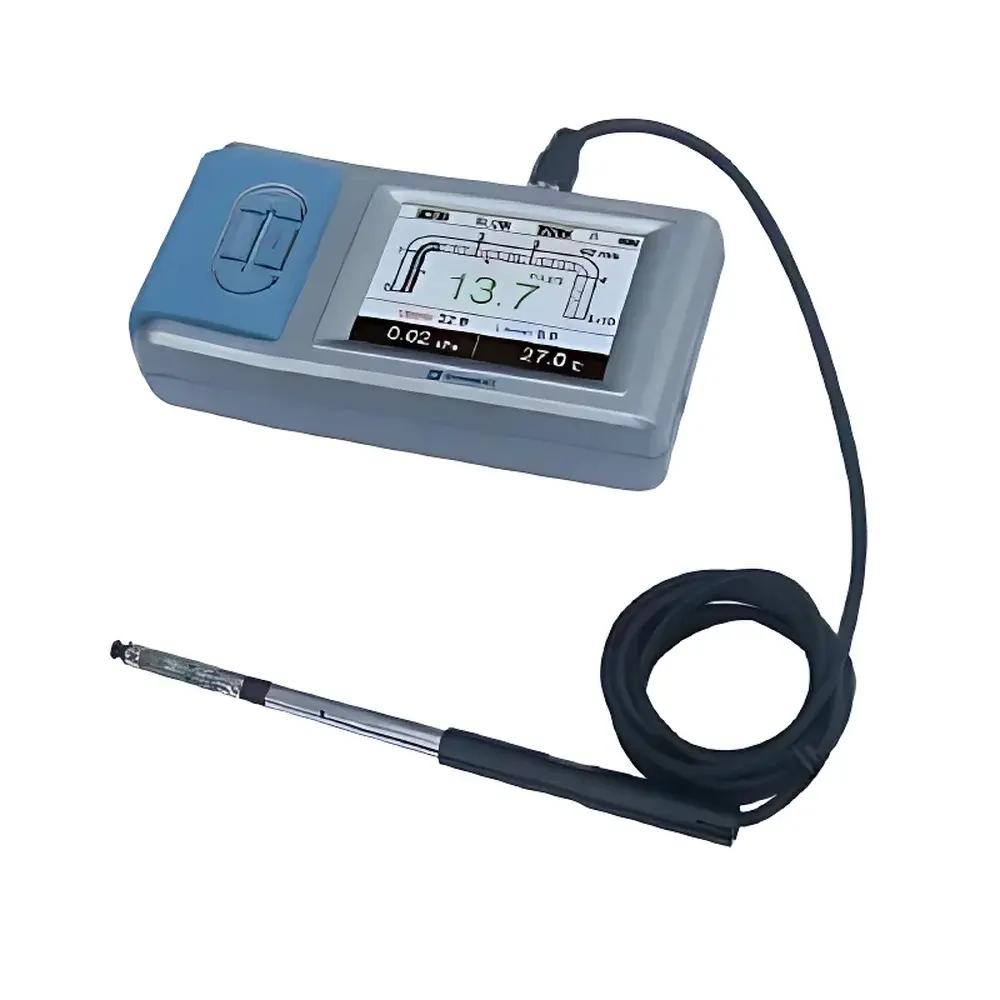

• Modular probe architecture: fully interchangeable hot-wire probes with integrated flexible shafts and telescoping extension rods (up to 1.2 m), facilitating access to ceiling-mounted grilles, narrow ducts, and confined spaces
• Energy-optimized design: 6 V DC operation (4 × AA alkaline cells) with three-level backlight control and intelligent power management — delivering 25% longer operational runtime than the KA22/KA31 generation under identical usage profiles

Sample Compatibility & Compliance

The KA23/KA33 accommodates standard 10 mm diameter hot-wire probes (e.g., KA-0231, KA-0232) with stainless-steel sheathing and IP54-rated housings for dust and splash resistance. It operates reliably in non-corrosive gaseous environments with humidity levels from 2.0% to 98.0% RH — validated per IEC 60068-2-30 for damp heat testing. While not intrinsically safe, its low-power thermal sensor design meets general-purpose safety requirements for laboratory and facility maintenance use. The instrument supports traceable calibration via NIST-traceable reference standards and complies with relevant portions of ISO 7726 (Ergonomics of the thermal environment — Instruments for measuring physical quantities) and JIS B 7554 (Hot-wire anemometers — Methods of test). Data logging outputs adhere to GLP-aligned timestamping protocols, and configuration settings are retained after power cycling per IEC 61000-4-2 ESD immunity Class 2.

Software & Data Management

Data export is supported via USB-C interface (no proprietary drivers required) to standard CSV format, compatible with Excel, MATLAB, and LabVIEW. The built-in memory stores up to 10,000 timestamped records with full parameter sets (velocity, temp, ΔP, date/time). Optional Kanomax Data Logger Software (v3.2+) enables batch export, graphical trend overlays, and report generation compliant with internal audit requirements. Audit trail functionality includes operator ID tagging (via optional RFID badge integration), change logs for limit thresholds, and immutable session timestamps — aligning with FDA 21 CFR Part 11 expectations for electronic records in regulated environments when deployed with appropriate SOPs.

Applications

• HVAC system commissioning and balancing per ASHRAE Guideline 12 and ISO 16813
• Cleanroom airflow uniformity mapping in pharmaceutical manufacturing (ISO 14644-1 Class 5–8)
• Energy efficiency audits of exhaust hoods, air curtains, and supply diffusers
• Research-grade boundary layer studies in wind tunnels and environmental chambers
• Validation of laminar flow workstations per NSF/ANSI 49 and EU GMP Annex 1
• Industrial process ventilation monitoring in textile, semiconductor, and food processing facilities

FAQ

What calibration standards does the KA23/KA33 support?
The instrument accepts factory calibration using NIST-traceable pitot-static and rotating vane references across its full 0.01–50.0 m/s range; field recalibration requires Kanomax-certified service centers.
Can the KA23/KA33 measure mass flow rate directly?
No — it measures volumetric velocity only. Mass flow calculation requires concurrent density determination (via temperature, pressure, and gas composition inputs) performed externally.
Is probe interchangeability guaranteed between KA23 and KA33 units?
Yes — both models share identical electrical interfaces, mechanical mounting, and firmware-level probe recognition; no recalibration is needed when swapping probes between KA23 and KA33 main units.
Does the device meet ATEX or IECEx certification for hazardous areas?
No — the KA23/KA33 is rated for general-purpose use only and is not certified for explosive atmospheres.
How is data integrity ensured during long-term logging?
All logged entries include embedded CRC-16 checksums, write-protected timestamps, and automatic rollover protection to prevent buffer overflow corruption.
