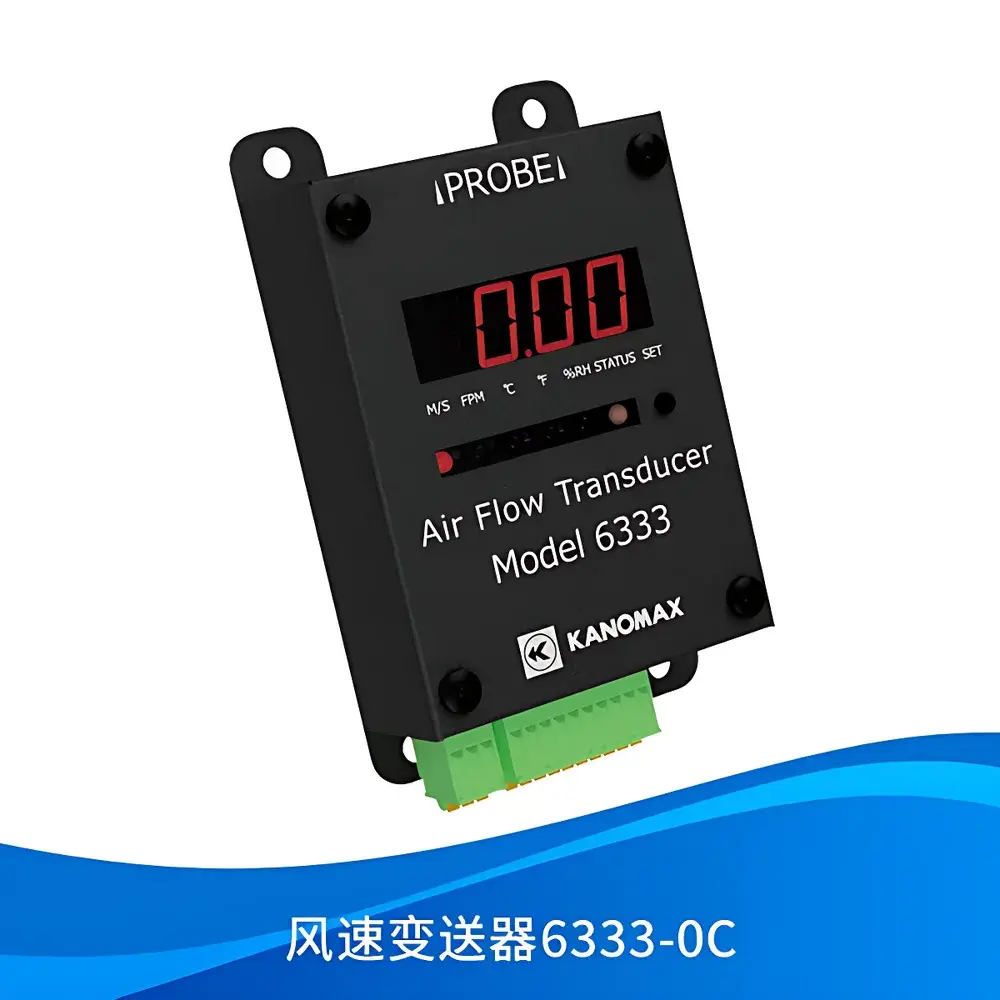

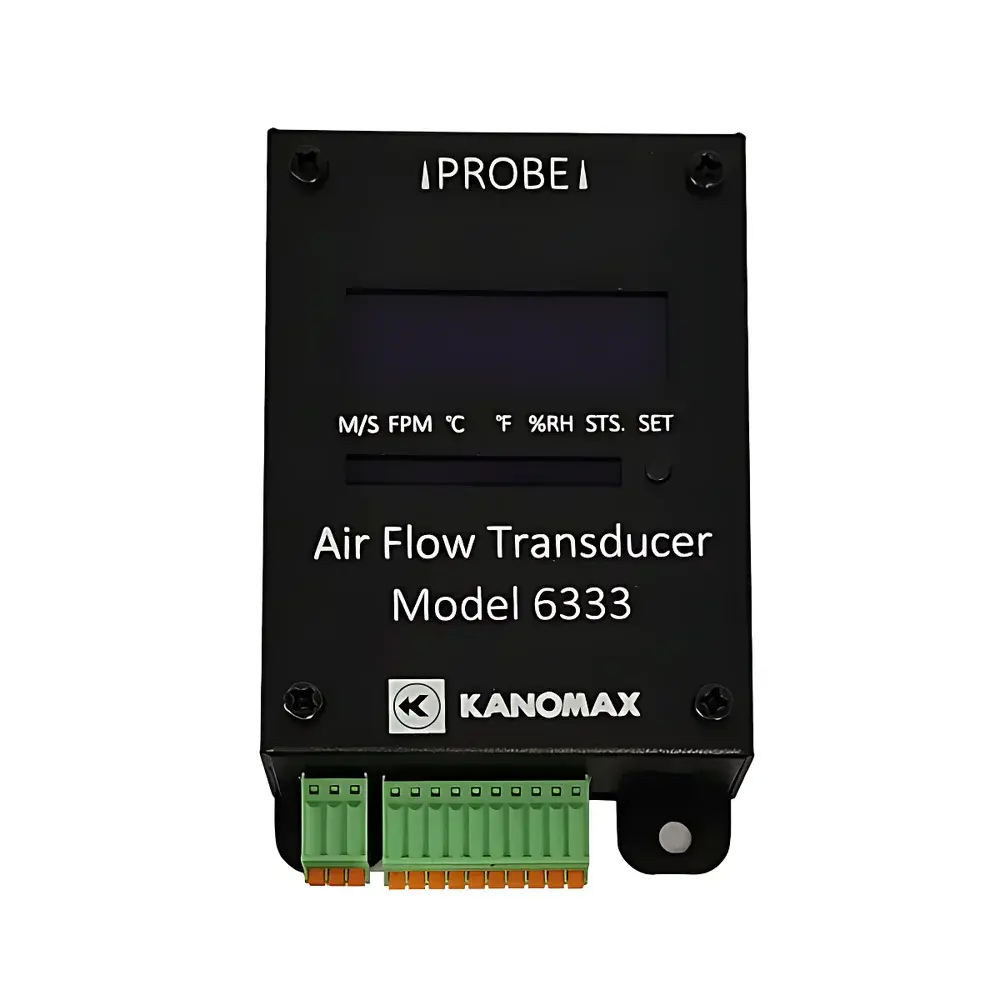

Kanomax Model 6333-0C Thermal Anemometer Transmitter for Data Center Environmental Monitoring

Overview

The Kanomax Model 6333-0C is a high-precision thermal anemometer transmitter engineered for continuous, remote environmental monitoring in mission-critical infrastructure—particularly data centers, cleanrooms, semiconductor fabrication facilities, and HVAC validation environments. It operates on constant-temperature anemometry (CTA) principles, where a heated sensor element’s thermal dissipation correlates directly with local airflow velocity. Unlike cup or vane anemometers, the 6333-0C delivers true low-flow sensitivity down to 0.01 m/s with sub-second response time (≤1 s to 90% step response at 1 m/s), enabling reliable detection of subtle airflow stratification, recirculation zones, and underfloor/overhead air distribution inefficiencies. Its modular architecture decouples the transmitter unit (Model 6333-0C) from 15 interchangeable probe variants—each optimized for specific physical constraints (e.g., ultra-compact probes for server rack inlets, high-temperature probes rated to 120 °C for exhaust ducts) and measurement objectives (velocity-only, velocity + temperature, or full tri-parameter: velocity + temperature + relative humidity). This design ensures metrological traceability across diverse spatial and thermal regimes without system reconfiguration.

Key Features

• Modular probe ecosystem: 15 field-replaceable probe models—including directional and omnidirectional variants—with mechanical and thermal interchangeability across all 6333-0C transmitters.
• Ultra-low velocity detection: Minimum measurable airspeed of 0.01 m/s, validated per ISO 14644-3 Annex B for cleanroom airflow uniformity assessment.
• High-temperature capability: Select probes (e.g., MODEL 0976-05) operate continuously at up to 120 °C, supporting thermal management validation in ECU cooling channels and server exhaust streams.
• Dual-output architecture: Simultaneous analog (4–20 mA or 0–5 V, DIP-switch selectable) and digital (RS485 Modbus RTU) outputs enable integration with BMS, SCADA, and PLC systems without external signal conditioning.
• Compact transmitter footprint: 100 × 60 × 25 mm housing with DIN-rail mounting option (accessory 6333-70), suitable for dense rack-mounted deployments and mobile test carts.
• Power flexibility: Supports universal AC (100–240 V) and wide-range DC (12–24 V) inputs, facilitating both fixed installation and battery-backed portable use.

Sample Compatibility & Compliance

The 6333-0C accommodates heterogeneous sampling environments through its probe selection matrix. Standard probes (e.g., 0975-31) are certified for general indoor climate monitoring (0–60 °C, 5–95% RH), while high-temp variants (0976-05, 0976-15) meet ASTM E1713-21 requirements for thermal stability in industrial exhaust verification. Humidity sensing complies with ISO 4677-2 for hygrometer accuracy class B. All probes feature built-in temperature compensation algorithms to eliminate thermal drift during velocity measurement—a critical requirement for ASHRAE Guideline 12-compliant data center containment validation. The transmitter itself is CE-marked and conforms to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), ensuring electromagnetic compatibility in electrically noisy server room environments.

Software & Data Management

Optional Kanomax Data Logger Software (Model 6333-40) provides Windows 10-native acquisition and visualization with multilingual UI (English, Japanese, Chinese). It supports real-time plotting of up to three parameters simultaneously (e.g., velocity + temperature + RH), statistical analysis (min/max/avg/std dev), and timestamped export to CSV or Excel-compatible XLSX formats. Data logging intervals are user-configurable from 0.1 s to 24 h, with internal memory buffering to prevent loss during network interruption. When deployed in regulated environments, the software optionally supports audit trail generation and electronic signature workflows aligned with FDA 21 CFR Part 11 requirements—provided system administrator controls, user authentication, and change history logging are enabled per organizational SOP.

Applications

• Data center airflow mapping: Quantifying cold aisle containment effectiveness, hot aisle bypass leakage, and perforated tile discharge velocity profiles.
• Server rack inlet velocity profiling: Validating ASHRAE TC 90.4-compliant minimum airflow thresholds across vertical rack elevations.
• Cleanroom ISO Class verification: Measuring laminar flow uniformity per ISO 14644-3 Annex C and turbulence intensity at critical workstations.
• Thermal management R&D: Characterizing heat sink airflow resistance, fan curve performance, and ECU cooling duct efficiency under transient thermal loads.
• Mobile environmental audits: Deploying on handheld carts or vehicle-mounted rigs for dynamic HVAC commissioning and fault isolation.

FAQ

Can the 6333-0C transmitter be used with third-party probes?
No. Only Kanomax-certified probes (MODEL 0972–0976 series) are electrically and thermally calibrated for use with the 6333-0C transmitter. Interchangeability is guaranteed only within this designated probe family.
Is humidity measurement available on all probe models?
No. Relative humidity sensing is integrated only in MODEL 0975-31 and select variants explicitly labeled for RH capability. Refer to probe-specific datasheets for parameter coverage.
What is the maximum cable length between transmitter and probe?
Standard shielded twisted-pair cables support lengths up to 40 m (Model 1580-35). For longer runs, signal repeaters or RS485-based distributed architectures are recommended to maintain analog accuracy.
Does the system support NIST-traceable calibration?
Yes. Kanomax offers factory calibration certificates traceable to NMIJ (National Metrology Institute of Japan) standards, including uncertainty budgets per ISO/IEC 17025. On-site recalibration services are available globally.
How is compliance with data integrity regulations ensured?
When paired with 6333-40 software and configured per organizational validation protocols, the system supports ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for GxP-aligned environmental monitoring.
