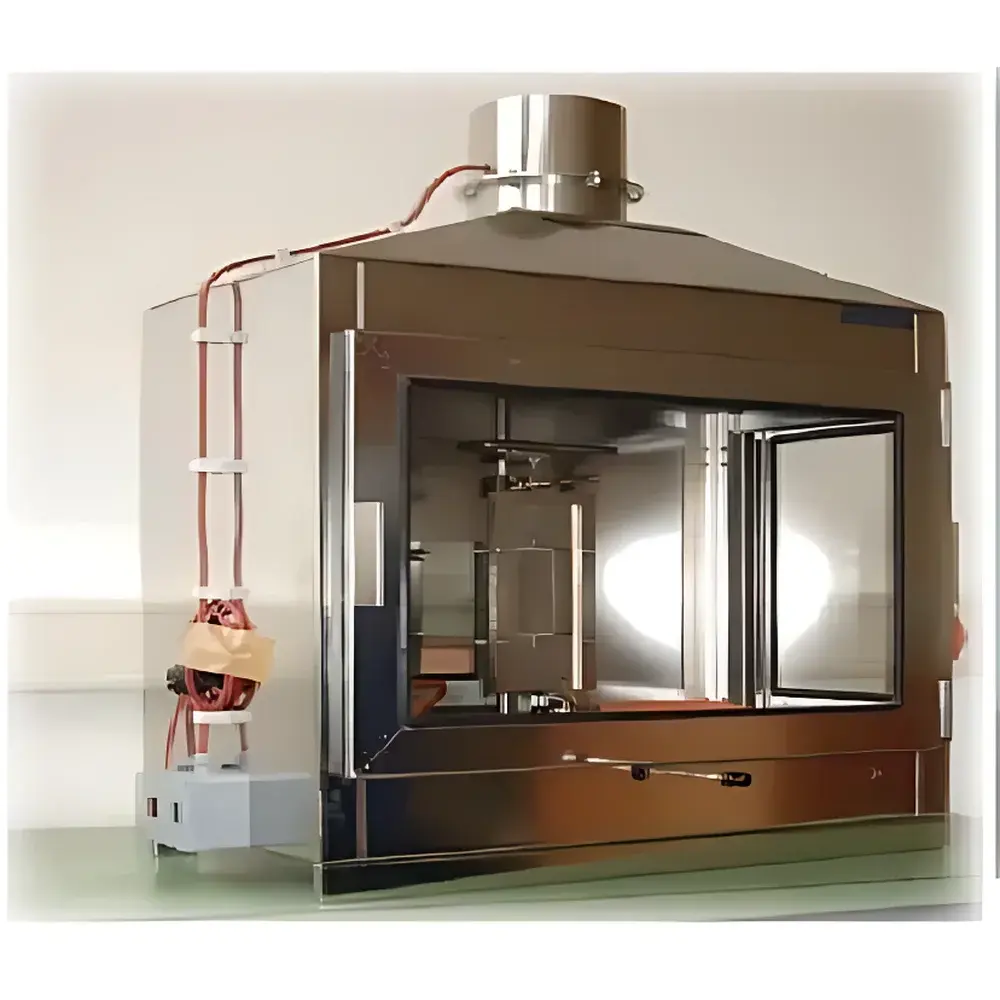

KARG DIN 53438 Electrical Materials Combustion Test Chamber

Overview

The KARG DIN 53438 Electrical Materials Combustion Test Chamber is a rigorously engineered benchtop test system designed for standardized flammability evaluation of polymeric insulating materials used in electrical and electronic equipment. It operates in strict accordance with the German national standard DIN 53438 (Flammability Testing of Plastics – Horizontal Burning Test), which specifies methodology for assessing the horizontal burning behavior of rigid and semi-rigid plastics under controlled ignition conditions. The chamber integrates a calibrated Bunsen burner, precision gas flow regulation, adjustable sample mounting geometry, and thermally stable containment—ensuring high reproducibility and inter-laboratory comparability. Unlike generic fire testing enclosures, this unit is purpose-built for electrical-grade polymers (e.g., PVC, ABS, PC/ABS blends, thermoset laminates) where surface ignition resistance, flame spread rate, afterflame time, and drip ignition propensity are critical safety parameters defined in IEC 60695-11-10 and UL 94 HB classification protocols.

Key Features

• Stainless steel test chamber with reinforced structural integrity and integrated thermal insulation to maintain ambient thermal stability during repeated burn cycles.
• Adjustable-angle sample support assembly compliant with DIN 53438 specimen orientation requirements (horizontal placement at 0° ± 1°), featuring quick-release mechanisms for rapid fixture exchange.
• Tilt-adjustable burner mount enabling precise angular alignment (0–45°) to replicate real-world ignition vector scenarios per supplementary test methods including DIN 4102-B2.
• Interchangeable sample holders accommodating diverse geometries: flat plaques (125 × 13 mm), molded components, and extruded profiles up to 13 mm thickness.
• Digital mass-flow controller for propane or butane fuel delivery, ensuring ±1% volumetric accuracy across 10–100 mL/min range; includes automatic gas cut-off on overtemperature or flame-out detection.
• Heat-resistant borosilicate viewing window (maximum service temperature: 500°C) with anti-fog coating and integrated flame height scale (0–50 mm calibration marks).
• Front-access configuration with interlocked door switch, minimizing operator exposure and supporting GLP-aligned procedural workflows.

Sample Compatibility & Compliance

This combustion chamber supports standardized testing of solid electrical insulation materials—including thermoplastics, thermosets, elastomers, and composite laminates—as specified in DIN 53438, DIN 4102-B2 (building material classification), and harmonized EN 13501-1 frameworks. Its modular mounting system enables seamless integration with ancillary test modules referenced in related DIN standards: DIN 54332 (flooring textiles), DIN 54335 (45° textile ignition), DIN 54336 (edge-flame textile propagation), and DIN 53906 (vertical textile burning). All mechanical and thermal performance parameters conform to ISO/IEC 17025 requirements for accredited testing laboratories. The system architecture facilitates audit-ready documentation for FDA 21 CFR Part 11-compliant environments when paired with validated data acquisition software.

Software & Data Management

While the base chamber operates as a standalone manual test platform, it is fully compatible with optional KARG TestSuite™ v3.2 software (sold separately), which provides real-time video capture synchronized with flame duration timers, automated afterflame/afterglow logging, digital annotation of burn fronts, and export to CSV/PDF formats compliant with ISO 17025 reporting templates. The software supports multi-user role-based access control, electronic signature capture, and full audit trail generation—including timestamped parameter changes, operator ID, and environmental condition metadata (ambient temperature/humidity logged via integrated sensors). All raw timing and visual data meet traceability requirements for GMP and automotive OEM PPAP submissions.

Applications

• Qualification of polymer housings, connectors, circuit board substrates, and cable jacketing materials against end-product safety standards (e.g., UL 60950-1, IEC 62368-1).
• Material screening during R&D of halogen-free flame-retardant compounds (e.g., phosphinate-, melamine-, or metal hydroxide-filled systems).
• Failure analysis of field-return components exhibiting thermal runaway or arc-tracking degradation.
• Supporting certification pathways for CE marking under the Construction Products Regulation (CPR) and RoHS/REACH compliance verification.
• Academic research into flame inhibition mechanisms, char formation kinetics, and heat release rate correlation modeling.

FAQ

Does this chamber comply with UL 94 HB testing requirements?
Yes—the dimensional tolerances, burner specifications, and procedural sequence align with UL 94 HB horizontal burn methodology when operated per DIN 53438 protocol.
Can the chamber be connected to external fume hoods or central exhaust systems?
Yes—it features a standardized 150 mm diameter duct port with flange interface for direct coupling to laboratory ventilation infrastructure.
Is calibration documentation provided with shipment?
Each unit ships with a factory calibration certificate traceable to PTB (Physikalisch-Technische Bundesanstalt), covering burner flow rate, flame height repeatability, and thermal uniformity validation.
What maintenance intervals are recommended for long-term reliability?
Burner nozzle inspection and cleaning every 50 test cycles; annual verification of gas regulator linearity and door interlock functionality by authorized KARG service engineers.
Are replacement fixtures available for non-standard specimen geometries?
Yes—KARG offers custom-machined holders (e.g., curved surfaces, multi-pin connectors) under part number prefix CH-FIX-XX; lead time is 6–8 weeks from order confirmation.
