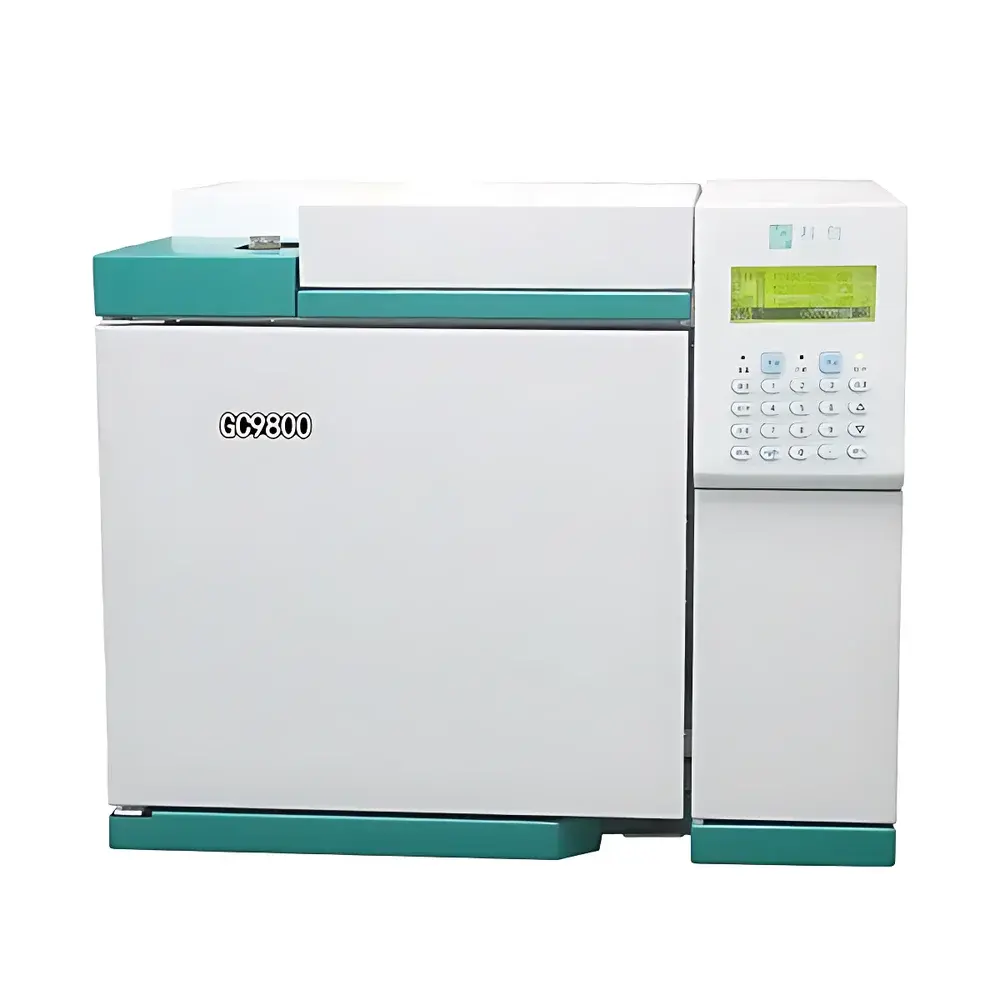

Kechuang GC9800 Laboratory Gas Chromatograph for Baijiu (Chinese Liquor) Analysis
| Brand | Kechuang |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |
| Model | GC9800 |
| Instrument Type | Laboratory Gas Chromatograph |
| Application Field | Food Industry–Specific |
| Oven Temperature Range | Ambient + 8 °C to 400 °C |
| Oven Ramp Rate | 0.1–40 °C/min |
| Oven Cooling Rate | 400 °C → 50 °C in ≤4 min |
| Carrier Gas Flow Range & Control | 0–100 mL/min |
| Carrier Gas Pressure Range & Control | 0–250 kPa |
| Injector Maximum Operating Temperature | 300 °C |
| Injector Pressure Setting Range | 0–250 kPa |
| Injector Total Flow Setting Range | 0–1200 mL/min |
Overview
The Kechuang GC9800 is a dedicated laboratory gas chromatograph engineered for high-reproducibility quantitative and qualitative analysis of volatile organic compounds in baijiu (Chinese distilled liquor). Based on capillary column separation coupled with flame ionization detection (FID), the system enables precise resolution of low- to mid-boiling-point congeners—including methanol, fusel oils (e.g., propanol, isobutanol, butanol, isoamyl alcohol, amyl alcohol), esters, aldehydes, and higher alcohols—critical to safety assessment, process control, and sensory profiling. Its thermally stable oven architecture, digitally regulated pressure/flow control, and programmable multi-step temperature gradients support method robustness across diverse baijiu matrices—from light-aroma to strong-aroma and sauce-aroma styles—without column degradation or retention time drift.
Key Features
- Thermally insulated column oven with ±0.1 °C temperature uniformity and rapid cooling (400 °C → 50 °C in ≤4 min), enabling high-throughput batch analysis.
- Programmable temperature ramping (0.1–40 °C/min) and multi-segment gradient capability for optimized separation of co-eluting congeners in complex baijiu headspace.
- Dual independent gas control modules: one for carrier gas (0–100 mL/min, 0–250 kPa) and another for auxiliary gases (e.g., air/H2 for FID), each with digital pressure/flow feedback regulation.
- Split/splitless injector with maximum operating temperature of 300 °C and total flow capacity up to 1200 mL/min, compatible with both liquid injection and dynamic headspace sampling.
- Modular detector interface supporting FID as standard; optional TCD or ECD configurations available for expanded analyte coverage (e.g., residual solvents, trace contaminants).
- Embedded microprocessor-based controller with real-time diagnostics, event logging, and password-protected method storage (≥100 methods).
Sample Compatibility & Compliance
The GC9800 is validated for direct analysis of undiluted or diluted baijiu samples following standardized preparation protocols (e.g., internal standard addition with n-propanol or ethyl acetate). It meets essential requirements for food safety testing under GB/T 10345–2022 (National Standard of the People’s Republic of China for Baijiu Analysis) and supports alignment with ISO 17025:2017 laboratory accreditation criteria. When operated with audit-trail-enabled software (see Software & Data Management), the instrument supports GLP-compliant workflows required by provincial CDCs, market supervision bureaus, and third-party food testing laboratories conducting statutory surveillance of methanol limits (<0.6 g/L) and fusel oil thresholds per regulatory guidelines.
Software & Data Management
The GC9800 operates with Kechuang ChromaLink v3.x chromatography data system (CDS), a Windows-based platform compliant with FDA 21 CFR Part 11 for electronic records and signatures. Key capabilities include: automated peak integration with baseline correction algorithms tuned for ethanol-rich matrices; customizable reporting templates aligned with CNAS and CMA certification formats; user role management (administrator, analyst, reviewer); full audit trail logging of method edits, sequence changes, and result modifications; and secure export of raw data (.cdf), calibration curves, and compliance reports in PDF/A or CSV. Data integrity safeguards include write-once archive mode and encrypted local database storage.
Applications
- Safety Monitoring: Quantitative determination of methanol and total fusel oils in finished baijiu, ensuring compliance with national hygiene standards (GB 2757–2012).
- Base Spirit Quality Control: Routine profiling of key flavor-active congeners (e.g., ethyl hexanoate, ethyl lactate, β-phenylethanol) to assess fermentation maturity and guide blending decisions.
- Volatile Fingerprinting: Comparative analysis of aroma profiles across production batches, aging periods, or geographic origins using multivariate statistical tools integrated into ChromaLink.
- Adulteration Detection: Identification of synthetic additives, unauthorized flavorings, or dilution with neutral spirits via ratio analysis of diagnostic compound pairs (e.g., isoamyl alcohol/ethyl acetate).
- Regulatory Enforcement: Supporting metrological verification by provincial Institute of Product Quality Supervision and Inspection and Center for Disease Control and Prevention laboratories.
FAQ
Is the GC9800 suitable for unattended overnight analysis of baijiu samples?
Yes—the system supports fully programmable run sequences with auto-shutdown, oven cooldown verification, and power-failure recovery logic.
Can it be configured for headspace analysis without hardware modification?
Yes—standard split/splitless injector compatibility allows direct coupling with commercial static or dynamic headspace samplers.
Does the instrument meet international calibration traceability requirements?
Yes—factory calibration certificates reference NIST-traceable gas standards; users may perform in-house verification using certified reference materials (CRMs) per ISO/IEC 17025 Clause 7.7.
What maintenance intervals are recommended for routine operation?
Column trimming every 50 injections, FID jet cleaning every 200 runs, and annual oven insulation inspection are advised per the maintenance schedule in the operator manual.
Is remote diagnostics supported?
Yes—ChromaLink includes secure remote access mode (SSH/TLS encrypted) for technical support engineers to review system logs and configuration files with user consent.
