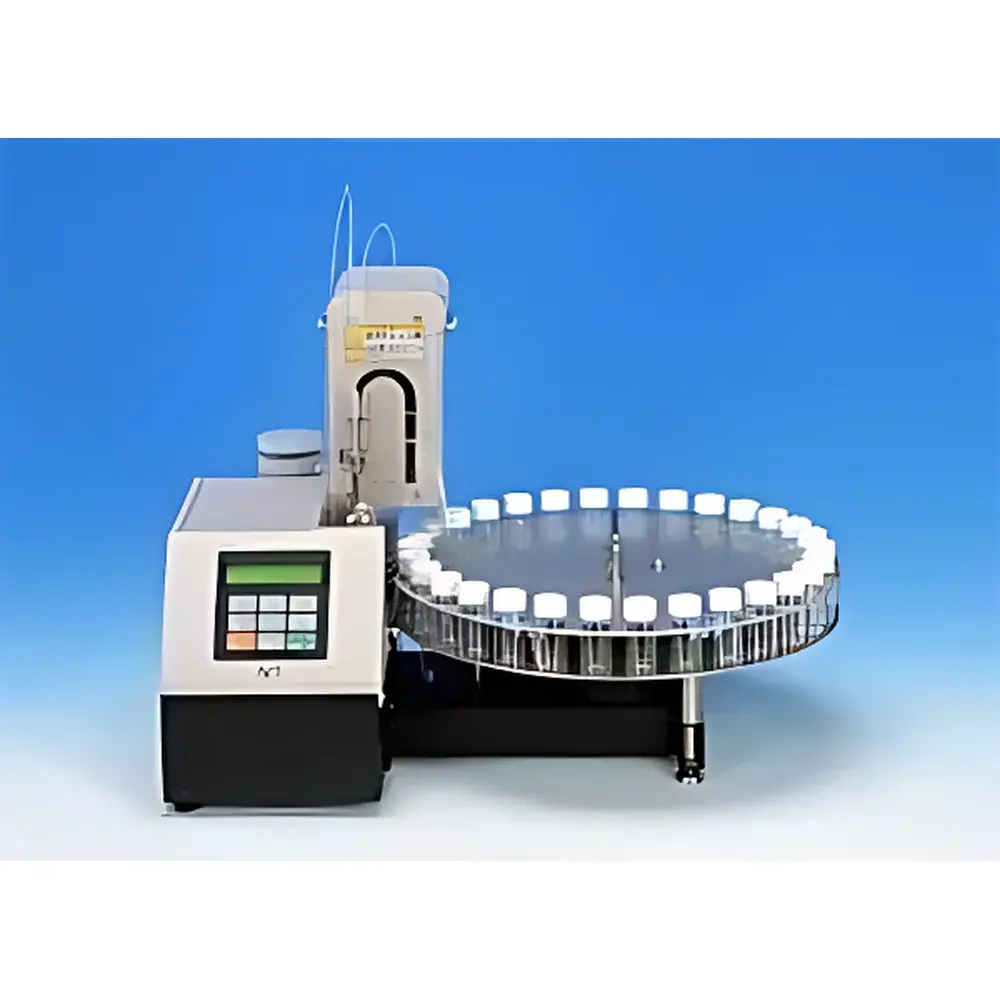

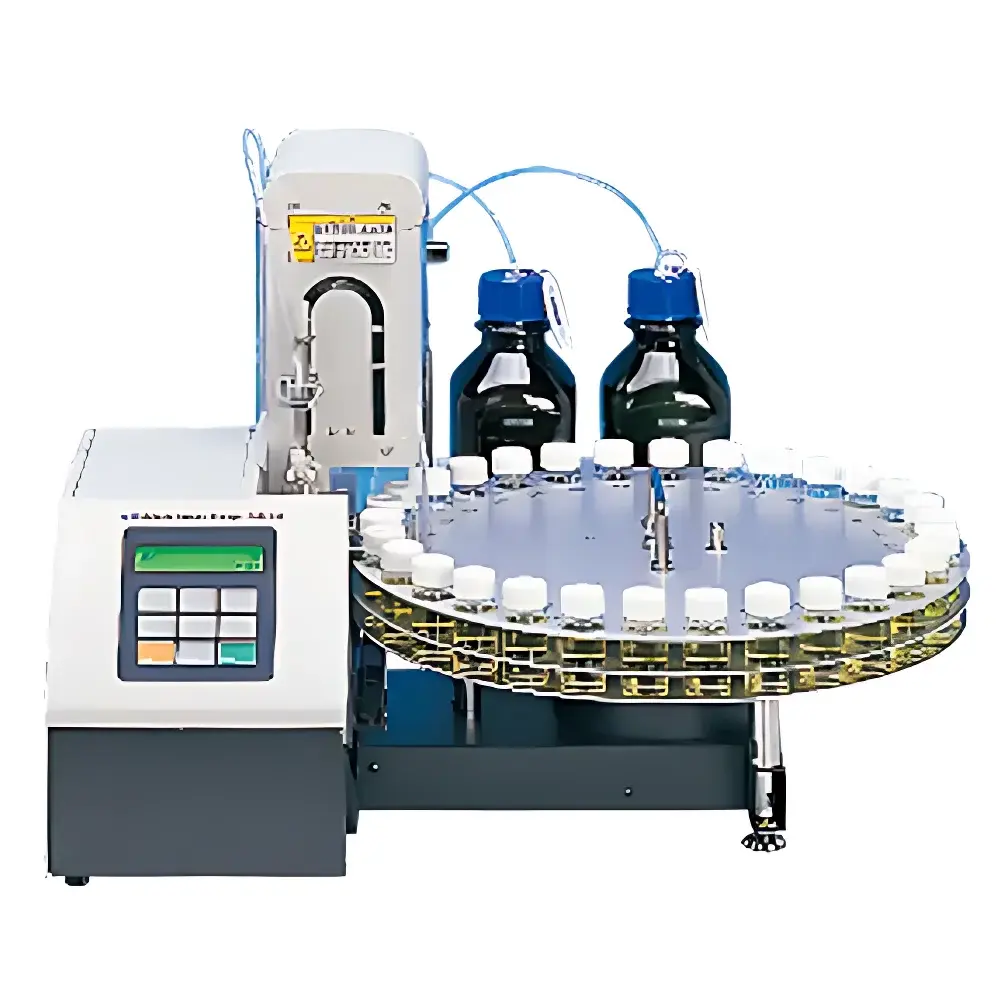

KEM CHD-502 Automated Multi-Sample Refractometer System with Integrated Auto-Sampler and Cleaning Module

Overview

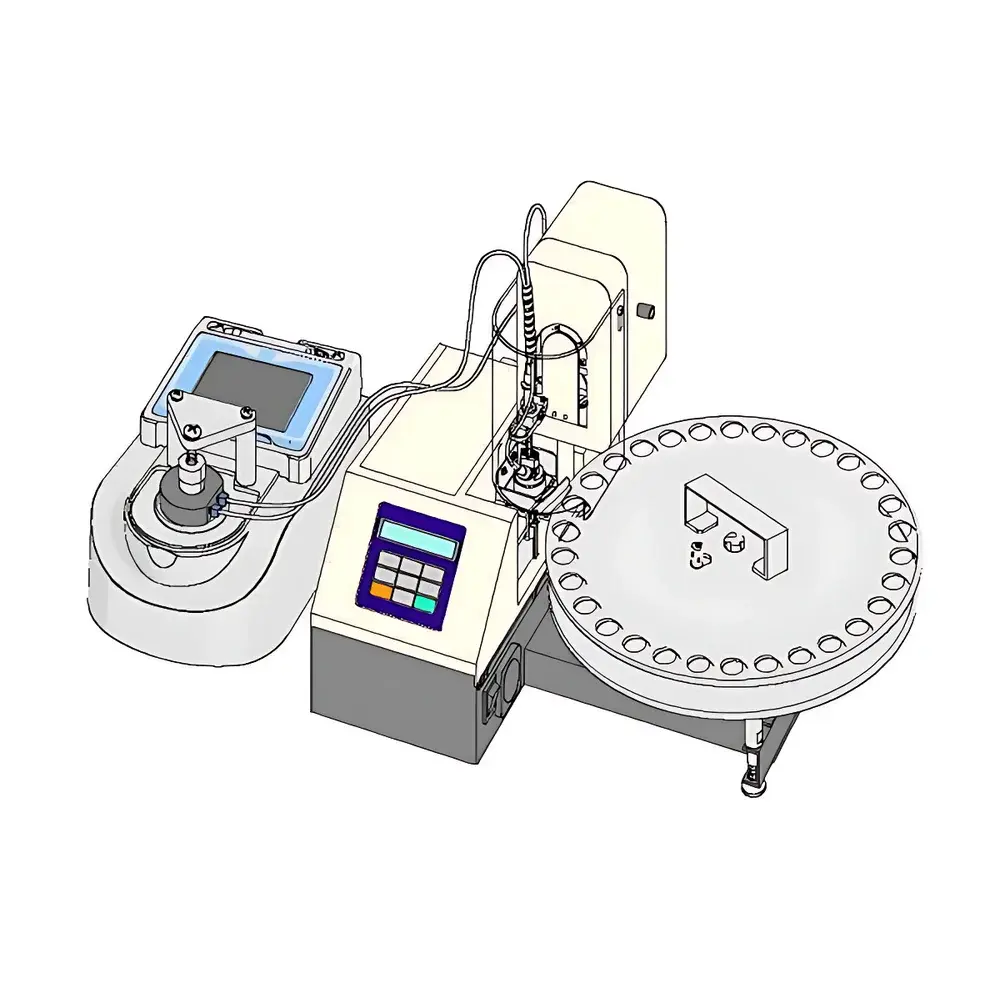

The KEM CHD-502 Automated Multi-Sample Refractometer System is a precision benchtop optical instrument engineered for high-throughput, unattended refractive index (nD) analysis in quality control, R&D, and routine laboratory environments. It operates on the principle of total internal reflection at the prism–sample interface, where the critical angle of incidence is measured via high-sensitivity photodetector arrays and converted into refractive index values using calibrated optical path algorithms. Designed exclusively for integration with KEM’s RA-600 and RA-620 digital refractometers, the CHD-502 functions as an intelligent peripheral module—receiving commands from the host refractometer’s embedded controller to execute fully automated sequences including sample aspiration, measurement, waste evacuation, solvent rinse, and nitrogen-assisted drying. Its architecture eliminates manual handling errors and thermal drift between measurements by maintaining consistent prism temperature via Peltier-based thermal regulation synchronized with the connected refractometer.

Key Features

• Full automation of 30-sample batches without operator intervention—including aspiration, measurement, discharge, multi-stage cleaning (solvent flush + air purge), and chamber drying.

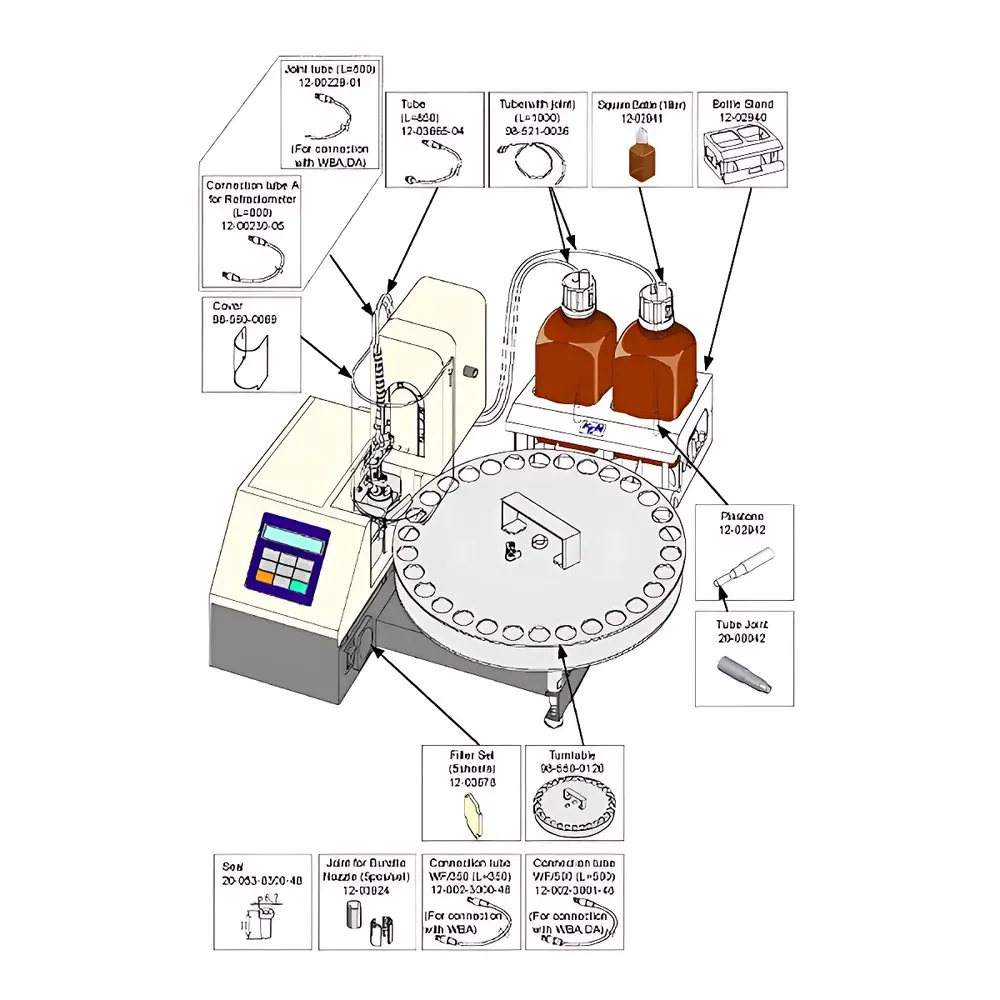

• Integrated dual-mode fluid handling system combining vacuum priming and positive-pressure dispensing for precise, bubble-free sample delivery to the sapphire measuring prism.
• Modular design ensures seamless mechanical and software interoperability only with KEM RA-600 and RA-620 refractometers—guaranteeing traceable calibration alignment and firmware-level command protocol compliance.
• Peltier-controlled thermal management maintains prism temperature stability within ±0.02 °C during sequential analysis, minimizing thermal hysteresis and enabling strict adherence to ASTM D1218 and ISO 2859-1 sampling standards.
• Low-power consumption (<40 W) and compact footprint (582 × 445 × 392 mm) support deployment in regulated analytical laboratories where space, energy efficiency, and electromagnetic compatibility are critical.

Sample Compatibility & Compliance

The CHD-502 accommodates standard 20 mL borosilicate glass vials conforming to ASTM E1157 specifications. It supports aqueous solutions, organic solvents (e.g., ethanol, acetone, chloroform), oils, syrups, and viscous pharmaceutical formulations with kinematic viscosities up to 500 cSt. All wetted components—including fluidic pathways, valves, and the sample contact surface—are constructed from chemically inert materials (e.g., PTFE, sapphire, and 316L stainless steel) compliant with USP and FDA 21 CFR Part 11 requirements for material biocompatibility and extractables profiling. The system meets IEC 61326-1 for electromagnetic immunity and is designed to operate within GLP/GMP audit frameworks—supporting full electronic records of run logs, error flags, maintenance timestamps, and user authentication events when paired with RA-620’s validated software suite.

Software & Data Management

Control and data acquisition are managed through KEM’s proprietary RA-Win software (v4.2+), which provides role-based access control, audit-trail-enabled operation logging, and 21 CFR Part 11-compliant electronic signatures. Each measurement cycle generates a timestamped data packet containing nD value, temperature, sample ID, cleaning status, and system diagnostic flags. Raw data exports to CSV or PDF formats include metadata headers required for LIMS integration (e.g., ASTM E1489, ISO/IEC 17025). Optional IQ/OQ documentation packages are available for installation qualification and operational qualification under GxP environments.

Applications

• Pharmaceutical QC: Brix and nD verification of excipient solutions, syrup bases, and ophthalmic preparations per USP and Ph. Eur. 2.2.59.
• Fine chemical manufacturing: Batch release testing of glycols, esters, and halogenated solvents where refractive index serves as a surrogate purity indicator.
• Food & beverage analytics: Rapid concentration monitoring of fruit juices, honey, and dairy concentrates without dilution or derivatization.
• Academic research: High-reproducibility kinetic studies of polymerization reactions or sol-gel transitions where real-time nD tracking correlates with molecular weight evolution.

FAQ

Is the CHD-502 compatible with non-KEM refractometers?
No. The CHD-502 communicates exclusively via KEM’s proprietary RS-422 serial protocol and requires firmware-level handshake validation with RA-600 or RA-620 units.
What cleaning solvents are recommended for routine use?
Deionized water, ethanol, and isopropanol are validated for daily use; aggressive solvents (e.g., THF, DMF) require post-rinse with IPA followed by extended nitrogen purge to prevent residue accumulation.
Does the system support custom sequence programming?
Yes—RA-Win software allows definition of variable rinse cycles, dwell times, and conditional branching (e.g., “if nD deviation > ±0.0002, trigger double rinse”) via macro scripting.
How is calibration traceability maintained across automated runs?
Each measurement references the same NIST-traceable certified reference standards (CRS) loaded into designated vial positions; calibration verification checks are executed before and after every batch.
Can the CHD-502 be integrated into a centralized laboratory automation network?
It supports Modbus TCP gateway add-ons (sold separately) for SCADA-level orchestration in fully automated analytical workflows compliant with ISA-88 and ANSI/ISA-95 standards.
