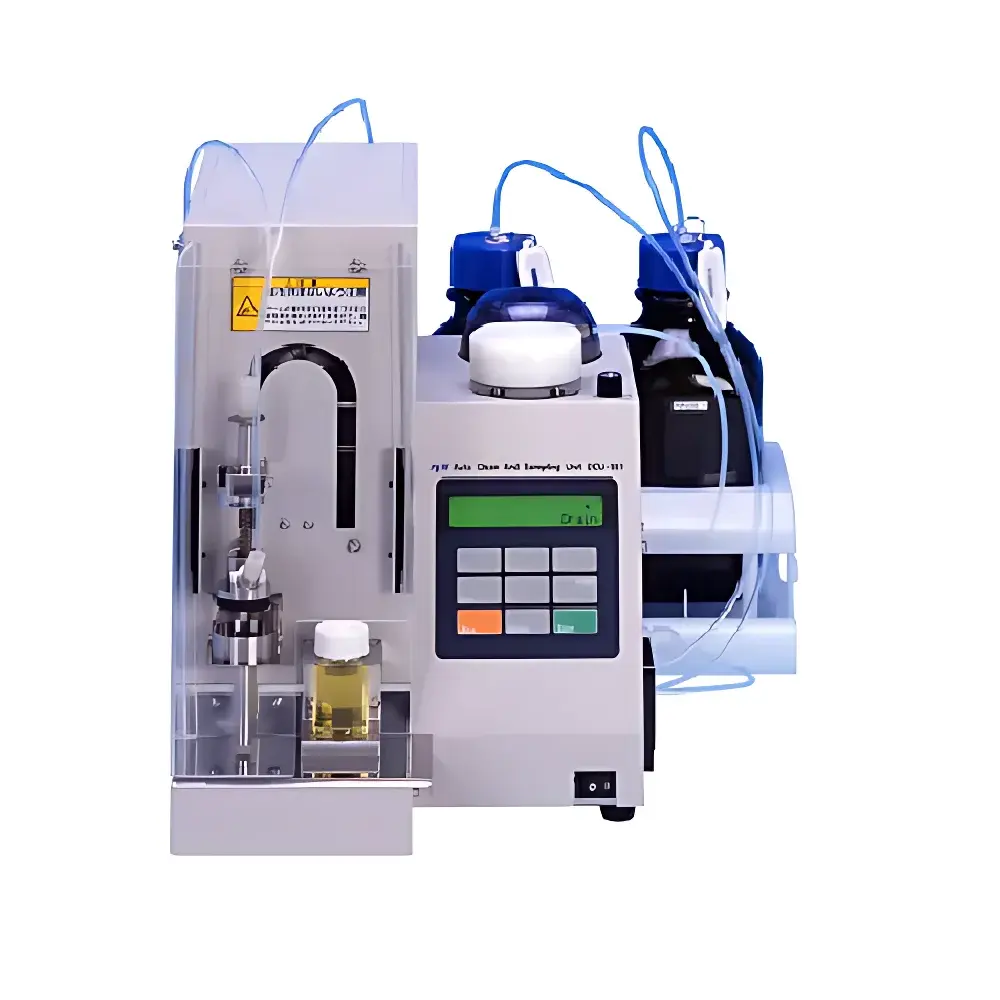

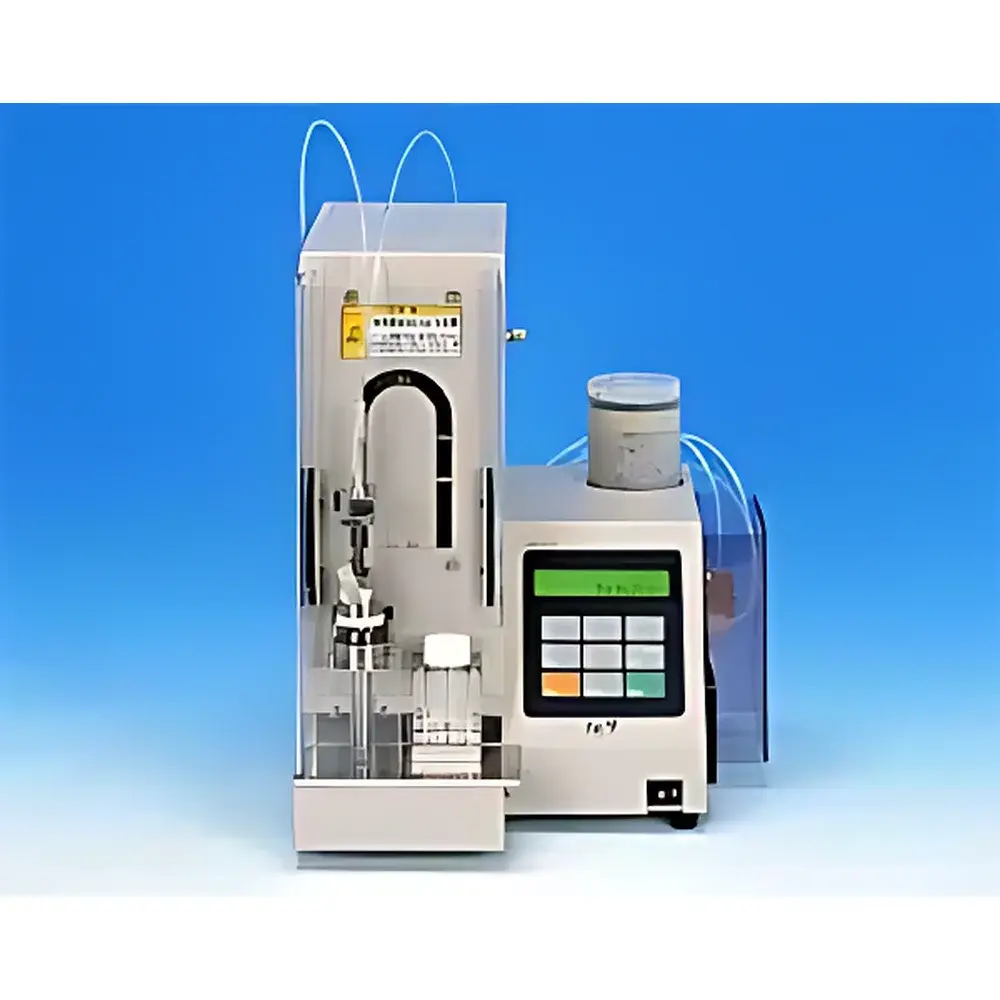

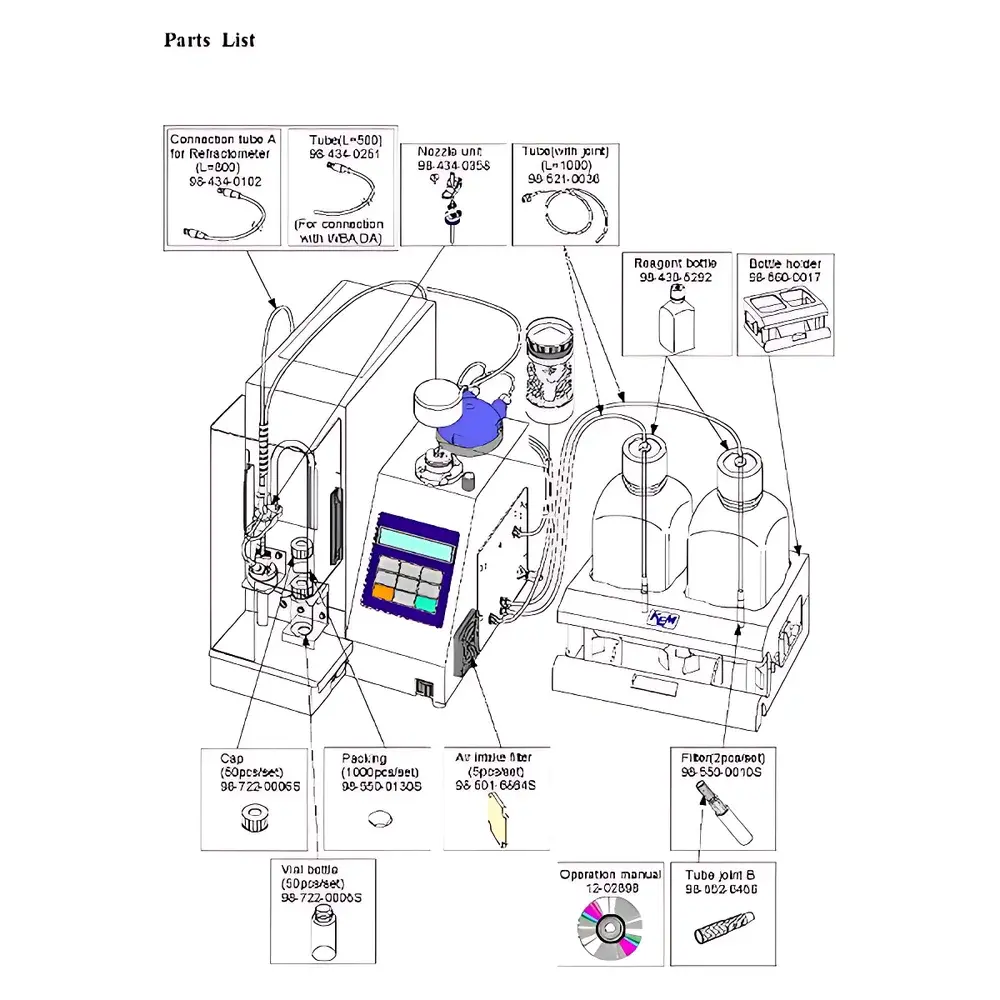

KEM DCU-551 Auto Clean and Sampling Unit for Digital Refractometers

Overview

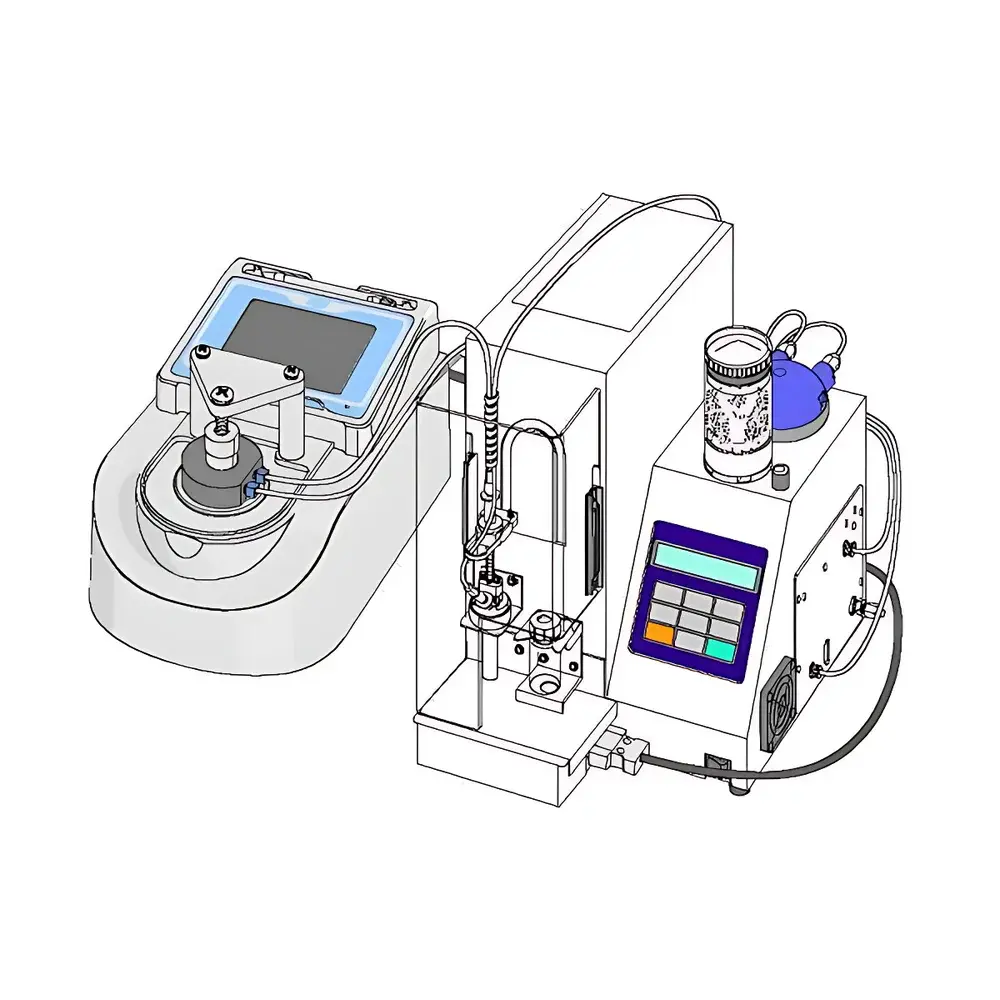

The KEM DCU-551 Auto Clean and Sampling Unit is a dedicated benchtop automation module engineered to extend the operational capability of KEM’s high-precision digital refractometers—specifically the RA-600 and RA-620 series. It does not function as a standalone optical instrument but serves as an integrated fluid-handling interface that enables unattended, repeatable sample introduction, measurement cycle execution, and post-analysis cleaning. The unit operates under command from the host refractometer’s control system via proprietary serial communication, ensuring synchronization of optical measurement timing with fluidic events. Its core mechanism relies on a built-in vacuum-assisted pressurized pump system, which delivers precise volumetric aspiration and dispensing without mechanical syringes or peristaltic tubing—minimizing carryover risk and preserving long-term calibration stability. Designed for laboratories requiring strict adherence to analytical traceability and process consistency—such as QC/QA departments in pharmaceutical, food & beverage, and chemical manufacturing—the DCU-551 supports GLP-compliant workflows by eliminating manual handling variability and reducing operator-induced error.

Key Features

• Seamless integration with KEM RA-600 and RA-620 digital refractometers via native firmware-level control protocol.
• Vacuum-assisted pressurized aspiration ensures consistent sample draw from standard 20 mL glass vials, compatible with routine labware inventory.
• Automated 4-step sequence: sample aspiration → measurement-triggered data acquisition → waste discharge → dual-solvent rinse (programmable solvent selection) → inert gas (N₂) purge drying.
• No consumable tubing or disposable tips required; all wetted components are stainless steel or chemically resistant PTFE, enabling compatibility with aqueous, alcoholic, and mildly organic solvents.
• Compact footprint (291 × 310 × 342 mm) and low power consumption (~40 W) allow deployment on standard analytical workbenches without dedicated utility infrastructure.
• Full electrical isolation and EMI-hardened design meet IEC 61326-1 requirements for electromagnetic compatibility in regulated laboratory environments.

Sample Compatibility & Compliance

The DCU-551 is validated for use with homogeneous liquid samples within the refractive index range supported by its host instruments (1.32–1.70 nD). It accommodates viscous liquids up to ~500 mPa·s (e.g., syrups, glycerol solutions) and low-surface-tension fluids (e.g., acetone, isopropanol) without aspiration failure. All fluid pathways comply with USP guidelines for analytical instrument qualification, and the automated cleaning cycle satisfies ASTM D1250 Annex A1 criteria for residual removal verification when paired with appropriate rinse solvents. The unit itself carries CE marking and conforms to ISO/IEC 17025:2017 clause 6.4.3 regarding equipment suitability for intended use. While not FDA 21 CFR Part 11–certified as a standalone system, it fully supports Part 11–compliant data integrity when operated under a validated LIMS or ELN platform interfaced with the host RA-series refractometer.

Software & Data Management

Operation is fully embedded within the RA-600/RA-620 instrument software (version 3.2 or later), eliminating the need for separate driver installation or third-party middleware. Each automated run generates a timestamped audit trail—including start time, sample ID (manually entered or barcode-scanned via optional reader), rinse solvent log, and final dry status—stored in the host instrument’s internal database. Raw refractive index values, temperature readings (from the RA-series Peltier-controlled prism), and cycle completion flags are exported in CSV or XML format compliant with ASTM E1382 and ISO/IEC 11179 metadata standards. Optional integration with KEM’s KEM-Link™ software enables remote monitoring, batch report generation, and SPC charting aligned with ISO 9001 quality management system requirements.

Applications

• High-throughput quality control of incoming raw materials (e.g., glycerin, propylene glycol, ethylene glycol) in pharmaceutical excipient manufacturing.
• Concentration monitoring of sugar solutions (Brix), salt brines, and acid baths in food processing and electroplating facilities.
• Batch release testing of liquid APIs and intermediates where refractive index serves as a surrogate for purity or concentration per ICH Q5C.
• Stability-indicating assays for ophthalmic solutions and topical gels, where minimal sample handling preserves sterility and prevents evaporation artifacts.
• Method transfer between R&D and production labs, leveraging identical hardware/software configuration across sites to ensure inter-laboratory reproducibility (per ISO 5725).

FAQ

Can the DCU-551 be used with non-KEM refractometers?
No. The unit communicates exclusively via KEM’s proprietary RS-232/CAN-based protocol and requires firmware-level coordination with RA-600 or RA-620 controllers.
Is validation documentation provided for GMP environments?
Yes. KEM supplies a User Requirement Specification (URS) template, Installation Qualification (IQ) checklist, and Operational Qualification (OQ) test protocols aligned with Annex 15 and ASTM E2500.
What maintenance is required beyond routine cleaning?
Annual verification of vacuum pump performance and pressure sensor calibration is recommended; no user-serviceable parts exist inside the sealed fluid manifold.
Does the unit support multi-sample trays or autosampler expansion?
No. The DCU-551 is designed for single-vial operation only. For higher throughput, KEM offers the RA-620 with optional 48-position autosampler (model AS-620), which supersedes the DCU-551 functionality.
Can rinse solvent sequences be customized?
Yes. Up to two rinse solvents can be preloaded into designated reservoirs; sequence order, dwell time, and purge duration are configurable via the host instrument’s method editor.
