KEM DCU-600 Auto Sampling and Cleaning Unit for DA-6 Series Digital Density Meters

Overview

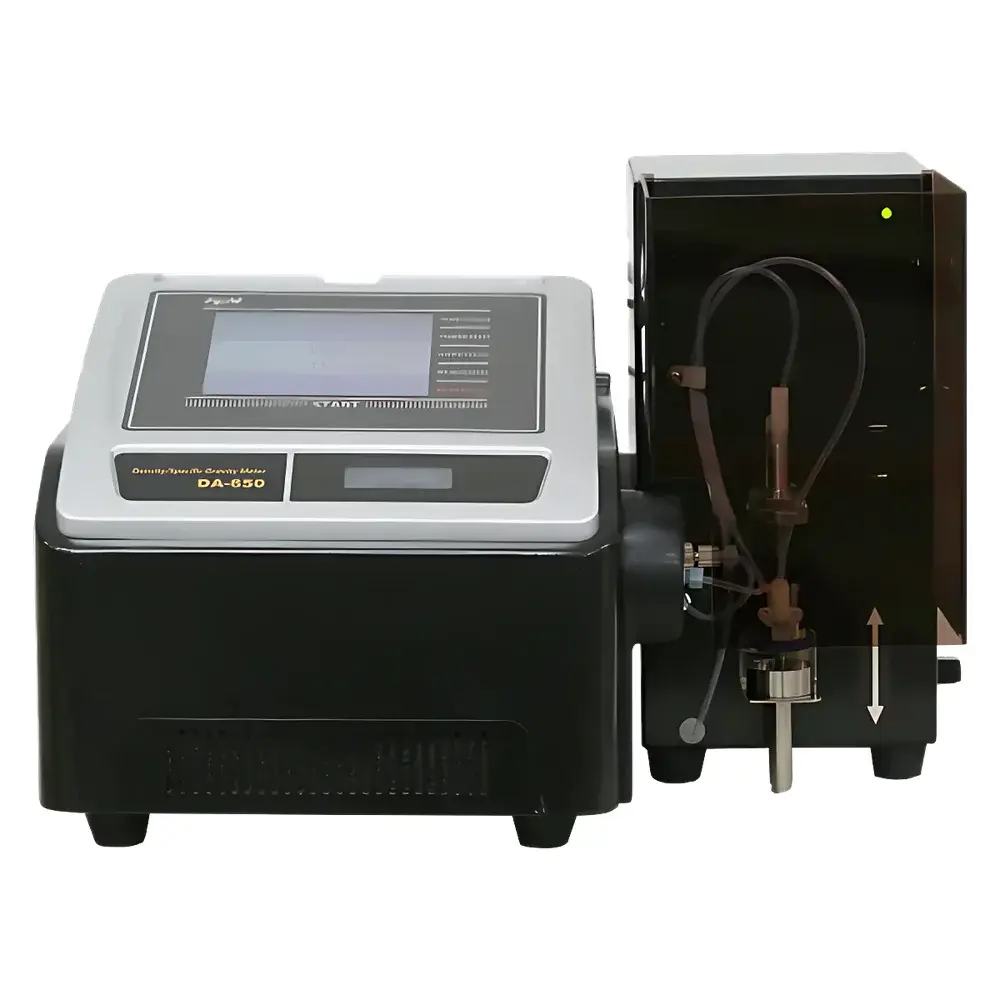

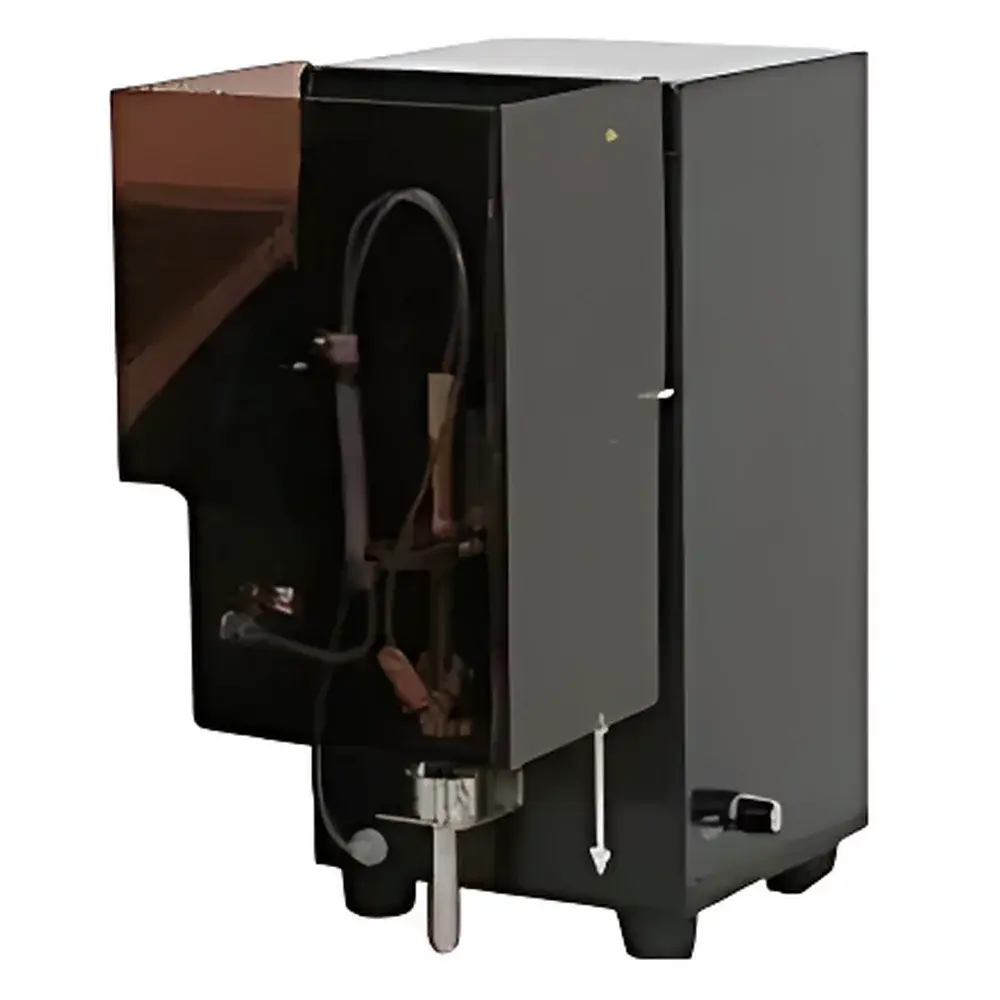

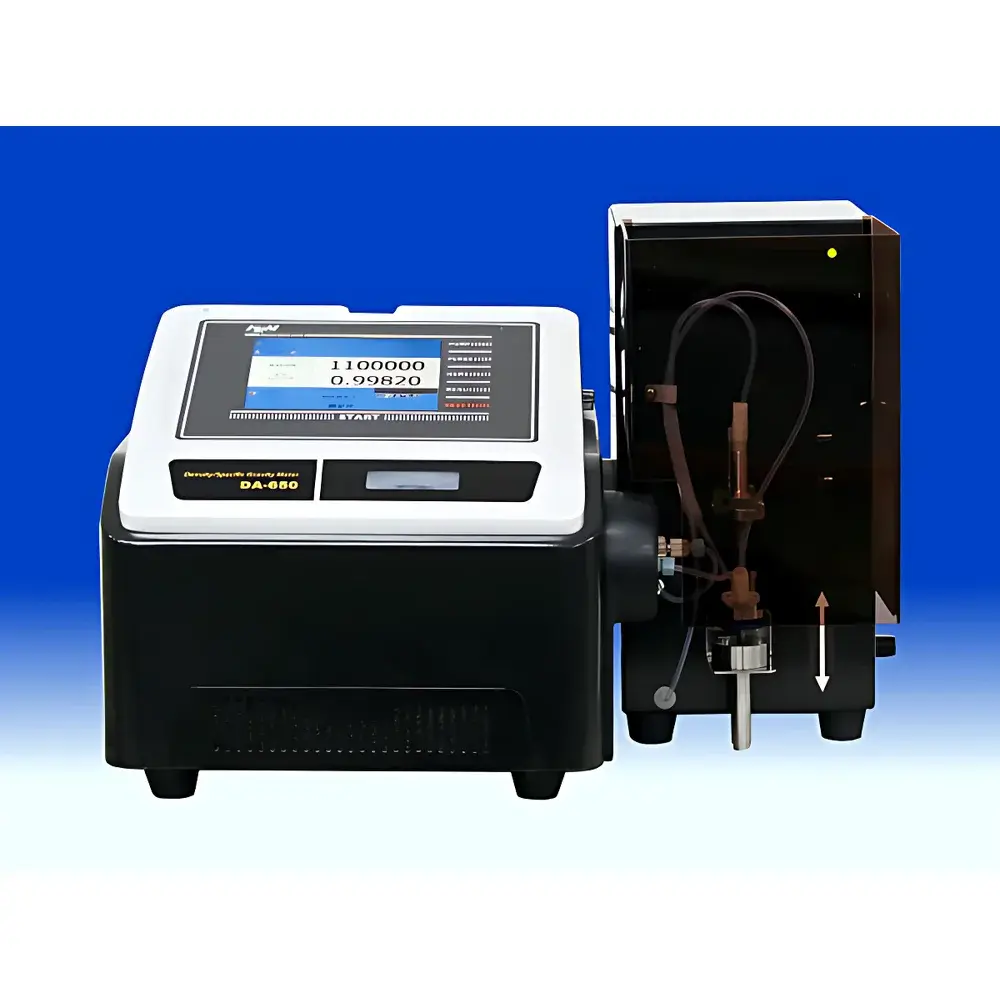

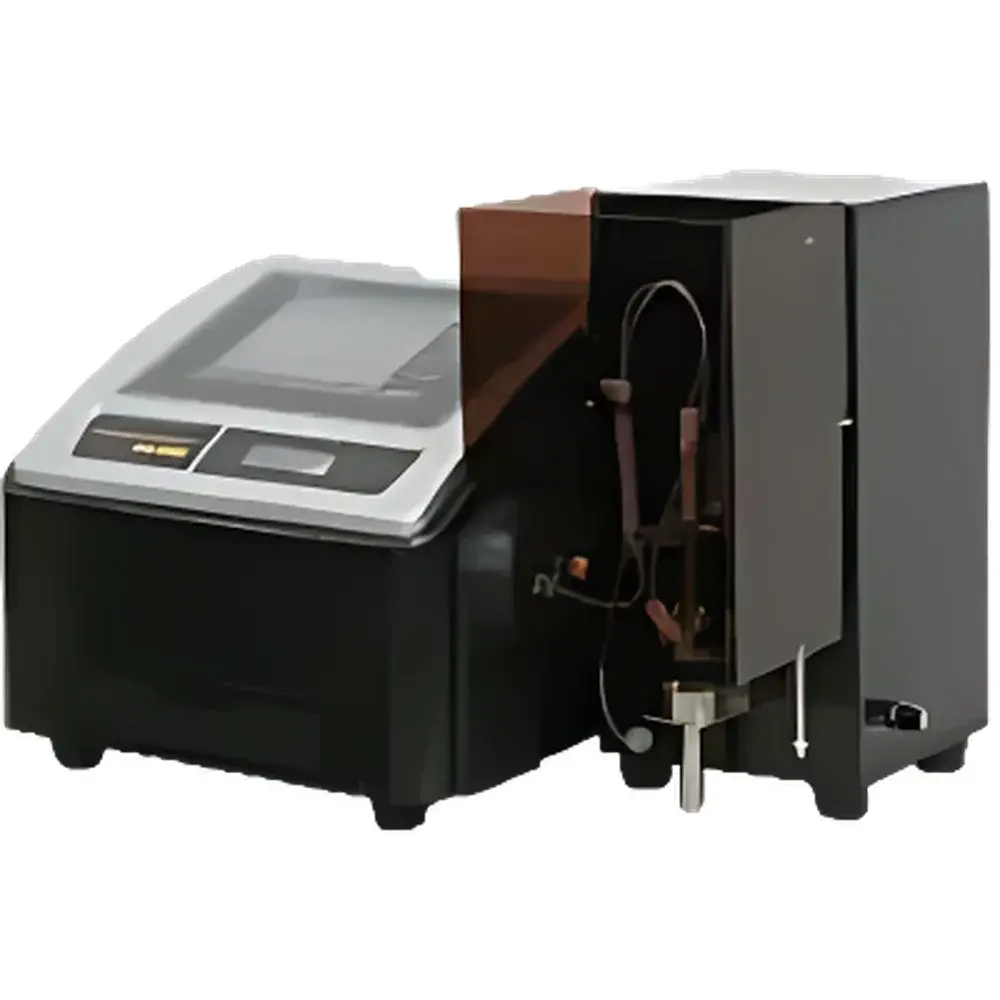

The KEM DCU-600 Auto Sampling and Cleaning Unit is an integrated benchtop automation module engineered to extend the operational capability of KEM’s DA-6 series oscillating U-tube digital density meters (DA-640, DA-645, DA-650). It eliminates manual handling of liquid samples and cleaning procedures by automating the full analytical cycle—sample aspiration, density measurement initiation, waste disposal, sequential solvent rinsing (two independent wash steps), inert-gas drying, and post-cleaning cell verification. The system operates on the fundamental principle of oscillating U-tube densitometry: precise determination of sample density via measurement of the resonant frequency shift of a hermetically sealed, temperature-controlled glass tube filled with the test liquid. This physics-based method delivers high reproducibility and traceable accuracy under ISO 12185 and ASTM D4052 standards. The DCU-600 is not a standalone density meter but a purpose-built peripheral that transforms the DA-6 platform into a walk-away analytical workstation—ideal for high-throughput QC laboratories, contract testing facilities, and R&D environments requiring strict procedural consistency and audit-ready documentation.

Key Features

• Fully automated sample handling: aspirates liquid directly from standard 20–100 mL glass beakers or disposable polypropylene cups—no syringes, valves, or custom vials required.
• Optimized cleaning architecture: employs controlled air aspiration during solvent exchange to displace residual liquid films, significantly reducing solvent consumption while enhancing rinse efficacy across viscous or surface-active matrices.

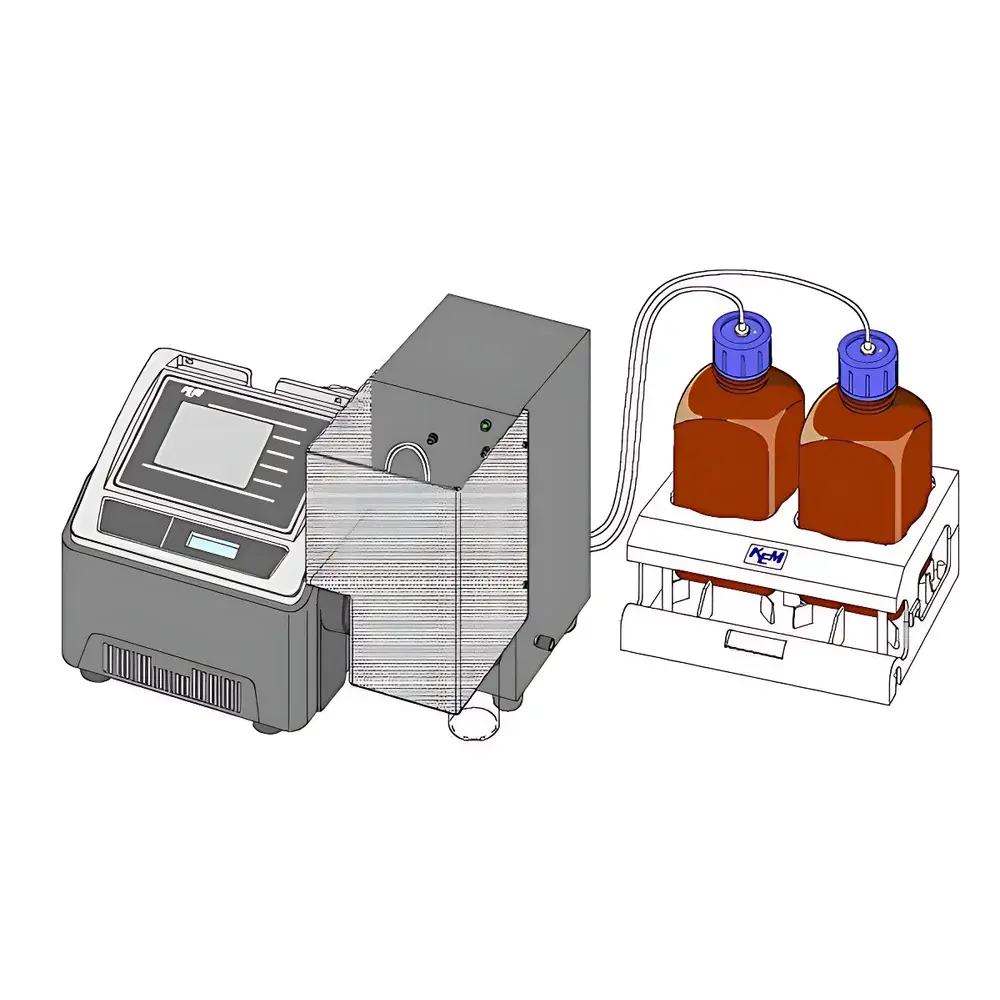

• Dual-solvent cleaning protocol: supports two independently programmable wash solvents (e.g., isopropanol followed by acetone), enabling residue removal from diverse chemical classes including surfactants, polymers, and hydrocarbon blends.
• Nitrogen-assisted drying: introduces dry, oil-free inert gas to purge residual solvent vapors and prevent condensation in the oscillation tube—critical for maintaining long-term calibration stability and minimizing carryover between measurements.
• Intelligent cell verification: performs pre- and post-cycle resonance diagnostics to confirm mechanical integrity and thermal equilibrium of the U-tube sensor before each measurement—ensuring data validity and flagging potential contamination or blockage events.
• Seamless DA-6 integration: communicates bidirectionally with DA-6 series instruments via proprietary serial interface; all timing, sequence logic, and error recovery are governed by the host density meter’s firmware—no external PC or PLC required.

Sample Compatibility & Compliance

The DCU-600 accommodates a broad range of homogeneous liquid samples—including aqueous solutions, organic solvents, oils, glycols, acids, bases, and low-viscosity polymer solutions—within the 0–3 g/cm³ density range and 0–96 °C operating window. Its open-vessel design avoids pressure limitations associated with closed-loop autosamplers, making it suitable for volatile, corrosive, or mildly reactive substances when handled within appropriate fume hood protocols. The unit complies with IEC 61010-1 for electrical safety in laboratory equipment and supports GLP/GMP workflows through deterministic, repeatable sequences and full event logging (via DA-6 host). While the DCU-600 itself does not hold standalone regulatory certification, its operation contributes to compliance with FDA 21 CFR Part 11 when used with DA-650 systems equipped with audit-trail-enabled software and electronic signature modules.

Software & Data Management

Control and sequencing are executed entirely within the DA-6 series instrument’s embedded operating system. Users define custom methods—including sample dwell time, wash solvent selection and volume, drying duration, and number of replicate measurements—through the DA-6’s intuitive touchscreen interface or optional PC-based KEM WinCT-Density software. All DCU-600 actions (aspiration start/stop, valve actuation, pump status, temperature confirmation) are timestamped and logged alongside density results in the DA-6’s native .CSV or .TXT output files. No proprietary drivers or middleware are required; data export conforms to LIMS-ready formats with column headers aligned to ISO/IEC 17025 reporting requirements. Firmware updates for both DA-6 and DCU-600 are distributed jointly by KEM to ensure version compatibility and maintain measurement traceability.

Applications

• Quality control of petrochemicals: rapid density screening of gasoline, diesel, jet fuel, and biofuel blends per ASTM D1298 and D4052.
• Pharmaceutical excipient verification: density validation of propylene glycol, PEGs, ethanol/water mixtures, and sterile injectable vehicles.
• Food & beverage analysis: Brix correlation for fruit juices, syrup concentration checks, alcohol content estimation in spirits, and dairy product standardization.
• Chemical manufacturing: batch release testing of solvents, monomers, catalyst solutions, and electrolyte formulations.
• Academic research: high-precision density-temperature coefficient (α_ρ) studies and thermophysical property modeling of novel ionic liquids or nanofluids.

FAQ

Is the DCU-600 compatible with DA-630 or older DA-6 models?
No. The DCU-600 is designed exclusively for DA-640, DA-645, and DA-650 instruments due to hardware-level communication protocol and firmware dependencies.
Can the DCU-600 handle viscous samples such as honey or motor oil?
It supports samples up to ~500 mPa·s viscosity when pre-warmed to ≥40 °C; however, optimal performance is achieved with liquids below 200 mPa·s. For higher viscosities, manual injection into the DA-6 cell is recommended.
Does the unit require compressed air or external nitrogen supply?
No. The DCU-600 includes an integrated diaphragm pump and internal air reservoir; nitrogen purging is optional and requires user-supplied regulated N₂ at 0.3–0.5 MPa.
How is carryover minimized between dissimilar samples?
Through a three-stage mitigation strategy: programmed solvent polarity gradient (e.g., water → IPA → hexane), air-gap aspiration during transfer, and post-rinse inert-gas drying—validated by cell resonance baseline recovery to ±0.000002 g/cm³ repeatability.
What maintenance is required for long-term reliability?
Quarterly inspection of tubing elasticity, annual replacement of peristaltic pump tubing and O-rings, and biannual calibration verification using certified density standards traceable to NIST SRM 1823 or equivalent.
