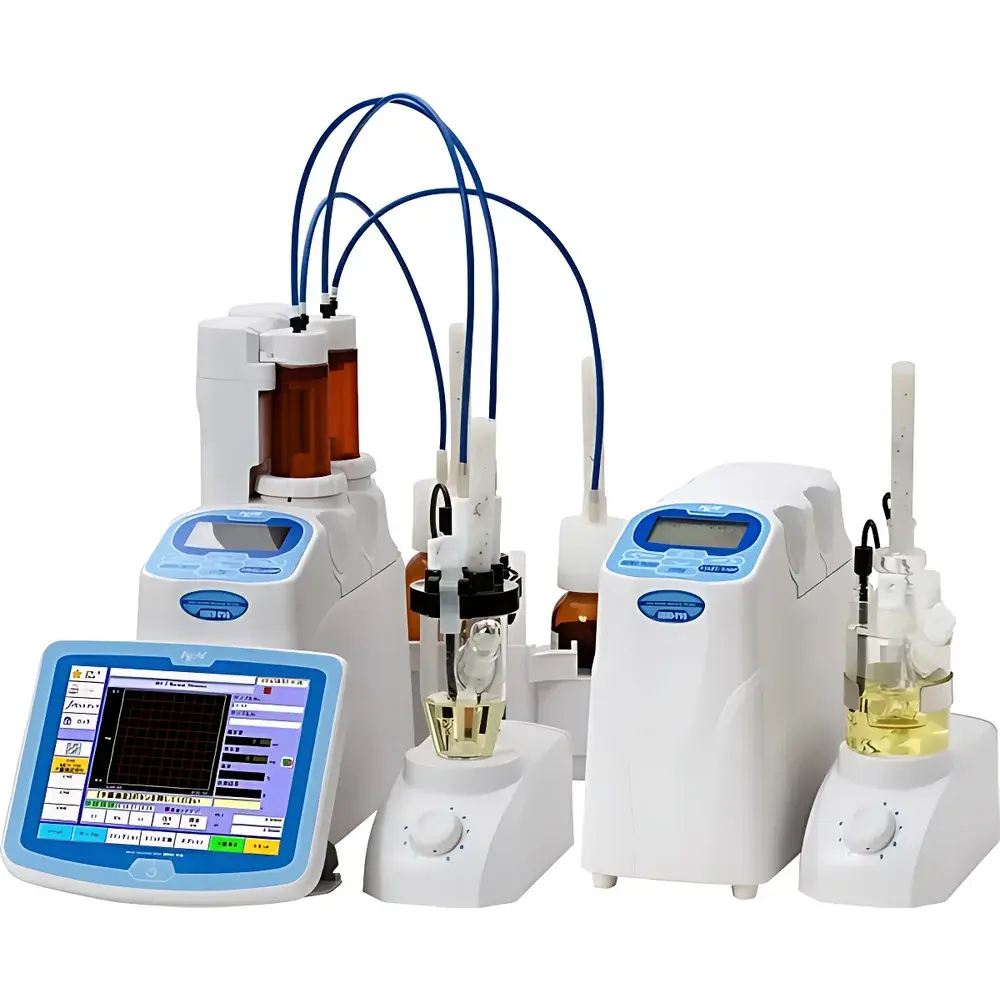

KEM MKV-710D Volumetric Karl Fischer Moisture Titrator
| Brand | KEM (Kyoto Electronics Manufacturing) |
|---|---|
| Origin | Japan |
| Manufacturer | Yes |
| Import Status | Imported |
| Model | MKV-710D |
| Titration Method | Fully Automated Volumetric Titration |
| Instrument Type | Volumetric Karl Fischer Moisture Analyzer |
| Resolution | 0.005 mL |
| Moisture Range | 1 ppm – 100% H₂O |
| Accuracy (10 mL Burette) | ±0.015 mL |
| Minimum Dispensing Increment | 1/20,000 |
| Titration Control Precision | ±0.015 mL |
Overview
The KEM MKV-710D is a fully automated volumetric Karl Fischer (KF) moisture titrator engineered for high-precision, regulatory-compliant water content determination in pharmaceuticals, chemicals, polymers, and fine materials. It operates on the classical volumetric KF principle—where iodine, sulfur dioxide, a base (typically imidazole or diethanolamine, replacing pyridine), and a primary alcohol (commonly methanol or ethanol) react stoichiometrically with water in a non-aqueous medium. The endpoint is detected potentiometrically using dual platinum electrodes, monitoring polarization current decay under constant voltage. This method delivers trace-level quantification (down to 1 ppm) with robust reproducibility across solid, liquid, and viscous samples—without reliance on coulometric electrolysis, making it ideal for routine QC labs requiring high sample throughput and long-term reagent stability.
Key Features
- 8.4-inch high-resolution color TFT touchscreen (800 × 600) with intuitive multilingual interface (English, Japanese, Chinese) for direct parameter configuration and real-time visualization.
- Wireless Bluetooth communication between control unit and titration modules—eliminating physical cable hazards and enabling safe operation in fume hoods or gloveboxes.
- Optimized burette assembly with minimized dead volume (< 0.1 mL) and enhanced piston seal integrity, reducing reagent consumption by up to 30% versus legacy designs.
- Dual-drive mechanism supporting automatic titer calibration: one drive controls titrant delivery; the second independently actuates the calibration syringe—ensuring traceable, operator-independent standardization.
- Real-time moisture curve plotting with dynamic endpoint detection logic: endpoint confirmed only when polarized current remains stable within user-defined deviation limits for ≥3 seconds.
- Flexible titration modes: forward titration (standard), reverse titration (optional second burette module), and blank subtraction with up to 10 stored blank profiles.
- PDF report generation directly to USB storage—embedding method parameters, raw titration curves, statistical summaries, and electronic signatures per analysis.
Sample Compatibility & Compliance
The MKV-710D accommodates diverse sample matrices—including hygroscopic powders, oils, resins, APIs, excipients, and solvents—using standardized 30–100 mL solvent volumes (e.g., KF methanol, chloroform-methanol blends, or aldehyde-compatible solvents). Its architecture complies with key regulatory frameworks: data integrity features satisfy FDA 21 CFR Part 11 requirements (role-based access control, audit trail with immutable timestamps, electronic signatures tied to workflow approval steps), while measurement protocols align with ASTM E203, ISO 760, USP , and EP 2.5.11. All system events—including method edits, calibration runs, and result exports—are timestamped, user-identified, and archived in tamper-evident binary logs.
Software & Data Management
Embedded firmware supports comprehensive data lifecycle management: 120 customizable methods, 5,000 sample results, and 100,000 operational logs are retained locally. Automated backup intervals (configurable from 1 hour to 7 days) replicate encrypted datasets via LAN or USB to network drives or cloud repositories. Integration with LIMS is enabled through RS-232C (×4 ports), USB host, SS-BUS, and Ethernet (TCP/IP). Audit trails record every action—login/logout, parameter change, result override—with hash-verified integrity. Electronic signature workflows enforce multi-level review/approval for release-critical data, meeting GLP and GMP documentation standards.
Applications
- Pharmaceutical QC: Water content verification of active pharmaceutical ingredients (APIs), lyophilized products, and excipients per ICH Q5C guidelines.
- Chemical manufacturing: Moisture monitoring in catalysts, monomers, and solvent batches prior to polymerization.
- Electronics materials: Quantifying residual moisture in solder pastes, encapsulants, and PCB laminates to prevent delamination.
- Food & feed: Accurate H₂O determination in dried herbs, dairy powders, and pet food without thermal decomposition artifacts.
- Research laboratories: Method development for non-aqueous solvents, sample homogenization protocols, and drift correction algorithms.
FAQ
Does the MKV-710D support both volumetric and coulometric KF methods?
No—it is dedicated to volumetric titration. For coulometric applications, KEM offers the MKC-710 series.
Can the instrument be validated for GMP environments?
Yes—its built-in 21 CFR Part 11 compliance tools (audit trail, e-signature, role-based permissions) support IQ/OQ/PQ execution and regulatory inspection readiness.
Is solvent exchange automated without recalibration?
Yes—the system retains optimized polarization current thresholds and endpoint duration settings across solvent types, eliminating manual reconfiguration when switching between methanol, chloroform-methanol, or ketone-based media.
What is the maximum number of concurrent titration units the controller can manage?
The MKV-710D controller supports up to two independent titration modules via SS-BUS, enabling parallel analysis or method comparison.
How is drift compensation handled during low-moisture measurements?
Drift is continuously monitored and automatically subtracted using a dynamic baseline algorithm that calculates real-time background contribution over user-defined stabilization periods (1–30 minutes).
