KEM RA-600 Automatic Desktop Refractometer

Overview

The KEM RA-600 Automatic Desktop Refractometer is a precision optical instrument engineered for high-reproducibility refractive index and Brix measurements across pharmaceutical, food & beverage, chemical, cosmetic, and petrochemical laboratories. It operates on the critical angle principle of total internal reflection—measuring the angle at which incident light undergoes complete internal reflection at the sample-prism interface. This method delivers direct, non-destructive quantification of refractive index (n_D) under standardized conditions (589.3 nm wavelength, user-defined temperature), enabling traceable determination of solute concentration, purity, or compositional consistency. The RA-600 integrates a thermally stabilized sapphire prism and Peltier temperature control to ensure measurement stability across 5–75°C (extendable to 100°C), eliminating thermal drift as a source of systematic error. Its design adheres to fundamental metrological principles defined in ISO 1743, ASTM D1218, and pharmacopoeial standards including USP and Ph. Eur. 2.2.6, supporting regulatory compliance in GLP and GMP environments.

Key Features

• High-stability sapphire prism (Mohs hardness 9) resistant to abrasion, corrosion, and thermal shock—ensuring long-term optical integrity and calibration retention.
• Peltier-driven temperature regulation with ±0.1°C resolution and active feedback control, enabling precise isothermal measurement per ISO 21748 and ASTM E202.
• LED light source emitting at 589.3 nm (D-line equivalent), providing stable spectral output without warm-up delay or lamp degradation over time.

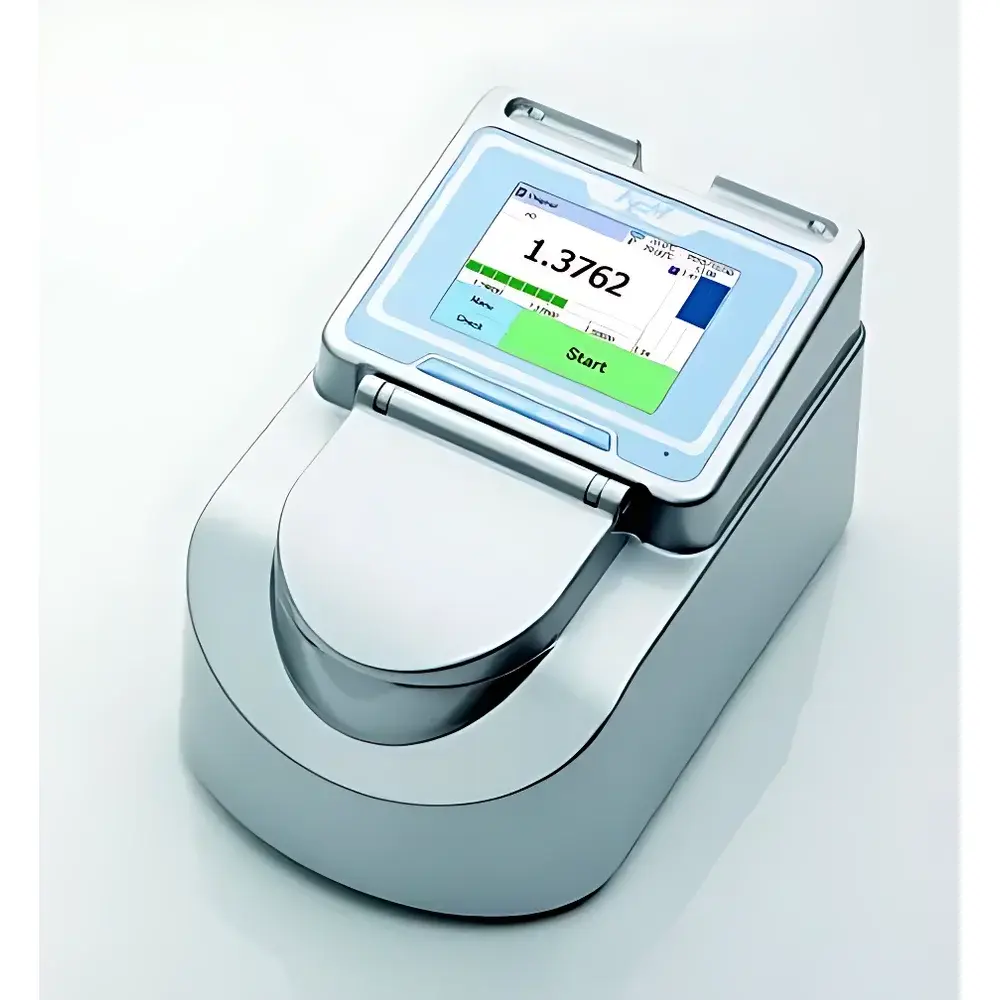

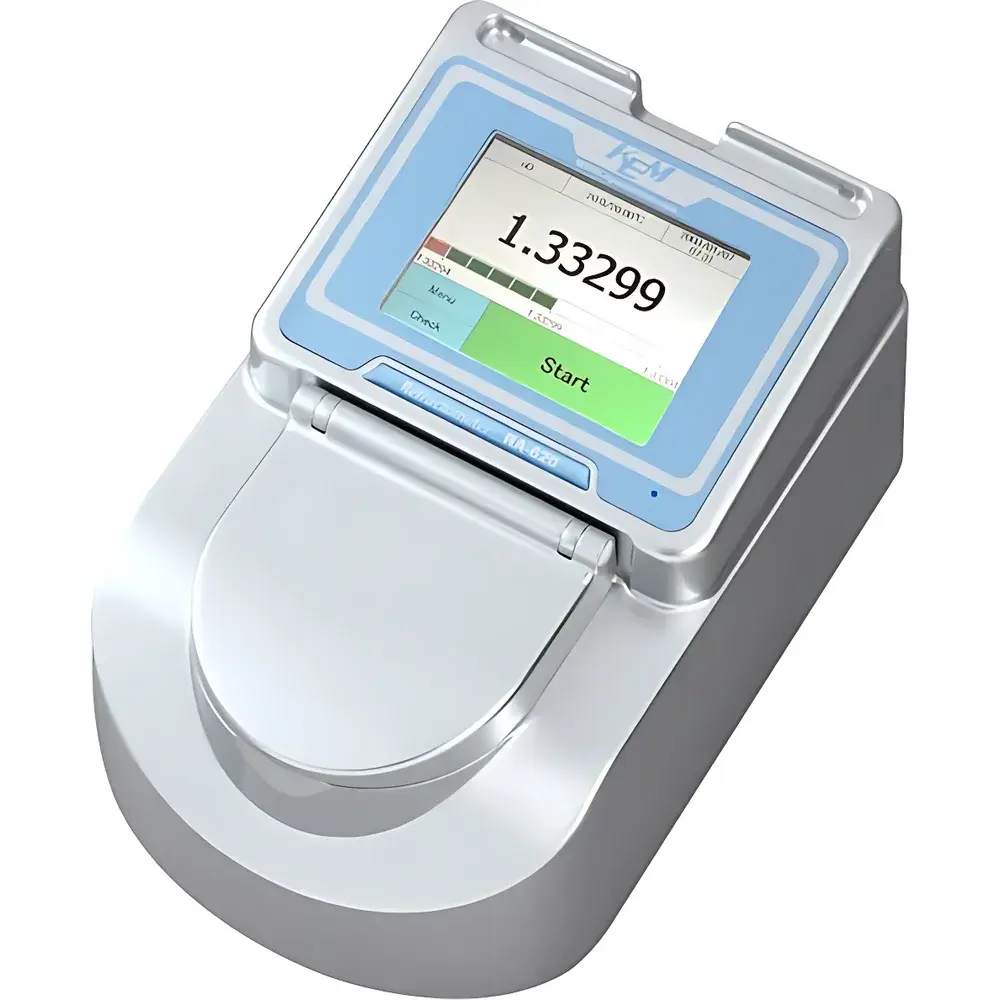

• Touch-enabled 4.7-inch color LCD interface supporting multilingual operation (English, Chinese, Japanese) and intuitive workflow navigation.
• Automated critical-angle detection with real-time signal processing—reducing operator dependency and minimizing measurement variability.

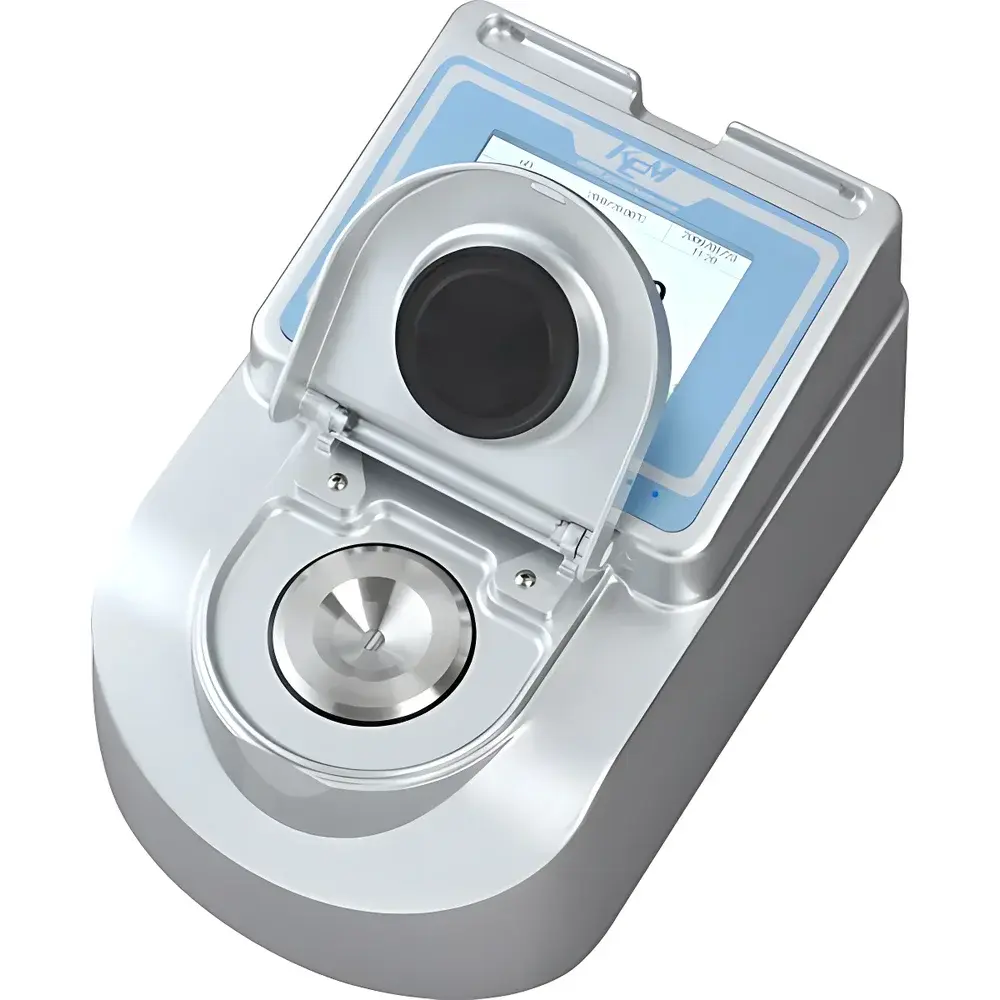

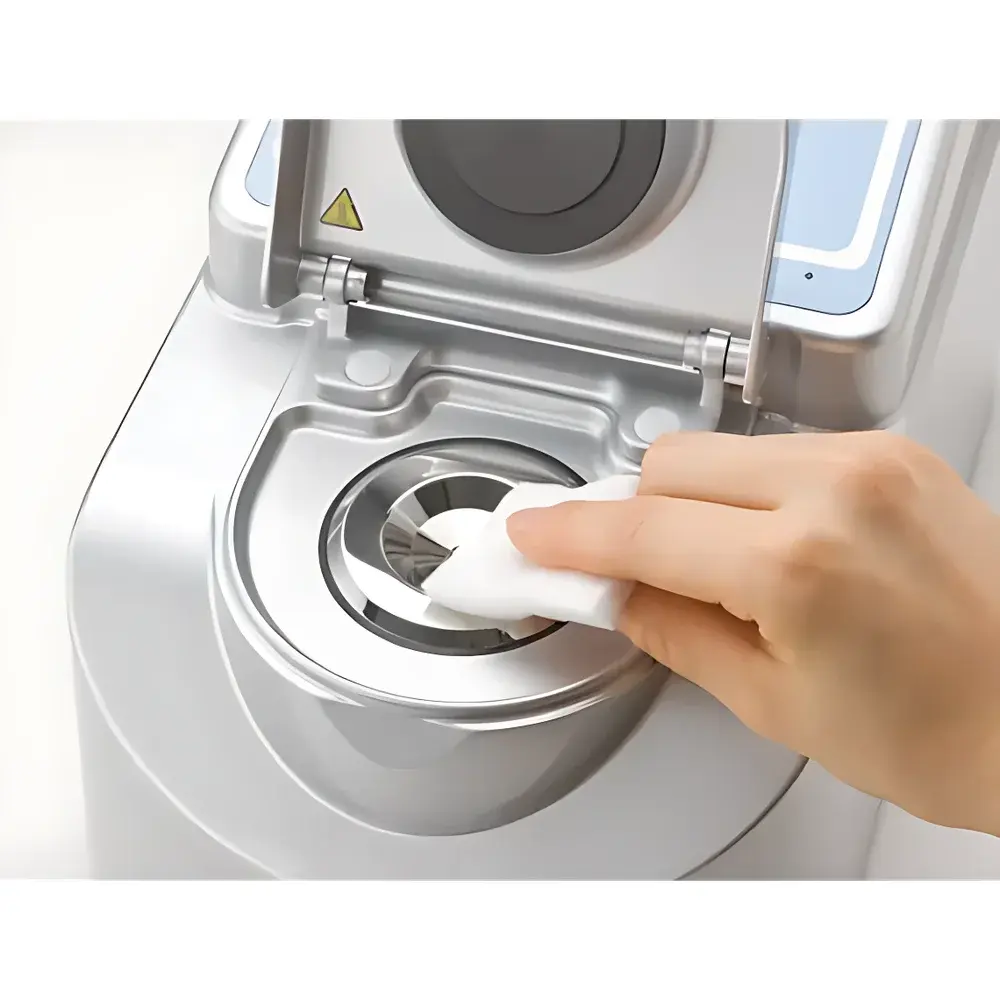

• Volatile-sample protection via integrated hinged cover, preventing evaporation-induced drift during analysis of low-boiling-point liquids (e.g., ethanol, acetone, essential oils).
• Expandable architecture with optional integration of KEM’s DA-6xx series digital density meters and AS-6xxx automated samplers for synchronized dual-parameter (n_D + ρ) analysis.

Sample Compatibility & Compliance

The RA-600 accommodates aqueous solutions, organic solvents, viscous liquids (e.g., syrups, resins), and suspensions with minimal sample volume (0.2 mL). Contact surfaces—sapphire prism and SUS316 sample stage—are chemically inert and compatible with aggressive media including acids, alkalis, and halogenated hydrocarbons. Instrument validation and data handling comply with FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with audit-trail enabled software. Measurement protocols align with over 20 international and national standards, including GB/T 614–2021, GB/T 5527–2024, GB/T 6488–2022, USP , Ph. Eur. 2.2.6, ASTM D1218, ASTM D1747, ISO 1743, and SH/T 0724. Built-in calibration verification routines support routine IQ/OQ documentation per ISO/IEC 17025 laboratory accreditation requirements.

Software & Data Management

Data acquisition, storage, and traceability are managed through KEM’s proprietary WinCT-Refracto software (Windows-compatible, optional). The RA-600 stores up to 100 custom measurement methods, 300 result entries, and 20 calibration/verification logs internally; all records include timestamp, operator ID, temperature, and environmental metadata. External export is supported via USB flash drive (CSV, PDF) or LAN/RS-232C connection to LIMS or ELN systems. Temperature compensation utilizes user-defined lookup tables or polynomial coefficients derived from reference material data (e.g., NIST SRM 1791), while concentration conversion supports up to 100 customizable n_D-to-concentration tables—including built-in Brix, HFCS-42/55/90, and dry matter correlations per AOAC and ICUMSA guidelines. All stored operations maintain full ALCOA+ attributes (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Pharmaceutical QC: Refractive index verification of excipients (e.g., glycerin, propylene glycol), solvent purity checks, and API concentration monitoring in liquid formulations.
• F&B Quality Control: Brix determination in fruit juices, soft drinks, dairy products, honey, and maple syrup per AOAC 932.12 and Codex Alimentarius standards.
• Chemical Manufacturing: Concentration tracking of caustic soda, sulfuric acid, ethylene glycol, and polymer solutions where density-based methods lack sensitivity.
• Cosmetic & Fragrance Analysis: Refractive index profiling of essential oils (per ISO 855–1), emulsifiers, and surfactant blends per GB/T 13531.7–2018.
• Petrochemical Testing: Hydrocarbon identification and blending ratio assessment in fuels, lubricants, and insulating oils per ASTM D1218 and D1807.
• Academic & R&D Labs: Thermodynamic characterization of binary/ternary mixtures, phase behavior studies, and development of empirical n_D-composition models.

FAQ

What is the measurement principle used by the RA-600?
It employs the critical angle method of total internal reflection at the sapphire–sample interface, detecting the angle at which incident light transitions from refraction to total internal reflection.
Does the RA-600 meet FDA 21 CFR Part 11 requirements?
Yes—when operated with WinCT-Refracto software configured for audit trail, electronic signature, and role-based access control, it satisfies electronic record and signature criteria.
Can the instrument measure samples below 5°C or above 75°C?
Standard configuration supports 5–75°C; an extended-range option enables operation from 5–100°C using upgraded Peltier modules and thermal insulation.
How is temperature compensation performed?
Users may input either a full n_D vs. temperature lookup table or a linear/quadratic correction coefficient set, applied automatically to raw readings.
Is the sapphire prism replaceable in the field?
No—the sapphire prism is permanently bonded and aligned within the optical path; replacement requires factory recalibration and optical realignment.

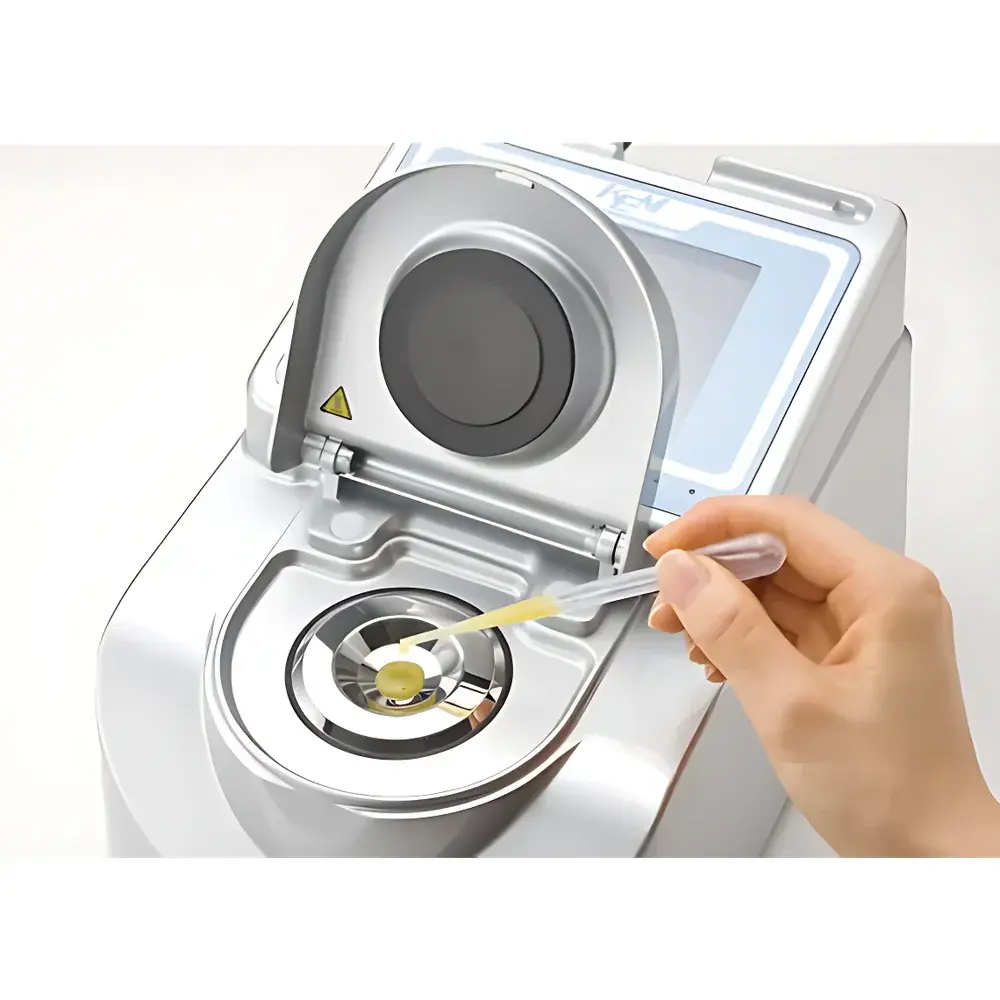

What sample volume is required for reliable measurement?
A minimum of 0.2 mL is sufficient to fully cover the prism surface and ensure consistent optical coupling without air gaps or edge effects.
