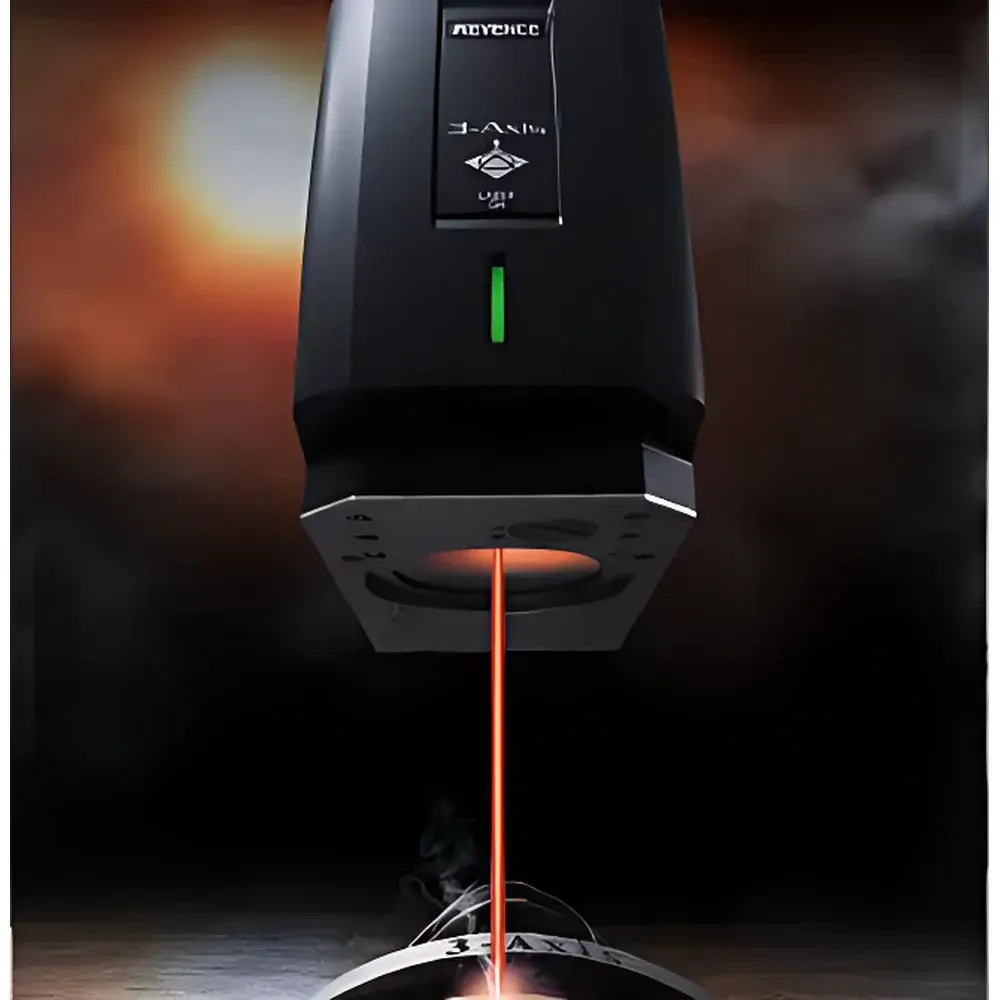

KEYENCE MD-F3100/5100 Series 3-Axis Fiber Laser Marking System

Overview

The KEYENCE MD-F3100/5100 Series is a high-precision, industrial-grade 3-axis fiber laser marking system engineered for permanent, high-contrast marking on metals, plastics, ceramics, and coated surfaces in demanding manufacturing environments. Unlike conventional 2-axis galvanometric systems that rely on fixed focal planes, this platform integrates dynamic Z-axis control—enabling real-time focus adjustment across non-planar, curved, or stepped surfaces. The system operates on a 1064 nm wavelength fiber laser source with nominal output power options of 30 W (MD-F3100) or 50 W (MD-F5100), delivering consistent beam quality (M² < 1.3) and pulse-to-pulse stability (< ±2% RMS) critical for repeatable depth, contrast, and edge definition. Its core architecture adheres to ISO 13849-1 (PL e) functional safety requirements and incorporates embedded thermal monitoring via integrated thermoelectric power sensors—ensuring continuous compliance with laser safety Class 1 enclosure standards (IEC 60825-1:2014) when interlocked.

Key Features

• True 3-Axis Dynamic Focusing: Independent X/Y galvo scanning combined with high-speed Z-axis motorized lens positioning (±15 mm travel, 1 µm resolution) enables automatic focus compensation across surface topographies—including angled, domed, or multi-level components—without mechanical repositioning.
• High-Power, Maintenance-Free Laser Source: Industrial-grade single-mode fiber laser with air-cooled, fanless optical head design. Eliminates airflow-dependent contamination pathways; validated for continuous operation in ambient temperatures from 0 °C to 40 °C and relative humidity up to 85% non-condensing.
• IP64-Rated Enclosure: Fully sealed optical head and control unit meet IEC 60529 IP64 specifications—providing complete protection against dust ingress and water splashing from any direction—suitable for integration into CNC cells, robotic workcells, or wet-process production lines.
• Embedded Real-Time Power Monitoring: Integrated thermopile-based power sensor provides closed-loop feedback to the laser driver, enabling automatic pulse energy stabilization and drift compensation over time and temperature fluctuations.
• Intuitive PC-Based Configuration Interface: KEYENCE’s proprietary MARKING STATION software supports drag-and-drop layout editing, barcode/QR code generation (including GS1 DataMatrix), font library management, and batch variable data import via CSV or database connectivity (ODBC).

Sample Compatibility & Compliance

The MD-F3100/5100 accommodates substrates ranging from 0.1 mm thin foils to 150 mm tall parts with minimal setup intervention. It achieves stable marking on anodized aluminum, stainless steel (304/316), titanium alloys, ABS, polycarbonate, and ceramic substrates—meeting traceability requirements per ISO/IEC 15415 (2D symbol quality grading) and AIAG B-17 (automotive part marking). All firmware and configuration logs support audit-ready timestamped records compliant with FDA 21 CFR Part 11 (electronic signatures, operator authentication, and change history) when deployed under validated GMP/GLP protocols. CE marking confirms conformity with EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU.

Software & Data Management

MARKING STATION v5.x provides full offline programming, simulation preview, and networked deployment via Ethernet/IP or Modbus TCP. The software supports hierarchical user permissions (admin/operator/technician), encrypted project file storage, and automated backup to NAS or cloud-synced repositories. For Industry 4.0 integration, RESTful API endpoints allow bidirectional communication with MES (e.g., Siemens Opcenter, Rockwell FactoryTalk) and ERP platforms (SAP, Oracle). Audit trails record all parameter modifications, job executions, and calibration events—including operator ID, timestamp, and pre/post-change values—with immutable SHA-256 hashing.

Applications

• Aerospace component serialization (AS9132-compliant dot peen alternatives)
• Medical device UDI marking on surgical instruments and implants (ISO 13485-aligned)
• Automotive VIN and QR-code engraving on engine blocks, brake calipers, and battery modules
• Electronics PCB identification, IC package marking, and flex-circuit traceability
• Tooling and jig asset tracking in high-mix, low-volume discrete manufacturing

FAQ

What is the maximum marking area achievable with dynamic Z-axis compensation?
The standard field lens supports a 110 mm × 110 mm XY working area at nominal focal length (160 mm), with Z-axis compensation extending effective depth-of-field to ±15 mm—enabling uniform mark quality across a total volume of 110 mm × 110 mm × 30 mm.
Does the system support vision-guided marking with external cameras?
Yes—integrated GigE Vision interface allows synchronization with KEYENCE CV-X series or third-party smart cameras for fiducial-based registration, positional correction, and post-mark verification.
How is laser power calibrated and maintained over time?
The built-in thermoelectric power monitor performs automatic zero-point calibration during idle cycles and triggers alert thresholds if output deviates >±3% from setpoint—prompting user-initiated recalibration using NIST-traceable reference sensors.
Can the MD-F3100/5100 be integrated into a PLC-controlled production line?
Fully supported via digital I/O (24 V DC, opto-isolated), EtherNet/IP, and PROFINET slave modes—with configurable start/stop, error status, and cycle completion signals mapped to standard tag structures.
Is remote firmware update capability available?
Yes—secure OTA updates are delivered via HTTPS with certificate-based authentication; update integrity verified via dual-signature checksums prior to flash execution.
