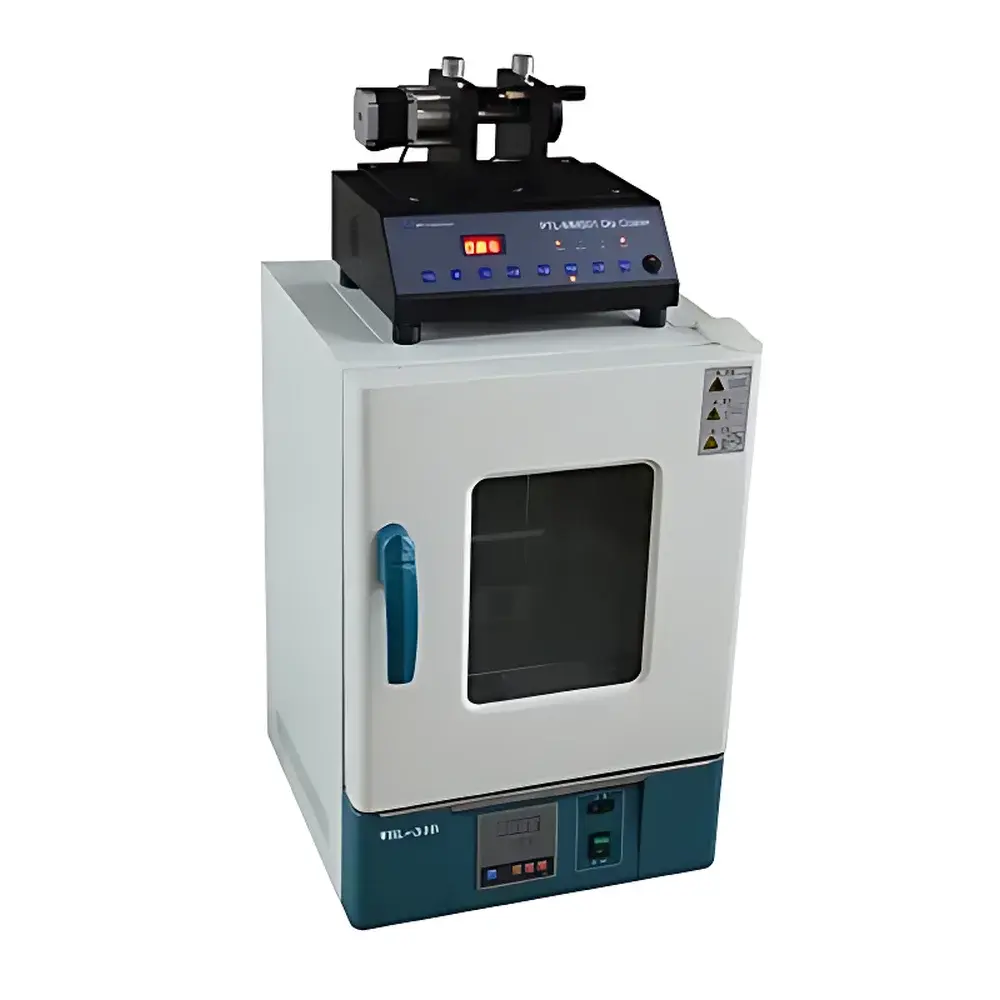

KJ GROUP PTL-MMB01 Constant-Temperature Dip Coater

Overview

The KJ GROUP PTL-MMB01 Constant-Temperature Dip Coater is an engineered solution for controlled, reproducible thin-film deposition via vertical dip-coating — a technique widely used in sol-gel processing, liquid-phase epitaxy (LPE), and functional coating development. It operates on the principle of precise vertical translation of substrates through a precursor solution, followed by controlled withdrawal at defined speeds under thermally stabilized conditions. Unlike ambient dip coaters, the PTL-MMB01 integrates a fully enclosed, temperature-regulated drying chamber (RT + 5 °C to 100 °C) that envelops both immersion and withdrawal stages, ensuring uniform solvent evaporation kinetics and minimizing thermal gradients across the film interface. This architecture supports consistent nucleation, growth, and early-stage condensation of metal oxides, perovskites, polymers, and hybrid nanocomposites. Its compact footprint (450 × 500 × 970 mm) and modular design meet ISO/IEC 17025-aligned laboratory space constraints while maintaining mechanical rigidity essential for sub-millimeter positional repeatability.

Key Features

• Integrated constant-temperature environment: Full-process immersion, withdrawal, and initial drying occur inside a CE-certified, insulated chamber with ±1.5 °C thermal stability over the 25–100 °C range.
• Precision motion control: High-torque, closed-loop stepper motor with suspended mounting isolates mechanical vibration from the coating stage, enabling smooth, jitter-free lifting at speeds from 1 to 200 mm/min (adjustable in 0.1 mm/min increments).
• Flexible operational modes: Supports manual immersion + automatic withdrawal, automatic immersion + manual withdrawal, or fully automated multi-cycle sequences (1–20 dips per run).
• Programmable temporal parameters: Independent setting of immersion duration (1–999 s), dwell time at bottom position, withdrawal duration, and post-withdrawal drying interval (1–999 s).
• Standardized substrate handling: Accommodates rigid planar samples up to 75 × 25 × 2.5 mm using precision-machined clamps; 60 mm effective immersion length ensures full coverage without overflow.
• Robust electrical and mechanical architecture: Compliant with IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity); grounded 220 V / 850 W supply; no compressed air or water connections required.

Sample Compatibility & Compliance

The PTL-MMB01 is compatible with glass slides, silicon wafers, ITO-coated substrates, ceramic plates, and metal foils — provided dimensional and flatness tolerances align with the 75 × 25 × 2.5 mm specification. Its sealed chamber design prevents solvent vapor dispersion, supporting safe handling of ethanol-, toluene-, and DMF-based precursors under standard fume hood–free operation (ventilation not required per manufacturer specifications). The system complies with EU Machinery Directive 2006/42/EC and carries CE marking for safety, electromagnetic compatibility, and low-voltage operation. While not inherently GLP/GMP validated, its programmable parameters, repeatable motion profile, and thermal traceability support audit-ready documentation when integrated into SOP-driven workflows aligned with ISO 9001 or ASTM D1308 (coating adhesion testing preparation).

Software & Data Management

The PTL-MMB01 utilizes embedded microcontroller firmware (no PC dependency) with non-volatile memory for storing up to 10 user-defined protocols. Each protocol retains lift speed, immersion/dwell/dry timing, cycle count, and temperature setpoint. All parameter changes are logged with timestamp and operator ID (via front-panel keypad entry), satisfying basic data integrity requirements for academic and industrial R&D. Though lacking native USB/Ethernet connectivity or FDA 21 CFR Part 11-compliant electronic signatures, the device supports external documentation via printed logs (when paired with optional serial-to-printer interface) and manual protocol archiving — making it suitable for pre-validation research phases and method development prior to scale-up.

Applications

• Sol-gel synthesis of TiO₂, SiO₂, ZnO, and SnO₂ antireflective or photocatalytic films.
• Perovskite precursor layer deposition for optoelectronic device prototyping (e.g., solar cells, LEDs).
• Preparation of hydrophobic/hydrophilic gradient coatings for microfluidic channel functionalization.
• Controlled fabrication of polymer multilayers (e.g., PAH/PSS) via layer-by-layer (LbL) assembly.
• R&D-scale production of corrosion-inhibiting silane films on aluminum and steel substrates.
• Teaching laboratories: Demonstrating colloidal stability, capillary rise, Marangoni effects, and evaporation-driven self-assembly.

FAQ

What is the maximum allowable sample thickness for reliable clamping?
The standard fixture accommodates substrates up to 2.5 mm thick; thicker samples require custom jig adaptation.
Can the temperature chamber be operated independently of the dip mechanism?
No — the heating chamber is mechanically coupled to the lifting frame and only activates during programmed cycles.
Is calibration traceable to national standards?
Temperature sensor calibration is factory-performed against NIST-traceable references; users may perform field verification using calibrated PT100 probes.
Does the system support dynamic speed ramping during withdrawal?
No — speed remains constant throughout each withdrawal phase; multi-step profiles require sequential manual intervention or external scripting via optional TTL triggers.
What maintenance is required for long-term accuracy?
Biannual inspection of stepper motor coupling alignment, cleaning of immersion cup threads, and verification of thermal insulation integrity around the chamber door seal.
