KJ GROUP SYJ-150 Low-Speed Diamond Precision Cutting Machine

Overview

The KJ GROUP SYJ-150 Low-Speed Diamond Precision Cutting Machine is an engineered solution for controlled, low-thermal-impact sectioning of brittle and heterogeneous materials in research and quality control laboratories. Based on the principle of abrasive cutting via diamond-impregnated or bonded blades rotating at precisely regulated low speeds (25–600 rpm), it minimizes mechanical stress, microcracking, and phase transformation—critical for preserving microstructural integrity in subsequent analysis (e.g., SEM, XRD, metallography, or thin-film preparation). Unlike high-speed abrasive cutters, the SYJ-150 operates under constant torque and low-noise conditions, enabling reproducible kerf widths and dimensional accuracy essential for quantitative material characterization. Its CE certification confirms conformance with EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU—supporting integration into GLP-compliant workflows where traceable, repeatable sample preparation is mandated.

Key Features

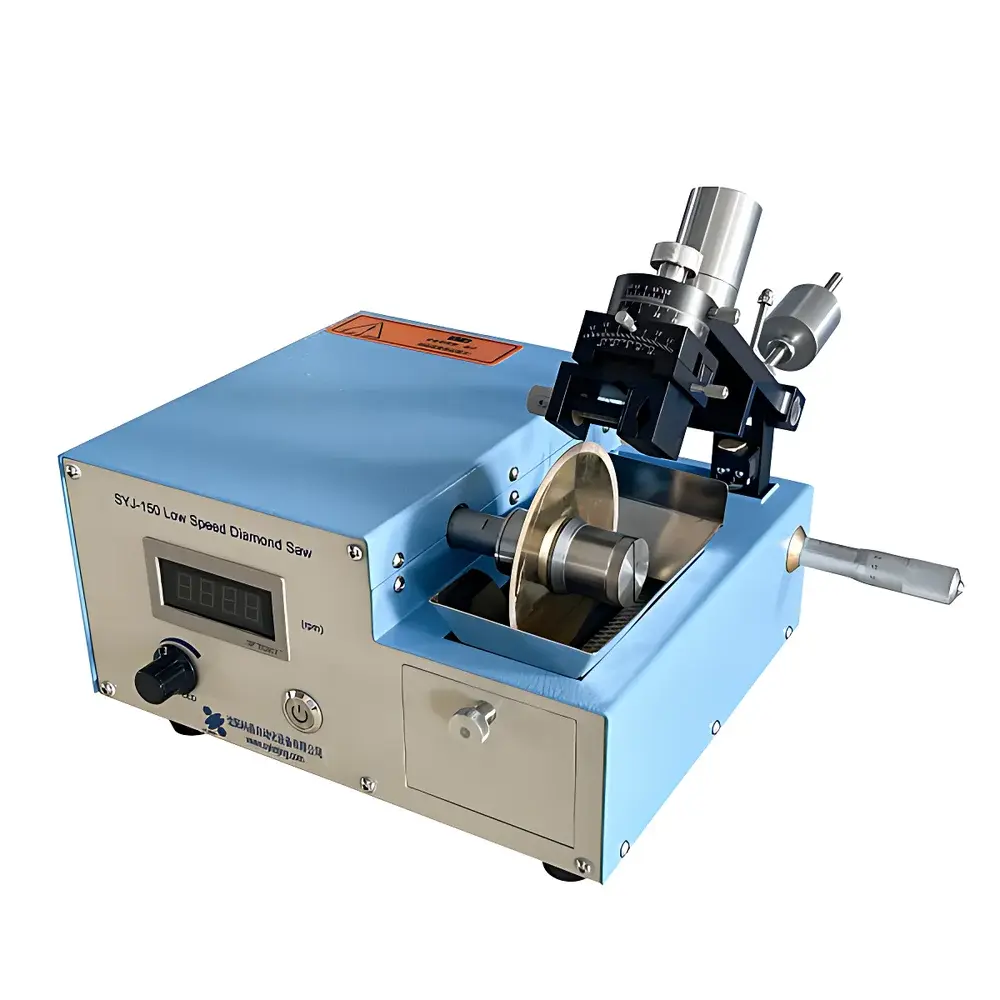

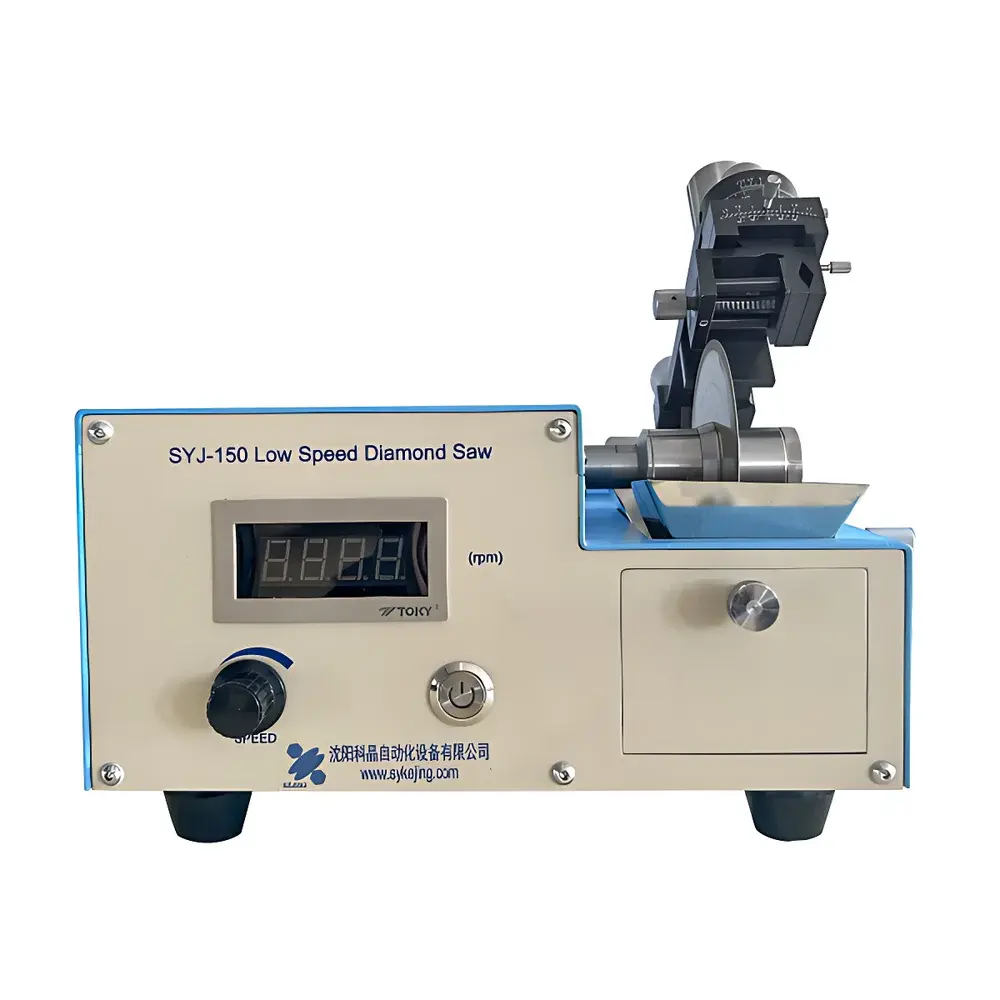

• Infinitely variable speed control (25–600 rpm) via analog dial, ensuring optimal blade–material interaction across diverse hardnesses—from soft polymers to sapphire and tungsten carbide.
• High-precision mechanical micrometer feed (0.01 mm resolution) integrated into a rigid sliding carriage, enabling repeatable depth-of-cut adjustments up to 25 mm.

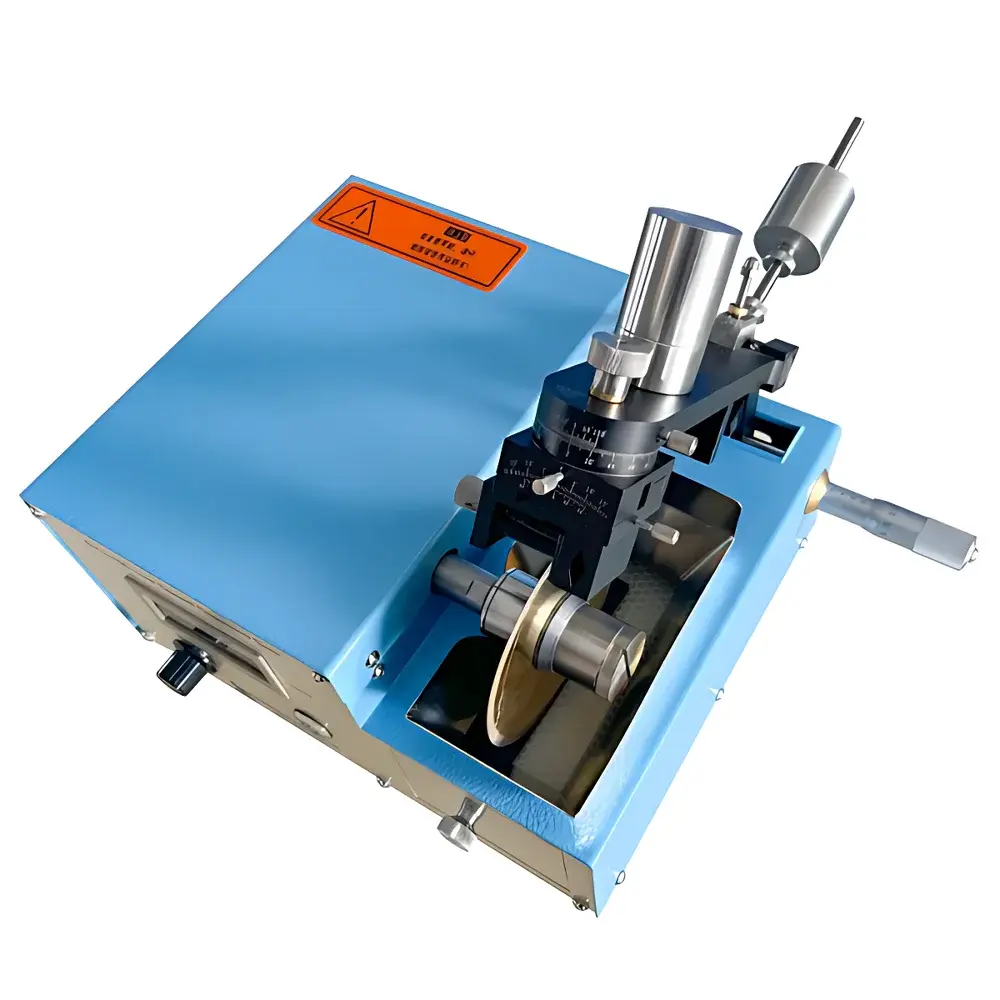

• Dual-axis adjustable fixture (360° horizontal rotation, ±15° tilt) for angular sectioning—including oblique cuts, cross-sections, and bevel preparation—without re-fixturing.

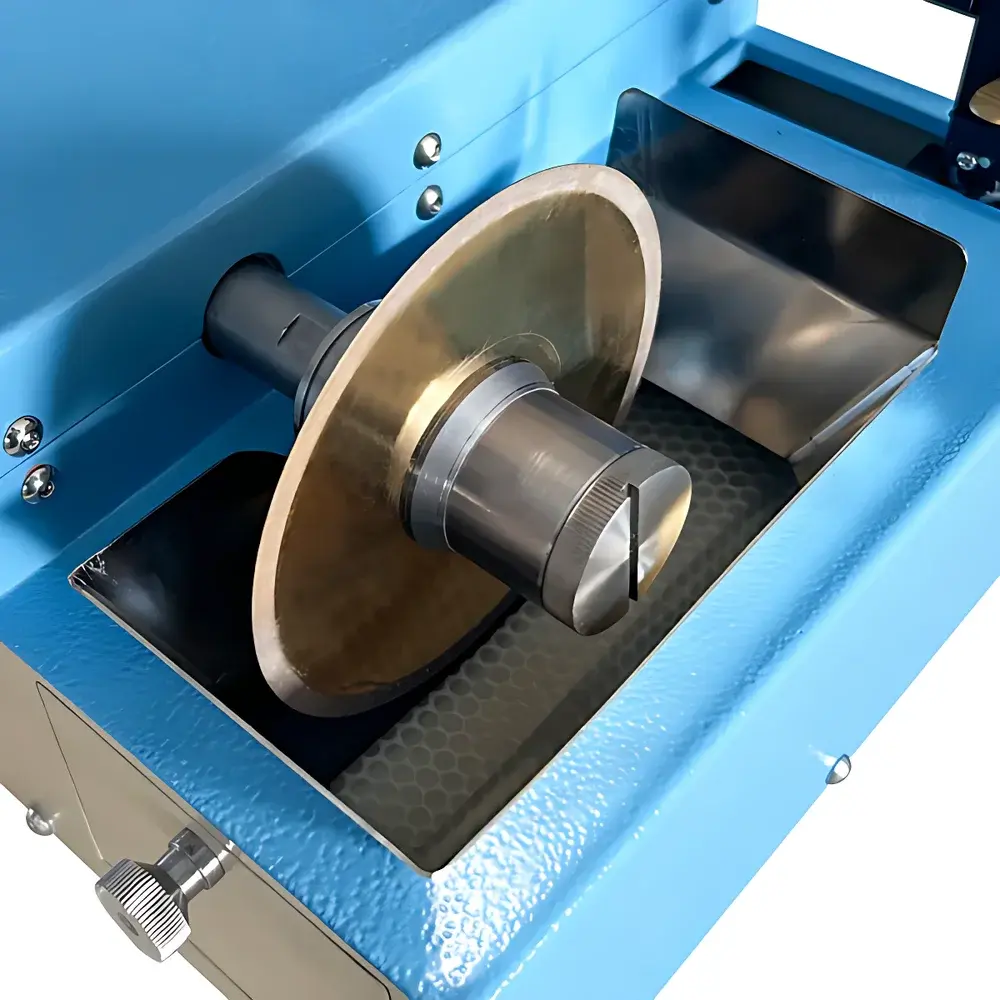

• Integrated coolant delivery system: a reservoir beneath the blade rotates with the arbor, passively lifting aqueous or oil-based coolants (e.g., rust inhibitors or emulsions) onto the cutting interface to suppress localized heating and prevent oxidation or thermal recrystallization.
• Over-travel limit switch and physical blade guard protect both the clamping mechanism and operator during unattended operation.
• Modular blade compatibility: accepts standard Φ76–Φ100 × Φ12.7 mm blades—including sintered diamond, electroplated diamond, silicon carbide, aluminum oxide (corundum), and cubic boron nitride (cBN)—enabling application-specific optimization per ISO 9276-2 particle size distribution guidelines and ASTM C1327-22 for abrasive selection.

Sample Compatibility & Compliance

The SYJ-150 accommodates a broad spectrum of inorganic and organic specimens: single crystals (e.g., sapphire, garnet), technical ceramics, cementitious composites, optical glasses, geological cores (rock/mineral samples), ferrous and non-ferrous metals, PCB laminates, biomedical alloys (e.g., Co-Cr, Ti-6Al-4V), dental restoratives, refractory linings, and polymer matrix composites. All cutting protocols align with ASTM E3–23 (Standard Guide for Preparation of Metallographic Specimens) and ISO 14487:2021 (Microscopy — Preparation of specimens for electron microscopy). The machine’s CE marking affirms compliance with EN 61000-6-2 (immunity) and EN 61000-6-4 (emission), while its grounded DC power architecture (24 V, isolated via external adapter) satisfies IEC 61010-1 safety requirements for laboratory equipment. For regulated environments (e.g., ISO 17025-accredited labs), full audit trails of operational parameters (speed, feed position, runtime) may be documented manually per GLP Annex 11 principles.

Software & Data Management

The SYJ-150 is a standalone electromechanical instrument without embedded firmware or digital connectivity. All operational parameters—including rotational speed, micrometer setting, and angular fixture orientation—are set manually and recorded externally by the user. This analog design eliminates cybersecurity risks and ensures deterministic behavior under electromagnetic interference (EMI)-prone lab conditions. For laboratories requiring traceability, operators are advised to log settings in a controlled electronic lab notebook (ELN) compliant with 21 CFR Part 11 (if applicable), referencing batch numbers of consumables (e.g., blade lot codes, coolant expiry dates) and environmental monitoring data (temperature/humidity logs). No proprietary software, drivers, or cloud services are required or supported.

Applications

• Preparation of cross-sectional specimens for scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDS).
• Sectioning of geological thin sections (≤30 µm) for petrographic analysis under polarized light.
• Cutting of ceramic substrates and semiconductor wafers prior to lapping and polishing per JEDEC JESD22-A108.
• Isolation of representative volumes from heterogeneous composites (e.g., fiber-reinforced concrete, carbon-fiber laminates) for mechanical testing per ASTM D3039.
• Dimensional trimming of dental prosthetic blanks (zirconia, lithium disilicate) in ISO 6872-compliant workflows.
• Controlled slicing of battery electrode materials (NMC, LFP cathodes) for post-cycling microstructural assessment without delamination artifacts.

FAQ

What types of coolant are compatible with the SYJ-150?
Aqueous rust inhibitors, water-soluble emulsions, or low-viscosity mineral oils are recommended. Plain water must be avoided to prevent corrosion of steel components and electrical contacts.
Can the SYJ-150 operate inside a nitrogen-purged glovebox?
Yes—the unit’s DC-powered motor and absence of internal electronics make it suitable for inert-atmosphere operation; however, ensure adequate ventilation for heat dissipation and verify compatibility of coolant vapor pressure with glovebox specifications.
Is the 24 V DC power supply included?
Yes—a certified AC/DC adapter (input: 100–240 V AC, output: 24 V DC / 6.67 A) is supplied as standard equipment.
How is blade wear monitored during extended use?
Operators should inspect blade concentricity, diamond exposure, and kerf width consistency after every 5–10 cuts; reduced cutting efficiency or increased vibration indicate dressing or replacement per manufacturer’s abrasives handling guidelines.
Does the SYJ-150 support automated sequential cuts?
No—it is manually operated; however, its micrometer feed and angular fixture enable highly repeatable manual multi-step cutting protocols when paired with documented SOPs.
