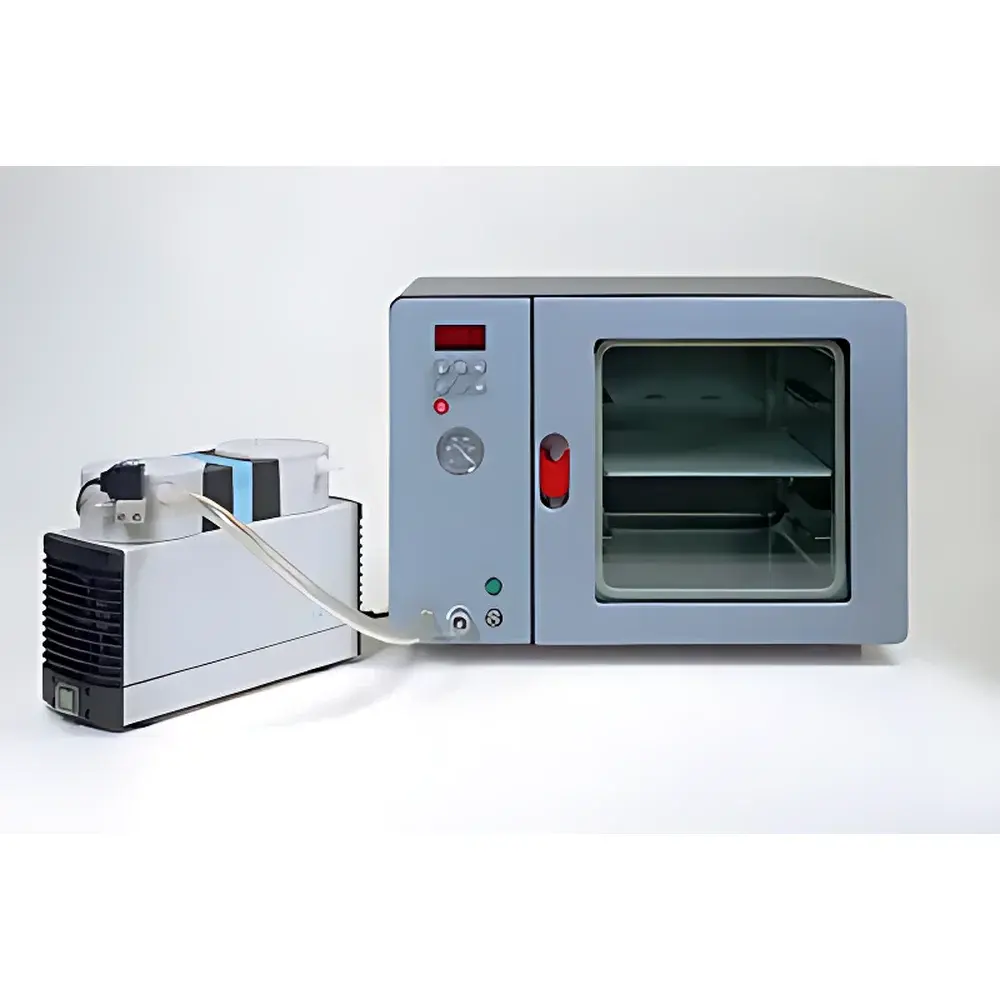

KNF N820.3FT.40.18 Chemically Resistant Self-Drying Diaphragm Vacuum Pump

Overview

The KNF N820.3FT.40.18 is a high-integrity, oil-free diaphragm vacuum pump engineered for continuous-duty laboratory applications involving aggressive chemical vapors and condensable gases. Designed with KNF’s proprietary self-drying technology, this pump actively prevents moisture and volatile condensates from accumulating in the compression chamber—eliminating risk of internal corrosion, valve sticking, or thermal shutdown during extended operation. Its fully fluoropolymer-wetted path—including PTFE pump head, PTFE-coated diaphragm, and perfluoroelastomer (FFPM) valves—ensures exceptional resistance to strong acids (e.g., HCl, HNO₃), bases (e.g., NaOH), solvents (e.g., acetone, THF), and halogenated compounds. Unlike conventional diaphragm pumps that require intermittent cooling or external drying traps, the N820.3FT.40.18 sustains stable performance at full load for 24/7 operation, making it ideal for integration with vacuum ovens, freeze dryers, rotary evaporators, and gel dryers where process continuity and chemical safety are critical.

Key Features

• Self-drying mechanism: Integrated air purge cycle automatically evacuates condensate from the diaphragm chamber between strokes, preventing liquid accumulation and preserving long-term sealing integrity.
• Fully chemically inert wetted materials: PTFE pump housing, PTFE-coated elastomeric diaphragm, and FFPM valve assemblies resist degradation across pH 0–14 and broad organic solvent exposure.
• No-oil, no-lubrication design: Eliminates risk of hydrocarbon contamination in vacuum lines—essential for analytical sample preparation, pharmaceutical R&D, and semiconductor-grade cleanroom environments.
• Low vibration & acoustic emission: Optimized counterbalance and rigid aluminum alloy chassis reduce structural transmission; typical sound pressure level <52 dB(A) at 1 m distance.
• Robust thermal management: Brushless DC motor with integrated temperature monitoring and adaptive duty-cycle control ensures stable operation without thermal cutout—even under ambient temperatures up to 40°C.
• G¼” BSP threaded ports with standard O-ring sealing: Compatible with common vacuum tubing (ID 6–10 mm) and certified vacuum fittings per DIN 28403.

Sample Compatibility & Compliance

The N820.3FT.40.18 is validated for use with corrosive, humid, and condensable process gases encountered in academic, pharmaceutical, and industrial laboratories. It complies with EU Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2014/30/EU, and RoHS 2011/65/EU. All materials meet USP Class VI biocompatibility requirements for non-implantable devices. The pump supports GLP-compliant workflows when paired with KNF’s optional analog/digital I/O interface (0–10 V / 4–20 mA) for remote status monitoring and event logging. While not intrinsically safe, it is suitable for Zone 2/Class I, Division 2 environments when installed per IEC 60079-14 guidelines.

Software & Data Management

This standalone pump operates without software dependency. However, KNF offers optional digital integration via the NDC (Network Device Control) module, enabling Modbus RTU/TCP communication for centralized vacuum system supervision. When deployed in regulated environments, the NDC module supports audit-trail-capable event logging—including runtime hours, thermal events, and pressure deviation alerts—aligned with FDA 21 CFR Part 11 principles for electronic records. Data export is supported in CSV format for traceability in quality documentation systems (e.g., TrackWise, Veeva).

Applications

• Vacuum drying of hygroscopic or acid-sensitive samples in controlled-atmosphere ovens
• Rotary evaporation of chlorinated solvents and aqueous-acidic mixtures
• Lyophilization pre-chamber evacuation with minimal water vapor backstreaming
• Gas sampling and purge-and-trap concentration for GC-MS analysis
• Membrane filtration under vacuum with caustic cleaning cycles
• Replacement of water aspirators in teaching labs—reducing wastewater generation and maintenance overhead

FAQ

Can the N820.3FT.40.18 operate continuously without maintenance intervals?

Yes—it is rated for unlimited duty cycle under specified ambient and inlet conditions. Recommended preventive maintenance includes diaphragm replacement every 10,000 operating hours and valve inspection every 5,000 hours.
Is it compatible with vacuum controllers or programmable logic controllers (PLCs)?

Yes, via optional NDC module with configurable analog inputs/outputs and Modbus support.
Does the self-drying function require external compressed air?

No—the self-drying cycle uses internal airflow routing and does not rely on external gas sources.
What is the maximum allowable inlet humidity level?

The pump handles saturated vapor at 100% RH at 20°C without performance loss, provided condensate volume remains within the self-drying capacity (~0.5 mL/h average). For higher condensation loads, KNF recommends pairing with a chilled trap or PTFE-lined cold finger.
Can it be mounted vertically or inverted?

Mounting orientation must follow KNF Installation Manual: only horizontal (pump head facing upward) or 45° upward tilt is permitted to ensure proper diaphragm lubrication and condensate drainage.
