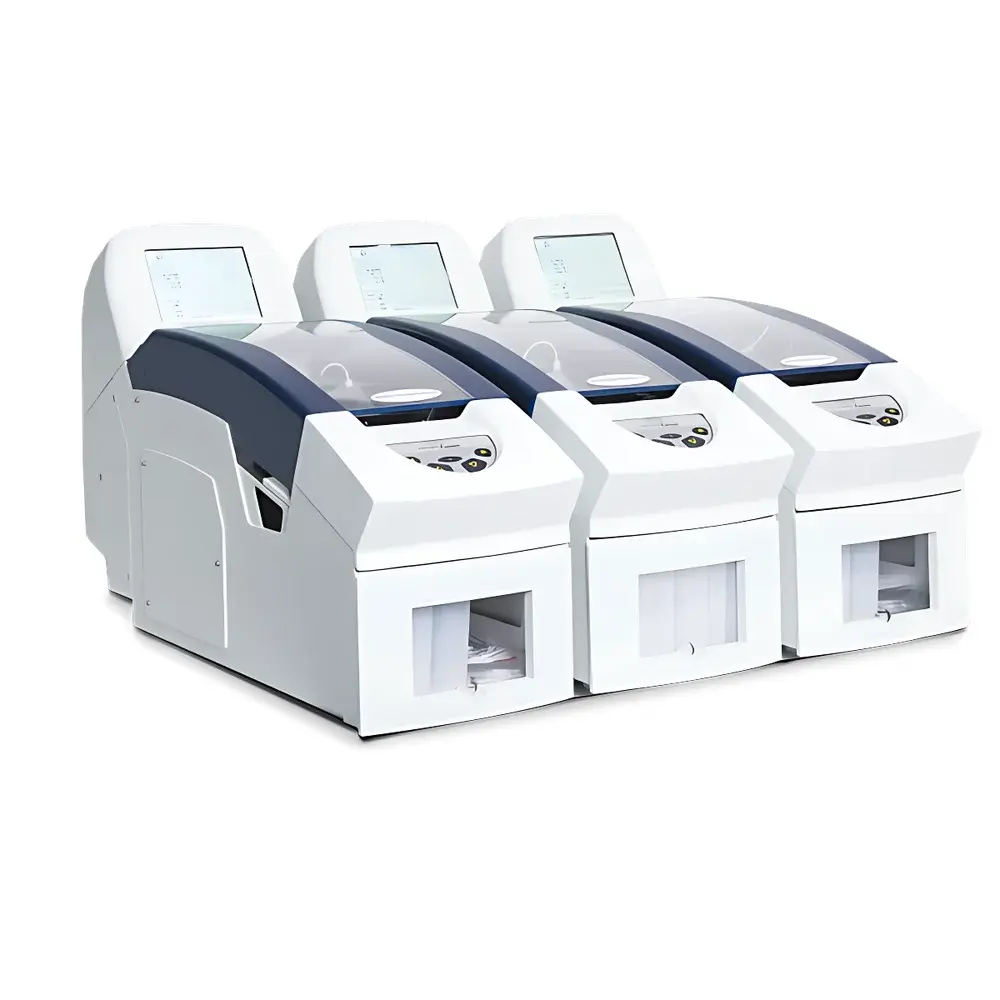

KPM-AMS Futura III Continuous Flow Analyzer
| Brand | KPM-AMS |
|---|---|
| Origin | USA |
| Model | Futura III |
| Product Type | Continuous Flow Analyzer |
| Wavelength Range | 340–110 nm |
| Sample Capacity | ≥240 positions |
| Reagent Positions | 20 |
| Flow Cell Path Length | 10 mm to 5 m |
| Light Source | Photometric light source |
Overview
The KPM-AMS Futura III Continuous Flow Analyzer is a fully automated, high-precision segmented-flow analysis (SFA) system engineered for reproducible, regulatory-compliant colorimetric and photometric determinations in environmental, food & beverage, clinical, agricultural, pharmaceutical, and industrial laboratories. Based on the classical Technicon principle of air-segmented continuous flow, the system introduces discrete, gas-bubble-isolated sample and reagent segments into chemically inert, temperature-controlled tubing—eliminating diffusion between adjacent samples, minimizing carryover, and ensuring robust baseline stability across extended analytical runs. Each segment undergoes controlled mixing, timed heating (up to 100 °C), distillation, dialysis, or digestion as required by method protocol before entering a flow-through photometer. Detection employs dual-beam photometry with selectable wavelength filters (340–110 nm), enabling quantification of chromophore formation via Beer–Lambert law-based absorbance measurement. The system is validated for compliance with ISO 9001:2015 quality management requirements and supports traceable alignment with international standard methods including ISO 6775 (ammonia), ISO 15681-1 (phosphate), ASTM D1253 (residual chlorine), USEPA Methods 353.2, 354.1, and 4500-NH3G, AOAC Official Methods®, AFNOR NF T90-105, and COFRAC-accredited protocols.
Key Features
- Independent Channel Architecture: Each analytical channel operates autonomously—with dedicated peristaltic pump, reaction manifold, detector, embedded LCD display, and integrated reagent cabinet—enabling concurrent multi-parameter analysis without cross-channel interference or software contention.
- APS-Enabled Peristaltic Pumping: Equipped with Automatic Pressure System (APS) technology, the pump dynamically adjusts roller pressure to maintain consistent occlusion force over the full service life of the tubing, eliminating manual recalibration and ensuring long-term volumetric accuracy (<±0.5% RSD over 24 h).
- 5-Position Automated Reagent Selector Valve: Motor-driven, chemically resistant valve with integrated wash cycle between reagent selections to prevent cross-contamination and support method-switching without hardware intervention.
- Modular Flow Path Design: Vertical fluidic layout minimizes footprint (W × D × H: 720 × 650 × 780 mm per 1-channel unit) while maximizing accessibility; drawer-style filter trays and slide-out pump tube carriers allow rapid, tool-free module replacement.
- Integrated Human-Machine Interface: High-resolution monochrome LCD panel displays real-time OD values, peak morphology, lamp energy output, thermostat status, and method metadata; front-panel controls permit standalone parameter adjustment and emergency stop without PC dependency.
- Hybrid Macro/Micro Flow Capability: Configurable for both conventional macro-flow (1.0–2.0 mm ID tubing, 0.5–5 mL/min flow rates) and micro-flow (0.5 mm ID, 50–500 µL/min) operation—reducing reagent consumption by up to 70% while maintaining detection limits equivalent to standard protocols.
Sample Compatibility & Compliance
The Futura III accommodates liquid samples across a broad matrix spectrum—including raw wastewater, filtered seawater, clarified wine must, homogenized plant tissue extracts, digested soil leachates, pharmaceutical dissolution media, and detergent formulations—without requiring pre-dilution or offline derivatization in >90% of validated applications. Sample introduction is compatible with all major autosamplers (e.g., Gilson ASX-520, CTC PAL, Thermo Fisher ALS). All wetted components are constructed from PTFE, FEP, and borosilicate glass to ensure chemical inertness toward strong acids (HCl, HNO3), alkalis (NaOH), oxidants (persulfate, KMnO4), and organic solvents (methanol, acetonitrile). The system architecture supports full audit trail generation, electronic signature enforcement, and data integrity controls aligned with FDA 21 CFR Part 11 and EU Annex 11 requirements when operated with compliant LIMS or KPM-AMS CFA Control Suite v5.2+.
Software & Data Management
KPM-AMS CFA Control Suite is a Windows-based platform providing method development, sequence programming, real-time chromatogram visualization, peak integration (tangent skim, Gaussian deconvolution), calibration curve fitting (linear, quadratic, spline), and QC reporting (Levey-Jennings, Westgard rules). Raw absorbance data are stored in vendor-neutral .CSV and .CDF formats; processed results export directly to LIMS via ASTM E1384-compliant HL7 messaging or ODBC connectivity. Software includes built-in validation templates for IQ/OQ/PQ documentation, automatic calibration verification logs, and configurable alarm thresholds for lamp intensity decay, temperature deviation, or flow rate drift. All user actions—including method edits, calibration updates, and result overrides—are timestamped and attributed with operator ID under immutable audit trail.
Applications
The Futura III delivers standardized, high-throughput analysis across regulated sectors: In environmental testing, it quantifies NH3-N, NO3−, NO2−, PO43−, CN−, phenols, surfactants, SiO2, SO42−, and CODMn in drinking water, effluent, and marine samples per ISO 10304, EN ISO 11923, and EPA 300.0. In food & beverage, it performs enzymatic assays for glucose, fructose, sucrose, lactose, and alcohol content; measures SO2, volatile acidity, total acidity, and polyphenols in wines and beers per OIV and ASBC standards; and determines starch, protein (Lowry), caffeine, and vitamin B-complex profiles in fortified foods. In pharmaceutical QC, it supports assay of antibiotics (penicillin, streptomycin), vitamins (B1, B2, B3, B6, B12, C), and excipients per USP , EP 2.2.25, and JP 6.21. Additional validated use cases include tobacco alkaloid profiling (nicotine, nornicotine), soil nutrient analysis (K, P, N forms), and detergent enzyme activity (amylase, protease, lipase).
FAQ
What regulatory standards does the Futura III support out-of-the-box?
The system ships with pre-validated methods aligned with ISO, ASTM, USEPA, AOAC, OIV, USP, and EP compendial standards; full method transfer documentation is provided for GLP/GMP audits.
Can the Futura III be integrated into an existing LIMS environment?
Yes—via ASTM E1384-compliant HL7 interface, ODBC drivers, or direct .CSV/.CDF file export with configurable naming conventions and metadata tagging.
Is remote monitoring and control supported?
Remote desktop access and real-time status dashboard viewing are enabled through optional KPM-AMS CloudLink module, compliant with TLS 1.2 encryption and role-based access control.
How often does the APS system require maintenance?
APS calibration is performed automatically during startup; no scheduled mechanical servicing is required beyond routine pump tube replacement every 3–6 months depending on usage intensity.
Does the system support unattended overnight operation?
Yes—integrated power-fail recovery, auto-purge routines, and temperature-stabilized reaction zones enable 72+ hour unattended sequences with full QC checkpoint logging at user-defined intervals.
