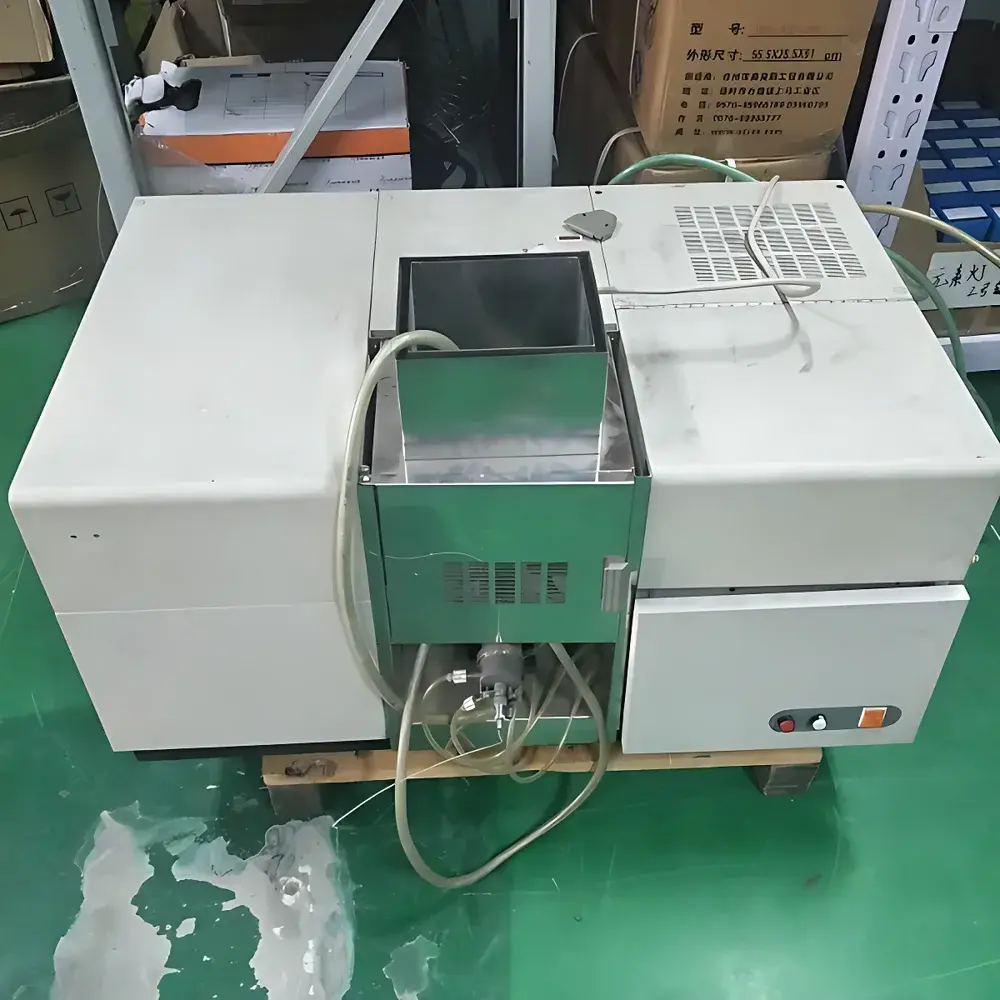

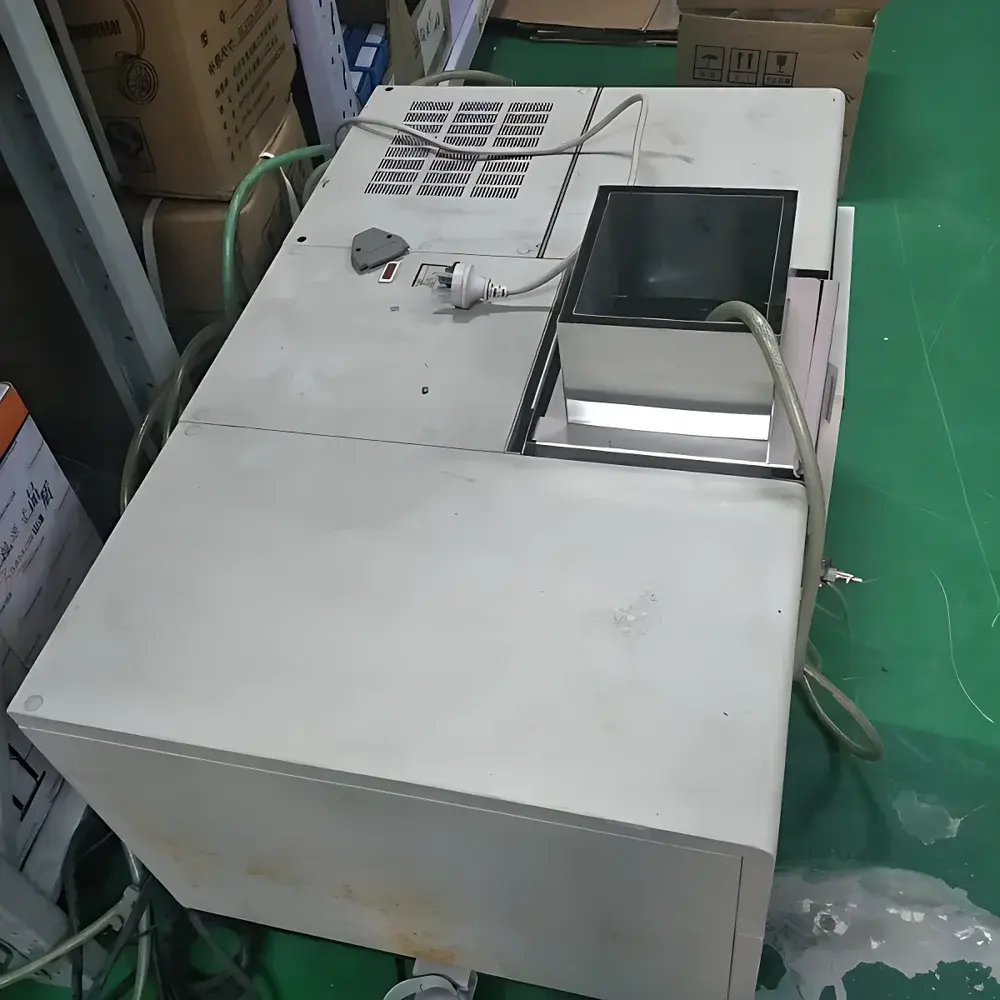

Kyocera WX-AA7000 Atomic Absorption Spectrometer Maintenance and Repair Service

Overview

The Kyocera WX-AA7000 Atomic Absorption Spectrometer Maintenance and Repair Service is a specialized technical support offering designed for laboratories operating the WX-AA7000 — a compact, integrated flame/graphite furnace atomic absorption spectrometer developed by Dongxi Analysis (China). This service addresses critical instrument lifecycle needs including fault diagnosis, hardware restoration, optical alignment verification, electronic subsystem recalibration, and preventive maintenance aligned with ISO/IEC 17025 and GLP-compliant laboratory practices. The WX-AA7000 employs a single-beam optical architecture with an 1800-line/mm holographic grating, titanium-based nebulization and burner assembly, and dual background correction (D₂ lamp and self-reversal methods), making its operational stability highly sensitive to mechanical integrity, gas flow consistency, and detector signal fidelity. Our maintenance protocol is engineered to restore metrological traceability, ensure repeatability of absorbance measurements (<±0.5% RSD for Cu at 324.8 nm), and sustain compliance with national standard JJG 694–2015 (Verification Regulation for Atomic Absorption Spectrophotometers) and relevant ASTM E1993–22 guidelines for AAS system performance validation.

Key Features

• 12-hour on-site or depot response window for urgent diagnostics and emergency repair prioritization
• Full-spectrum functional validation: optical path intensity mapping, flame emission baseline stability assessment, graphite furnace temperature ramp profiling, and hollow cathode lamp current regulation verification
• Hardware refurbishment including titanium雾化室 (nebulizer chamber) corrosion inspection, quartz atomizer tube replacement, graphite tube seating calibration, and pneumatic control valve cleaning
• Electronic subsystem servicing: high-voltage graphite furnace power supply testing, photomultiplier tube (PMT) dark current characterization, analog-to-digital converter linearity verification, and microcontroller firmware integrity check
• Comprehensive documentation: pre- and post-service diagnostic reports, component replacement logs, calibration certificate (traceable to NIM standards), and GLP-compliant audit trail generation
• Extended support options: annual maintenance contracts (AMC) with scheduled quarterly inspections, remote troubleshooting via secure VNC-assisted session, and spare parts inventory reservation for critical consumables

Sample Compatibility & Compliance

This service applies exclusively to the WX-AA7000 platform and extends to legacy Dongxi AAS models with shared mechanical/electrical architectures. It supports all standard atomization modes: air-acetylene flame, nitrous oxide-acetylene flame, and electrothermal graphite furnace operation. All maintenance procedures adhere to the safety requirements outlined in GB/T 33257–2016 (Safety Requirements for Analytical Instruments) and incorporate risk mitigation steps for high-pressure gas handling, high-temperature furnace operation, and UV radiation exposure. Documentation generated during service meets internal quality system requirements for ISO 17025 accredited laboratories and provides evidence suitable for FDA 21 CFR Part 11-compliant environments when paired with validated electronic signature workflows.

Software & Data Management

Diagnostic routines are executed using the original Dongxi AA7000 Control Software v3.2.x, supplemented by proprietary Kyocera-developed utility tools for real-time spectral noise analysis, lamp energy decay trending, and autosampler positional error quantification. All service-generated data files (including spectral scans, temperature curves, and lamp current logs) are exported in ASCII-compatible .csv format for integration into LIMS or ELN platforms. Audit trails include timestamped technician ID, action type (e.g., “PMT gain adjustment”, “grating drive motor recalibration”), and pre/post-intervention measurement values. Optional software update packages are available upon request, subject to Dongxi’s official firmware release schedule and version compatibility verification.

Applications

This maintenance service directly supports analytical workflows in environmental monitoring (EPA Method 7000B compliance for heavy metals in water/soil), food safety testing (GB 5009.12–2023 for Pb/Cd in edible products), pharmaceutical QC (ICH Q2(R2)-aligned method robustness verification), and geological sample analysis (multi-element determination in rock digests). By ensuring consistent instrumental performance, it enables laboratories to maintain detection limits at or below manufacturer specifications — e.g., 0.002 mg/L for Cd (flame), 0.005 µg/L for As (graphite furnace) — and sustain long-term calibration stability across ≥50 consecutive runs.

FAQ

What is the typical turnaround time for a complete WX-AA7000 repair?
Standard depot repair requires 5–7 business days following receipt and initial triage; expedited 72-hour service is available for critical-path instruments under AMC coverage.
Do you replace OEM parts only, or are third-party alternatives used?
All components supplied meet or exceed original Dongxi specifications; non-OEM replacements (e.g., graphite tubes, hollow cathode lamps) are sourced from ISO 9001-certified manufacturers and undergo incoming QA per ASTM E2922–21.
Can remote diagnostics be performed before dispatching a technician?
Yes — provided the instrument is connected to a secure LAN and remote access is enabled, preliminary diagnostics including error log extraction, lamp energy reporting, and autosampler motion sequence playback can be conducted within 2 hours of request.
Is firmware update included in routine maintenance?
Firmware updates are performed only upon client authorization and after full backup of existing configuration parameters; no automatic upgrades are applied without written consent.
How is data confidentiality ensured during service?
All diagnostic sessions follow Kyocera’s Information Security Policy (aligned with ISO/IEC 27001); no user method files or sample data are accessed, copied, or transmitted without explicit contractual provision and NDA execution.
