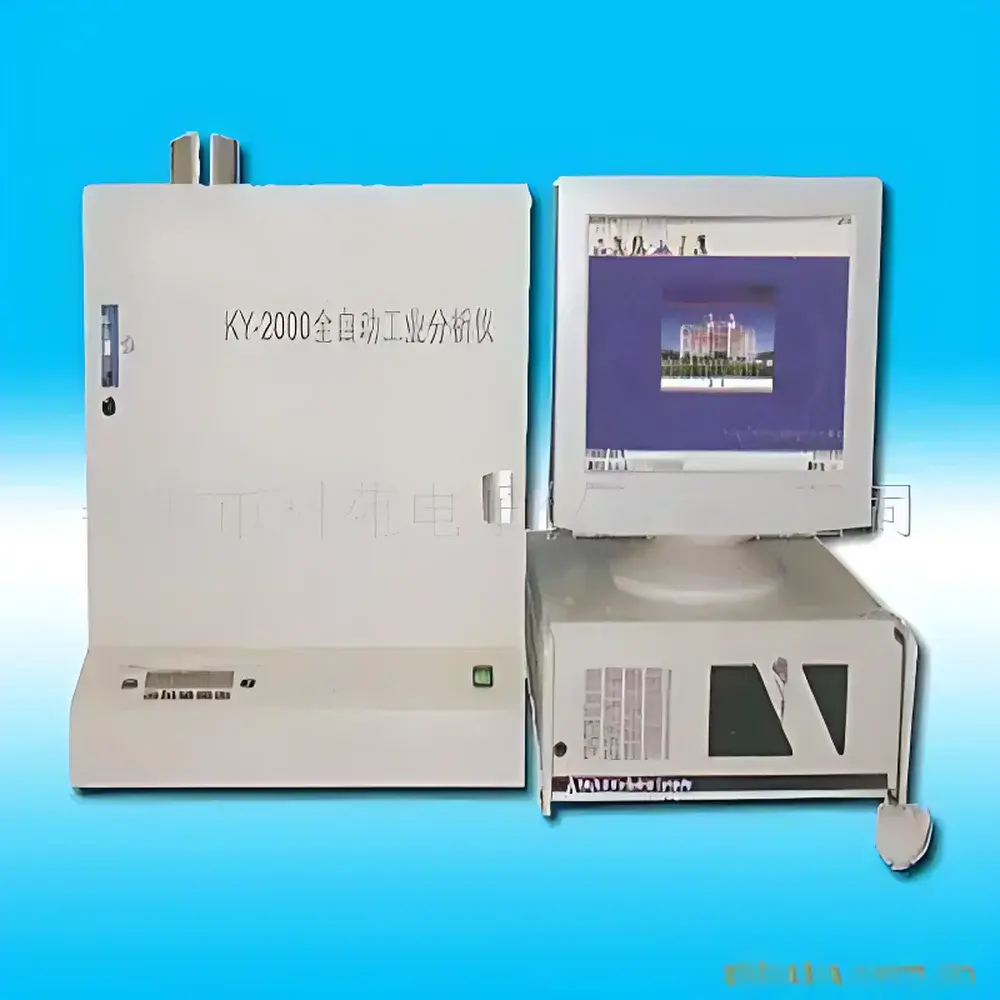

Kyoyuan KY-2000 Industrial Proximate Analyzer
| Brand | Kyoyuan |
|---|---|
| Model | KY-2000 |
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Pricing | Upon Request |
| Measurement Principle | Thermogravimetric Analysis (TGA) |
| Analysis Time | < 20 min per sample |
| Moisture Accuracy | ±0.5% |
| Volatile Matter Accuracy | ±0.5–1.5% |
| Ash Content Accuracy | ±0.3–0.7% |
| Higher Heating Value Accuracy | ±0.5–1.5 MJ/kg |
| Lower Heating Value Accuracy | ±0.5–1.5 MJ/kg |
| Operating System | Windows-based control software (Chinese UI) |
| Optional Modules | Unburned Carbon in Fly Ash (Loss on Ignition for ash residue) |
Overview
The Kyoyuan KY-2000 Industrial Proximate Analyzer is a dedicated thermogravimetric instrument engineered for rapid, standardized proximate analysis of coal and solid fuels in accordance with ASTM D3172, ISO 11722, and GB/T 212–2008. It implements sequential isothermal and programmed heating protocols under controlled atmospheric conditions (air or nitrogen) to quantify moisture, volatile matter, fixed carbon, and ash content through precise mass-loss tracking. The system integrates a high-stability microbalance (0.1 mg readability), dual-zone furnace with independent temperature control (up to 1000 °C), and automated sample handling—including tare compensation, sample weighing, crucible positioning, and thermal ramping—executed via embedded Windows-based control software. Unlike manual muffle furnace methods, the KY-2000 eliminates operator-dependent variability by standardizing heating rates, dwell times, and atmosphere switching, thereby ensuring inter-laboratory reproducibility and compliance with routine QC/QA requirements in power generation, coal trading, and cement raw material assessment.
Key Features
- Thermogravimetric architecture with real-time mass monitoring at 0.1 mg resolution and thermal stability ≤ ±1 °C over 90 min at 815 °C
- Automated multi-step thermal protocol execution: moisture loss (105–110 °C, air), volatile matter release (900 °C, N₂), and ash determination (815 °C, air)
- Integrated Windows control interface supporting method storage, user-defined sequences, and audit-ready operation logs
- Dual crucible carousel accommodating up to 12 samples per batch with automatic positioning and lid actuation
- Onboard calibration verification using certified reference materials (CRM) traceable to NIST SRM 1632e or equivalent
- Compliance-ready data structure supporting GLP/GMP workflows, including electronic signatures, time-stamped event records, and 21 CFR Part 11–compatible audit trails (when deployed with validated software configuration)
Sample Compatibility & Compliance
The KY-2000 accepts powdered coal samples (≤0.2 mm particle size, 1.0 ± 0.1 g nominal mass) in standard ceramic or platinum crucibles (Φ20 × 30 mm). It is validated for bituminous, sub-bituminous, lignite, anthracite, petroleum coke, and biomass-derived solid fuels. Regulatory alignment includes full adherence to ASTM D3172–22 (Standard Test Method for Ultimate and Proximate Analysis of Coal and Coke), ISO 11722:2014 (Solid mineral fuels — Determination of proximate analysis), and Chinese national standard GB/T 212–2008. All measurement uncertainties are reported per ISO/IEC 17025:2017 Annex A.2 guidance, with documented uncertainty budgets available upon request for accredited laboratory implementation.
Software & Data Management
The proprietary Kyoyuan Proximate Suite v3.2 provides a validated, single-user Windows application with bilingual (English/Chinese) UI support. It enables method creation with customizable temperature ramps, gas flow profiles, and hold durations; real-time TGA curve visualization; automatic calculation of moisture, volatile matter, ash, fixed carbon, and higher/lower heating values per ISO 1928; and export of results to CSV, PDF, or XML formats compliant with LIMS integration (via ODBC or HL7-compatible middleware). Audit trail functionality records all user actions—including method edits, result overrides, and calibration events—with immutable timestamps and operator IDs. For regulated environments, optional IQ/OQ documentation packages and 21 CFR Part 11 add-ons are available under separate validation agreement.
Applications
- Coal quality control in thermal power plants and coal preparation facilities
- Commercial coal trading and arbitration testing per contractual specifications (e.g., ASTM D3172–22, GB/T 18666)
- Raw material qualification for cement kiln feed and industrial boiler fuel blending
- Research-grade proximate characterization in energy institutes and university combustion labs
- Supporting ASTM D5865-compliant calorimetric modeling through derived fixed carbon and ash inputs
- Optional fly ash unburned carbon assay via LOI mode (ASTM D7582) with pre-weighed ash residue analysis
FAQ
Does the KY-2000 comply with ASTM D3172 and ISO 11722?
Yes—the instrument’s thermal protocols, mass accuracy, and reporting logic are fully aligned with both standards, and validation reports are provided with each unit.
Can the system operate without Chinese-language software?
The base firmware supports English-language UI localization; full English OS deployment requires configuration during installation and is included in international delivery packages.
What maintenance intervals are recommended for long-term accuracy?
Annual balance recalibration and furnace thermocouple verification are advised; crucible cleaning and gas line inspection should occur after every 200 cycles.
Is remote diagnostics supported?
Yes—via secure RDP-enabled maintenance port (disabled by default); remote access requires prior written authorization and encrypted session keys.
How is data integrity ensured during power interruption?
The system features non-volatile memory that preserves active method state and raw TGA data points; resume-on-power-up functionality restores operation at the last completed thermal step.
