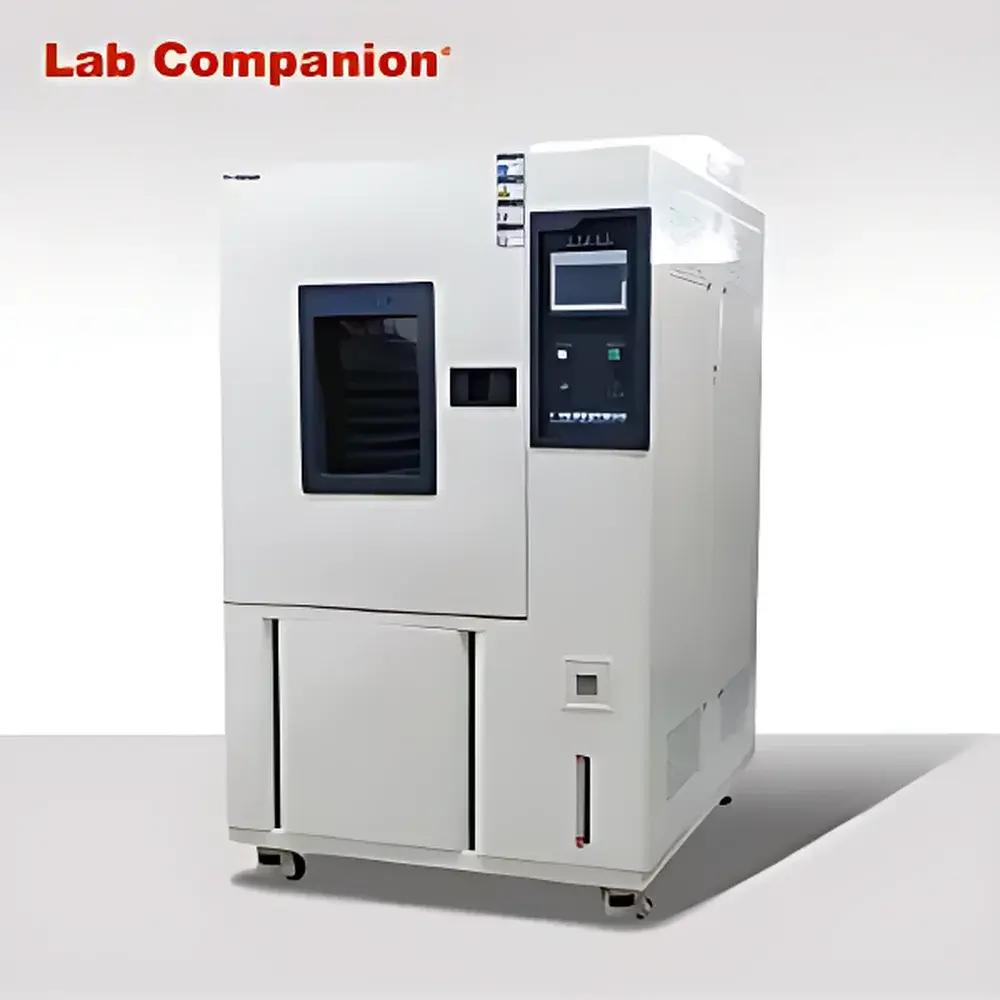

LabCompanion AC Series Altitude Environmental Test Chamber (High-Low Temperature & Low-Pressure Simulation Chamber)

Overview

The LabCompanion AC Series Altitude Environmental Test Chamber is an integrated simulation platform engineered for precise replication of combined high–low temperature and low-pressure (high-altitude) environmental conditions. It operates on the physical principles of thermodynamic control and vacuum-based barometric reduction, enabling accurate modeling of atmospheric profiles from sea level up to 100,000 ft (≈30,480 m). Designed for rigorous reliability validation, this chamber supports simultaneous thermal cycling and altitude exposure—critical for qualification testing of aerospace components, avionics, battery systems, automotive ECUs, and defense-grade electronics under real-world operational stressors. Its dual-mode operation accommodates both steady-state and dynamic profile testing—including temperature–altitude coupling per MIL-STD-810G Method 500.7 and GJB 150.6—and supports powered-in testing with electrical feedthroughs for in-situ functional verification.

Key Features

• Balanced Temperature and Humidity Control (BTHC) architecture using PID-driven SSR modulation ensures stable chamber pressure and thermal setpoint maintenance over extended durations.
• Dual-stage rotary vane vacuum pump system achieves high ultimate vacuum performance and consistent low-pressure ramping across the full altitude range (0–100,000 ft), with programmable ascent/descent profiles.
• Stainless steel (SUS304) working chamber with high-density polyurethane insulation and high-temperature silicone gasketing provides long-term corrosion resistance, thermal integrity, and leak-tight sealing.
• Intelligent digital temperature controller with programmable ramp/soak capability supports both fixed-setpoint and multi-segment thermal profiles, compliant with IEC 60068-2 test sequencing standards.
• Energy-efficient refrigeration system featuring variable-speed compressor modulation (0–100% capacity control) reduces power consumption by up to 30% compared to conventional heater-balanced systems.
• Standard 7-pin sealed cable port, optional USB/Ethernet interfaces, and configurable test openings (e.g., for sensor leads or power feeds) support flexible integration into automated test environments.
• Compressor-based cooling with capillary tube expansion technology enables rapid, uniform thermal transitions—verified at ≤±2.0 °C uniformity and ±0.5 °C fluctuation across the full operating range.

Sample Compatibility & Compliance

The AC chamber accommodates a broad spectrum of test specimens—from monolithic electronic modules and sealed lithium-ion battery packs to structural composite panels and hermetically sealed sensors. It meets the mechanical and thermal load requirements for both散热 (heat-dissipating) and non-heat-dissipating devices per MIL-STD-810 and GJB 150 series standards. All configurations are validated against national and international regulatory frameworks including GB/T 2423.1–2423.27, GJB 150.2A (low pressure), GJB 150.3A/4A (high/low temperature), GJB 150.6 (temperature–altitude), GJB 150.19 (temperature–humidity–altitude), and GJB 150.24A (combined vibration–temperature–humidity–altitude). Battery safety evaluation complies with UN38.3, IEC 61960, UL1642, and UL2054—ensuring detection of venting, leakage, thermal runaway, or ignition during altitude-induced pressure differentials.

Software & Data Management

The chamber integrates with LabCompanion’s proprietary environmental test management software (optional), supporting ISO/IEC 17025-compliant data traceability, audit-ready logging, and GLP/GMP-aligned electronic signatures. Real-time acquisition includes chamber temperature, internal pressure (mbar), altitude equivalent (ft/m), and user-defined analog inputs (e.g., DUT voltage/current). All datasets are timestamped, encrypted, and exportable in CSV or PDF format. Optional Ethernet/USB connectivity enables remote monitoring, SCADA integration, and centralized fleet management via TCP/IP. Full 21 CFR Part 11 compliance is available with role-based access control, electronic audit trails, and immutable record retention.

Applications

This chamber serves critical validation workflows across multiple regulated sectors: aerospace component qualification (e.g., flight control actuators, pitot-static systems); military electronics survivability (radar transceivers, missile guidance units); automotive ADAS sensor robustness (LiDAR, radar housings under thermal–vacuum stress); battery safety certification (cell swelling, seal integrity, BMS response at simulated cruise altitudes); pharmaceutical packaging stability (moisture barrier performance under low-humidity, low-pressure conditions); and materials science research (polymer outgassing, adhesive bond strength degradation under cyclic thermal–barometric loading).

FAQ

What altitude ranges can the AC chamber simulate, and how quickly?
The chamber achieves ambient-to-50,000 ft in ≤10 minutes, ambient-to-75,000 ft in ≤20 minutes, and ambient-to-100,000 ft in ≤30 minutes—subject to chamber load and ambient conditions.
Can the chamber operate with powered devices inside during testing?
Yes. Standard 7-pin feedthrough ports support live electrical connection; custom configurations with higher-current or shielded feedthroughs are available upon request.
Is humidity control included in the base configuration?
No. Humidity functionality requires optional humidification module installation, enabling full compliance with GJB 150.19 and GB/T 2423.3/4.
What safety protections are built into the system?
Each compressor circuit includes overcurrent and overtemperature protection; heating elements feature short-circuit isolation; vacuum pump interlocks prevent dry-run operation; and chamber door safety switches disable vacuum/thermal actuation when open.
Does the chamber support automated test sequencing and reporting?
Yes. With optional software, users can define multi-step temperature–altitude profiles, trigger external instrumentation via TTL signals, and generate compliant test reports with pass/fail annotations per defined acceptance criteria.
