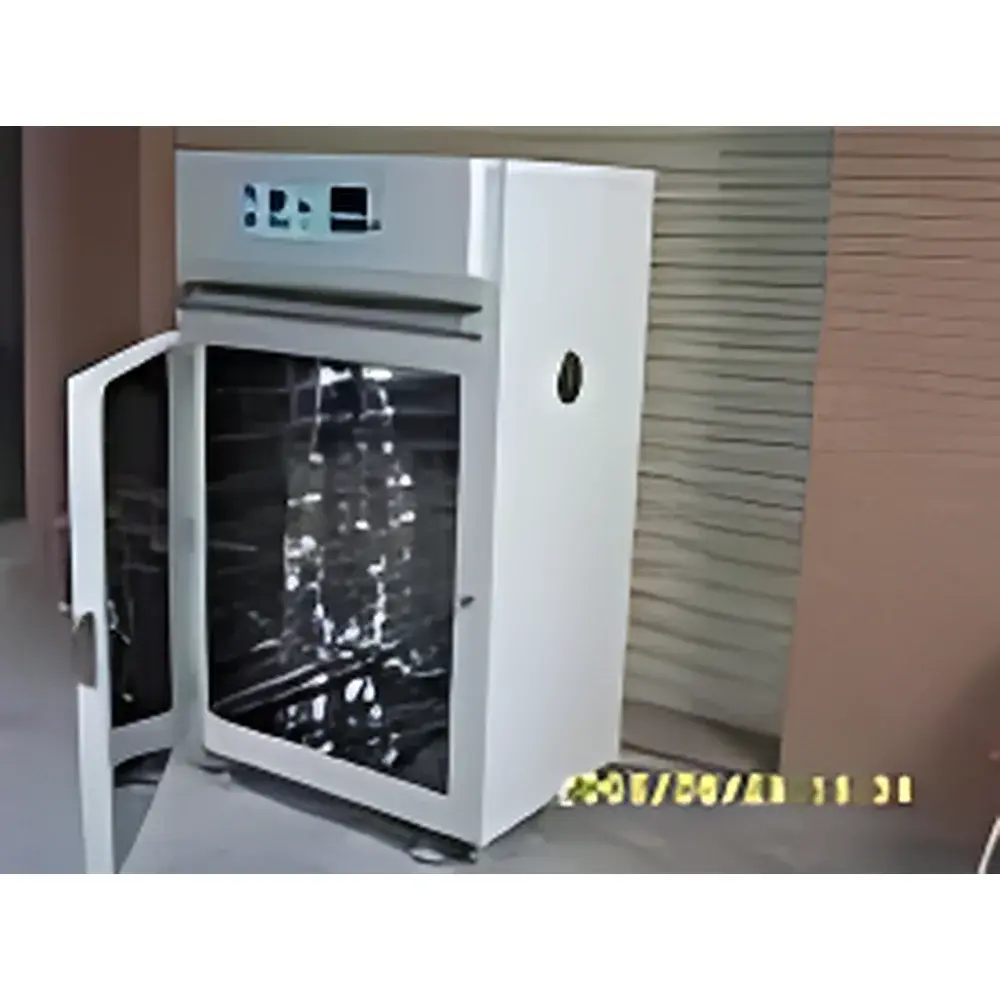

LabCompanion DHG-9003 Large-Capacity Forced-Air Drying Oven (920 L)

Overview

The LabCompanion DHG-9003 is a high-capacity, forced-air convection drying oven engineered for precision thermal processing in industrial quality control laboratories, pharmaceutical stability testing suites, and academic materials research facilities. Designed around the principle of uniform horizontal airflow—generated by a rear-mounted centrifugal blower and directed through perforated side wall ducts—the DHG-9003 ensures consistent heat distribution across its 920 L working chamber (940 × 700 × 1400 mm). Its operational temperature range extends from ambient +10°C up to 300°C, with certified temperature stability of ±0.5°C at setpoint under load (per internal calibration using NIST-traceable Class A PT100 sensors). The chamber’s 1Cr18Ni9Ti stainless steel construction (equivalent to AISI 304) provides long-term corrosion resistance against organic solvents, saline residues, and mild acidic vapors commonly encountered during sample drying, curing, or pre-conditioning protocols.

Key Features

• Forced-air convection system with adjustable airflow velocity and dual-side heating elements for enhanced thermal homogeneity
• High-strength 1.5 mm thick 1Cr18Ni9Ti stainless steel inner chamber—welded seamless corners, electropolished finish option available upon request
• Digital PID temperature controller with real-time deviation display, auto-tuning function, and over-temperature cut-off protection (independent mechanical safety thermostat included)
• Robust insulation: 100 mm thick mineral wool + aluminum foil composite layer, minimizing external surface temperature rise (<45°C at 200°C operation)
• Standard configuration includes one adjustable stainless steel shelf (load capacity: 25 kg/shelf); up to five shelves可 installed (optional)
• Front-opening double-layer tempered glass door with silicone gasket seal and magnetic latch for visual monitoring without thermal disruption
• Compliance-ready design: Supports IQ/OQ documentation packages and meets structural prerequisites for GLP/GMP environments

Sample Compatibility & Compliance

The DHG-9003 accommodates large-format samples including ceramic green bodies, polymer composites, coated metal substrates, bulk pharmaceutical excipients, and packaged medical device components. Its spacious chamber allows simultaneous processing of multiple ISO-standard test panels (e.g., ASTM D2244 color stability trays) or stacked petri dish racks (max. 200 × 150 mm footprint per level). The unit complies with IEC 61010-1:2010 for electrical safety and conforms to EN 60529 IP20 ingress protection rating. While not intrinsically rated for explosive atmospheres, optional inert gas purge ports (N₂ or dry air) can be integrated for oxygen-sensitive applications. For regulated industries, the D-series programmable controller supports audit trails, user-level access control, and electronic signature capability aligned with FDA 21 CFR Part 11 requirements when paired with validated software.

Software & Data Management

The standard DHG-9003 operates via embedded microcontroller-based hardware with local parameter adjustment only. For traceable process control, the optional D-series intelligent controller offers RS485 Modbus RTU interface and USB data export (CSV format). It enables up to 16-stage ramp-soak programs, real-time graphing of chamber temperature vs. time, and automatic logging of setpoints, actual values, alarms, and operator IDs. Logged data files are timestamped with UTC synchronization and support post-run analysis in Excel or LIMS-integrated platforms. Firmware updates are performed offline via USB drive; no cloud connectivity or remote access is implemented—ensuring data sovereignty and network isolation per ISO/IEC 27001-aligned IT policies.

Applications

• Moisture content determination per AOAC 950.46 and USP <731> Loss on Drying (LOD) procedures
• Curing of epoxy resins, powder coatings, and adhesive laminates under controlled thermal profiles
• Pre-drying of filter papers, crucibles, and volumetric glassware prior to gravimetric analysis
• Accelerated aging studies for packaging materials (ASTM F1980) and battery electrode slurries
• Stability testing of APIs and finished dosage forms under ICH Q1A(R2) long-term and accelerated conditions
• Residual solvent removal from printed circuit board assemblies prior to conformal coating

FAQ

What is the maximum recommended loading volume for optimal temperature uniformity?
For compliance with ±0.5°C uniformity specification, total loaded mass should not exceed 45 kg, distributed evenly across at least three shelf levels.
Can the DHG-9003 be validated per ISO/IEC 17025 requirements?
Yes—LabCompanion provides factory-assembled IQ/OQ documentation templates, sensor calibration certificates (NIST-traceable), and temperature mapping reports (15-point grid, per ASTM E2251). PQ support is available through authorized third-party service partners.
Is the stainless steel chamber suitable for halogen-containing compounds?
The 1Cr18Ni9Ti grade offers moderate resistance to HCl and HF vapors below 120°C; for aggressive halogen exposure, we recommend electropolished finish + optional PTFE-coated shelves and exhaust duct lining.
Does the oven support external data acquisition systems?
Via optional RS485 Modbus RTU interface (D-series controller), the unit outputs real-time temperature, setpoint, alarm status, and program stage ID—compatible with SCADA, LabVIEW, and DeltaV DCS platforms.
What maintenance intervals are recommended for sustained performance?
Blower motor lubrication every 12 months; filter cleaning every 3 months (if used with particulate-laden samples); annual verification of temperature sensor drift and door gasket integrity per internal SOP-TC-007.
