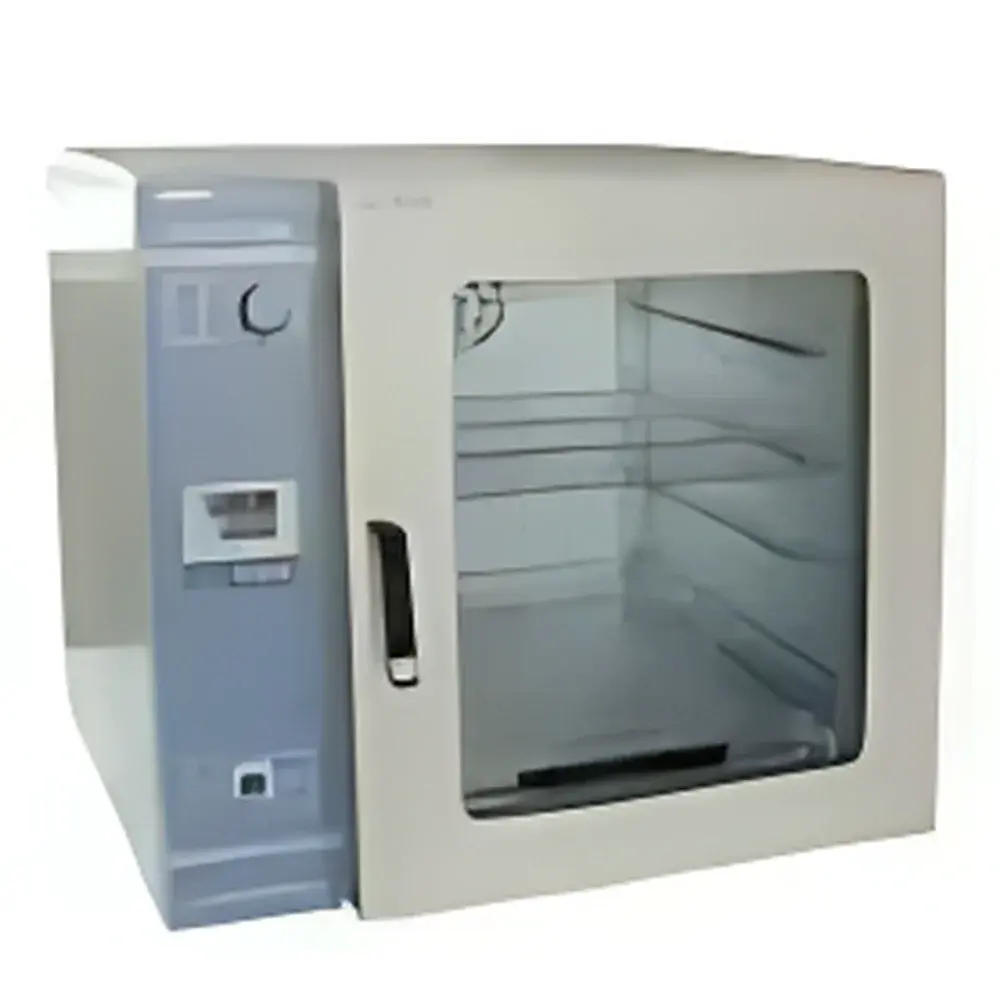

LabCompanion GZX2 Constant Temperature Drying Oven

Overview

The LabCompanion GZX2 Constant Temperature Drying Oven is an engineered-for-precision laboratory thermal processing system designed for controlled drying, baking, sterilization, aging, and heat treatment of non-flammable and non-explosive materials. Based on forced-air convection thermodynamics, the GZX2 maintains stable thermal environments through a horizontally mounted centrifugal fan that ensures uniform airflow distribution across the chamber—critical for applications demanding high spatial temperature consistency and temporal stability. Its dual-range heating architecture supports operation from ambient +10°C up to 300°C or ambient +20°C up to 450°C, accommodating diverse material conditioning protocols in electronics manufacturing, pharmaceutical R&D, polymer science, and quality assurance laboratories. The oven’s structural integrity derives from a cold-rolled steel outer shell finished with electrostatic epoxy powder coating for corrosion resistance, while interior variants offer either food-grade SUS304 stainless steel (BN series) or high-temperature silver-painted carbon steel (N series), both optimized for long-term thermal cycling reliability.

Key Features

• Microprocessor-based PID temperature controller with auto-tuning capability, enabling dynamic compensation for load-induced thermal inertia and ensuring rapid stabilization at setpoints.
• Independent over-temperature protection circuit—electrically isolated from the main control loop—complies with IEC 61000-4-5 surge immunity requirements and provides fail-safe shutdown if chamber temperature exceeds user-defined limits.
• High-efficiency insulation combining polyurethane foam (≥30 mm thickness) and glass fiber layers minimizes thermal leakage and improves energy efficiency during extended operation cycles.
• Adjustable air exchange rate (5–200 times/hour) allows precise control of moisture removal kinetics and volatile compound evacuation—essential for solvent-free drying of thin-film coatings or pre-bake steps in semiconductor wafer processing.
• LED digital display simultaneously shows real-time chamber temperature (measured by PT100 sensor) and user-defined setpoint, with intuitive up/down key interface for parameter entry and zero calibration offset adjustment.
• Four-point leveling feet and lockable casters support ergonomic repositioning and secure placement on vibration-sensitive lab benches or production floor environments.

Sample Compatibility & Compliance

The GZX2 accommodates a broad spectrum of sample formats—including petri dishes, crucibles, PCB assemblies, ceramic substrates, and bulk powder containers—within its standardized internal chambers (50×60×75 cm to 80×80×100 cm). Its non-explosive classification and absence of internal ignition sources make it suitable for Class A/B cleanroom-adjacent use per ISO 14644-1. The system meets JB/T 5520–1991 technical specifications for industrial drying ovens and supports traceable validation under GLP and GMP frameworks when equipped with optional data logging interfaces. For regulated industries, the RS232/RS485 communication port enables integration with LIMS platforms and facilitates audit-ready electronic records compliant with FDA 21 CFR Part 11 when paired with validated software.

Software & Data Management

While the base configuration operates via embedded firmware, optional programmable controllers enable multi-segment ramp-soak profiles and remote monitoring via serial command protocols. When connected to external recording systems—such as chart recorders or PC-based DAQ units—the GZX2 delivers time-stamped temperature logs with ≥0.1°C resolution and ≥1-second sampling intervals. All digital outputs adhere to Modbus RTU protocol conventions, permitting interoperability with SCADA environments and centralized facility management systems. Firmware updates are performed via USB-to-serial adapters using signed binary packages verified against SHA-256 checksums to ensure integrity during maintenance cycles.

Applications

• Electronics manufacturing: Pre-conditioning of LED/LCD modules, accelerated aging of capacitors and resistors, moisture removal from PCB laminates prior to soldering.
• Pharmaceutical development: Residual solvent evaporation from active pharmaceutical ingredients (APIs), excipient drying, stability testing per ICH Q1 guidelines.
• Materials science: Thermal curing of composites, binder burnout in ceramic green bodies, annealing of metal oxide thin films.
• Academic research: Controlled dehydration of biological specimens, gravimetric moisture content analysis per ASTM D2231, catalyst activation protocols.
• Food safety labs: Moisture determination in raw ingredients per AOAC 950.46, shelf-life modeling through accelerated storage trials.

FAQ

What temperature uniformity can be expected across the working chamber?
Temperature uniformity is specified at ±2.5% of the setpoint value, verified at nine standardized locations per JB/T 5520–1991 using calibrated PT100 probes.
Is the GZX2 suitable for sterilization applications?
It is not classified as a sterilizer per ISO 17665; however, it achieves microbial reduction consistent with dry-heat depyrogenation protocols (e.g., 250°C for ≥45 minutes) when validated for specific load configurations.
Can the oven be integrated into automated production lines?
Yes—via optional RS485 Modbus RTU interface, the unit supports handshake signaling, status reporting, and setpoint modulation from PLC-based control systems.
What is the recommended maintenance interval for the heating elements and fan assembly?
Under continuous operation, nickel-chromium heaters require visual inspection every 6 months; fan bearings should be lubricated annually using ISO VG 32 synthetic oil.
Does the GZX2 support IQ/OQ/PQ documentation packages?
LabCompanion provides customizable validation templates aligned with ASTM E2500 and EU Annex 15 principles; full qualification support is available through authorized service partners.
