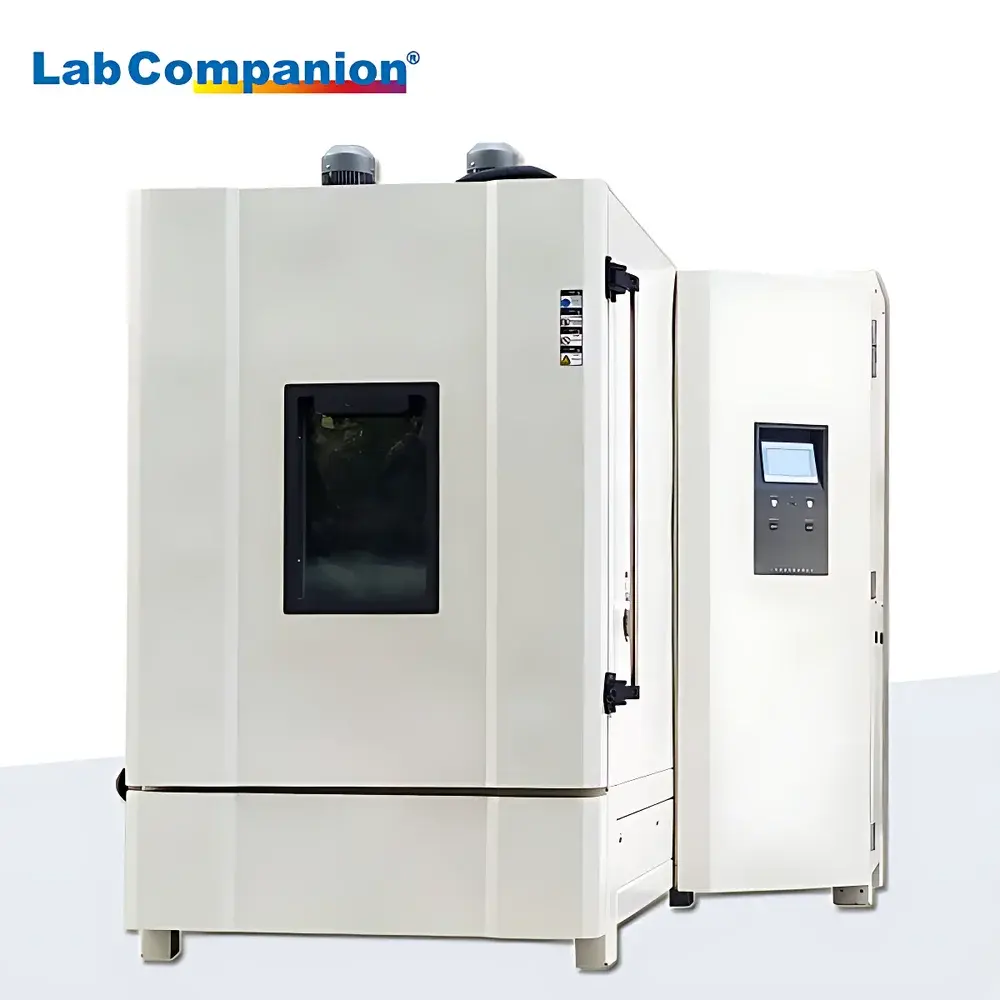

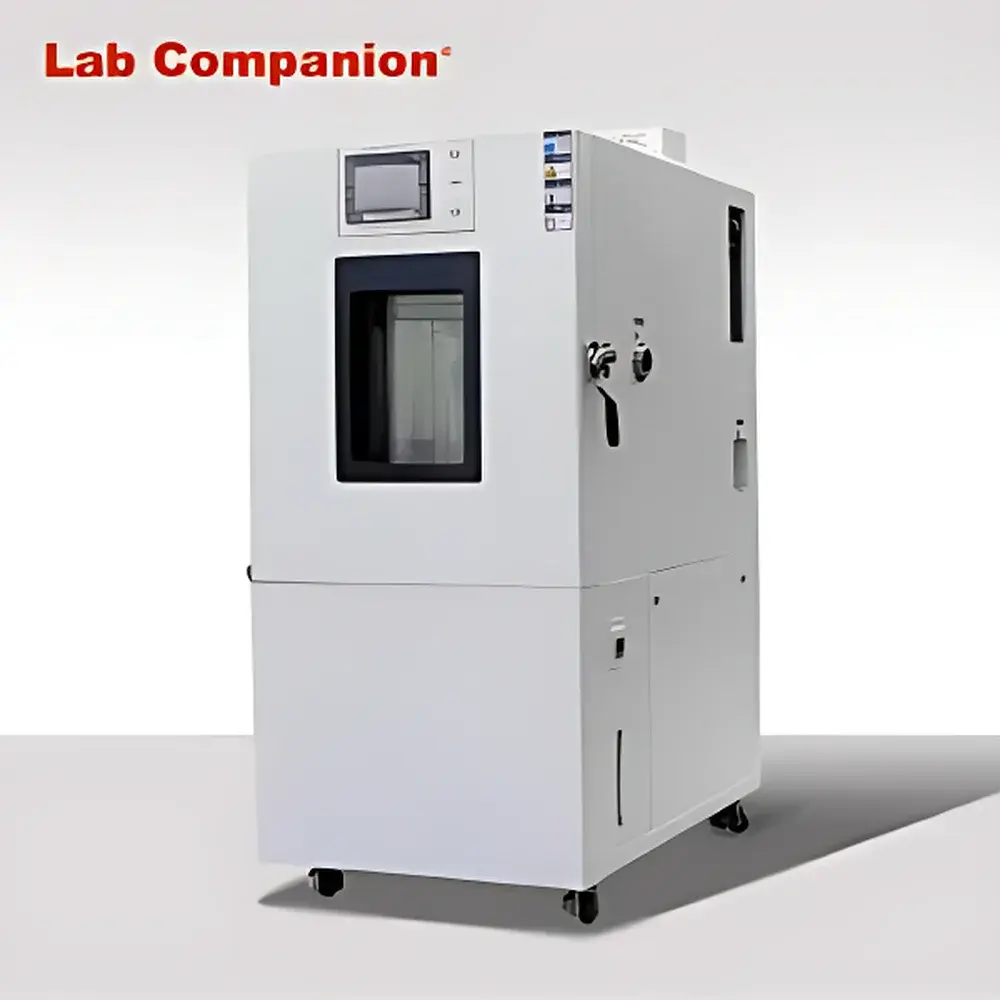

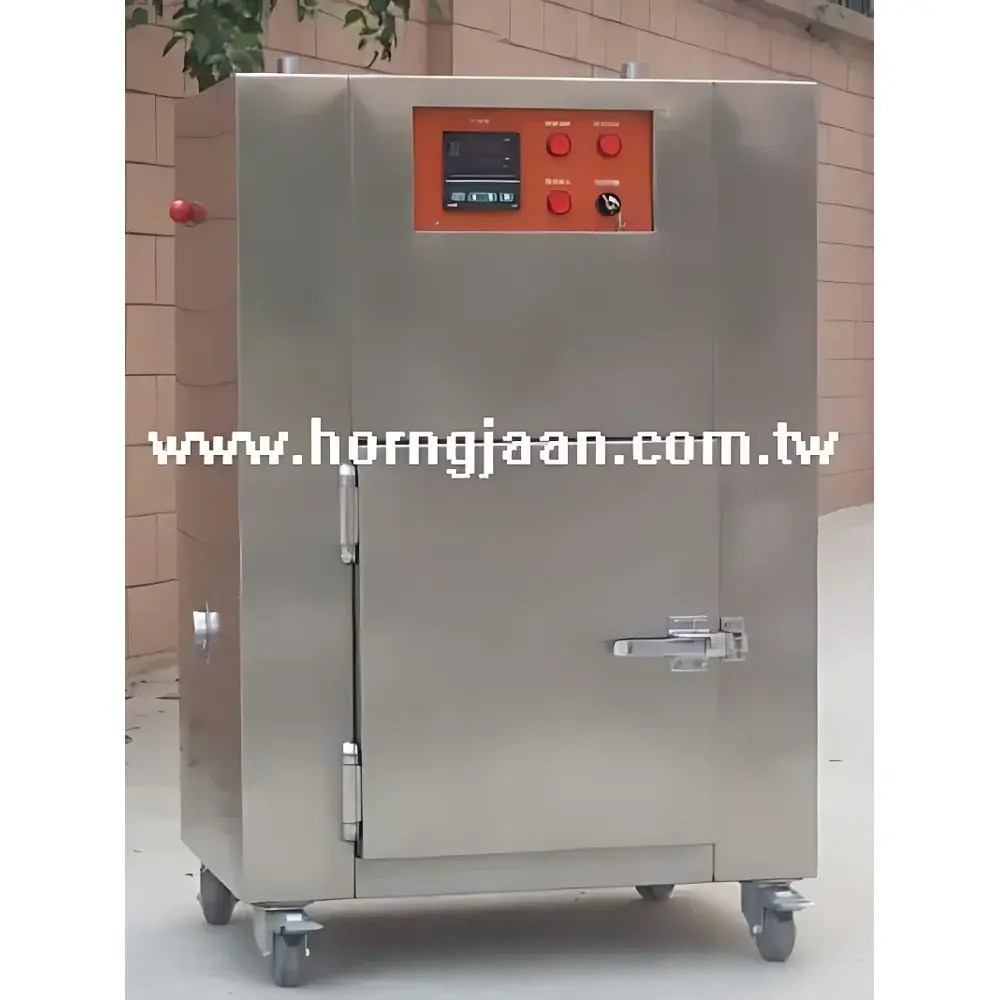

LabCompanion HH-5 High-Temperature Aging Test Chamber

Overview

The LabCompanion HH-5 High-Temperature Aging Test Chamber is an engineered environmental test system designed for precision thermal aging, drying, baking, and heat treatment of non-flammable and non-explosive materials under controlled atmospheric conditions. Built upon a robust convection-based thermal architecture, the HH-5 employs forced-air circulation to ensure uniform heat distribution across the working chamber—critical for applications demanding high repeatability in accelerated life testing and process validation. Its dual-range capability (RT+10°C to 300°C and RT+20°C to 450°C) accommodates both standard industrial drying protocols and high-temperature reliability screening for electronic components such as LEDs, LCDs, quartz crystals, capacitors, and resistors. The chamber operates in fixed-setpoint (constant temperature) mode, supporting time-bound thermal exposure per IEC 60068-2-2 and ASTM D3045 standards for thermal aging of plastics and electrical insulation materials.

Key Features

• Microprocessor-based PID temperature controller with auto-tuning functionality, enabling stable regulation within ±0.5°C fluctuation and ±2.5% spatial uniformity across the entire chamber volume.
• Dual-chamber material configuration: BN variant features full SUS304 stainless steel interior for corrosion resistance and cleanroom compatibility; N variant uses high-grade cold-rolled steel with high-temperature silver paint for cost-optimized industrial use.
• High-efficiency thermal insulation combining rigid polyurethane foam (≥80 mm thickness) and glass fiber layers, minimizing external surface temperature rise and energy consumption.
• Independent over-temperature safety cut-off circuit—mechanically isolated from the main control loop—to prevent thermal runaway during extended unattended operation.
• Ergonomic front-loading door with compression-type eco-silicone gasket ensures leak-resistant sealing and long-term resilience at elevated temperatures.
• Lockable heavy-duty casters facilitate repositioning within lab or production floor environments without requiring disassembly.
• LED digital display simultaneously shows setpoint and real-time chamber temperature measured via calibrated PT100 sensor mounted at geometric center.

Sample Compatibility & Compliance

The HH-5 is validated for use with solid-state electronic components, polymer substrates, pharmaceutical excipients, ceramic precursors, and coated metallic samples—provided they are non-volatile, non-toxic, and non-reactive under inert air conditions. It complies with JB/T 5520–1991 “Technical Requirements for Drying Ovens” and supports alignment with broader quality frameworks including ISO/IEC 17025 (for calibration traceability), GLP (Good Laboratory Practice), and GMP Annex 15 (for equipment qualification). While not intrinsically rated for hazardous atmospheres, optional RS232/RS485 communication ports enable integration into centralized monitoring systems compliant with FDA 21 CFR Part 11 when paired with audit-trail-capable software.

Software & Data Management

The base HH-5 operates in standalone fixed-temperature mode with manual parameter entry via intuitive up/down keys. Optional upgrades include programmable temperature controllers supporting multi-step ramp-soak profiles and external data logging via RS232 or RS485 interfaces. When integrated with third-party SCADA or LIMS platforms, the chamber can feed timestamped temperature records—including deviation alerts and safety event logs—for automated report generation and 21 CFR Part 11-compliant electronic signatures. All firmware updates and configuration backups are performed through secure serial protocols, ensuring version control integrity during IQ/OQ/PQ validation cycles.

Applications

• Accelerated aging of semiconductor packaging materials and printed circuit board laminates per IPC-TM-650 2.6.25.
• Pre-baking of moisture-sensitive devices (MSL-rated components) prior to reflow soldering.
• Thermal stress screening of optoelectronic assemblies including OLED drivers and backlight modules.
• Stability testing of active pharmaceutical ingredients (APIs) and excipients under ICH Q1A(R2) long-term and accelerated conditions.
• Curing of epoxy adhesives, conformal coatings, and solder mask resins in electronics manufacturing.
• Residual solvent removal from thin-film deposition substrates in R&D laboratories.

FAQ

What is the maximum operating temperature of the HH-5 chamber?

The HH-5 offers two configurations: one rated up to 300°C (starting from ambient +10°C), and another engineered for sustained operation up to 450°C (starting from ambient +20°C).
Does the HH-5 support programmable temperature profiles?

Standard units operate in fixed-temperature mode. A programmable controller is available as an optional upgrade, enabling multi-segment ramp-hold sequences.
Can the chamber be qualified for GMP environments?

Yes—the mechanical design, sensor traceability, and optional data logging capabilities support IQ/OQ/PQ execution per ASTM E2500 and EU Annex 15 guidelines.
What safety certifications does the HH-5 carry?

It conforms to GB/T 5170.2 (Chinese national standard for temperature chamber testing) and meets CE marking requirements for low-voltage directive (2014/35/EU) and EMC directive (2014/30/EU) when supplied with certified power modules.
Is internal volume customization available?

Three standard internal dimensions are offered (50×60×75 cm, 70×70×80 cm, 80×80×100 cm); custom cavity geometries require engineering review and may impact thermal uniformity validation.
