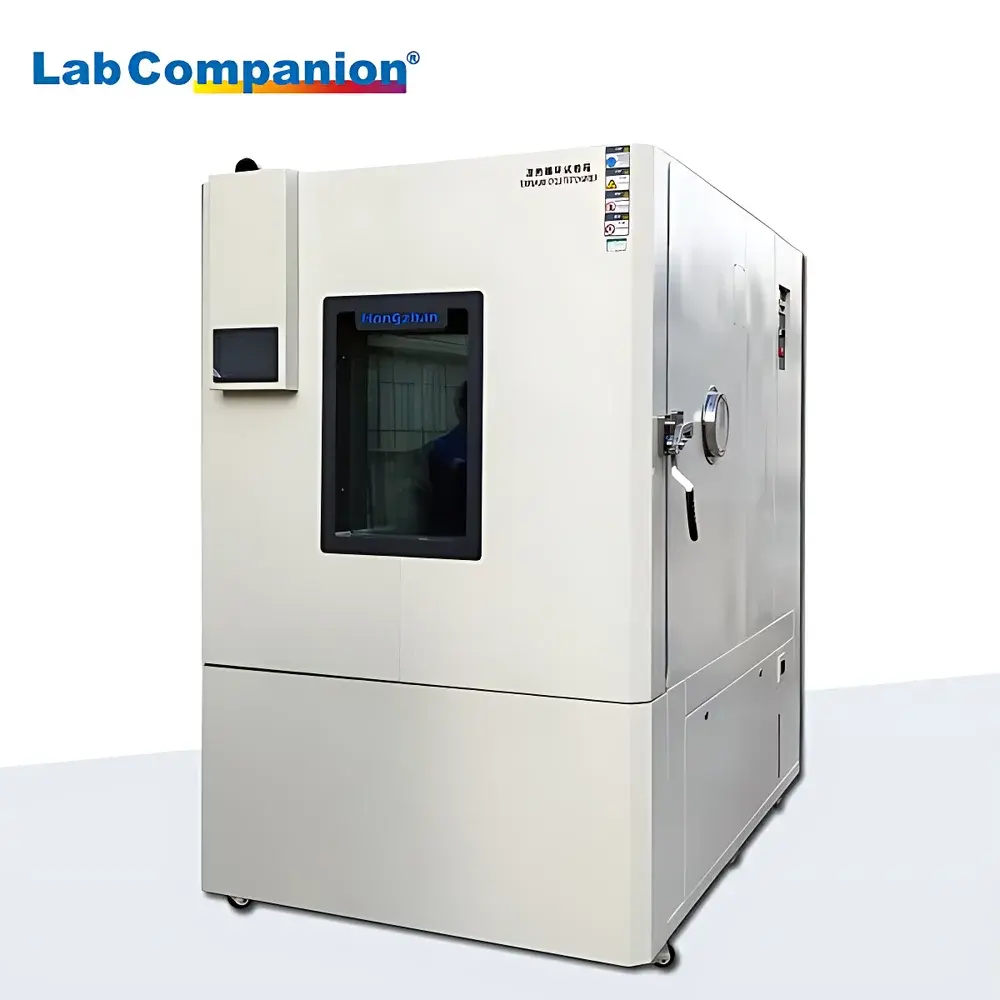

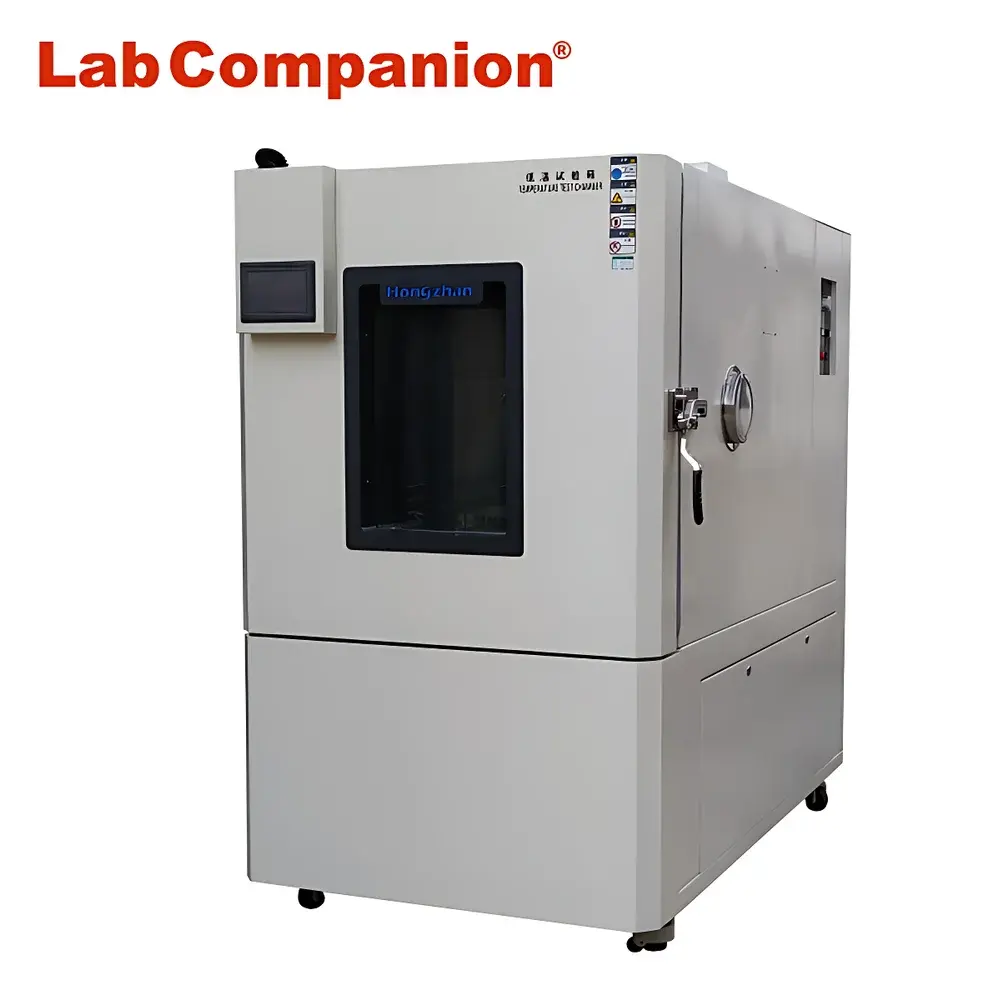

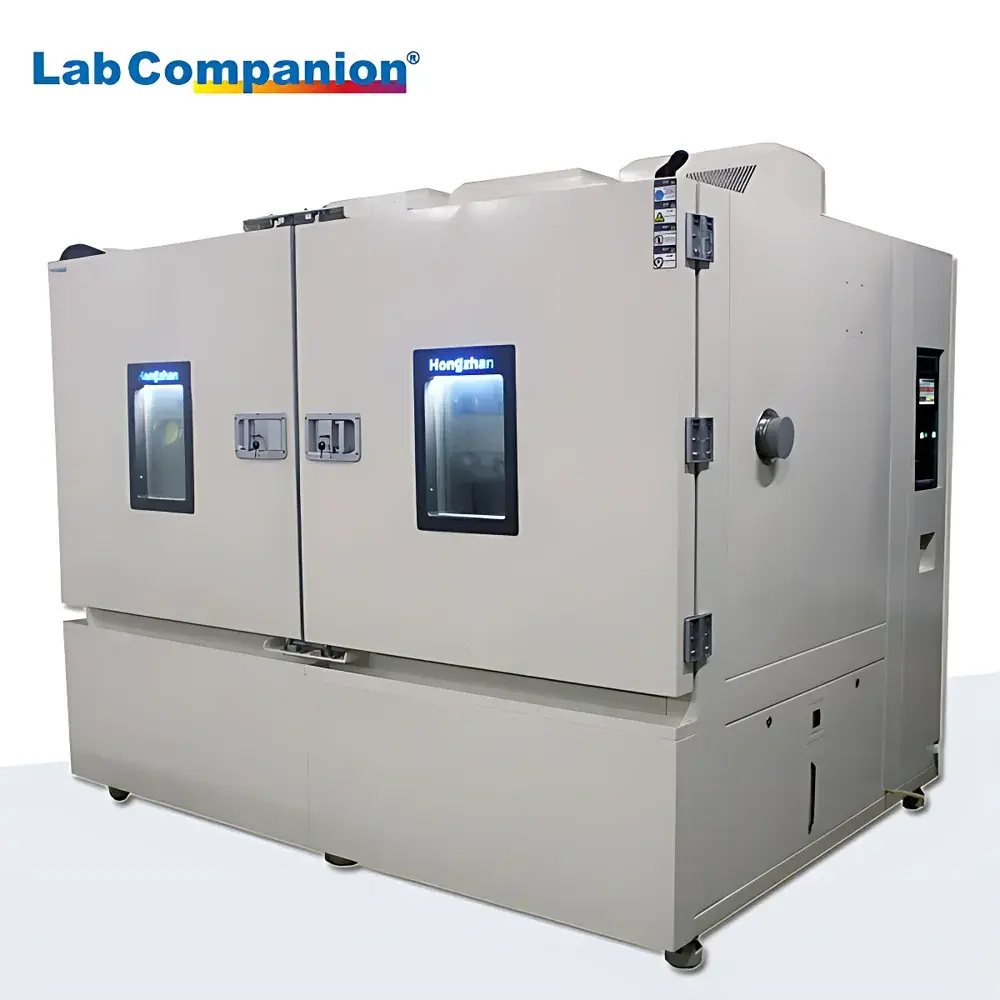

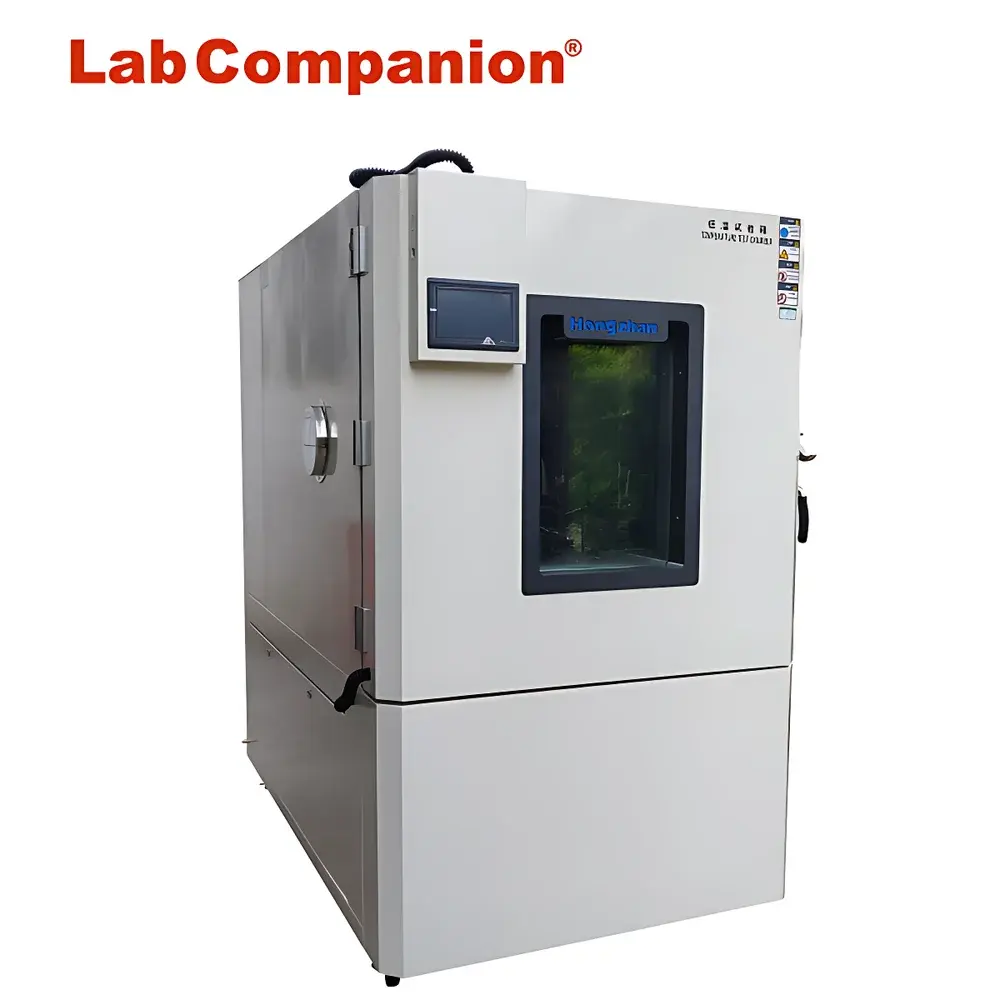

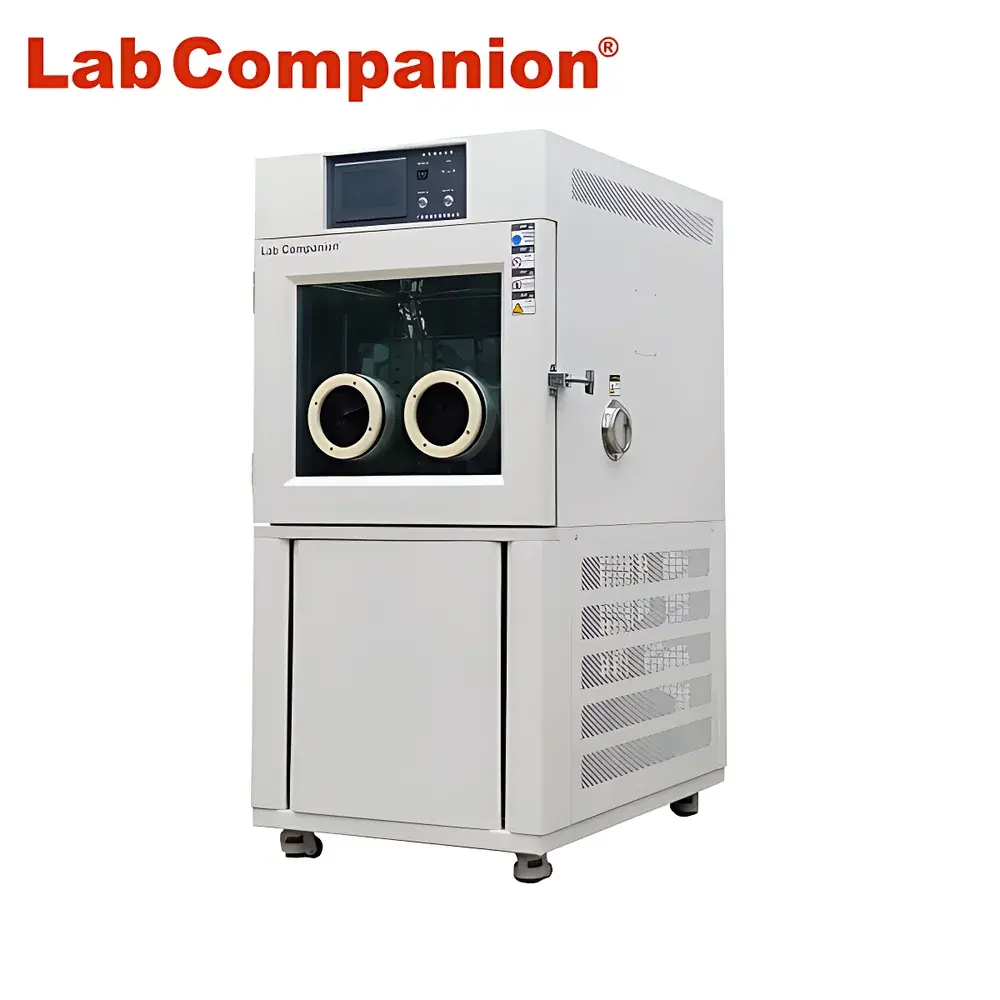

LabCompanion High-Low Temperature Environmental Test Chamber

Overview

The LabCompanion HLT Series High-Low Temperature Environmental Test Chamber is an engineered solution for precise, repeatable thermal stress testing across industrial R&D, quality assurance, and compliance validation workflows. Designed around the fundamental principle of forced-air convection with balanced thermal energy exchange, the chamber maintains stable, uniform temperature profiles within its insulated stainless-steel working space using a dual-stage refrigeration system coupled with high-efficiency heating elements and advanced microprocessor-based control logic. Its operational envelope spans −70 °C to +150 °C—covering critical qualification requirements for aerospace components (per MIL-STD-810H, Method 502.7), automotive ECUs (ISO 16750-4), semiconductor packaging (JEDEC JESD22-A104E), and medical device sterilization validation (ISO 11137). The chamber operates in accordance with ISO 17025-compliant laboratory practices and supports GLP/GMP audit readiness through traceable calibration records and configurable data logging intervals.

Key Features

• Robust thermal architecture: 100 mm composite insulation combining fire-retardant polyurethane foam and high-density glass wool ensures minimal heat leakage and stable ambient decoupling.
• Precision temperature control: Japanese EYEECON programmable controller implements adaptive PID+PWM+SSR algorithms for dynamic load compensation and sub-0.5 °C stability under steady-state conditions.
• High-reliability refrigeration: Twin-circuit or cascade cooling systems (depending on model) integrate French Tecumseh compressors rated for continuous operation at extreme low-temperature setpoints.
• Full-spectrum safety redundancy: Dual independent over-temperature limiters, compressor discharge pressure monitoring, phase sequence detection, and real-time fan motor current sensing prevent uncontrolled thermal excursions.
• Modular interior design: Removable 304 stainless steel shelves (standard two-tier configuration), dual 50 mm diameter cable ports with silicone gaskets, and optional humidity integration (20–98% RH, down to 5% RH with deep-dry option).

Sample Compatibility & Compliance

The HLT Series accommodates a wide range of test specimens—from printed circuit boards and lithium-ion battery modules to polymer-based medical implants and avionics enclosures—within standardized internal volumes ranging from 20 L (desktop) to 1000 L (floor-standing). All models comply with IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), and IEC 60068-2-14 (thermal shock) test methodologies. Optional configurations support ASTM D3418 (Tg determination), USP <1208> (container closure integrity), and AEC-Q200 (automotive passive component qualification). Internal SUS#304 construction meets FDA-recommended material standards for cleanroom-adjacent environments and avoids outgassing contaminants during high-temperature holds.

Software & Data Management

LabCompanion’s proprietary WinTest software (Windows-compatible, USB/Ethernet interface) enables remote programming of multi-step thermal profiles—including ramp-hold-soak cycles, linear/non-linear gradients, and user-defined dwell times—with up to 99 segments per program. Real-time data acquisition records temperature (and optional humidity) at configurable intervals (1–60 s), stores timestamps with millisecond precision, and exports CSV/Excel-compatible logs with embedded metadata (operator ID, chamber serial number, calibration certificate ID). Audit trail functionality satisfies FDA 21 CFR Part 11 requirements via electronic signatures, immutable log files, and role-based access control. Calibration history and maintenance alerts are automatically logged and exportable for internal QA review or third-party accreditation audits (e.g., CNAS, UKAS).

Applications

• Accelerated life testing of electronic assemblies under thermal cycling stress (JEDEC JESD22-A104E, A110B).
• Material coefficient of thermal expansion (CTE) characterization for PCB laminates and encapsulants.
• Validation of thermal management solutions in EV battery packs (UN 38.3 T1–T5, ISO 12405-2).
• Stability assessment of pharmaceutical packaging under ICH Q1A(R2) long-term and accelerated storage conditions.
• Environmental screening of aerospace-grade composites per RTCA DO-160 Section 4 (temperature variation) and Section 5 (temperature altitude).
• Pre-conditioning of sensors and actuators prior to functional performance verification in automotive Tier-1 supply chains.

FAQ

What is the standard calibration interval recommended for this chamber?
LabCompanion recommends annual NIST-traceable calibration performed by an ISO/IEC 17025-accredited service provider, with interim verification using certified reference thermometers at three spatial points (center, top corner, bottom corner) before critical qualification runs.
Can the chamber be integrated into a centralized lab automation network?
Yes—the HLT Series supports Modbus TCP and Ethernet/IP protocols for seamless integration with LIMS, MES, or SCADA platforms. Optional OPC UA gateway firmware enables secure, encrypted data exchange compliant with ISA-95 Level 2 architecture.
Is it possible to retrofit an existing dry chamber with humidity capability?
Humidity add-on kits are available for select models (HLT-608 and larger), including steam generator, water reservoir with level sensor, and corrosion-resistant humidifier housing—but require structural reinforcement and dedicated dehumidification capacity to maintain low-temperature stability below 0 °C.
How does the chamber handle rapid temperature transitions without condensation or frost accumulation?
The system employs intelligent dew-point suppression logic: pre-cooling of air intake paths, timed defrost cycles synchronized with ramp phases, and dynamic airflow modulation to minimize moisture migration into cold zones—ensuring reliable operation even during aggressive 15 °C/min transitions.
Are spare parts and technical documentation available globally?
Yes—LabCompanion maintains regional spares hubs in Germany, Singapore, and the USA, with full English-language service manuals, exploded diagrams, firmware updates, and controller parameter backup templates accessible via secure customer portal after registration.
