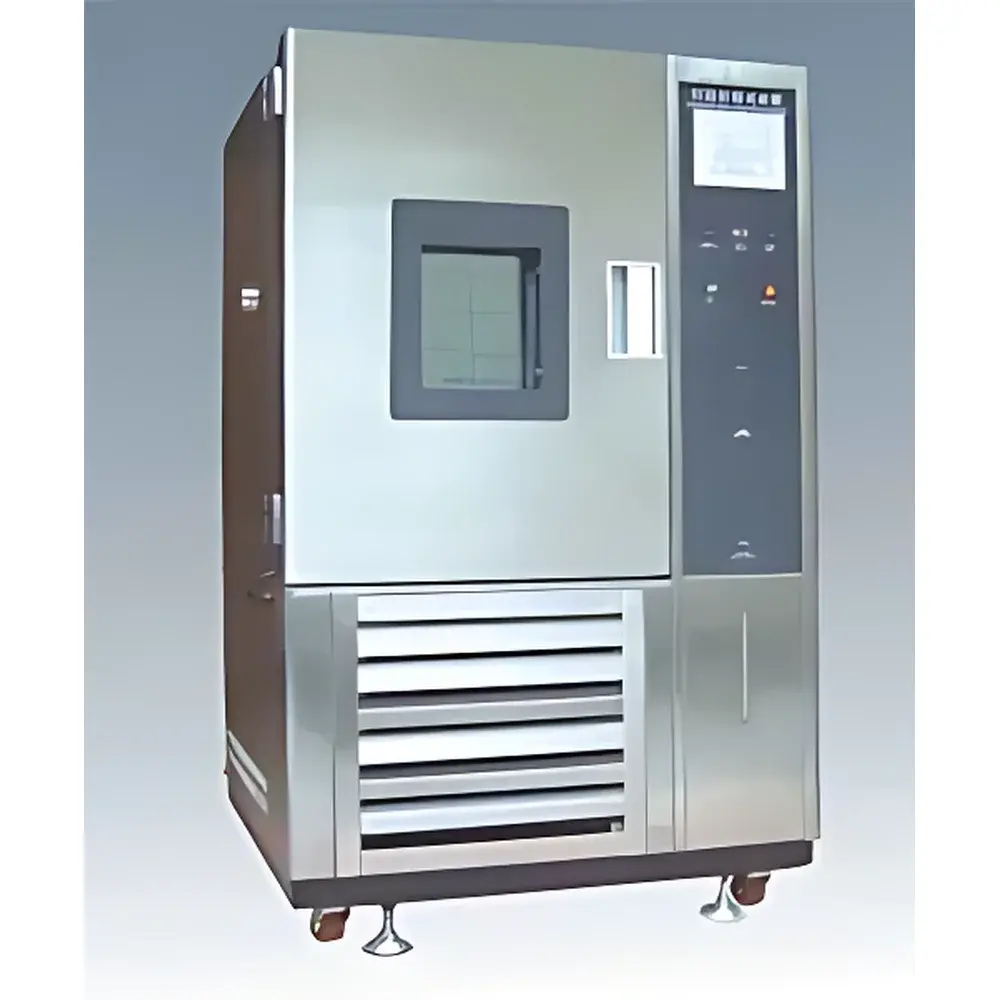

LabCompanion HLT-1000 Series High-Low Temperature & Humidity Environmental Test Chamber

Overview

The LabCompanion HLT-1000 Series High-Low Temperature & Humidity Environmental Test Chamber is an engineered platform for accelerated reliability testing of materials, components, and finished products under precisely controlled thermal and hygrothermal stress conditions. Based on the fundamental principles of thermodynamic equilibrium and vapor pressure control, the chamber replicates real-world environmental exposures—including extreme cold, elevated heat, sustained humidity, and dynamic cycling between temperature and humidity extremes—to evaluate functional integrity, dimensional stability, material degradation, and failure mechanisms. Designed in strict accordance with IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-30 (damp heat, cyclic), and ISO 16750-4 (road vehicles—environmental conditions), the system supports qualification testing per MIL-STD-810, JIS C 0021, and GB/T 2423 standards. Its modular architecture enables seamless integration into laboratory QA workflows and production-line validation protocols.

Key Features

• Independent, digitally regulated subsystems for heating, cooling, humidification, and dehumidification—ensuring stable setpoint attainment and minimal cross-interference during complex profile execution.
• LCD-based programmable controller supporting up to 100 multi-segment cycles, with user-definable ramp rates, dwell times, loop counts, and conditional branching logic for customized test sequences.
• Vacuum-insulated double-glazed observation window with internal anti-fog coating, enabling non-intrusive visual monitoring of samples without compromising chamber integrity or thermal/hygrometric stability.
• Linear analog output (0–10 VDC or 4–20 mA) for both temperature and relative humidity—compatible with external data loggers, SCADA systems, or LIMS platforms for continuous traceability and audit-ready recordkeeping.
• Dual-stage refrigeration circuitry (cascade configuration) standard on models rated for ≤ −40°C operation, delivering consistent sub-zero performance even at full humidity load and ambient temperatures up to 35°C.
• Robust mechanical construction: inner chamber and door liner fabricated from electropolished SUS#304 stainless steel; outer casing in powder-coated steel; high-density PU insulation (≥100 mm thickness) with silicone gasket sealing for <0.5 K/W thermal transmittance.

Sample Compatibility & Compliance

The HLT-1000 accommodates a broad range of sample geometries and mass loads across its five standard internal volume configurations (from 80 L to 800 L). Samples—including PCB assemblies, automotive ECUs, polymer enclosures, medical device housings, and pharmaceutical packaging—remain fully accessible via front-loading design with reinforced hinges and ergonomic door latch. All models comply with EN 61000-6-3 (EMC emission) and EN 61000-6-2 (immunity), and are constructed to meet CE marking requirements for machinery safety (2006/42/EC). Optional factory-installed calibration certificates (traceable to NIM or NIST-equivalent national standards) and IQ/OQ documentation packages are available to support GLP, GMP, and ISO/IEC 17025-accredited laboratories.

Software & Data Management

While the embedded controller provides standalone operation, LabCompanion offers optional PC-based software (ChamberLink™ v3.2) for remote monitoring, real-time graphing, automated report generation (PDF/CSV), and electronic signature support aligned with FDA 21 CFR Part 11 requirements. The software enforces role-based access control, full audit trail logging (including parameter changes, start/stop events, and alarm acknowledgments), and configurable email/SMS alerts for critical deviations. Raw sensor data—including chamber air temperature, wet-bulb/dry-bulb readings, compressor discharge pressure, and heater duty cycle—is timestamped at 1-second intervals and exportable for statistical process analysis (e.g., Cp/Cpk, trend charts, Weibull modeling).

Applications

• Electronics: Thermal cycling of solder joints, moisture sensitivity level (MSL) evaluation per JEDEC J-STD-020, and condensation resistance testing of conformal-coated assemblies.
• Automotive: Validation of infotainment modules, battery management systems, and ADAS sensors under combined temperature-humidity stress per ISO 16750-4 and LV-124.
• Pharmaceuticals: Stability studies per ICH Q1A(R3) guidelines—including long-term (25°C/60% RH) and accelerated (40°C/75% RH) conditions—for drug product and primary packaging.
• Materials Science: Hygroscopic expansion coefficient measurement, polymer hydrolysis kinetics, and corrosion initiation assessment on coated metals per ASTM D2247 and ISO 9223.
• Aerospace: Environmental screening of avionics enclosures per RTCA DO-160 Section 4 (temperature) and Section 5 (humidity), including rapid transition profiles.

FAQ

What is the typical recovery time after door opening during a −40°C / 95% RH test?
Recovery to within ±0.5°C and ±3% RH typically requires ≤12 minutes for the HLT-1000D model (60×80×85 cm internal), assuming a 15-second door opening at ambient 25°C/50% RH.
Can the chamber be validated for GxP-compliant use?
Yes—optional IQ/OQ documentation, 3-point temperature/humidity mapping (per ISO 17025), and electronic audit trail enable compliance with FDA 21 CFR Part 11, EU Annex 11, and WHO TRS 961.
Is steam humidification compatible with cleanroom-class testing?
The stainless-steel steam generator produces particle-free, pyrogen-free vapor; optional DI water feed system with inline 0.2 µm filtration ensures compliance with ISO 14644-1 Class 5 environments.
What refrigerant is used, and does it meet current environmental regulations?
All units utilize R-404A (models ≤ −40°C) or R-507A (≤ −70°C), both compliant with EU F-Gas Regulation (EU) No 517/2014 and EPA SNAP approval for laboratory equipment.
How is calibration traceability maintained over the instrument lifecycle?
Factory calibration uses NIST-traceable reference sensors; users may perform field verification using external calibrated probes—controller firmware supports offset adjustment with full audit trail logging.
