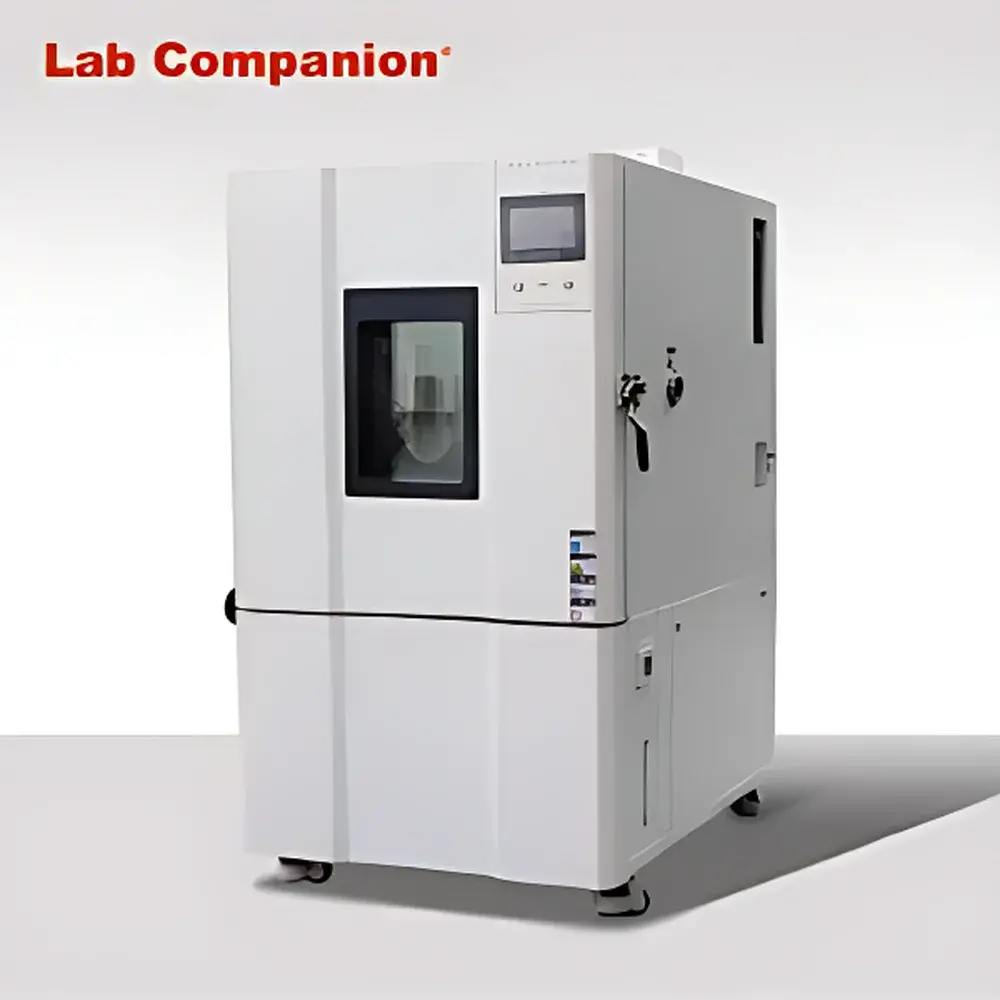

LabCompanion HLTC-800 Series High-Low Temperature Environmental Test Chamber

Overview

The LabCompanion HLTC-800 Series High-Low Temperature Environmental Test Chamber is an engineered solution for precise, repeatable thermal stress testing across industrial quality assurance, electronics reliability validation, automotive component qualification, and materials science research. Based on forced-air convection thermodynamics and mechanical compression refrigeration, the chamber maintains stable thermal environments within a certified operating range of −70 °C to +150 °C—enabling accelerated life-cycle testing, cold-start simulation, thermal shock pre-conditioning, and storage stability assessment per IEC 60068-2, MIL-STD-810, and ASTM D3574 protocols. Its dual-patented condensation suppression architecture (ZL201120542811.6 and ZL201520544047.4) eliminates internal dew formation during rapid transitions or high-humidity operation—critical for evaluating hygroscopic polymers, coated substrates, and sealed electronic assemblies without moisture-induced artifacts.

Key Features

• Robust dual-layer thermal isolation: 120 mm high-density mineral wool insulation (λ ≤ 0.04 W/m·K) combined with vacuum-sealed silicone rubber gaskets ensures ≤0.8 W/m²·K heat transfer coefficient under steady-state conditions.
• Programmable precision control: 32-bit embedded controller with real-time PID tuning supports up to 100 stored test profiles, each containing up to 1,000 programmable steps—including ramp/soak sequences, cycling loops (up to 250 inner cycles × 9999 outer cycles), and conditional triggers based on temperature/humidity thresholds.
• Energy-optimized refrigeration: Variable-speed inverter-driven compressor modulates cooling capacity from 0% to 100%, eliminating wasteful heater-counterbalance operation and reducing power consumption by ≥30% versus conventional on/off systems.
• Modular chamber interface: Two standardized access ports—50 mm (left) and 125 mm (right)—facilitate sensor feedthroughs, power cabling, and pneumatic lines while maintaining pressure integrity (leak rate < 1.0 × 10⁻³ Pa·m³/s).
• Dual-fan air management: Independently adjustable axial fans ensure uniform airflow distribution (velocity deviation < ±8% across chamber volume), achieving ±2.0 °C temperature uniformity per ISO 16750-4 Annex B verification methodology.
• Fail-safe protection suite: Integrated overcurrent, overtemperature, low-refrigerant, and water-level monitoring circuits automatically initiate shutdown and log fault codes compliant with IEC 61508 SIL1 requirements.

Sample Compatibility & Compliance

The HLTC-800 accommodates samples up to 65 kg gross load with full dimensional clearance inside its 408 L stainless steel working chamber (800 × 850 × 600 mm). Removable, height-adjustable sample racks (304 SS, load-rated to 25 kg per shelf) support PCB assemblies, battery modules, optical sensors, medical device housings, and composite laminates. All models meet electromagnetic compatibility standards EN 61326-1 and safety requirements IEC 61010-1. Optional C-series configurations include steam-based humidification (10–98% RH, ±2.5% RH accuracy) validated per ISO 4675 and ASTM E145 Annex A3. The system supports audit-ready documentation workflows aligned with FDA 21 CFR Part 11 (via optional electronic signature module) and GLP/GMP traceability frameworks.

Software & Data Management

Control firmware includes native support for RS232-C, TCP/IP (Modbus TCP), and USB host interfaces—enabling integration into centralized MES or LIMS platforms. The included LabCompanion TCMS v4.2 software provides real-time multi-channel trending, alarm event logging with timestamped metadata, and CSV/PDF report generation. Optional data acquisition add-ons enable synchronized recording at 1 Hz resolution across up to 16 external thermocouple or humidity probe inputs. All system logs—including calibration history, parameter changes, and operational states—are cryptographically signed and time-stamped to satisfy ISO/IEC 17025 clause 7.7 record retention mandates.

Applications

• Automotive: Cold-cranking validation of ECUs, thermal cycling of ADAS radar housings, and polymer shrinkage analysis under climate extremes.
• Electronics: Burn-in screening of SiC power modules, solder joint fatigue modeling, and conformal coating adhesion testing after thermal-hygric exposure.
• Pharmaceuticals: Stability chamber qualification per ICH Q1A(R2), excipient compatibility studies, and lyophilized product reconstitution kinetics under controlled thermal gradients.
• Aerospace: Composite layup curing cycle verification, avionics enclosure thermal shock survivability, and sealant performance mapping across −65 °C to +125 °C.
• Academic Research: Phase-transition behavior of shape-memory alloys, cryogenic dielectric characterization, and nanomaterial thermal expansion coefficient derivation.

FAQ

What is the standard warranty period for the HLTC-800 series?
LabCompanion provides a 24-month comprehensive parts-and-labor warranty covering all structural, refrigeration, and control subsystems—extendable to 36 months under annual service agreement.
Can the chamber be calibrated to NIST-traceable standards?
Yes. Factory calibration uses Fluke 1524 reference thermometers (±0.05 °C uncertainty) and Rotronic HC2-S probes (±0.8% RH). Certificate of Calibration (ISO/IEC 17025-accredited) is available upon request.
Is remote monitoring supported without proprietary software?
All HLTC-800 units ship with open Modbus TCP register maps and HTTP API documentation—enabling direct integration with SCADA, Ignition, or custom Python-based dashboards.
How is condensation prevented during low-temperature/high-humidity transitions?
The patented dual-chamber dew-point management system actively heats sealing surfaces and controls boundary-layer air saturation using real-time psychrometric feedback—eliminating condensate formation on fixtures or test specimens.
Are replacement parts available globally?
Yes. Critical spares—including compressors (Danfoss MTZ series), touchscreens (Elo TouchSystems), and fan modules—are stocked in regional hubs across North America, EU, and APAC with ≤5 business day lead time.
