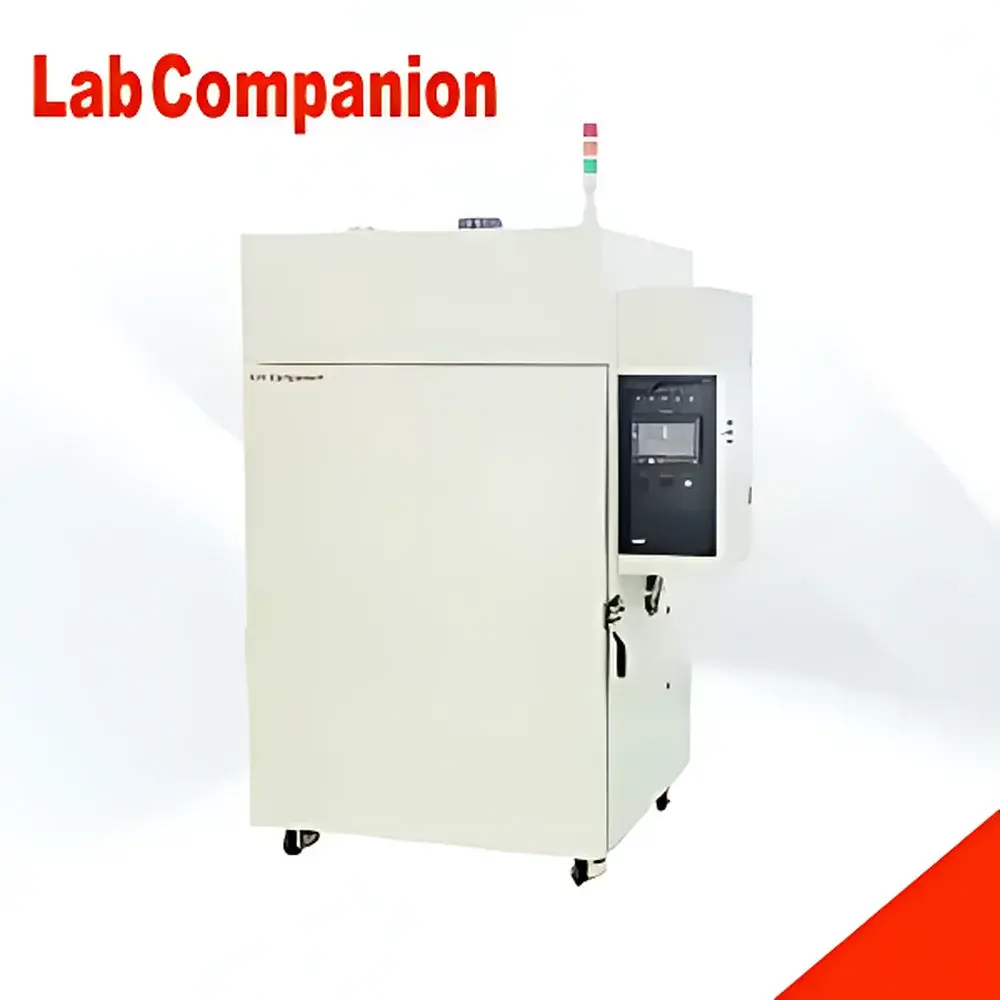

LabCompanion OVEN-91 High-Temperature Air Aging Test Chamber

Overview

The LabCompanion OVEN-91 is a precision-engineered high-temperature air aging test chamber designed for accelerated thermal degradation testing of polymeric materials, elastomers, rubber compounds, adhesives, and electrical insulating components. It operates on the principle of forced convection heating—circulating heated ambient air uniformly throughout the working chamber via a high-reliability, continuous-duty centrifugal blower system. Unlike static ovens, the OVEN-91’s thermally optimized airflow path ensures consistent heat transfer across all sample positions, minimizing spatial temperature gradients and enabling reproducible aging outcomes per international material stability standards. Its operational range of 150 °C to 200 °C targets critical aging thresholds where oxidative crosslinking, chain scission, and volatilization kinetics become measurably accelerated—making it suitable for qualification testing in automotive, aerospace, wire & cable, and medical device manufacturing.

Key Features

• Robust chamber construction: Interior chamber fabricated from fully welded AISI 304 stainless steel for corrosion resistance and long-term dimensional stability under repeated thermal cycling.
• Thermally insulated double-wall enclosure with high-density mineral wool insulation, minimizing external surface temperatures and improving energy efficiency during extended high-temperature operation.
• Precision microprocessor-based PID temperature controller with 0.1 °C resolution, real-time deviation compensation, and programmable ramp/soak profiles for multi-stage aging protocols.
• Dual-layer tempered glass observation window with integrated anti-fog heater, allowing unobstructed visual monitoring without compromising thermal integrity or safety.
• High-efficiency air circulation system featuring an imported high-temperature fan (rated >250 °C continuous duty) and symmetrically engineered air ducts to achieve ±2.0 °C uniformity across the entire working volume (per ASTM E742 verification methodology).
• Comprehensive safety architecture including over-temperature cut-off, door interlock switch, ground fault circuit interrupter (GFCI), and audible/visual alarm triggers for abnormal thermal excursions.

Sample Compatibility & Compliance

The OVEN-91 accommodates standard aging racks, perforated trays, and custom fixtures for flat specimens (e.g., ASTM D573 dumbbells), molded parts, cable jacket segments, and encapsulated electronic assemblies. Its internal dimensions (W×D×H: 450 × 450 × 500 mm) support concurrent testing of multiple samples per IEC 60068-2-1 Annex A requirements. The chamber is engineered to meet the thermal performance criteria specified in ASTM D573 (Rubber—Deterioration by Heat Aging), ISO 188 (Vulcanized or Thermoplastic Rubber—Accelerated Ageing and Heat Resistance Tests), and GB/T 3512 (Rubber—Heat Ageing Test). While not certified as GLP-compliant out-of-the-box, its data logging interface and audit-ready event history support integration into regulated environments requiring 21 CFR Part 11–compliant validation packages when paired with validated third-party software.

Software & Data Management

The OVEN-91 features RS485 Modbus RTU communication capability for seamless integration into centralized laboratory information management systems (LIMS) or SCADA networks. Optional USB data logger modules record time-stamped temperature readings at user-defined intervals (1–60 sec), generating CSV-formatted files compatible with Excel, MATLAB, or statistical process control (SPC) platforms. All controller events—including setpoint changes, alarm activations, power interruptions, and door openings—are timestamped and stored in non-volatile memory for traceability. For facilities operating under GxP frameworks, the system supports IQ/OQ documentation templates and can be configured with electronic signature-enabled operator access levels when deployed with compliant supervisory software.

Applications

• Accelerated aging of silicone, EPDM, nitrile, and fluorocarbon elastomers per automotive OEM specifications (e.g., GMW15635, Ford CETP 106-00).
• Thermal stability assessment of conformal coatings, potting compounds, and PCB laminates prior to reflow soldering qualification.
• Pre-conditioning of battery separator films and electrode materials for electrochemical performance benchmarking.
• Validation of packaging material integrity under prolonged elevated-temperature storage conditions (e.g., WHO prequalification for tropical climates).
• Material screening for aerospace applications requiring compliance with AMS 3672 or MIL-DTL-23053 standards.
• Research-grade thermal degradation kinetics studies in polymer science laboratories, supporting Arrhenius modeling and activation energy calculations.

FAQ

What standards does the OVEN-91 support for heat aging validation?
It meets the thermal uniformity, fluctuation, and recovery requirements outlined in ASTM D573, ISO 188, IEC 60068-2-1, and GB/T 3512. Full compliance verification requires on-site calibration using NIST-traceable sensors.
Can the chamber operate continuously at 200 °C for 1,000 hours?
Yes—the chamber’s structural design, insulation integrity, and blower thermal rating are validated for uninterrupted operation at maximum setpoint, provided ambient conditions remain within 5–35 °C and relative humidity ≤85% RH.
Is remote monitoring supported?
Standard RS485 Modbus enables integration with building management systems or custom SCADA dashboards. Ethernet/WiFi connectivity is available via optional gateway module.
Does the unit include validation documentation?
Factory-installed calibration certificates (temperature sensor and controller) are provided. IQ/OQ protocol templates and third-party validation support services are available upon request.
What maintenance intervals are recommended?
Blower motor lubrication every 12 months; filter inspection every 3 months; annual verification of door gasket compression and thermal cutoff functionality per preventive maintenance checklist.
