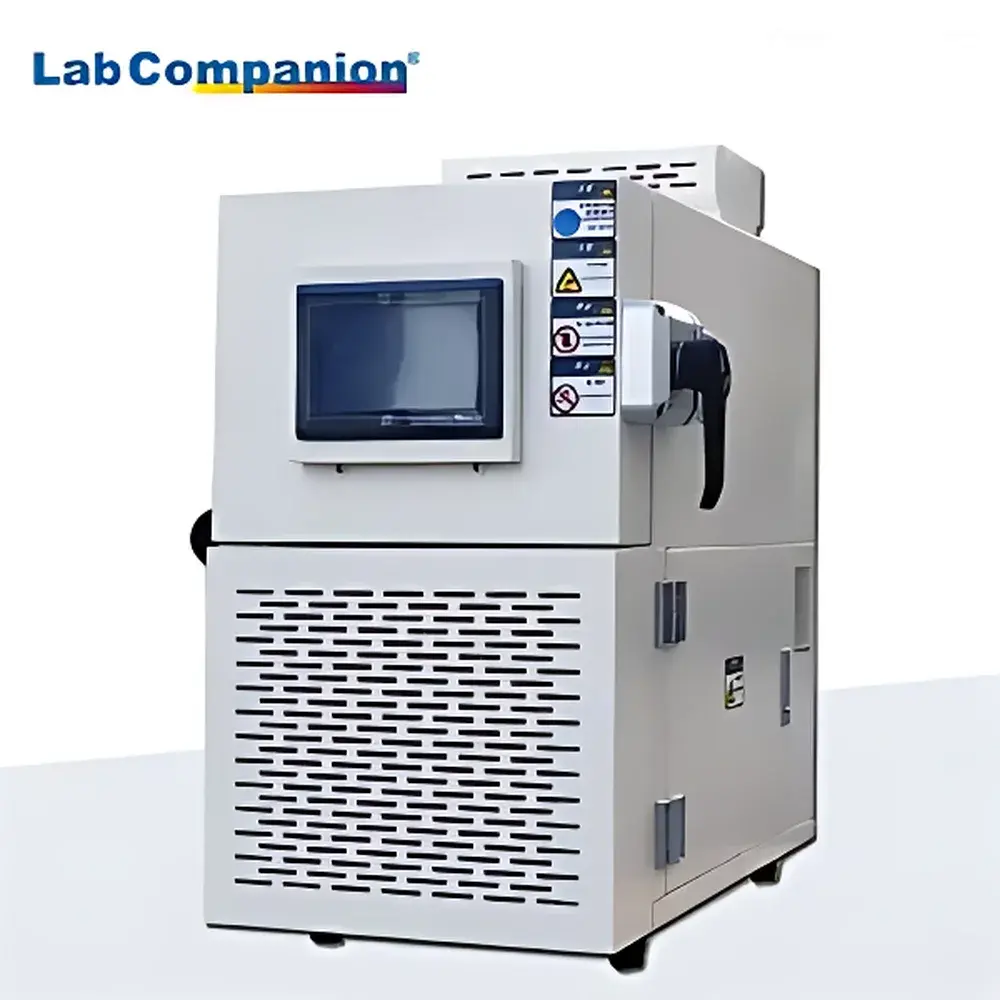

LabCompanion PS80L Photonic Device Thermal Cycling Chamber

Overview

The LabCompanion PS80L Photonic Device Thermal Cycling Chamber is an engineered environmental test system designed specifically for reliability validation and qualification testing of optoelectronic components under controlled thermal stress. It operates on a dual-mode thermodynamic principle—combining high-efficiency vapor-compression refrigeration with precision resistive heating—to achieve stable, repeatable temperature profiles across a wide operational range of −70 °C to +150 °C. Unlike general-purpose climate chambers, the PS80L integrates structural and interface features optimized for flat-panel display manufacturing workflows, including large-format dual-side observation windows, modular tilt-adjustable racks, and humidity-enabled thermal cycling protocols required for TFT-LCD, OLED, LTPS, and LED backlight modules. Its architecture complies with core mechanical and electrical safety standards applicable to Class II industrial equipment (IEC 61000-6-2/6-4, UL 61010-1), and its control firmware supports audit-ready data integrity requirements in regulated environments.

Key Features

• Industrial-grade compressor-based cooling system with cascade configuration for reliable sub-zero operation down to −70 °C
• Microprocessor-controlled temperature regulation using a Japanese-manufactured 7-inch full-color touchscreen interface with bilingual (English/Chinese) navigation and intuitive parameter programming
• Dual independent serial communication ports (RS-232 and RS-485) enabling simultaneous multi-chamber networked control via PC-based SCADA or MES platforms
• Large dual-side viewing window (720 mm × 1520 mm) with anti-fog coating and integrated wiper mechanism to maintain optical clarity during condensation-prone cycles
• Modular interior rack system supporting standardized display panel sizes (10″, 18″, 20″, 30″) and adjustable tilt angles (0°, 30°, 45°, 60°) to replicate real-world mounting configurations
• Integrated auto-fill humidification system maintaining 20–98 %RH with low-maintenance water reservoir design
• Optional 256 MB CompactFlash data logger with user-configurable sampling intervals (1 s to 24 h), supporting timestamped traceability for GLP/GMP-aligned testing records

Sample Compatibility & Compliance

The PS80L is validated for use with rigid and semi-rigid photonic substrates including glass-based TFT-LCD panels, flexible OLED emitters, edge-lit LED backlights, and LTPS driver IC assemblies. Its chamber geometry and airflow distribution meet ISO 16750-4 (Road Vehicles – Environmental Conditions) and JEDEC JESD22-A104 (Temperature Cycling) requirements for thermal shock profile fidelity. While not intrinsically explosion-proof, the unit conforms to IEC 60079-0 general safety provisions for non-hazardous area deployment. All electrical interlocks—including over-temperature cutoff, door-open alarm, and power-fail recovery—follow EN 60204-1 machinery safety directives. For pharmaceutical or medical device applications requiring electronic record integrity, optional firmware upgrades support FDA 21 CFR Part 11-compliant user authentication and audit trail generation.

Software & Data Management

The embedded controller supports local program storage (up to 100 user-defined thermal/humidity profiles) and real-time monitoring of chamber status, setpoint deviation, and sensor health diagnostics. When connected to external PCs via RS-232 or RS-485, the chamber interfaces with LabCompanion’s free PC software suite (Windows-compatible), enabling remote scheduling, multi-unit synchronization, and export of CSV-formatted time-series data. The optional CF memory module logs all critical parameters—including chamber temperature, humidity, ramp rate, and alarm events—with millisecond-level timestamps. Data files are structured to align with ASTM E171 and ISO 17025 documentation frameworks, facilitating third-party calibration verification and internal QA reporting.

Applications

• Thermal cycling qualification of OLED encapsulation layers per MIL-STD-883 Method 1010.8
• High-temperature storage testing of TFT-LCD driver ICs at +125 °C for 1000-hour reliability screening
• Low-temperature operational validation of touch-sensitive display modules at −40 °C
• Humidity-assisted thermal stress testing of adhesive bonds in LED backlight assemblies (e.g., 85 °C / 85 %RH soak followed by rapid cool-down)
• Process window definition for vacuum lamination steps in flexible display manufacturing
• Pre-shipment environmental stress screening (ESS) for automotive-grade displays compliant with AEC-Q200

FAQ

What is the maximum sample weight the PS80L can accommodate without compromising thermal uniformity?

The chamber’s internal load capacity is rated for ≤15 kg distributed evenly across the adjustable rack system. Exceeding this may affect airflow symmetry and compromise the specified ±2.0 °C uniformity.

Does the PS80L support programmable humidity ramping during temperature transitions?

Yes—humidity profiles can be synchronized with temperature ramps using the built-in multi-segment program editor, enabling complex test sequences such as “soak → ramp → hold → condense” per IPC-9701 requirements.

Is calibration certification included with shipment?

Each unit ships with a factory-as-tested report referencing NIST-traceable reference sensors. Full ISO/IEC 17025 calibration certificates are available as a paid option through authorized service partners.

Can the RS-485 port be used for Modbus RTU protocol integration?

Yes—the RS-485 interface implements standard Modbus RTU (slave mode), allowing seamless integration into existing PLC-based facility monitoring systems.

What maintenance intervals are recommended for optimal long-term performance?

Compressor oil and refrigerant levels should be verified annually; air filters require cleaning every 3 months; humidity reservoir and water lines should be descaled quarterly in hard-water regions.
